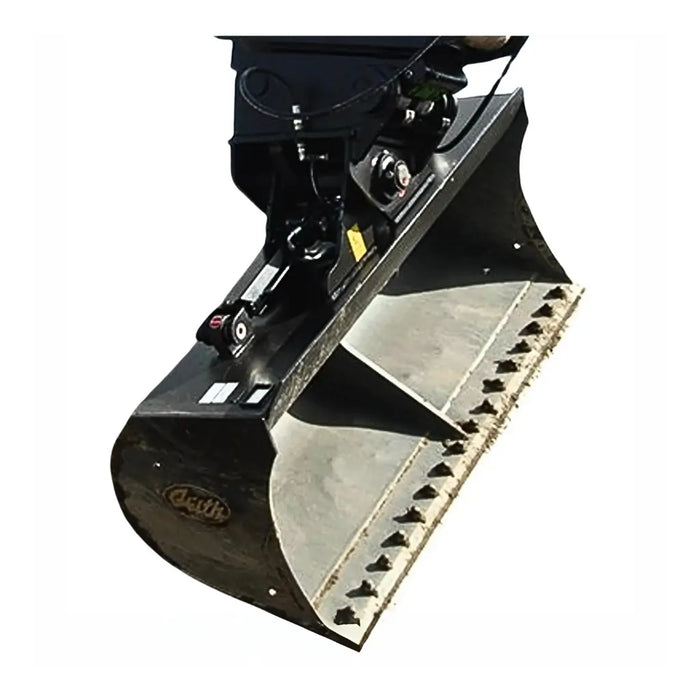

Name: Geith Hydraulic Angle Excavator Tilt Bucket (Dual Ram)
Brand: Geith
SKU: AT18R-1500-15T-WEDGE
Price: 14520.0 USD
Availability: InStock

Geith Hydraulic Angle Excavator Tilt Bucket (Dual Ram)

See more by Geith

2 Videos

Geith Hydraulic Angle Excavator Tilt Bucket (Dual Ram)

Optimal Flow Range 20 - 60 GPM

Estimated Heaped Capacity 22.14 Cubic Feet

Max Operating Pressure 3500 PSI

Commonly Used For

Landscaping

Construction

Sloping

Geith Hydraulic Angle Excavator Tilt Bucket (Dual Ram)

See more by Geith

2 Videos

Limited time deal

$14,520

List Price:

In Stock

Delivery By Thursday, November 06

SKU: AT18R-1500-15T-WEDGE

Weight: 1549.0 lb

Width Excavator Weight Class Mount Option

Frequently Bought With

Product Overview

Elevate your project capabilities with Geith's exclusive Hydraulic Angle Tilt Bucket, specifically crafted for discerning professionals. Engineered for 2-29 ton excavators, achieve a 90-degree tilt for versatile performance. Dual hydraulic cylinders ensure unparalleled holding power. Additional features like spill guards, flow control valves, and reversible bolt-on cutting edges amplify productivity and durability.

Specifications

Machine Type	Model	Width (mm)	Capacity (cubic meters)	Capacity (cubic yds)	Weight (kg)	Weight (lbs)
2-4	AT04-1200	1200 (48)	0.18	0.24	176	80
2-4	AT04-1350	1350 (54)	0.2	0.26	187	85
2-4	AT04-1500	1500 (60)	0.25	0.33	198	90
4-6	AT06-1200	1200 (48)	0.28	0.37	220	100
4-6	AT06-1350	1350 (54)	0.28	0.37	250	113
4-6	AT06-1500	1500 (60)	0.36	0.47	280	127
6 - 11	AT11-1200	1200 (48)	0.40	0.52	377	171
6 - 11	AT11-1500	1500 (60)	0.44	0.58	428	194
6 - 11	AT11-1700	1700 (66)	0.55	0.72	452	205
6 - 11	AT11-1800	1800 (72)	0.57	0.75	478	217
11 - 14	AT14-1500	1500 (60)	0.64	0.84	785	356
11 - 14	AT14-1800	1800 (72)	0.63	0.82	663	301
11 - 14	AT14-2000	2000 (79)	0.57	0.75	848	385
14 - 18	AT18-1500	1500 (60)	0.85	1.11	705	320
14 - 18	AT18-1800	1800 (72)	0.80	1.05	817	371
18 - 25	AT25-1500	1500 (60)	0.93	1.22	743	337
18 - 25	AT25-1800	1800 (72)	1.31	1.71	753	341
18 - 25	AT25-2000	2000 (79)	1.05	1.37	818	371
25 - 29	AT29-1800	1800 (72)	1.22	1.6	923	419
25 - 29	AT29-2000	2000 (79)	1.05	1.37	908	412
25 - 29	AT29-2100	2100 (84)	1.22	1.6	919	417

Technical Documents

Open Geith_Dual-Ram-Tilt_EN

See it in action!

Over 60 Years Of Expertise

What we love about Geith is the consistently high level of performance their equipment puts out. And it makes sense - they've been doing this for over 60 years.

Attachments King is proud to partner with Geith and bring their high-performing attachments to operators nationwide. When you run your equipment hard, the last one standing is always a Geith.

View our Geith Collection
