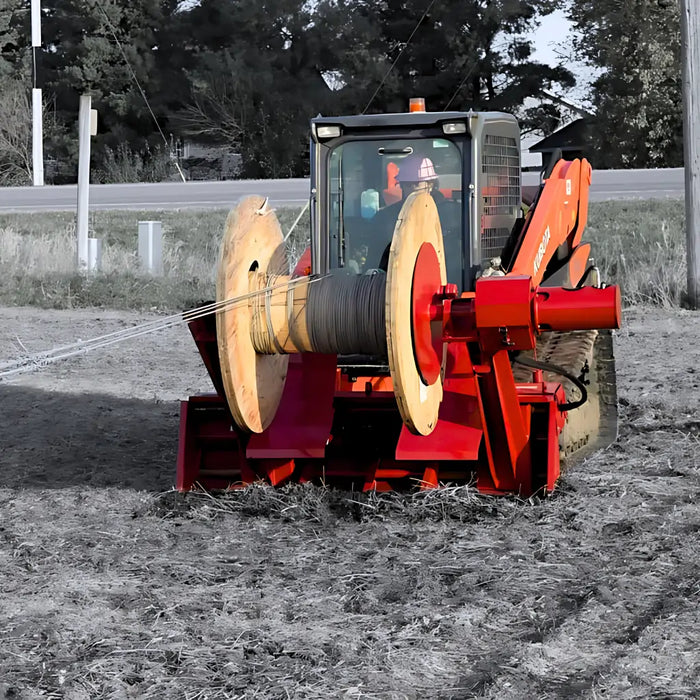

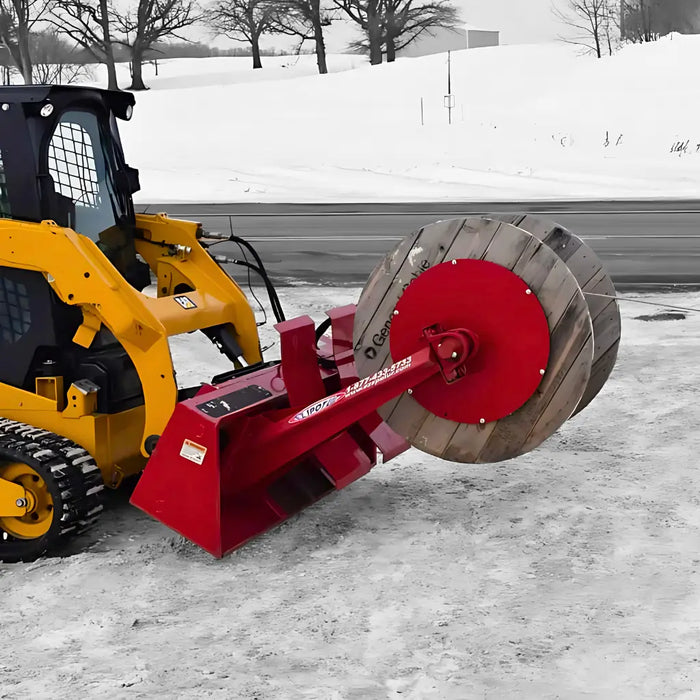

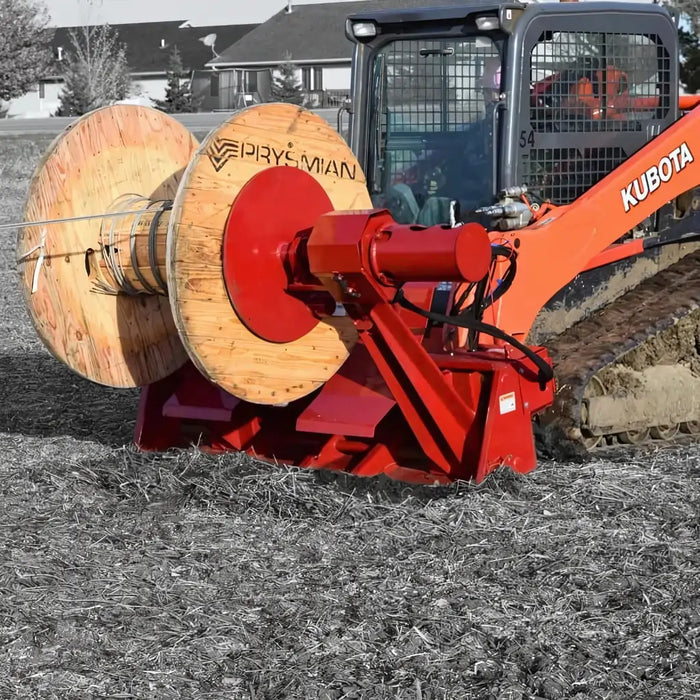

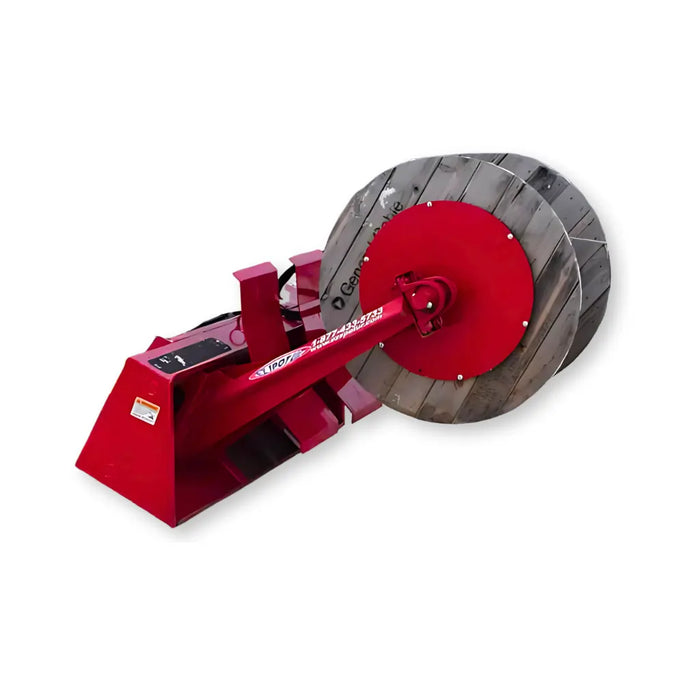

EZ SPOT UR Skid Steer Wire Reel Attachment
Optimal Flow Range
20 - 30 GPM
Mount
Universal Quick 'Tach
Spool Size
Up to 72" Diameter
Commonly Used For
Construction
Storm Clean-Up
Demolition
EZ SPOT UR Skid Steer Wire Reel Attachment
Limited time deal
$20,300
List Price:
Built To Order
Delivery By Saturday, January 24
SKU: EZ-WR01
Weight: 1973.0 lb
1
Frequently Bought With
Product Overview
Elevate your operations with the exclusive EZ SPOT UR Wire Reel. Designed for professionals, this attachment effortlessly handles spools up to 72" in diameter, providing a non-slip grip and free-wheeling capabilities. Experience unparalleled efficiency, durability, and cost-savings. You won't find anything else on the market like it - act now to experience the cutting-edge of innovation.
Specifications
Equipment Specifications:
- Equipped with two 2.5" x 12.5" hydraulic clamp cylinders. Each cylinder has a breakout force of 14,726 lbs.
- The clamping plates are rubber lined for increased grip on the spool.
- Two main shafts are Ø2.5" 4140 that go into center hole of spool.
- Spring-loaded pin catches outer hole in spool for a non-slip grip when winding wire.
- Rotation is powered by a hydraulic motor and planetary gear box combination. Produces a maximum of 46,452 in-lbs of torque and 95 rpm at 3000 psi and 40 gpm.
- Motor has a displacement of 18.7 cubic inches per revolution.
- Gear box has a 5.2:1 reduction ratio.
- Comes complete with hoses, flush faced couplers, spring hose mount, and wiring harness.
- Can be adapted to fit excavators, wheel loaders, telehandlers and backhoes*. *Requires specialty bolt-on mount.
Technical Documents
Open EZ-WR01_Wire_Reel_Spec_Sheet
What's Included
What's Included:
- EZ SPOT UR Skid Steer Wire Reel Attachment, Assembled w/ Quick-Tach Included
- Full Set of Hydraulic Hoses, Couplers Included: Hose length and couplers matched to your vehicle
- EZ SPOT UR Wire Harness matched to your vehicle, includes Wire Tool for Pin Adjustment.
- EZ SPOT UR Wire Reel Operating Manual & Wiring Installation Instructions
- EZ SPOT UR 12-Month Manufacturer Warranty
- Attachments King Vehicle Compatibility Guarantee
- BONUS! 30-Day Dedicated 1-on-1 Support for Attachment Install & Use from an Attachments King Expert
Shipping & Returns
We offer FREE 2-5 day shipping (LTL Freight and Residential) for all orders over $5,000. Orders under that total will have shipping calculated at checkout. Products will ship out in 1-3 business days and tracking information will be provided. 30-DAY NO HASSLE REFUNDS AND RETURNS If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com. More information on refunds and returns can be found here.
