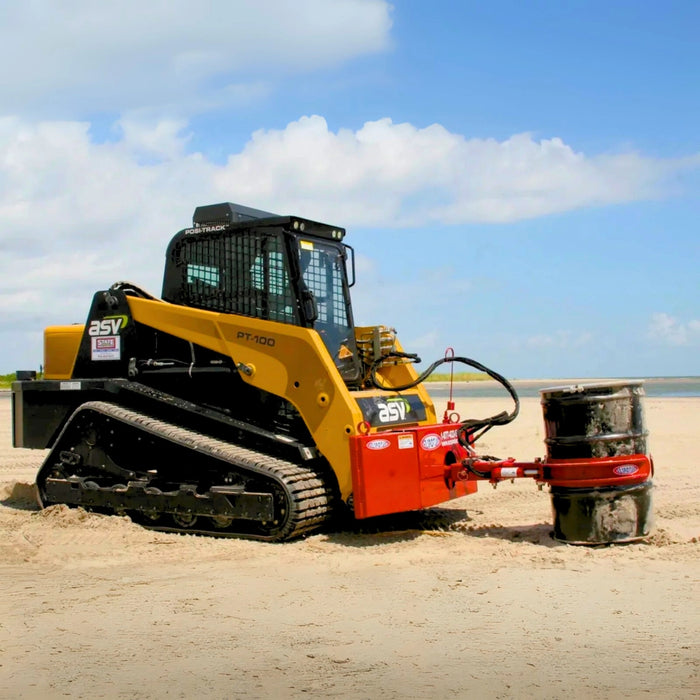

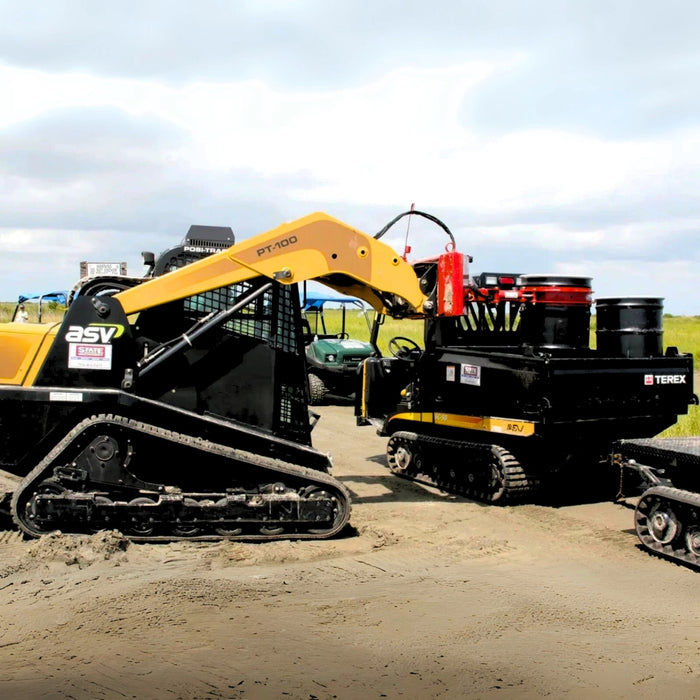

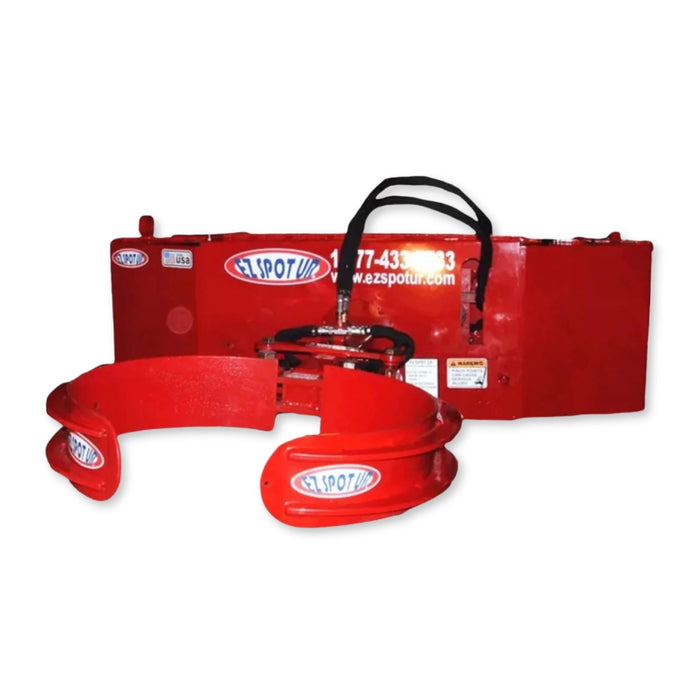

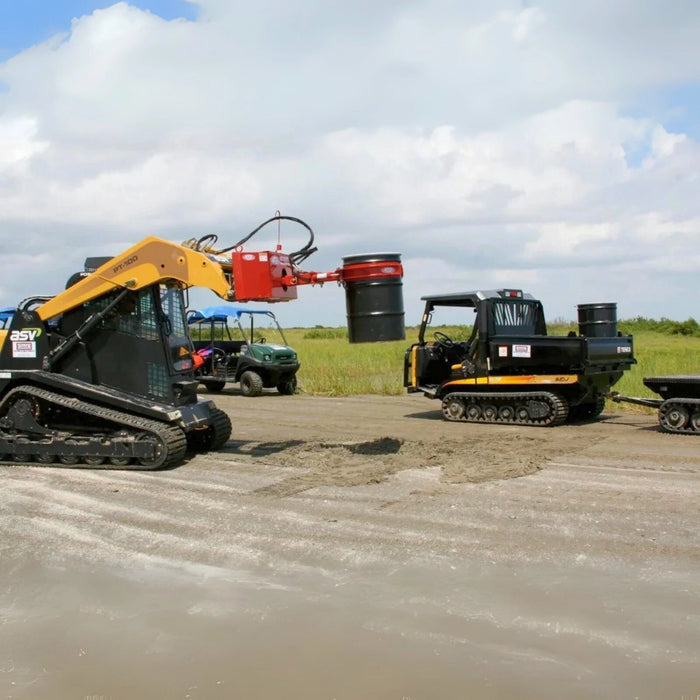

Skid Steer Barrel Handler Attachment - EZ SPOT UR
See more by EZ SPOT UR
2 Videos
Skid Steer Barrel Handler Attachment - EZ SPOT UR Skid Steer Barrel Handler Attachment - EZ SPOT UR Skid Steer Barrel Handler Attachment - EZ SPOT UR Skid Steer Barrel Handler Attachment - EZ SPOT UR
Skid Steer Barrel Handler Attachment - EZ SPOT UR Skid Steer Barrel Handler Attachment - EZ SPOT UR Skid Steer Barrel Handler Attachment - EZ SPOT UR Skid Steer Barrel Handler Attachment - EZ SPOT UR
Optimal Flow Range 20 - 30 GPM
Load Capacity 1,200 lbs
Rotation No Rotation
Commonly Used For
Construction
Waste Removal
Land Clearing
Skid Steer Barrel Handler Attachment - EZ SPOT UR
See more by EZ SPOT UR
2 Videos
Limited time deal
$2,080
List Price:
Compatible Others compatible Not compatible
In Stock
Delivery By Wednesday, November 05
SKU: EZ-0002
Weight: 174.0 lb
1

Frequently Bought With

Frequently Bought With

Frequently Bought With

Frequently Bought With

Frequently Bought With

Frequently Bought With

Frequently Bought With

Frequently Bought With

Frequently Bought With

Frequently Bought With

Frequently Bought With

Frequently Bought With

Frequently Bought With

Frequently Bought With

Frequently Bought With

Frequently Bought With

Product Overview
down arrow

Elevate your waste management operations with EZ SPOT UR's exclusive Barrel Handler. This game-changing attachment transforms 55-gallon barrel handling, offering 350° rotation for unparalleled efficiency and safety. Dramatically cut operational costs and boost output by joining the exclusive team of operators on the cutting edge of innovation.

    🏆 High-Performance Equipment
    ⏳ Saves Hours Of Work👇 Specifications Below

    Specifications
    down arrow

    Key Features:

  • Attaches to a skid steer or any other machine that is equipped with the Universal Quick 'Tach mounting system.
  • Rotates 350° non-continuous (175° to the left, 175° to the right) when attached to the EZ Spot UR Chain Rotating Base.
  • Rotates 127° to the operators left when attached to an EZ Spot UR Double Cylinder Rotating Base.
  • Can also be attached to an EZ Spot UR Fixed Non-Rotating Base.
  • Jaws open to 39.5 inches and close down to 21 inches.
  • Comes complete with hoses, flush faced couplers, spring hose mount, and wiring harness.
  • Handles 55 gallon barrels, 30 gallon barrels, plastic barrels and can be modified to fit 110 gallon barrels.
  • Composed of Grade 50 material or higher and core welded.

    •

    Equipment Specifications

  • Two 2" x 3.5" clamp cylinders securely hold the barrel in place. Each cylinder has a breakout force of 9,425 lbs.
  • Anti-static lining reduces slippage and the risk of shock.
  • Guaranteed not to crush metal or plastic barrels.
  • Can be adapted to fit mini-excavators, wheel loaders, telehandlers and backhoes*.

    • *Requires specialty bolt-on mount.



    Technical Documents
    down arrow
    Open EZ-0002_55_Gallon_Barrel_Handler_Spec_Sheet
    What's Included
    down arrow
    What's Included:



    If "No Attachment Base" is selected at time of order:

    • EZ SPOT UR Barrel Handler Skid Steer Grapple Attachment Head Only -- 2" Hex Output Shaft to mount to an existing EZ SPOT UR Attachment Base
    • Hydraulic Hoses, Couplers Included -- Used to connect the grapple head to an existing Attachment Base
    • EZ SPOT UR Barrel Handler Operating Manual
    • Optional Barrel Inserts Pre-Installed on EZ SPOT UR Barrel Handler if selected at time of order
    • Optional Plastic Barrel Positioning Shoe if selected at time of order

    If "Fixed Non-Rotating Attachment Base" is selected at time of order:

    • EZ SPOT UR Barrel Handler Skid Steer Grapple Attachment Head
    • Fixed Non-Rotating Attachment Base w/ Quick-Tach Included
    • Hydraulic Hoses, Couplers Included: Hose length and couplers matched to your vehicle
    • EZ SPOT UR Barrel Handler Operating Manual
    • Optional Barrel Inserts Pre-Installed on EZ SPOT UR Barrel Handler if selected at time of order
    • Optional Plastic Barrel Positioning Shoe if selected at time of order

    If "Double Cylinder Rotating Attachment Base" is selected at time of order:

    • EZ SPOT UR Barrel Handler Skid Steer Grapple Attachment Head
    • Double Cylinder Rotating Attachment Base w/ Quick-Tach Included
    • Hydraulic Hoses, Couplers Included: Hose length and couplers matched to your vehicle
    • EZ SPOT UR Wire Harness matched to your vehicle, includes Wire Tool for Pin Adjustment.
    • EZ SPOT UR Barrel Handler Operating Manual & Wiring Instructions
    • Optional Barrel Inserts Pre-Installed on EZ SPOT UR Barrel Handler if selected at time of order
    • Optional Plastic Barrel Positioning Shoe if selected at time of order

    If "Chain Rotating Attachment Base" is selected at time of order:

    • EZ SPOT UR Barrel Handler Skid Steer Grapple Attachment Head
    • Chain Rotating Attachment Base w/ Quick-Tach Included
    • Hydraulic Hoses, Couplers Included: Hose length and couplers matched to your vehicle
    • EZ SPOT UR Wire Harness matched to your vehicle, includes Wire Tool for Pin Adjustment.
    • EZ SPOT UR Barrel Handler Operating Manual & Wiring Instructions
    • Optional Barrel Inserts Pre-Installed on EZ SPOT UR Barrel Handler if selected at time of order
    • Optional Plastic Barrel Positioning Shoe if selected at time of order

    All of the above configurations also include:

    • EZ SPOT UR 12-Month Manufacturer Warranty
    • Attachments King Vehicle Compatibility Guarantee
    • BONUS! 30-Day Dedicated 1-on-1 Support for Attachment Install & Use from an Attachments King Expert
    Shipping & Returns
    down arrow
    We offer FREE 2-5 day shipping (LTL Freight and Residential) for all orders over $5,000. Orders under that total will have shipping calculated at checkout. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com.

More information on refunds and returns can be found here.
    Warranty
    down arrow

    EZ-Spot-UR attachments are built with iron-clad reinforcement. For even greater peace of mind, every serial-numbered attachment is backed by a 12-month warranty.

    This coverage applies to proved defects in material and workmanship on all attachment components, except normal wear items.

    An EZ-Spot-UR attachment is defined as either being manufactured by EZ-Spot-UR Inc.

    Refer to the manufacturer's manual for full warranty details.

    The following warranty applies to the specific components below:

    Components such as but not limited to: drive and digging chains, cutting tooth alignment, etc., are considered normal maintenance, and will not be covered under warranty after 30 days of operation.

    Electrical harnesses, plugs, and other electrical components are considered normal maintenance, and will not be covered under warranty after 30 days.
