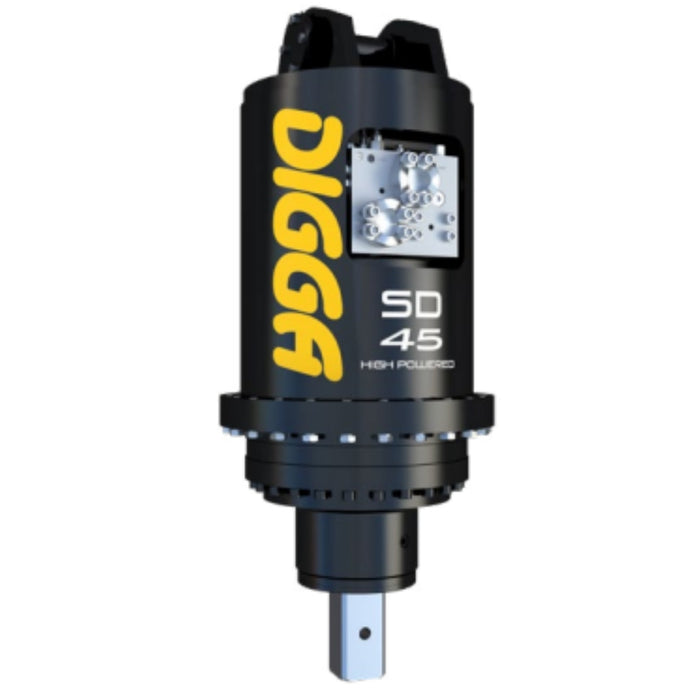

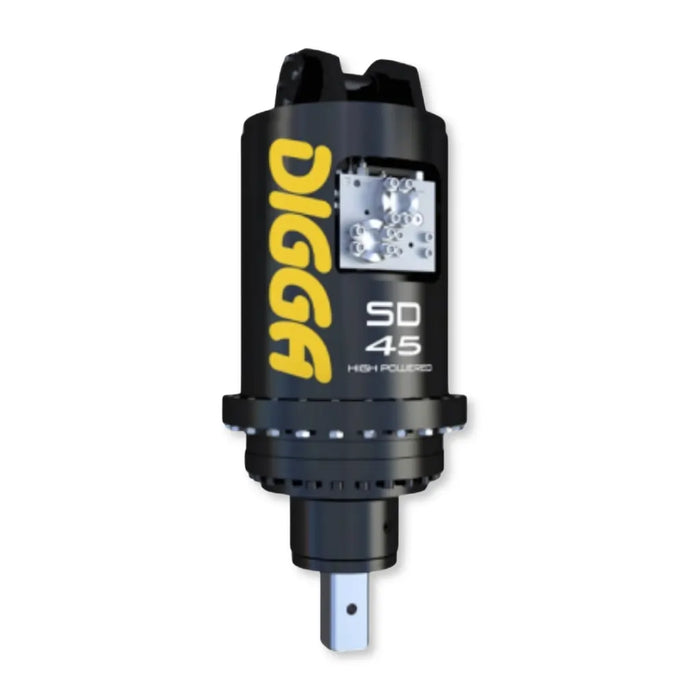

Digga SD45HPS High Powered "Supa" Drilling Single Speed Auger Drive
Max Pressure
5000 PSI @ 70 GPM
Output Shaft
100 mm Square
Included Valves
Pressure Relief
Commonly Used For
Foundation Construction
Utility Pole Installation
Bridge and Highway Construction
Digga SD45HPS High Powered "Supa" Drilling Single Speed Auger Drive
Limited time deal
$33,100
List Price:
Built To Order
Delivery By Sunday, November 16
SKU: SD45HPS
Weight: 1600.0 lb
1
Frequently Bought With
Product Overview

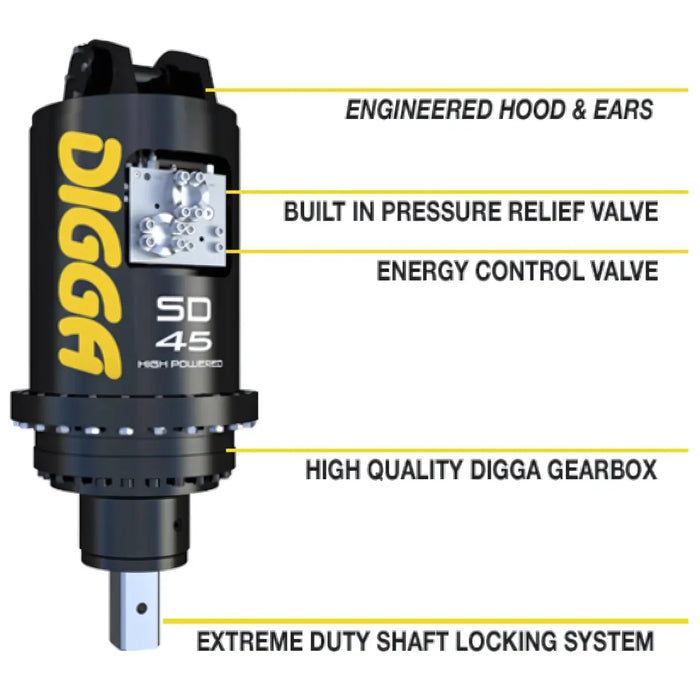

Experience drilling like never before with the Digga SD45HPS "Supa" Drive, exclusively designed for professionals. This high-powered, single-speed auger drive operates at an unparalleled 5,000psi, offering peak performance without compromising your machine. Featuring a precision-engineered Digga gearbox and built-in PRV, it sets the standard for heavy-duty drilling. Note: Hoses and Mount sold separately.
Specifications
| SPECS | SD45HPS | SD50HPS | SD70HPS | SD80HPS | SD95HPS |
| MAX TORQUE (FT-LBS) | 33,654 | 39,463 | 51,634 | 62,638 | 69,244 |
| MAX SPEED (RPM) | 46 | 39 | 30 | 25 | 22 |
| MAX FLOW (GPM) | 100 GPM @ 3,500 PSI | ||||
| MAX PRESSURE - DO NOT EXCEED | 5,000 PSI @70 GPM | ||||
| MAX HORSE POWER | 201 | 201 | 201 | 201 | 201 |
| MOTOR TYPE | RADIAL PISTON | RADIAL PISTON | RADIAL PISTON | RADIAL PISTON | RADIAL PISTON |
| PRESSURE RELIEF VALVE | INCLUDED | INCLUDED | INCLUDED | INCLUDED | INCLUDED |
| ENERGY CONTROL VALVE | NOT INCLUDED | NOT INCLUDED | NOT INCLUDED | NOT INCLUDED | NOT INCLUDED |
| STANDARD OUTPUT SHAFT | 100MM SQUARE |
100MM SQUARE |
100MM SQUARE |
100MM SQUARE |
100MM SQUARE |
| HALO | OPTIONAL | OPTIONAL | OPTIONAL | OPTIONAL | OPTIONAL |
| RECOMMENDED AUGER | RC11 / DR11 | RC11 / DR11 | RC11 / DR11 | RC11 / DR11 | RC11 / DR11 |
| MAX AUGER DIAMETER (CLAY / SHALE)* |
60" | 60" | 60" | 60" | 60" |
| MAX AUGER DIAMETER (EARTH)* | 79" | 79" | 79" | 79" | 79" |
| WEIGHT (LBS) | 1,843 | 1,843 | 1,843 | 1,843 | 1,843 |
| OVERALL LENGTH (IN) | 50.9" | 50.9" | 50.9" | 50.9" | 50.9" |
| DIAMETER (IN) | 23.6" | 23.6" | 23.6" | 23.6" | 23.6" |
Technical Documents
Open Supa-DrivesHP_-_Single_Speed-Drilling
