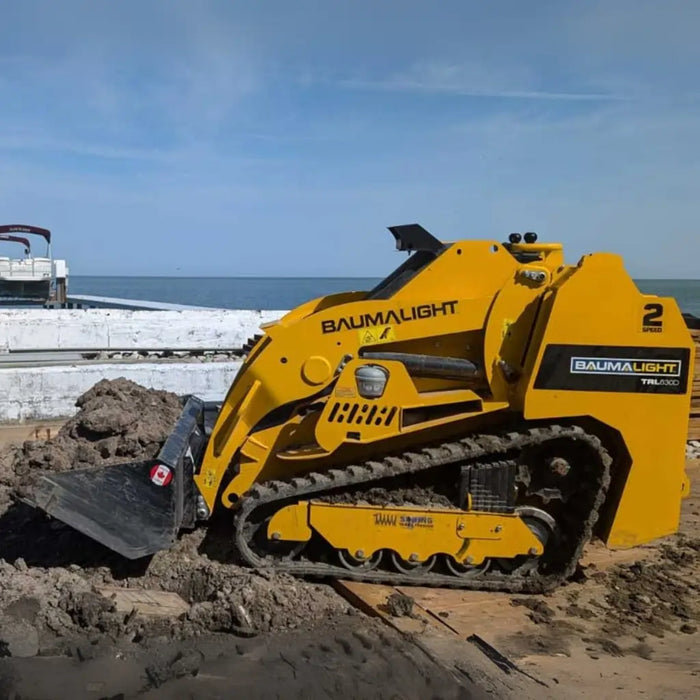

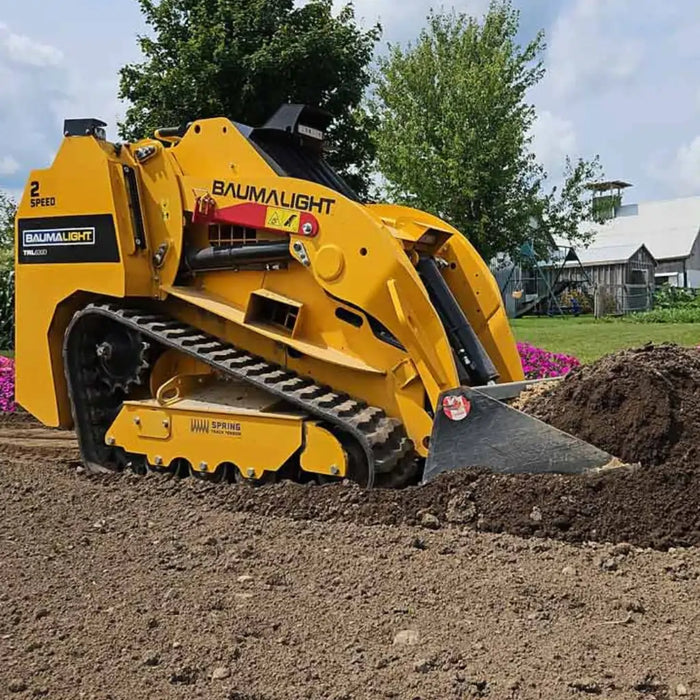

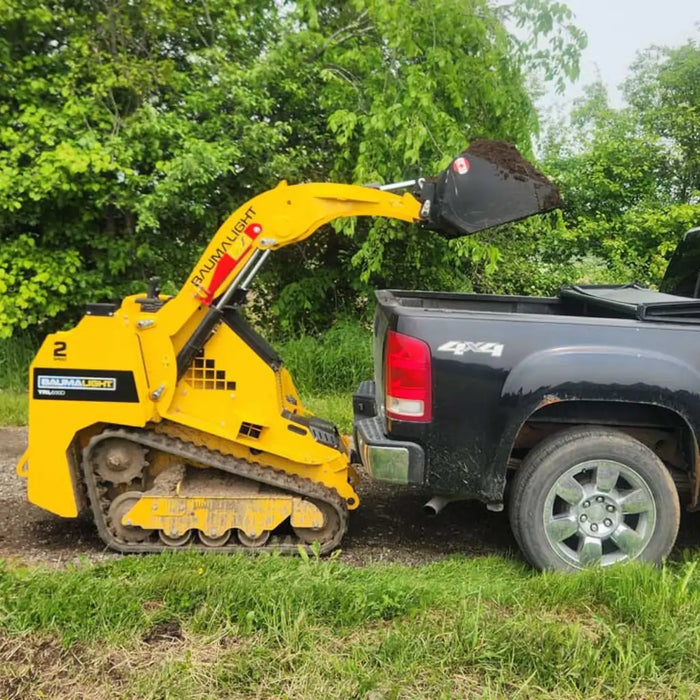

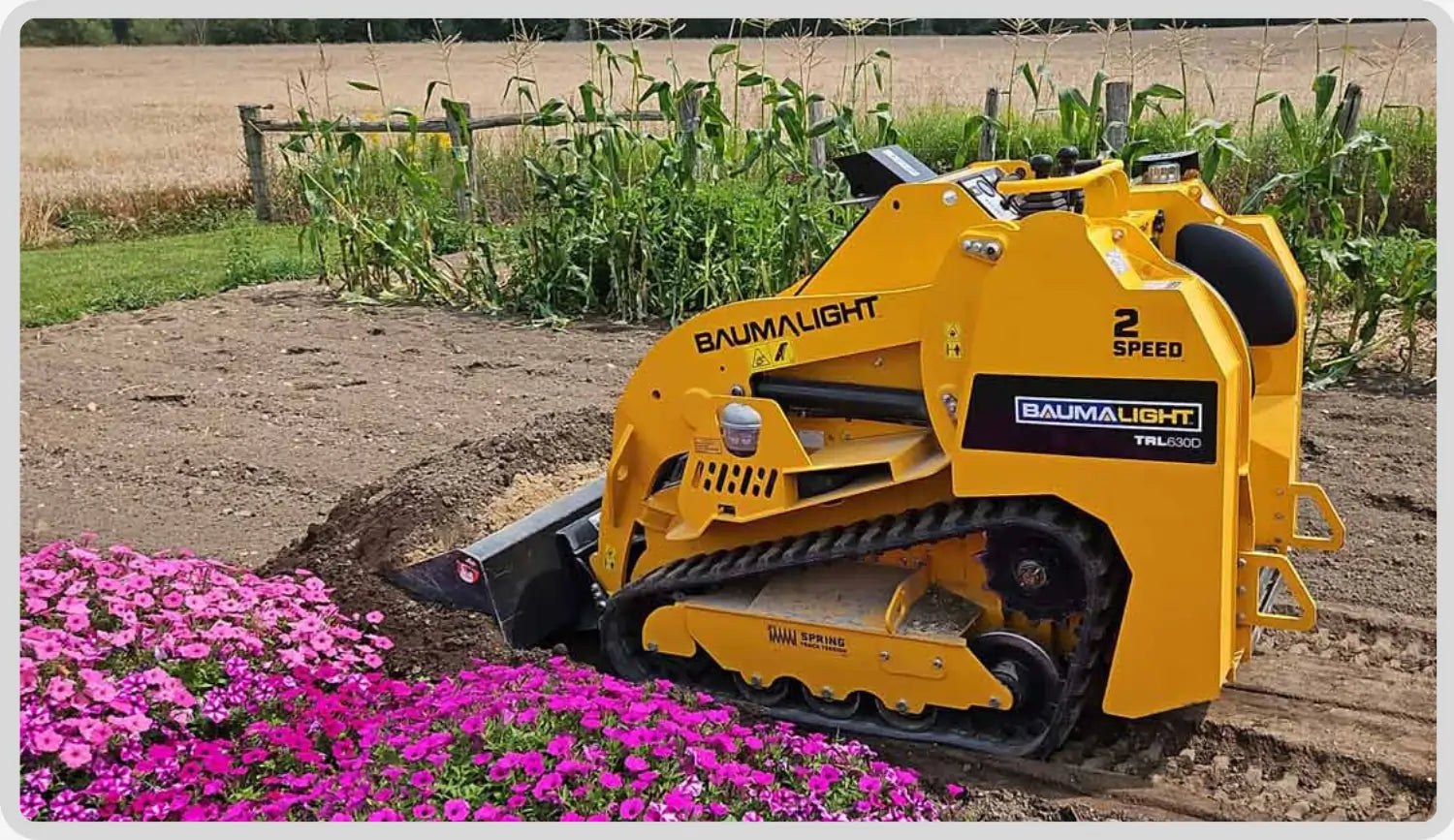

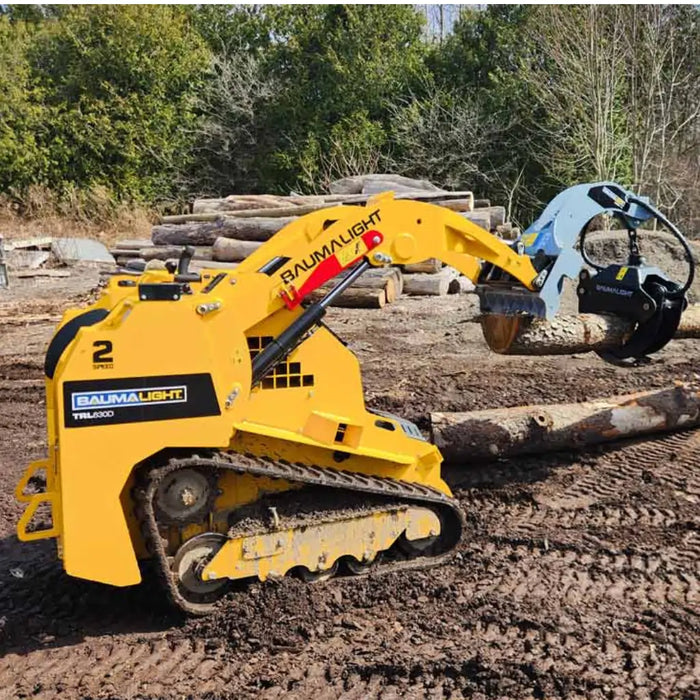

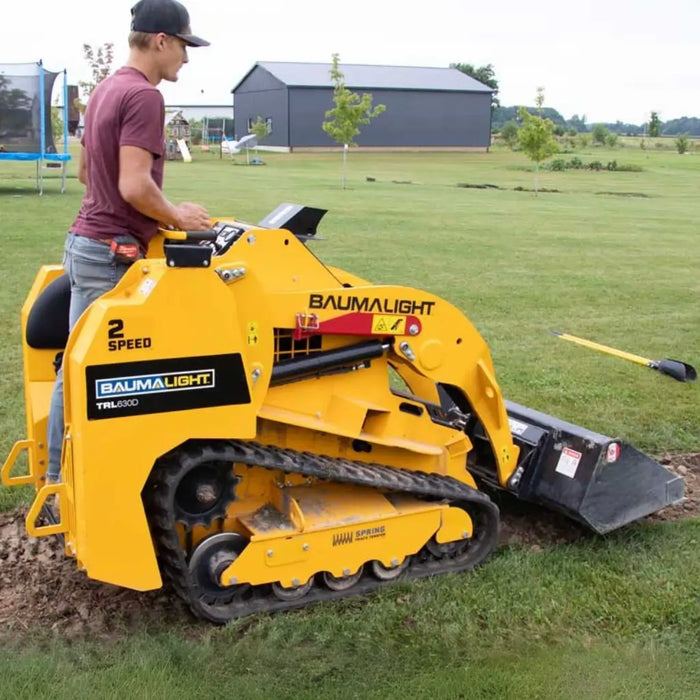

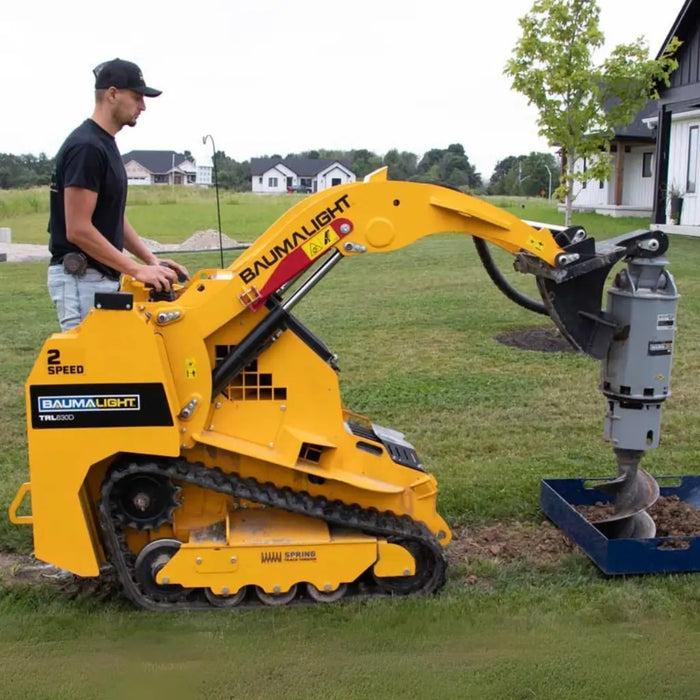

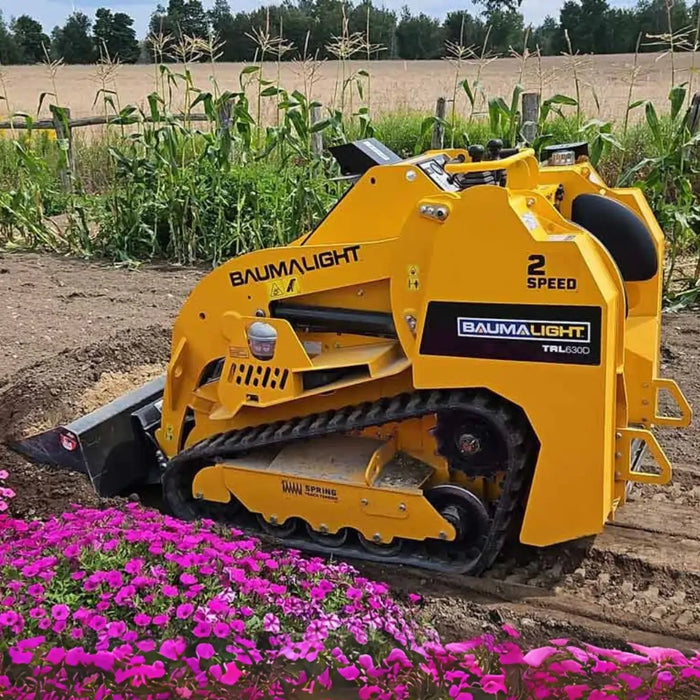

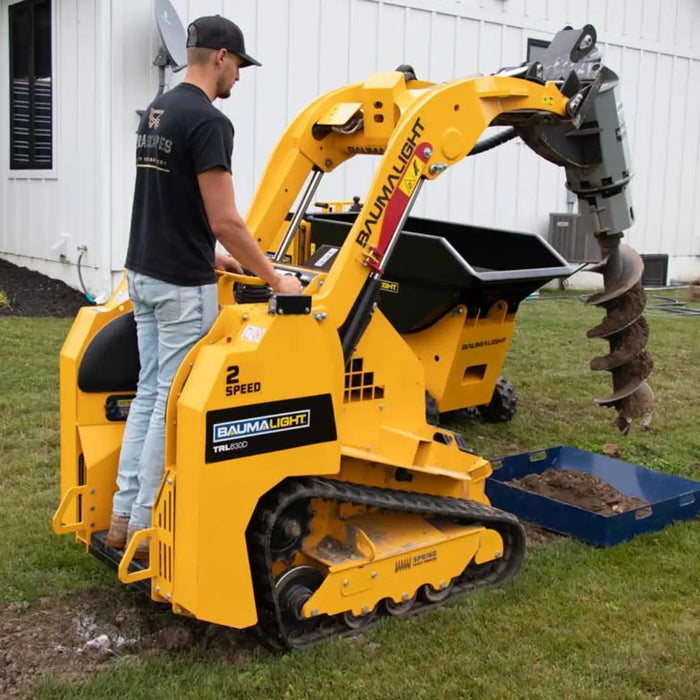

The Baumalight TRL630D Mini Track Loader delivers compact power with a 2-speed Kubota diesel design for unmatched versatility. Built on the proven TRL620D platform, the TRL630D adds high-speed travel with automatic load sensing that reduces speed and increases bulldozing power when needed. Featuring hydrostatic drive with joystick controls, a three-pump hydraulic system, and a self-leveling bucket, this loader provides smooth and efficient operation. Durable rubber tracks ensure stability on uneven terrain, while the rugged all-metal frame and raised operator platform maximize durability and visibility.
| Specification | WRL58G | TRL536D | TRL620D | TRL620Y | TRL630D | TRL630Y |
|---|---|---|---|---|---|---|
| Gross Engine HP | N/A | 24.8 HP | 24.8 HP | 23.9 HP | 24.8 HP | 23.9 HP |
| Net Engine HP | 22.1 HP | 23.9 HP | 23.9 HP | 22.8 HP | 23.9 HP | 22.8 HP |
| Peak Gross Engine Torque | N/A | 52.7 ft/lb | 52.7 ft/lb | 46 ft/lb | 52.7 ft/lb | 46 ft/lb |
| Displacement | 0.688 L | 1.1 L | 1.1 L | 1.267 L | 1.1 L | 1.267 L |
| Engine Type | Gas | Diesel | Diesel | Diesel | Diesel | Diesel |
| Fuel Tank Size | 12.5 L | 29.25 L | 40 L | 40 L | 40 L | 40 L |
| Engine Brand | Honda | Kubota | Kubota | Yanmar | Kubota | Yanmar |
| Model | GX690 | D1105 | D1105 | 3TNV80F | D1105 | 3TNV80F |
| Drive Type | Hydrostatic | Hydrostatic | Hydrostatic | Hydrostatic | Hydrostatic | Hydrostatic |
| Drive Control | Joy stick | Joy stick | Joy stick | Joy stick | Joy stick | Joy stick |
| Carriage | Tires | Tracks | Tracks | Tracks | Tracks | Tracks |
| Size | 18 x 8.50-10 6P | 150x72x45 (upgradable) | 230x72x45 | 230x72x45 | 230x72x45 | 230x72x45 |
| Travel Speed (old) | 7.84 km/h | 5.7 km/h | 4.57 km/h | 4.57 km/h | - | - |
| Travel Speed | Same | 8.8 km/h (Shipped after Dec 2024) | 5.7 km/h (Shipped after Apr 2024) | 5.7 km/h (Shipped after Apr 2024) | 8.8 km/h | 8.8 km/h |
| Ground Weight (w/o kit) | 5.5 lbs/sq in | 5.7 lbs/sq in (Narrow) 3.9 lbs/sq in (Wide) | 4 lbs/sq in | 4 lbs/sq in | 4 lbs/sq in | 4 lbs/sq in |
| Relief Setting (psi) | 2,730 | 3,000 | 3,000 | 3,000 | 3,000 | 3,000 |
| GPM Under No Load | 11 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 |
| Hydraulic Reservoir Capacity | 40 L | 29.25 L | 40 L | 40 L | 40 L | 40 L |
| Number of Pumps | 3 | 3 | 3 | 3 | 3 | 3 |
| Boom Control | Joy stick | Joy stick | Joy stick | Joy stick | Joy stick | Joy stick |
| Self Leveling | No | No | Yes | Yes | Yes | Yes |
| Pin Height | 70" | 76" | 76" | 76" | 76" | 76" |
| Ground Clearance | 8" | 6.5" | 6.5" | 6.5" | 6.5" | 6.5" |
| Width (w/o bucket) | 38" | 35.5" (Narrow) 37.9" (Wide) | 40" | 40" | 40" | 40" |
| Length (w/o bucket) | 62" | 70" | 70" | 72" | 70" | 72" |
| Tilt Breakout Force | 2340 | 3620 | 3620 | 3620 | 3620 | 3620 |
| With Extra Weight | 3300 | 3620 | 3620 | 3620 | 3620 | 3620 |
| Lift Breakout Force | 1385 | 1830 | ~2100 | ~2100 | 2100 | ~2100 |
| With Extra Weight | 1900 | 1950 | ~2260 | ~2260 | 2260 | ~2260 |
| Weight (lbs) | 1,800 | 2,523 | 2,930 | 3,140 | 2,930 | 3,140 |
| Weight with Kit | 2,200 | 2,660 | 3,170 | 3,380 | 3,170 | 3,380 |
