Name: Baumalight Mini Track Loader powered by Yanmar
Brand: Baumalight
SKU: TRL620Y
Price: 30220.0 USD
Availability: InStock

Baumalight Mini Track Loader powered by Yanmar

See more by Baumalight

3 Videos

Baumalight Mini Track Loader powered by Yanmar

Hydraulic Flow 10.5 GPM

Lift Capacity 1720 Lbs

Attachment Interface Mini Universal Quick-Tach

Commonly Used For

Construction

Landscaping

Personal Use

Baumalight Mini Track Loader powered by Yanmar

See more by Baumalight

3 Videos

Limited time deal

$30,220

List Price:

In Stock

Delivery By Monday, November 10

SKU: TRL620Y

Weight: 3140.0 lb

Mount Option Weight Kit

1

Frequently Bought With

Product Overview

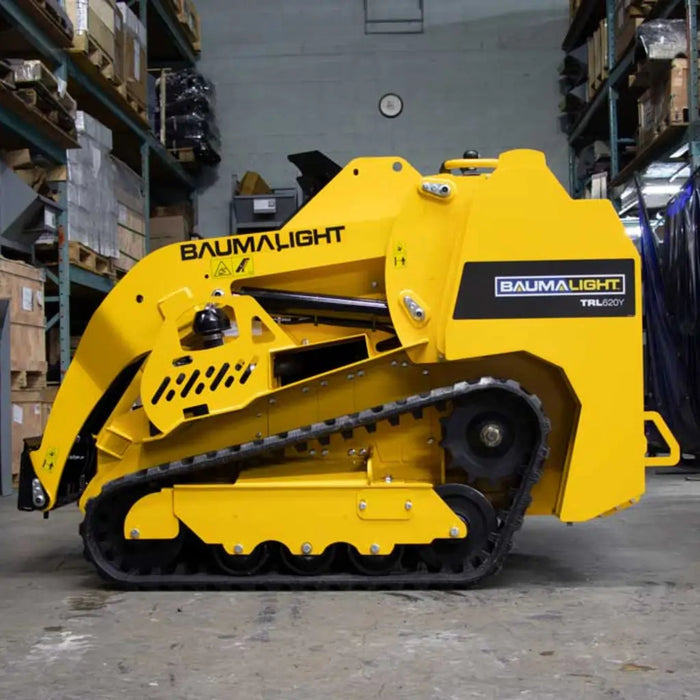

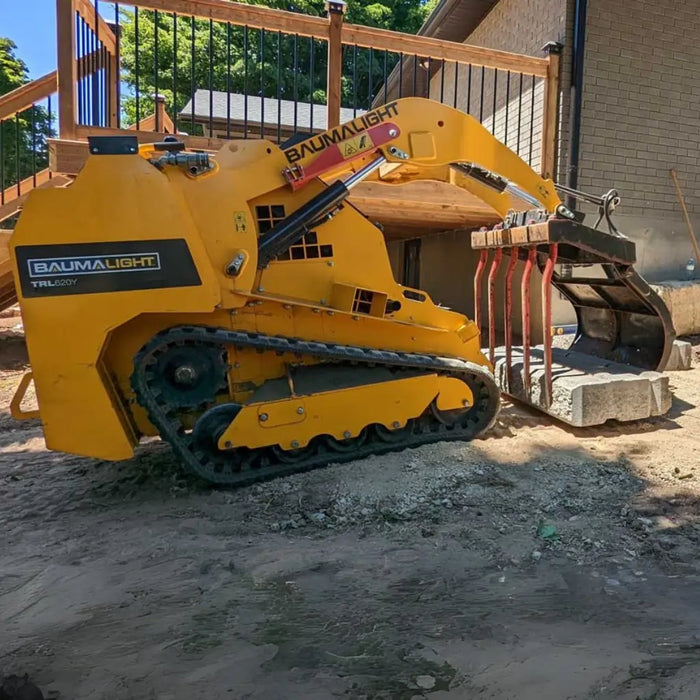

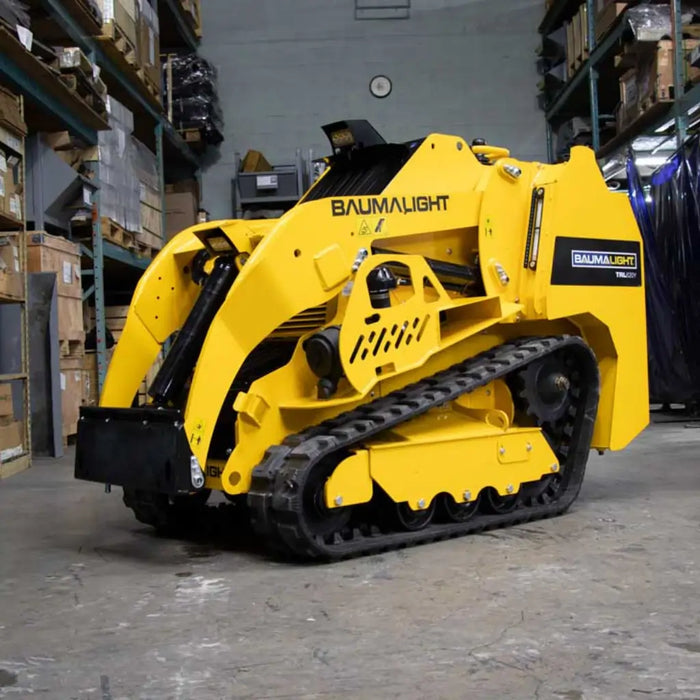

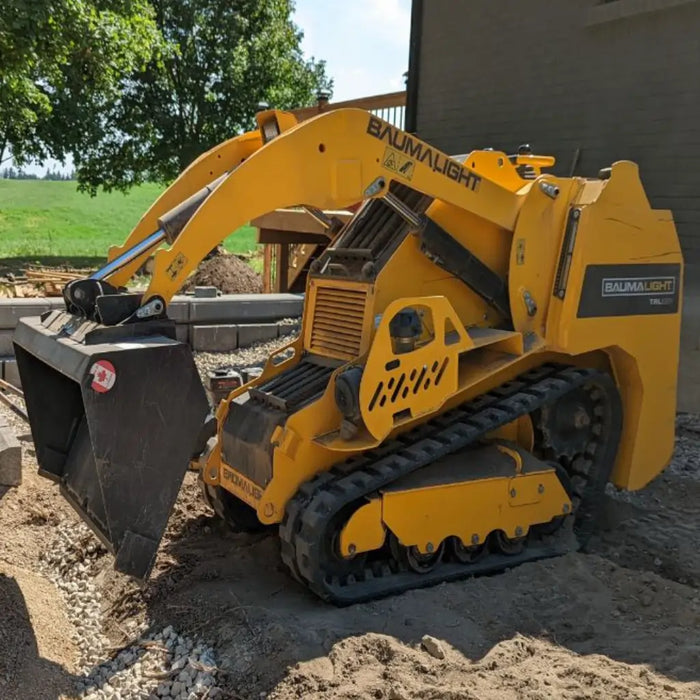

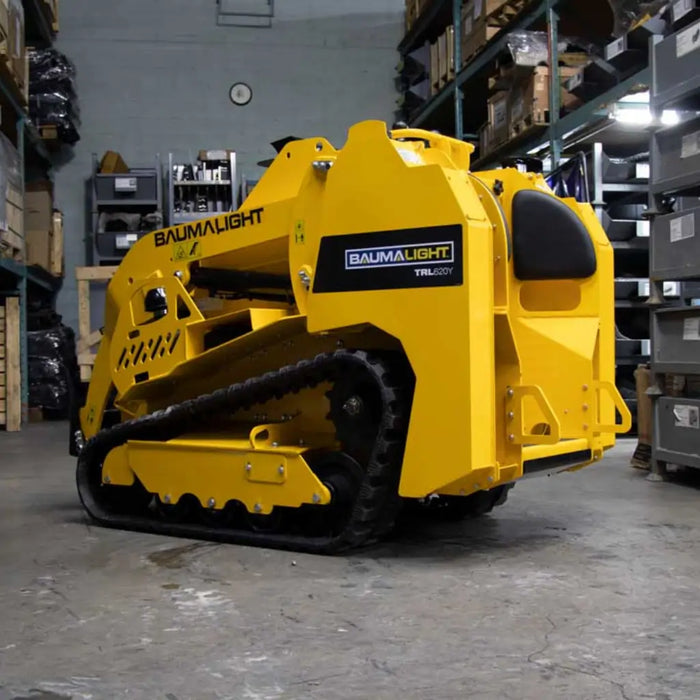

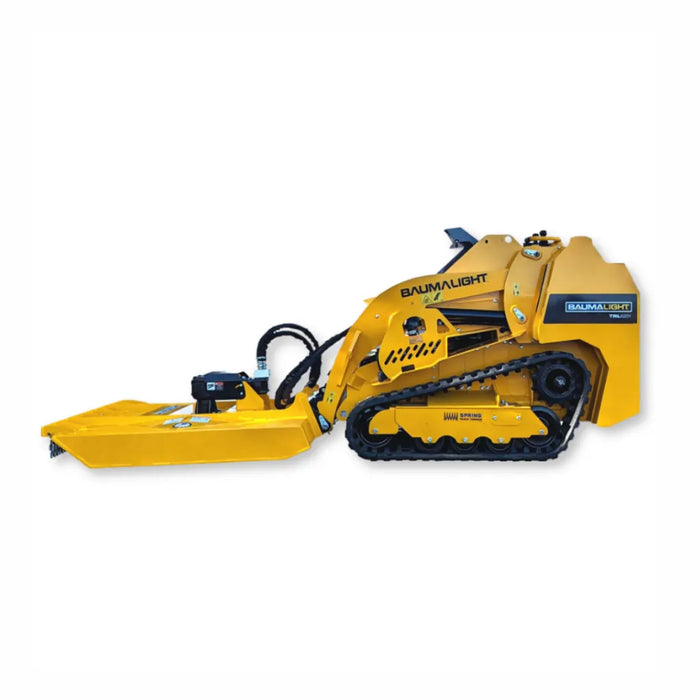

The Baumalight TRL620Y Mini Track Loader is a compact, stand-on track loader powered by a robust Yanmar diesel engine. Designed and manufactured in Ontario, Canada, this 36” loader combines maneuverability with added torque and a slightly longer frame for increased lifting capacity. Featuring hydrostatic drive with dual joystick controls, a three-pump hydraulic system, and a self-leveling bucket, the TRL620Y delivers smooth operation and precise control. Durable rubber tracks provide excellent traction on rough terrain, while the raised ride-on platform offers superior visibility in tight spaces. Built with an all-metal frame, the TRL620Y is rugged, reliable, and ready for tough jobs.

✔ Yanmar Diesel Power
✔ Extra Torque

Specifications

Specification	WRL58G	TRL536D	TRL620D	TRL620Y	TRL630D	TRL630Y
Gross Engine HP	N/A	24.8 HP	24.8 HP	23.9 HP	24.8 HP	23.9 HP
Net Engine HP	22.1 HP	23.9 HP	23.9 HP	22.8 HP	23.9 HP	22.8 HP
Peak Gross Engine Torque	N/A	52.7 ft/lb	52.7 ft/lb	46 ft/lb	52.7 ft/lb	46 ft/lb
Displacement	0.688 L	1.1 L	1.1 L	1.267 L	1.1 L	1.267 L
Engine Type	Gas	Diesel	Diesel	Diesel	Diesel	Diesel
Fuel Tank Size	12.5 L	29.25 L	40 L	40 L	40 L	40 L
Engine Brand	Honda	Kubota	Kubota	Yanmar	Kubota	Yanmar
Model	GX690	D1105	D1105	3TNV80F	D1105	3TNV80F
Drive Type	Hydrostatic	Hydrostatic	Hydrostatic	Hydrostatic	Hydrostatic	Hydrostatic
Drive Control	Joy stick	Joy stick	Joy stick	Joy stick	Joy stick	Joy stick
Carriage	Tires	Tracks	Tracks	Tracks	Tracks	Tracks
Size	18 x 8.50-10 6P	150x72x45 (upgradable)	230x72x45	230x72x45	230x72x45	230x72x45
Travel Speed (old)	7.84 km/h	5.7 km/h	4.57 km/h	4.57 km/h	-	-
Travel Speed	Same	8.8 km/h (Shipped after Dec 2024)	5.7 km/h (Shipped after Apr 2024)	5.7 km/h (Shipped after Apr 2024)	8.8 km/h	8.8 km/h
Ground Weight (w/o kit)	5.5 lbs/sq in	5.7 lbs/sq in (Narrow) 3.9 lbs/sq in (Wide)	4 lbs/sq in	4 lbs/sq in	4 lbs/sq in	4 lbs/sq in
Relief Setting (psi)	2,730	3,000	3,000	3,000	3,000	3,000
GPM Under No Load	11	10.5	10.5	10.5	10.5	10.5
Hydraulic Reservoir Capacity	40 L	29.25 L	40 L	40 L	40 L	40 L
Number of Pumps	3	3	3	3	3	3
Boom Control	Joy stick	Joy stick	Joy stick	Joy stick	Joy stick	Joy stick
Self Leveling	No	No	Yes	Yes	Yes	Yes
Pin Height	70"	76"	76"	76"	76"	76"
Ground Clearance	8"	6.5"	6.5"	6.5"	6.5"	6.5"
Width (w/o bucket)	38"	35.5" (Narrow) 37.9" (Wide)	40"	40"	40"	40"
Length (w/o bucket)	62"	70"	70"	72"	70"	72"
Tilt Breakout Force	2340	3620	3620	3620	3620	3620
With Extra Weight	3300	3620	3620	3620	3620	3620
Lift Breakout Force	1385	1830	~2100	~2100	2100	~2100
With Extra Weight	1900	1950	~2260	~2260	2260	~2260
Weight (lbs)	1,800	2,523	2,930	3,140	2,930	3,140
Weight with Kit	2,200	2,660	3,170	3,380	3,170	3,380

Technical Documents

Open TRL620Y_OM_3436de06-20a8-494f-a6da-2a3988a3ee72

See it in action!

Mini Track Loader

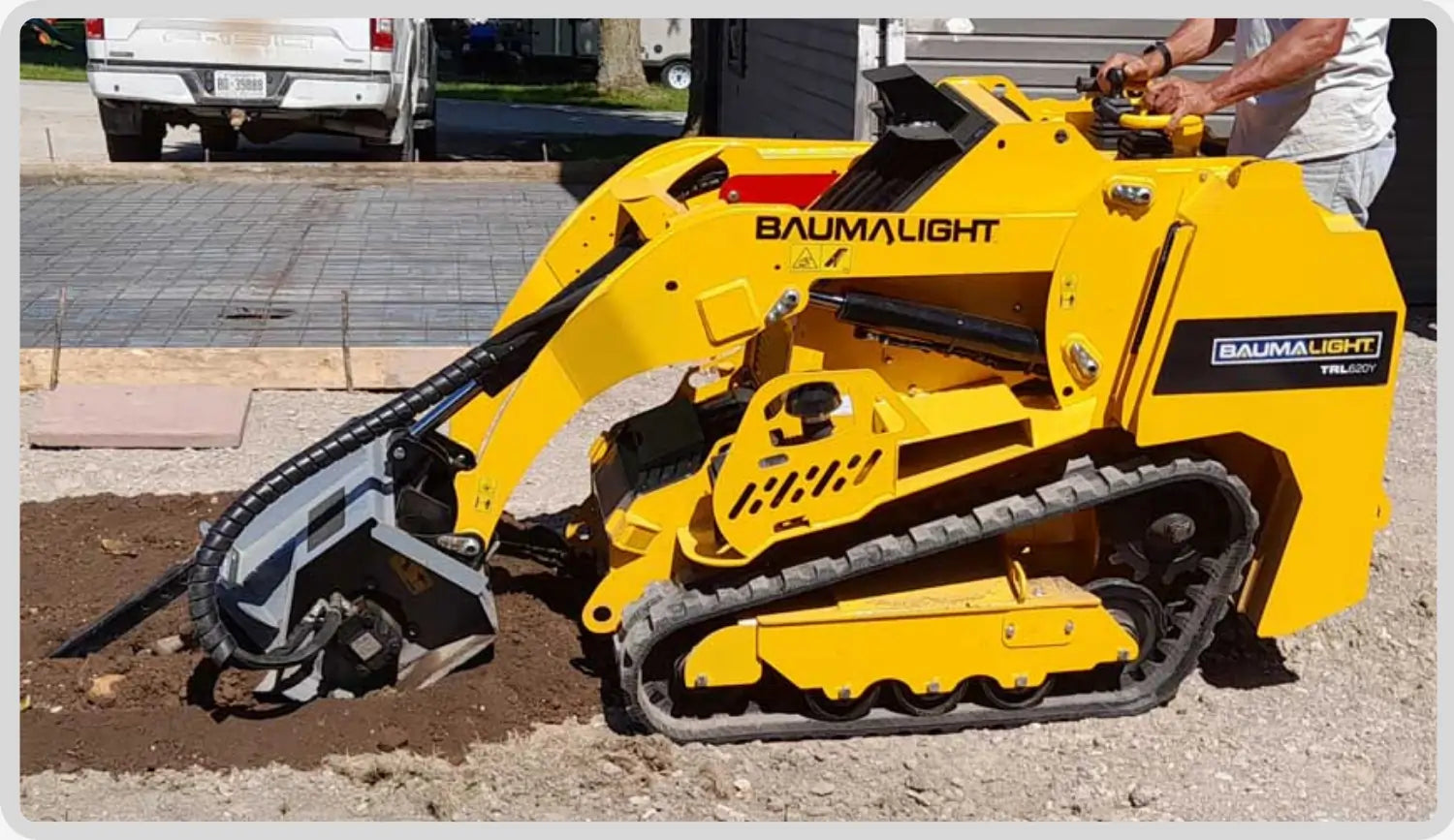

The TRL620Y stands out with Yanmar diesel power, offering more torque and a longer frame for added lifting capacity compared to the TRL620D. Compact yet powerful, it’s equipped with joystick controls, a self-leveling bucket, and a three-pump hydraulic system for consistent performance. With rugged rubber tracks and a durable steel frame, this mini track loader is designed for productivity and operator comfort in any environment.
