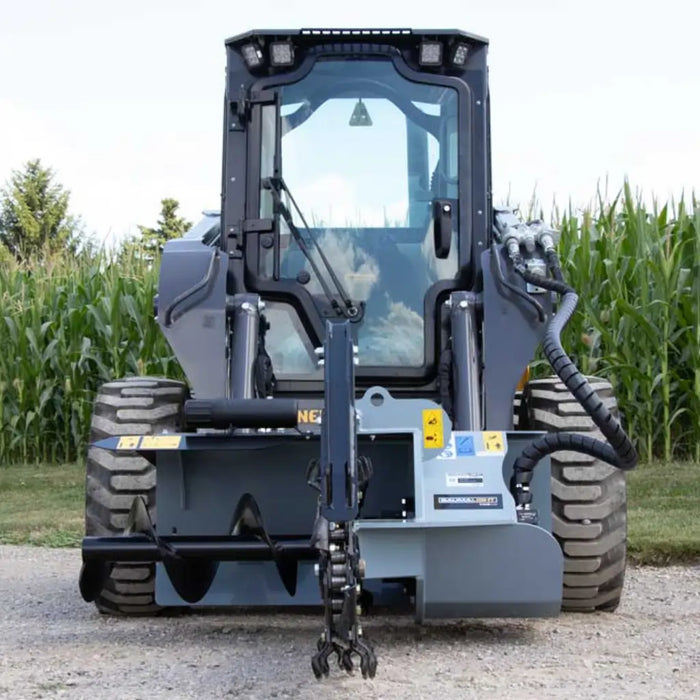

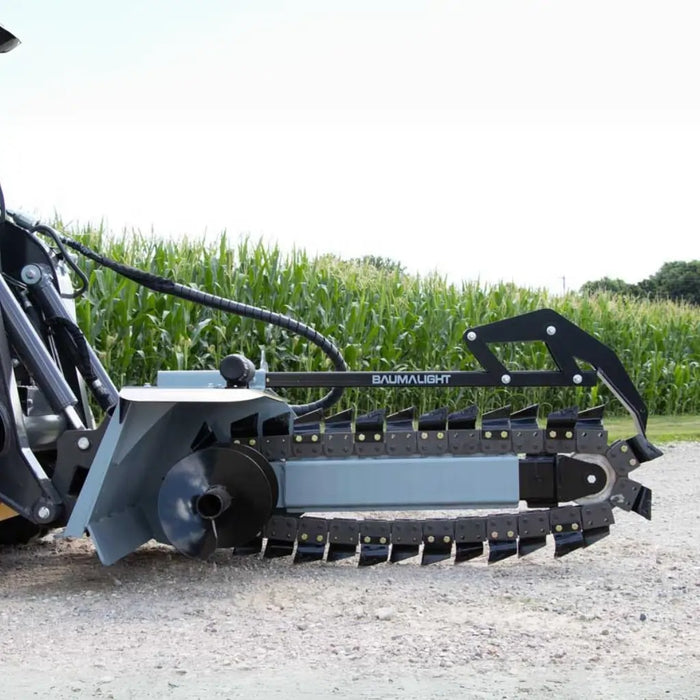

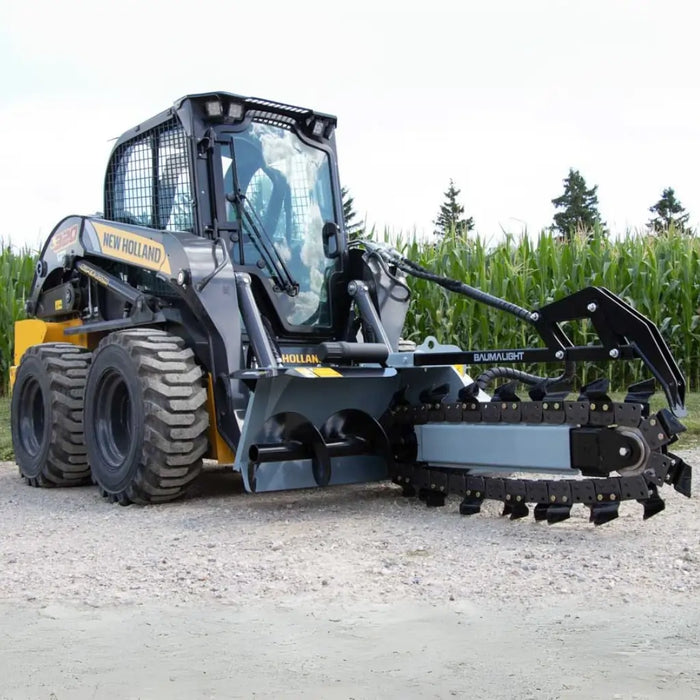

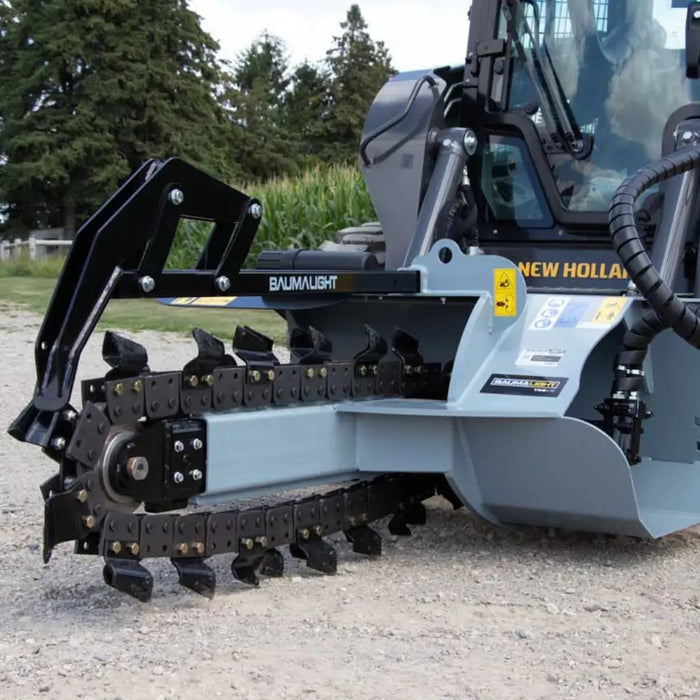

Baumalight TNS536 Trencher For Skid Steers
Chain Width
6"
Trenching Depth
36"
Best For
Loam, Clay, Sand, Backfill
Commonly Used For
Fiber/Electric Lines
Construction
Road Maintenance
Baumalight TNS536 Trencher For Skid Steers
Limited time deal
$7,390
List Price:
Built To Order
Delivery By Thursday, November 20
SKU: TNS536-C3606
Weight: 1200.0 lb
1
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Product Overview
The Baumalight TNS536 Skid Steer Trencher is designed for larger skid steers, offering powerful trenching performance with a compact footprint. Capable of cutting trenches up to 36” deep and 6–10” wide, the TNS536 makes quick work of burying cables, irrigation lines, and utilities safely underground. Its planetary drive system delivers direct hydraulic power to the digging chain sprocket, eliminating roller chains for reduced maintenance and long-lasting reliability. Compatible with skid steers from 3,000 to 7,000 lbs., the TNS536 combines efficiency, durability, and versatility for professional-grade trenching.
Specifications
| Model | TN236 | TNM336B | TNS336 | TNS536 | TN548 | TN560 | TN760 |
|---|---|---|---|---|---|---|---|
| Mount | Standard Mini skidsteer | Bobcat mini skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer |
| Trench Depth | 36" | 36" | 36" | 36" | 48" | 60" | 60" |
| Trench Width | 4" to 6" | 4" to 6" | 4" to 6" | 6" to 10" | 6" to 10" | 6" to 10" | 6" to 10" |
| Drive Type | Direct drive | Direct drive | Planetary | Planetary | Planetary | Planetary | Planetary |
| Main Shaft Size | 1:10 taper hardened shaft | 1:10 taper hardened shaft | 1:10 taper hardened shaft | 2-9/16" solid hardened steel | 2-9/16" solid hardened steel | 2-9/16" solid hardened steel | 2-9/16" solid hardened steel |
| Trencher Chain Torque at 3,000 PSI | 6,703 lbs-in | 6,703 lbs-in | 14,571 lbs-in | 21,856 lbs-in | 21,856 lbs-in | 21,856 lbs-in | 33,877 lbs-in |
| Over Torque Protection | Hydraulic relief | Hydraulic relief | Hydraulic relief | Hydraulic relief | Hydraulic relief | Hydraulic relief | Hydraulic relief |
| Horse Power (HP) | 10 - 25 | 10 - 25 | 30 - 55 | 40 - 100 | 40 - 100 | 40 - 100 | 40 - 100 |
| Carrier Weight (lb) | 1,500 - 4,000 | 1,500 - 4,000 | 2,000 - 5,000 | 3,000 - 7,000 | 3,000 - 7,000 | 3,000 - 7,000 | 4,000 - 12,000 |
| Min. / Max. GPM Skidsteer | 7 to 18 | 7 to 18 | 10 to 20 | 12 to 25 | 15 to 25 | 12 to 25 | 20 to 42 |
| Min. / Max. GPM Tractor | N/A | N/A | 14 to 22 | 15 to 25 | 15 to 25 | N/A | N/A |
| Weight | 569 lb | 535 lb | 850 lb | 1,200 lb | 1,250 lb | 1,500 lb | — |
Technical Documents
Open Trenchers_96bbb390-495b-4ffd-b737-a1f4071ff40f
See it in action!
TNS536 Skid Steer Trencher
Crumb Scraper Bar
Heavy-duty scraper bar sweeps dirt into the chain, keeping trenches clean at any depth.
Cleaner Trench Cuts
Sweeps Loose Dirt
Hinged for Flexibility
read more
Heavy-duty scraper bar sweeps dirt into the chain, keeping trenches clean at any depth.
Solid Steel Nose
Precision steel nose with sealed bearings and grease fitting for smooth trenching.
Solid Steel Build
Smooth Operation
Sealed Bearings
read more
Precision steel nose with sealed bearings and grease fitting for smooth trenching.
Adjustable Tension
Grease cylinder lets you adjust chain tension quickly with just a few easy pumps.
Quick Adjustment
Grease Cylinder
Easy Maintenance
read more
Grease cylinder lets you adjust chain tension quickly with just a few easy pumps.
Side Auger
Side auger clears dirt from trench while keeping it nearby for fast backfilling.
Clears Loose Dirt
Faster Backfilling
Convenient Design
read more
Side auger clears dirt from trench while keeping it nearby for fast backfilling.
