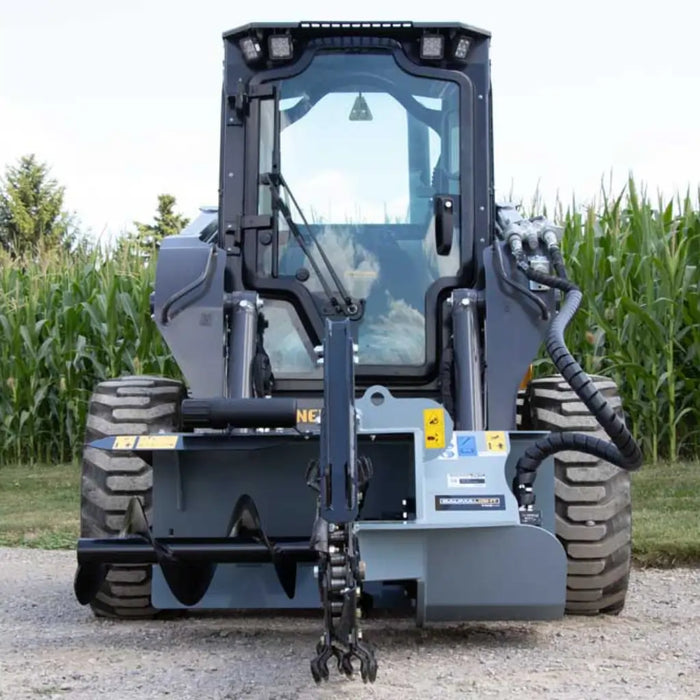

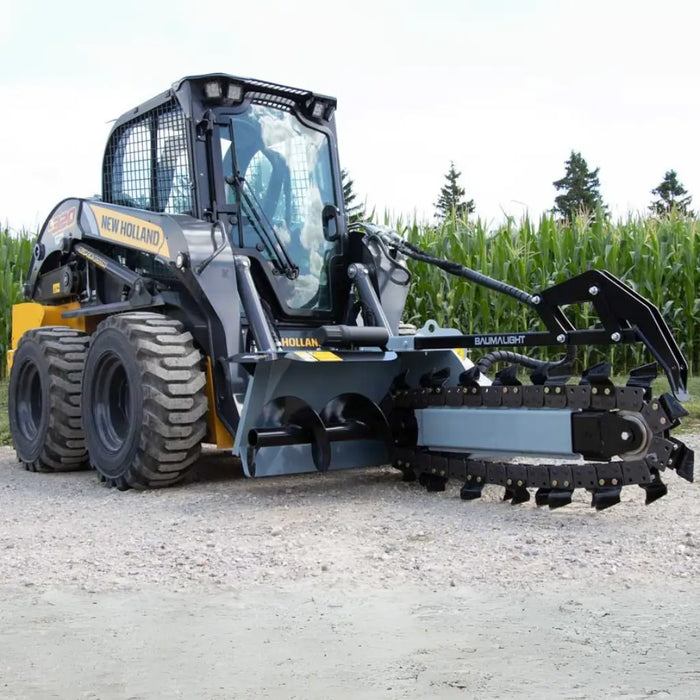

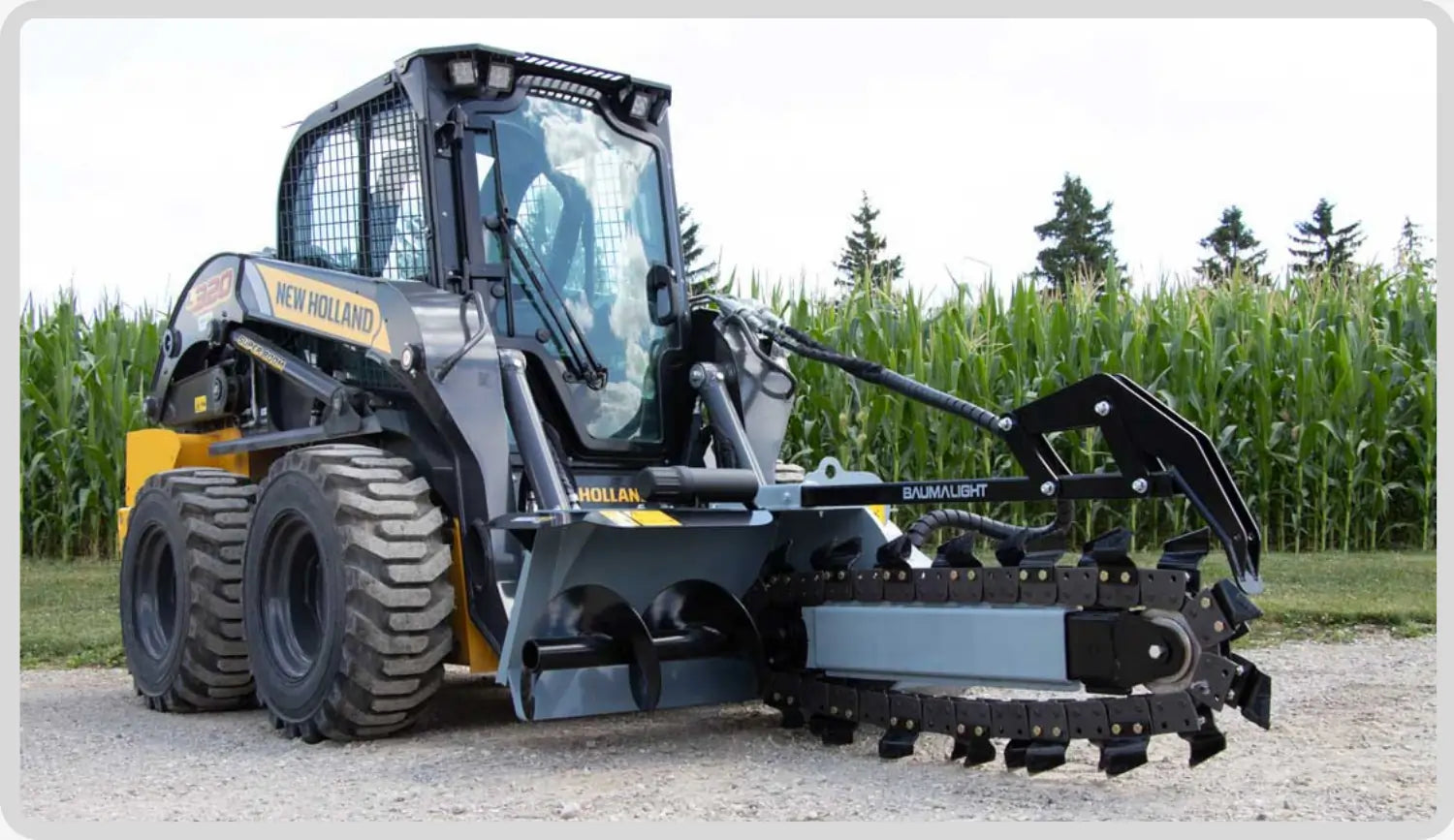

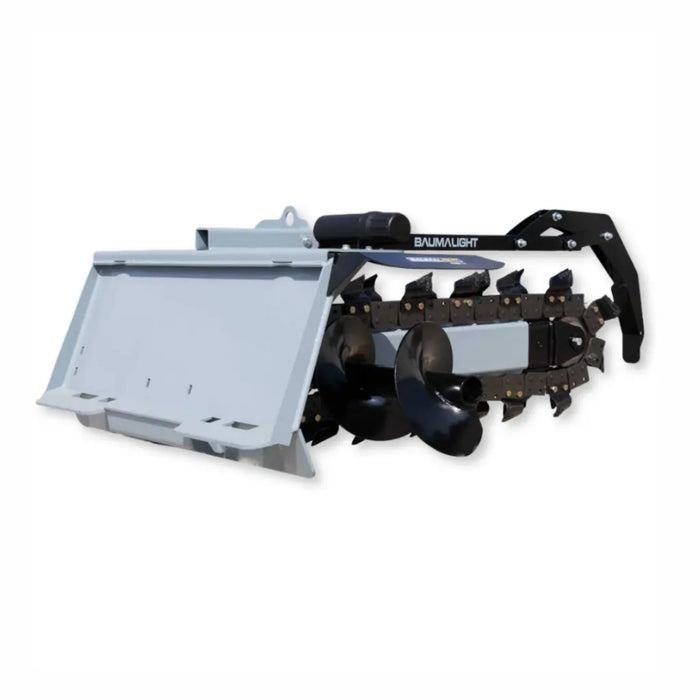

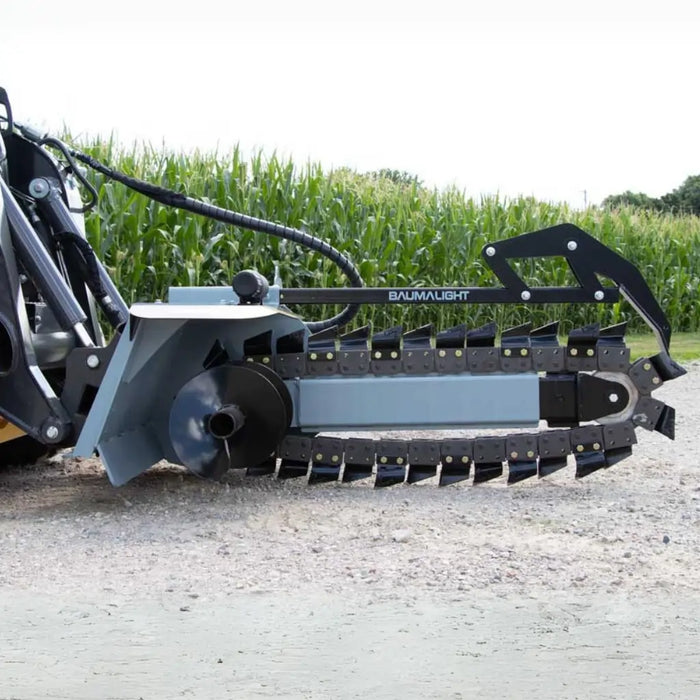

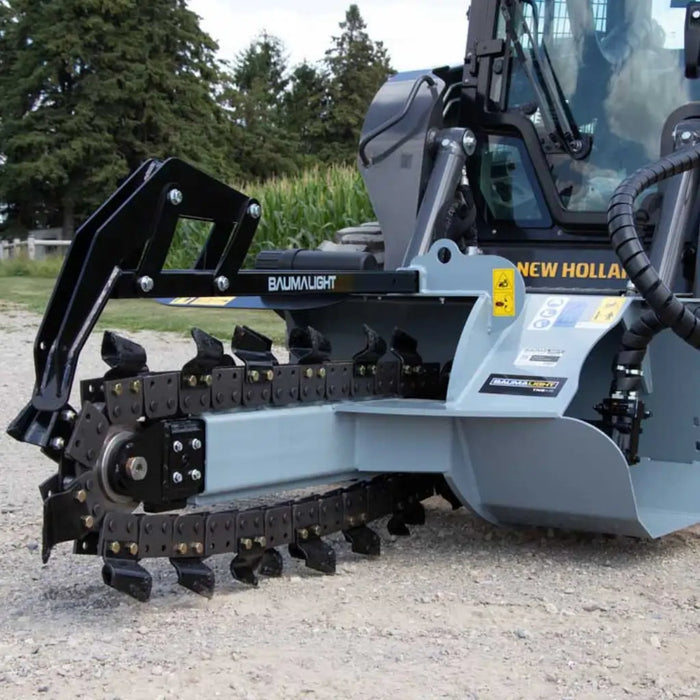

The Baumalight TNS536 Tractor Trencher is built for efficient utility line and cable installation. Designed for tractors with the optional 3-point hitch mount (D001393), this powerful trencher cuts trenches up to 36" deep and 6–10" wide, depending on the chain selection. Its planetary drive system delivers hydraulic power directly to the digging chain sprocket, ensuring reliable performance with less maintenance. Perfect for rural property owners, contractors, and landscapers, the TNS536 provides safe and precise trenching for protecting underground utilities.
| Model | TN236 | TNM336B | TNS336 | TNS536 | TN548 | TN560 | TN760 |
|---|---|---|---|---|---|---|---|
| Mount | Standard Mini skidsteer | Bobcat mini skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer |
| Trench Depth | 36" | 36" | 36" | 36" | 48" | 60" | 60" |
| Trench Width | 4" to 6" | 4" to 6" | 4" to 6" | 6" to 10" | 6" to 10" | 6" to 10" | 6" to 10" |
| Drive Type | Direct drive | Direct drive | Planetary | Planetary | Planetary | Planetary | Planetary |
| Main Shaft Size | 1:10 taper hardened shaft | 1:10 taper hardened shaft | 1:10 taper hardened shaft | 2-9/16" solid hardened steel | 2-9/16" solid hardened steel | 2-9/16" solid hardened steel | 2-9/16" solid hardened steel |
| Trencher Chain Torque at 3,000 PSI | 6,703 lbs-in | 6,703 lbs-in | 14,571 lbs-in | 21,856 lbs-in | 21,856 lbs-in | 21,856 lbs-in | 33,877 lbs-in |
| Over Torque Protection | Hydraulic relief | Hydraulic relief | Hydraulic relief | Hydraulic relief | Hydraulic relief | Hydraulic relief | Hydraulic relief |
| Horse Power (HP) | 10 - 25 | 10 - 25 | 30 - 55 | 40 - 100 | 40 - 100 | 40 - 100 | 40 - 100 |
| Carrier Weight (lb) | 1,500 - 4,000 | 1,500 - 4,000 | 2,000 - 5,000 | 3,000 - 7,000 | 3,000 - 7,000 | 3,000 - 7,000 | 4,000 - 12,000 |
| Min. / Max. GPM Skidsteer | 7 to 18 | 7 to 18 | 10 to 20 | 12 to 25 | 15 to 25 | 12 to 25 | 20 to 42 |
| Min. / Max. GPM Tractor | N/A | N/A | 14 to 22 | 15 to 25 | 15 to 25 | N/A | N/A |
| Weight | 569 lb | 535 lb | 850 lb | 1,200 lb | 1,250 lb | 1,500 lb | — |
Open Trenchers_136f8dc9-2afa-44b9-8211-573f31b9e6a1
We offer FREE 2-5 day shipping (LTL Freight and Residential) for all orders over $5,000. Orders under that total will have shipping calculated at checkout. Products will ship out in 1-3 business days and tracking information will be provided.
30-DAY NO HASSLE REFUNDS AND RETURNSIf there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com. More information on refunds and returns can be found here.
TNS536 Trencher
Cleaner Trench Cuts
Sweeps Loose Dirt
Hinged for Flexibility
Solid Steel Build
Smooth Operation
Sealed Bearings
Quick Adjustment
Grease Cylinder
Easy Maintenance
Clears Loose Dirt
Faster Backfilling
Convenient Design
