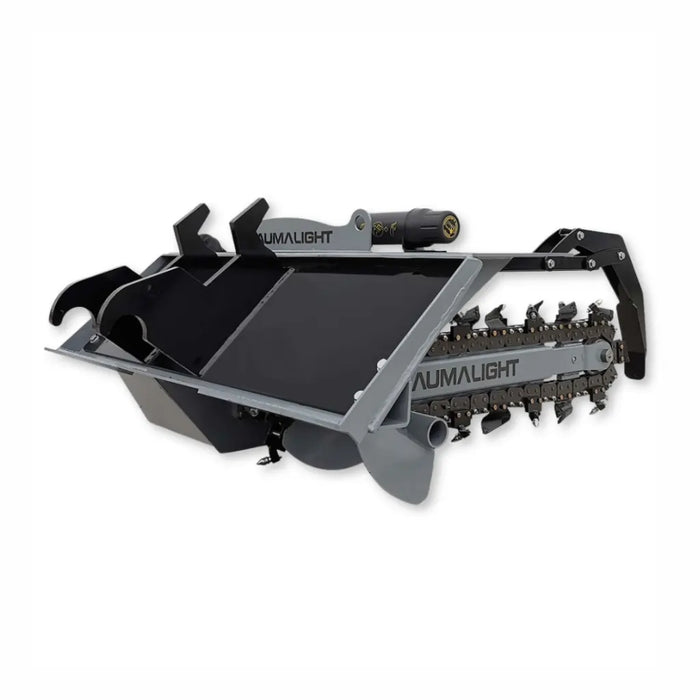

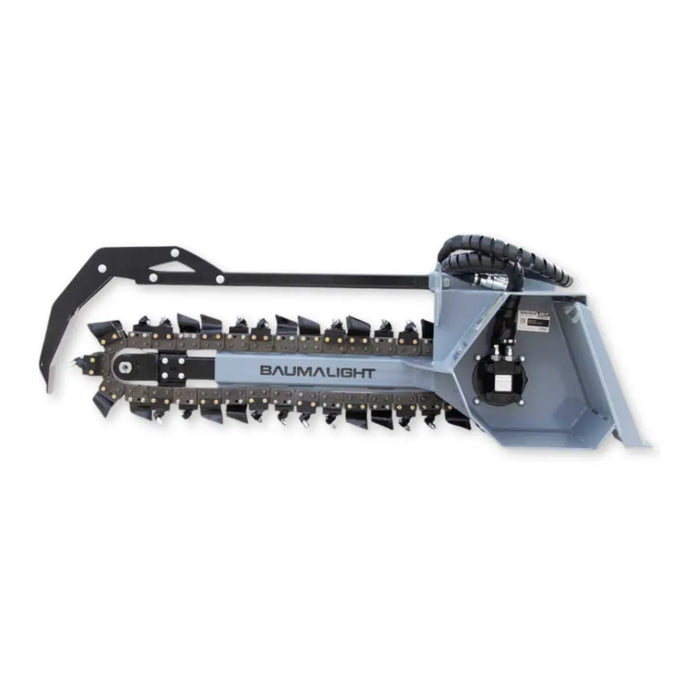

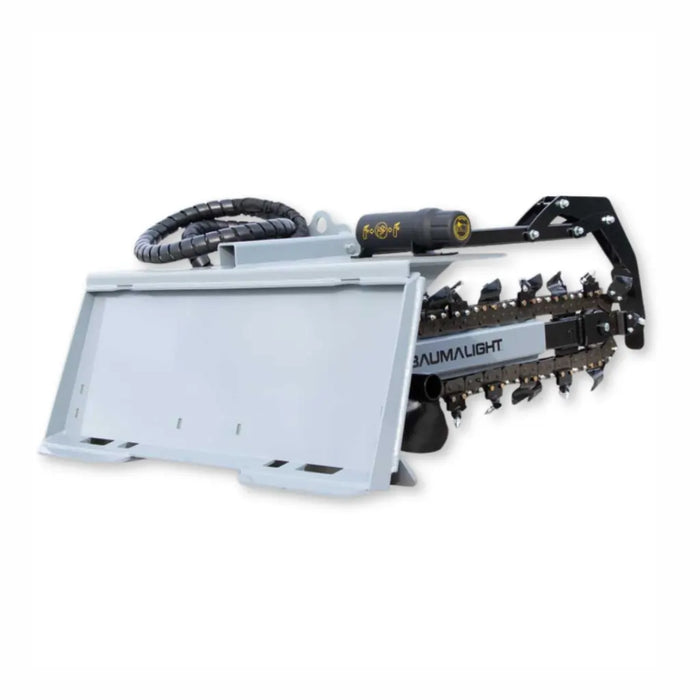

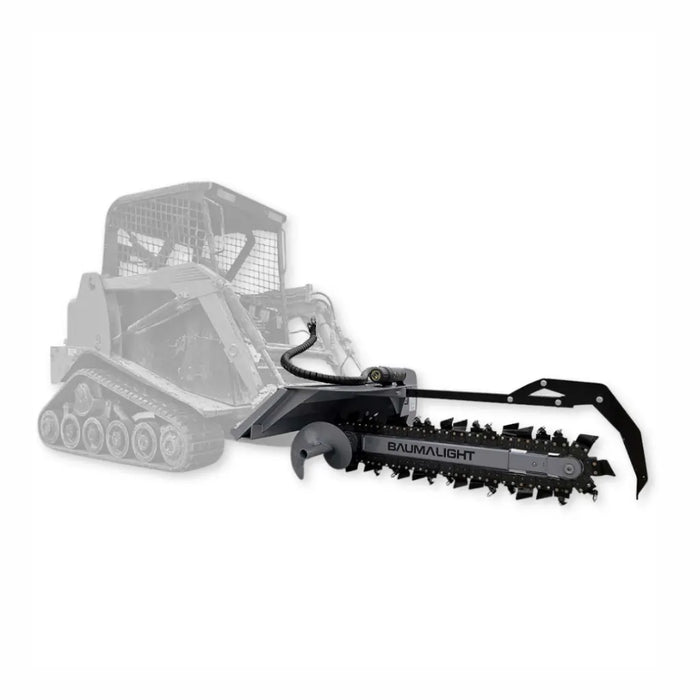

Baumalight TNS336 Trencher For Tractors
Chain Width
4"
Trenching Depth
36"
Best For
Loam, Clay, Sand, Backfill
Commonly Used For
Fiber/Electric Lines
Construction
Road Maintenance
Baumalight TNS336 Trencher For Tractors
Limited time deal
$5,790
List Price:
In Stock
Delivery By Thursday, November 06
SKU: BML-TN336-S3604-D001393
Weight: 850.0 lb
1
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Product Overview

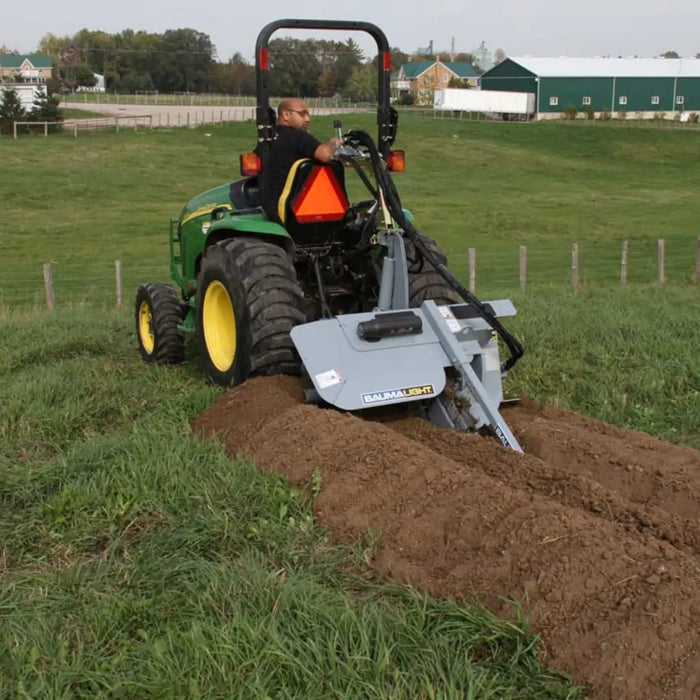

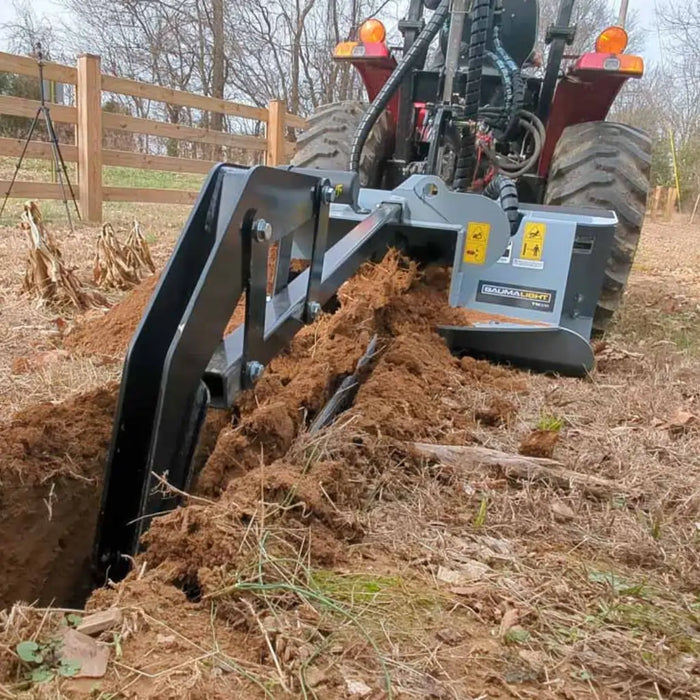

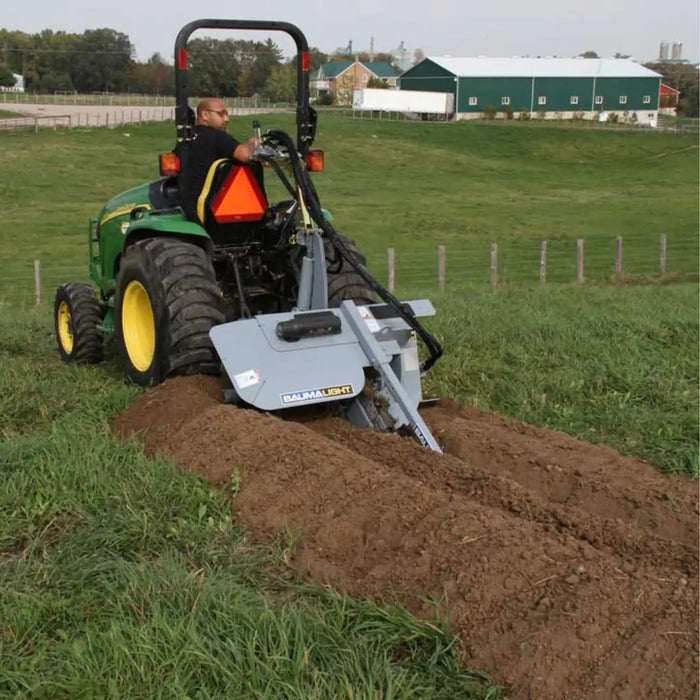

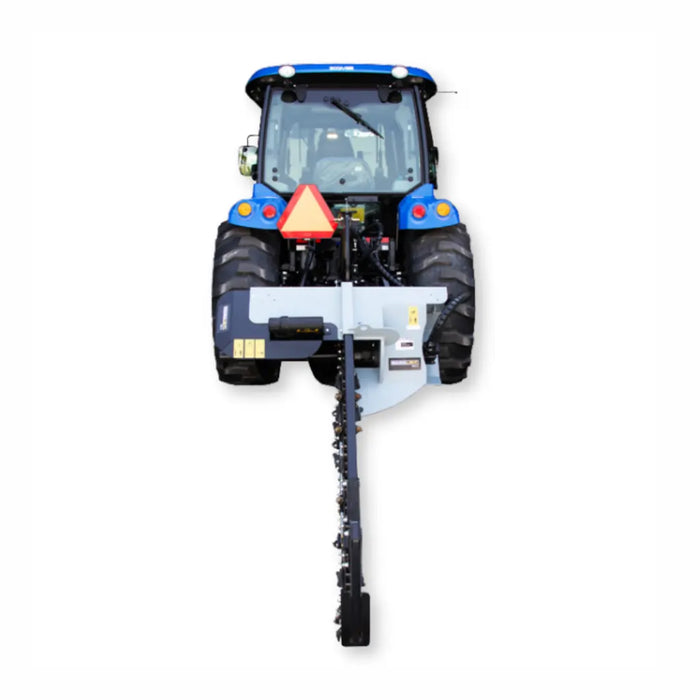

The Baumalight TNS336 Tractor-Mounted Trencher delivers reliable trenching power for rural property owners, landscapers, and contractors. Designed to dig trenches up to 36” deep and 4”–6” wide (depending on chain choice), this trencher protects underground cables, irrigation lines, and utilities. Powered by a direct planetary drive system, it eliminates roller chains for improved efficiency and durability. With the optional 3-point hitch mount (D001393), the TNS336 attaches securely to your tractor, making it a versatile and dependable tool for precision trenching jobs.
Specifications
| Model | TN236 | TNM336B | TNS336 | TNS536 | TN548 | TN560 | TN760 |
|---|---|---|---|---|---|---|---|
| Mount | Standard Mini skidsteer | Bobcat mini skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer |
| Trench Depth | 36" | 36" | 36" | 36" | 48" | 60" | 60" |
| Trench Width | 4" to 6" | 4" to 6" | 4" to 6" | 6" to 10" | 6" to 10" | 6" to 10" | 6" to 10" |
| Drive Type | Direct drive | Direct drive | Planetary | Planetary | Planetary | Planetary | Planetary |
| Main Shaft Size | 1:10 taper hardened shaft | 1:10 taper hardened shaft | 1:10 taper hardened shaft | 2-9/16" solid hardened steel | 2-9/16" solid hardened steel | 2-9/16" solid hardened steel | 2-9/16" solid hardened steel |
| Trencher Chain Torque at 3,000 PSI | 6,703 lbs-in | 6,703 lbs-in | 14,571 lbs-in | 21,856 lbs-in | 21,856 lbs-in | 21,856 lbs-in | 33,877 lbs-in |
| Over Torque Protection | Hydraulic relief | Hydraulic relief | Hydraulic relief | Hydraulic relief | Hydraulic relief | Hydraulic relief | Hydraulic relief |
| Horse Power (HP) | 10 - 25 | 10 - 25 | 30 - 55 | 40 - 100 | 40 - 100 | 40 - 100 | 40 - 100 |
| Carrier Weight (lb) | 1,500 - 4,000 | 1,500 - 4,000 | 2,000 - 5,000 | 3,000 - 7,000 | 3,000 - 7,000 | 3,000 - 7,000 | 4,000 - 12,000 |
| Min. / Max. GPM Skidsteer | 7 to 18 | 7 to 18 | 10 to 20 | 12 to 25 | 15 to 25 | 12 to 25 | 20 to 42 |
| Min. / Max. GPM Tractor | N/A | N/A | 14 to 22 | 15 to 25 | 15 to 25 | N/A | N/A |
| Weight | 569 lb | 535 lb | 850 lb | 1,200 lb | 1,250 lb | 1,500 lb | — |
Technical Documents
Open Trenchers_136f8dc9-2afa-44b9-8211-573f31b9e6a1
See it in action!
TNS336 Trencher

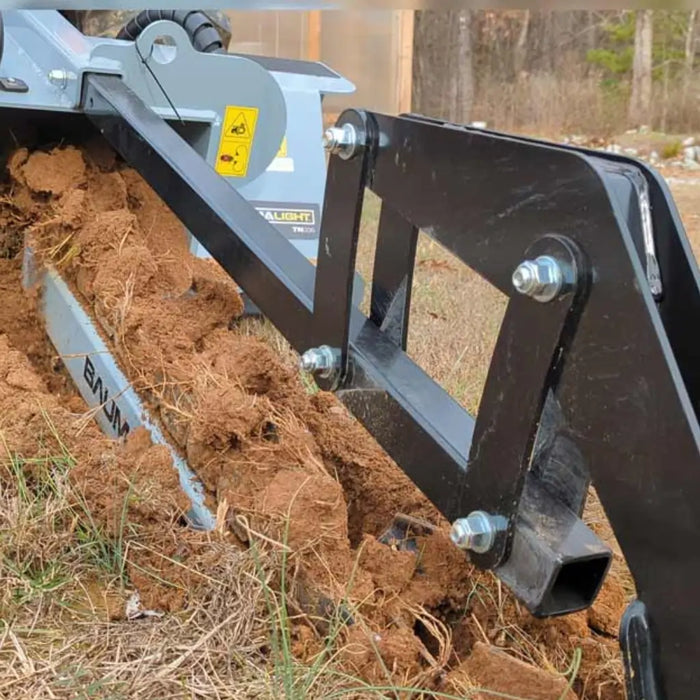

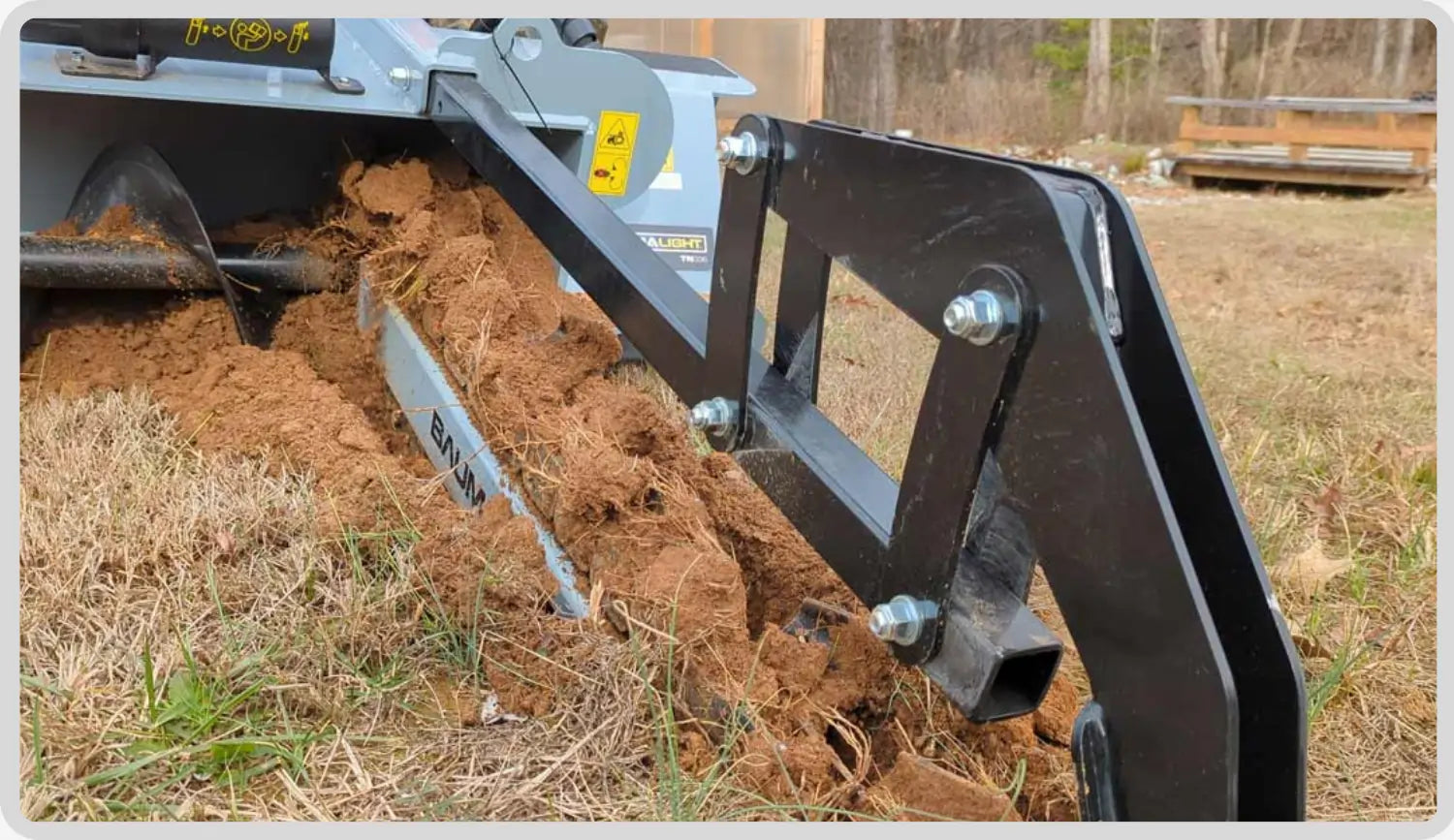

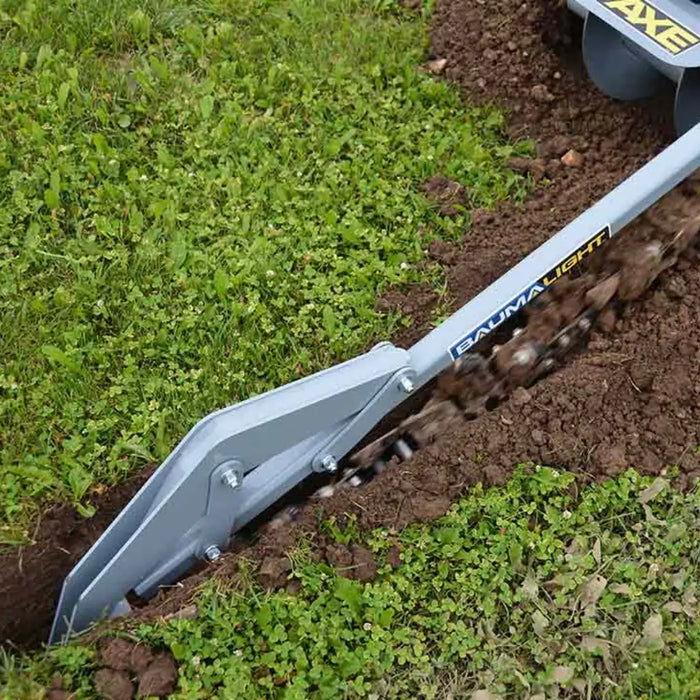

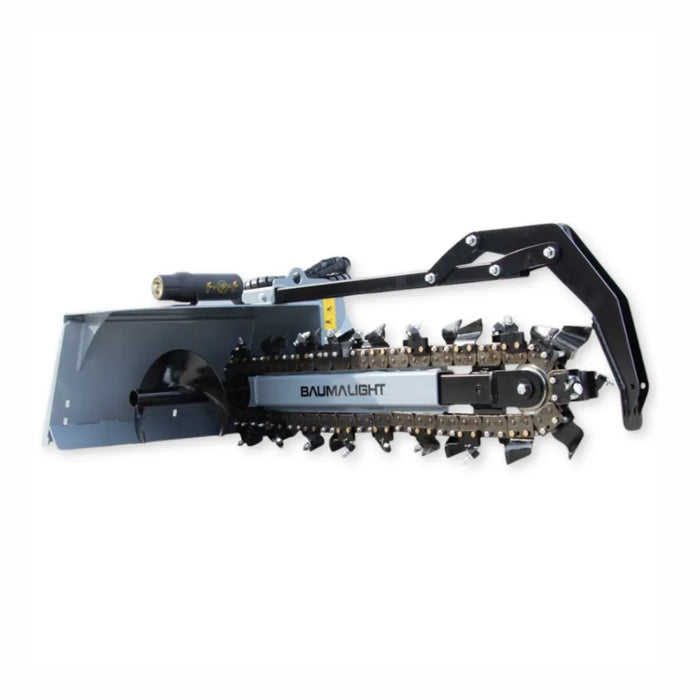

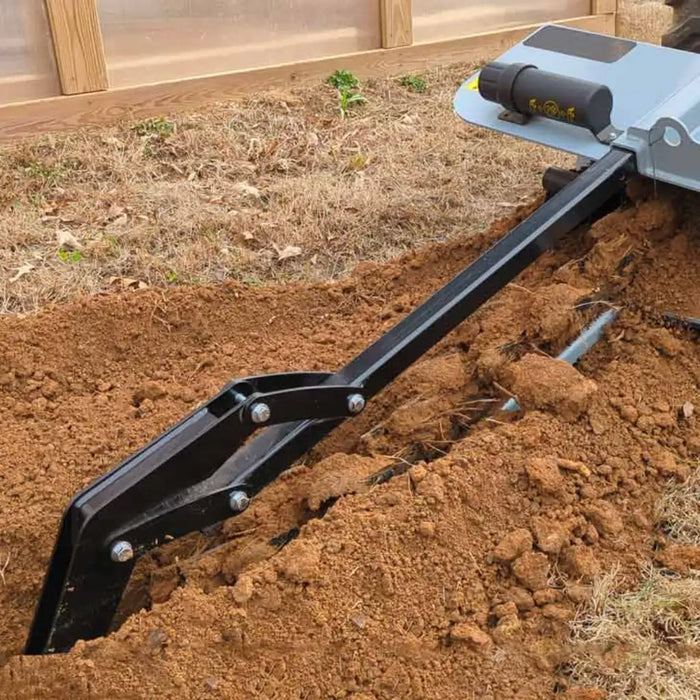

Crumb Scraper Bar

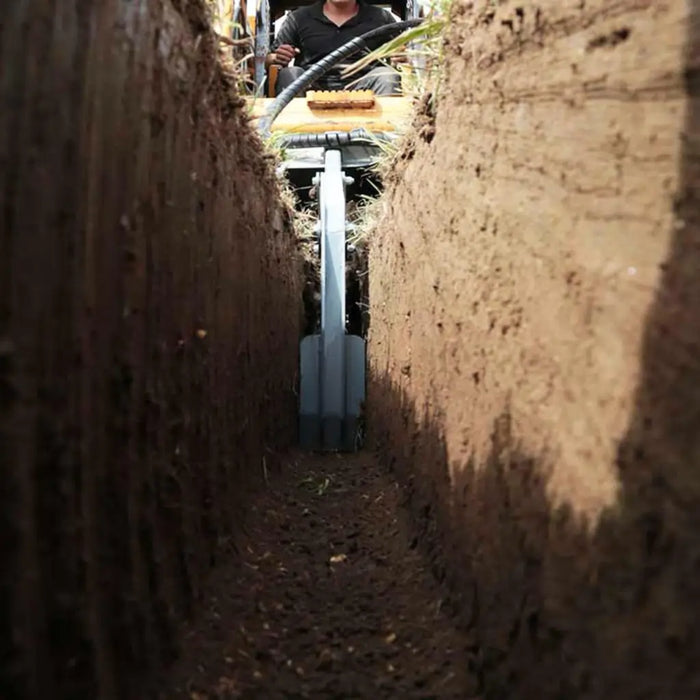

Heavy-duty scraper bar sweeps dirt into the chain, keeping trenches clean at any depth.
Cleaner Trench Cuts
Sweeps Loose Dirt
Hinged for Flexibility
read more
Heavy-duty scraper bar sweeps dirt into the chain, keeping trenches clean at any depth.

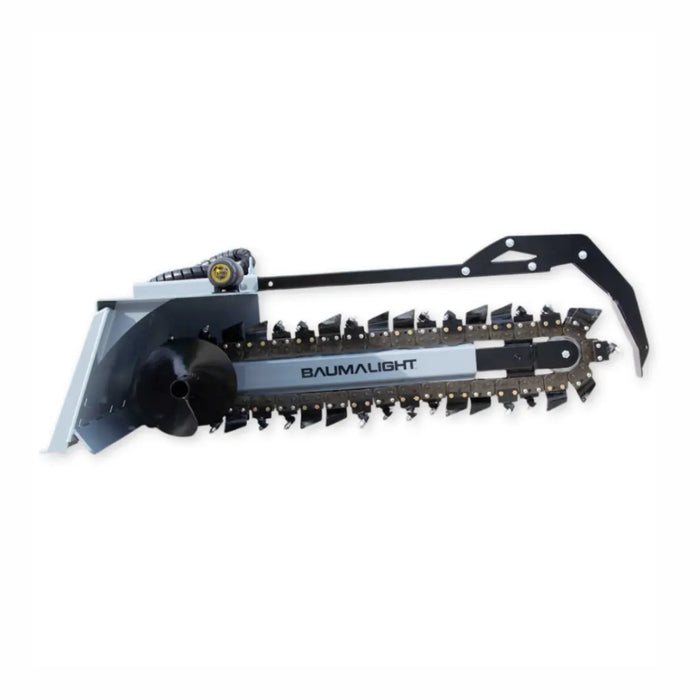

Solid Steel Nose
Precision steel nose with sealed bearings and grease fitting for smooth trenching.
Solid Steel Build
Smooth Operation
Sealed Bearings
read more
Precision steel nose with sealed bearings and grease fitting for smooth trenching.
Adjustable Tension
Grease cylinder lets you adjust chain tension quickly with just a few easy pumps.
Quick Adjustment
Grease Cylinder
Easy Maintenance
read more
Grease cylinder lets you adjust chain tension quickly with just a few easy pumps.

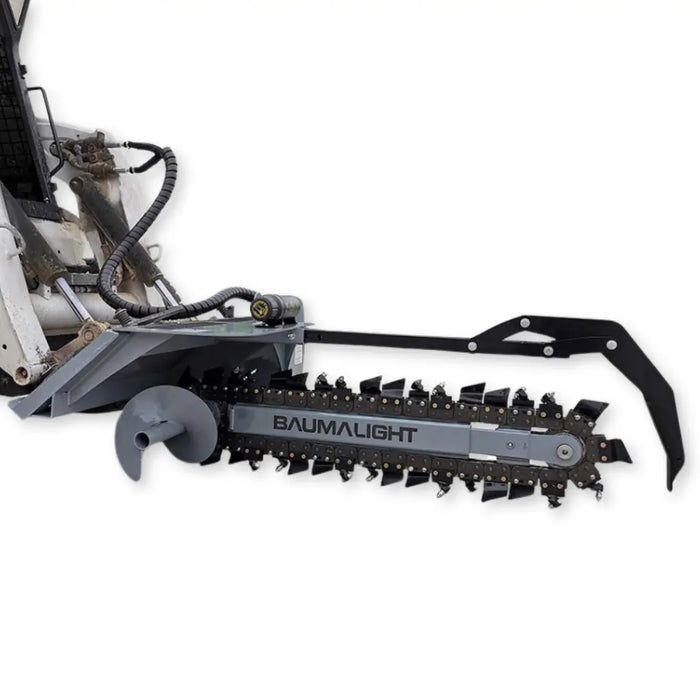

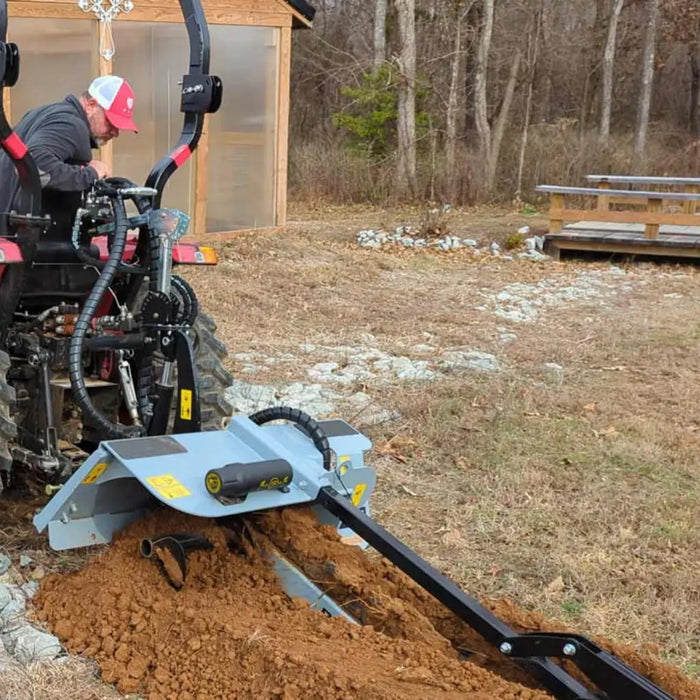

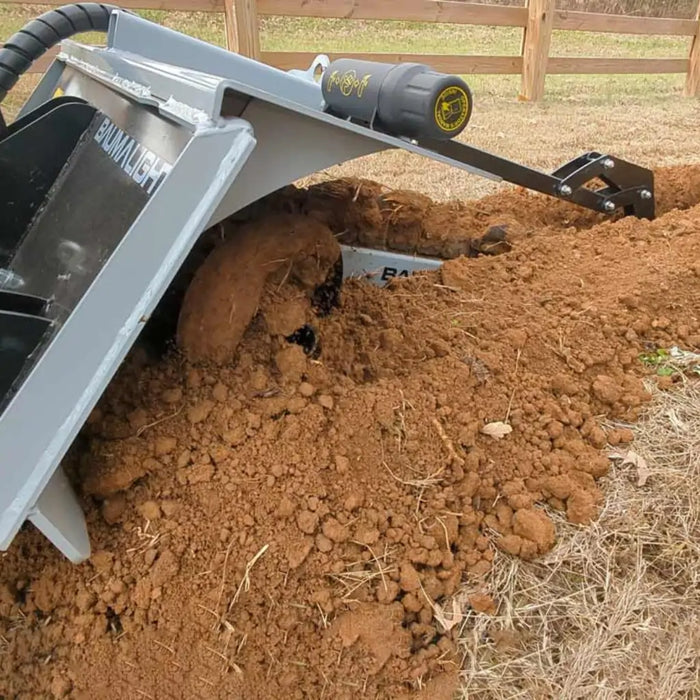

Side Auger

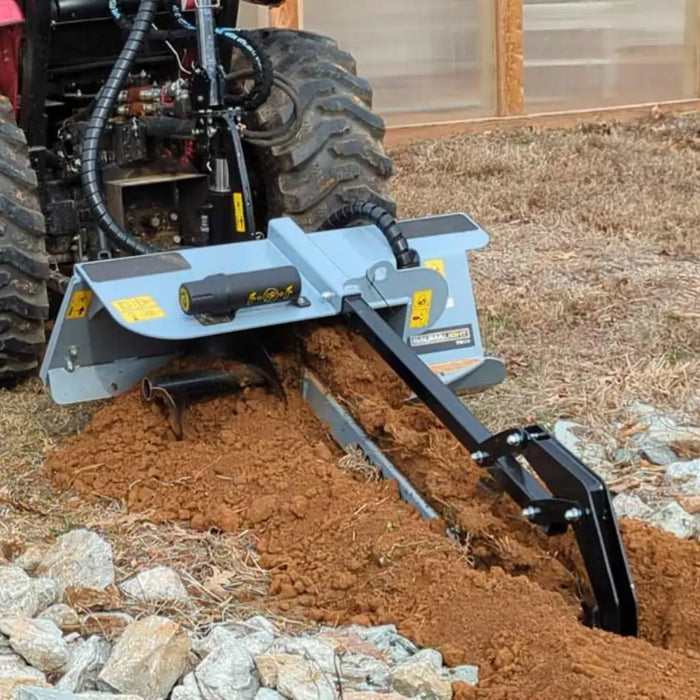

Side auger clears dirt from trench while keeping it nearby for fast backfilling.
Clears Loose Dirt
Faster Backfilling
Convenient Design
read more
Side auger clears dirt from trench while keeping it nearby for fast backfilling.
