Name: Baumalight TNM336B For Bobcat Mini Skid Steer
Brand: Baumalight
SKU: BML-TNM336B-M3604-1
Price: 8260.0 USD
Availability: InStock

Baumalight TNM336B For Bobcat Mini Skid Steer

See more by Baumalight

1 Video

Baumalight TNM336B For Bobcat Mini Skid Steer

Chain Width 4"

Trenching Depth 36"

Best For Mixed Soils, Hard Clay, Rocky Loam, Gravel

Commonly Used For

Fiber/Electric Lines

Construction

Road Maintenance

Baumalight TNM336B For Bobcat Mini Skid Steer

See more by Baumalight

1 Video

Black Friday Sale

-$440 $4,370

List Price: ~~$8,700~~

In Stock

Delivery By Tuesday, December 02

SKU: BML-TNM336B-M3604-1

Weight: 675.0 lb

Model Mount Option

Frequently Bought With

Product Overview

The Baumalight TNM336B Trencher is purpose-built for Bobcat mini skid steers, delivering aggressive trenching performance in tight spaces. Compact yet powerful, this trencher cuts trenches up to 36” deep and 4–6” wide, making it ideal for utility lines, irrigation, and landscaping projects. Designed for machines between 1,500–4,000 lbs., the TNM336B offers excellent maneuverability while maintaining digging strength. Powered by a hydraulic drive system, it delivers consistent power directly to the chain sprocket, ensuring reliable, low-maintenance performance for professional and residential trenching jobs.

✔ 36" Trench Depth
✔ 4-6" Trench Width

Specifications

Model	TN236	TNM336B	TNS336	TNS536	TN548	TN560	TN760
Mount	Standard Mini skidsteer	Bobcat mini skidsteer	Universal skidsteer	Universal skidsteer	Universal skidsteer	Universal skidsteer	Universal skidsteer
Trench Depth	36"	36"	36"	36"	48"	60"	60"
Trench Width	4" to 6"	4" to 6"	4" to 6"	6" to 10"	6" to 10"	6" to 10"	6" to 10"
Drive Type	Direct drive	Direct drive	Planetary	Planetary	Planetary	Planetary	Planetary
Main Shaft Size	1:10 taper hardened shaft	1:10 taper hardened shaft	1:10 taper hardened shaft	2-9/16" solid hardened steel	2-9/16" solid hardened steel	2-9/16" solid hardened steel	2-9/16" solid hardened steel
Trencher Chain Torque at 3,000 PSI	6,703 lbs-in	6,703 lbs-in	14,571 lbs-in	21,856 lbs-in	21,856 lbs-in	21,856 lbs-in	33,877 lbs-in
Over Torque Protection	Hydraulic relief	Hydraulic relief	Hydraulic relief	Hydraulic relief	Hydraulic relief	Hydraulic relief	Hydraulic relief
Horse Power (HP)	10 - 25	10 - 25	30 - 55	40 - 100	40 - 100	40 - 100	40 - 100
Carrier Weight (lb)	1,500 - 4,000	1,500 - 4,000	2,000 - 5,000	3,000 - 7,000	3,000 - 7,000	3,000 - 7,000	4,000 - 12,000
Min. / Max. GPM Skidsteer	7 to 18	7 to 18	10 to 20	12 to 25	15 to 25	12 to 25	20 to 42
Min. / Max. GPM Tractor	N/A	N/A	14 to 22	15 to 25	15 to 25	N/A	N/A
Weight	569 lb	535 lb	850 lb	1,200 lb	1,250 lb	1,500 lb	—

Technical Documents

Open Trenchers

Shipping & Returns

We offer FREE 2-5 day shipping (LTL Freight and Residential) for all orders over $5,000. Orders under that total will have shipping calculated at checkout. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com. More information on refunds and returns can be found here.

Warranty

Baumalight Attachments are warranted to be free of defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase. This warranty covers parts and labor, but does not cover misuse, negligence, dealer travel time and shipping costs to and from the dealer.

Refer to manufacturer's manual for full warranty details.

See it in action!

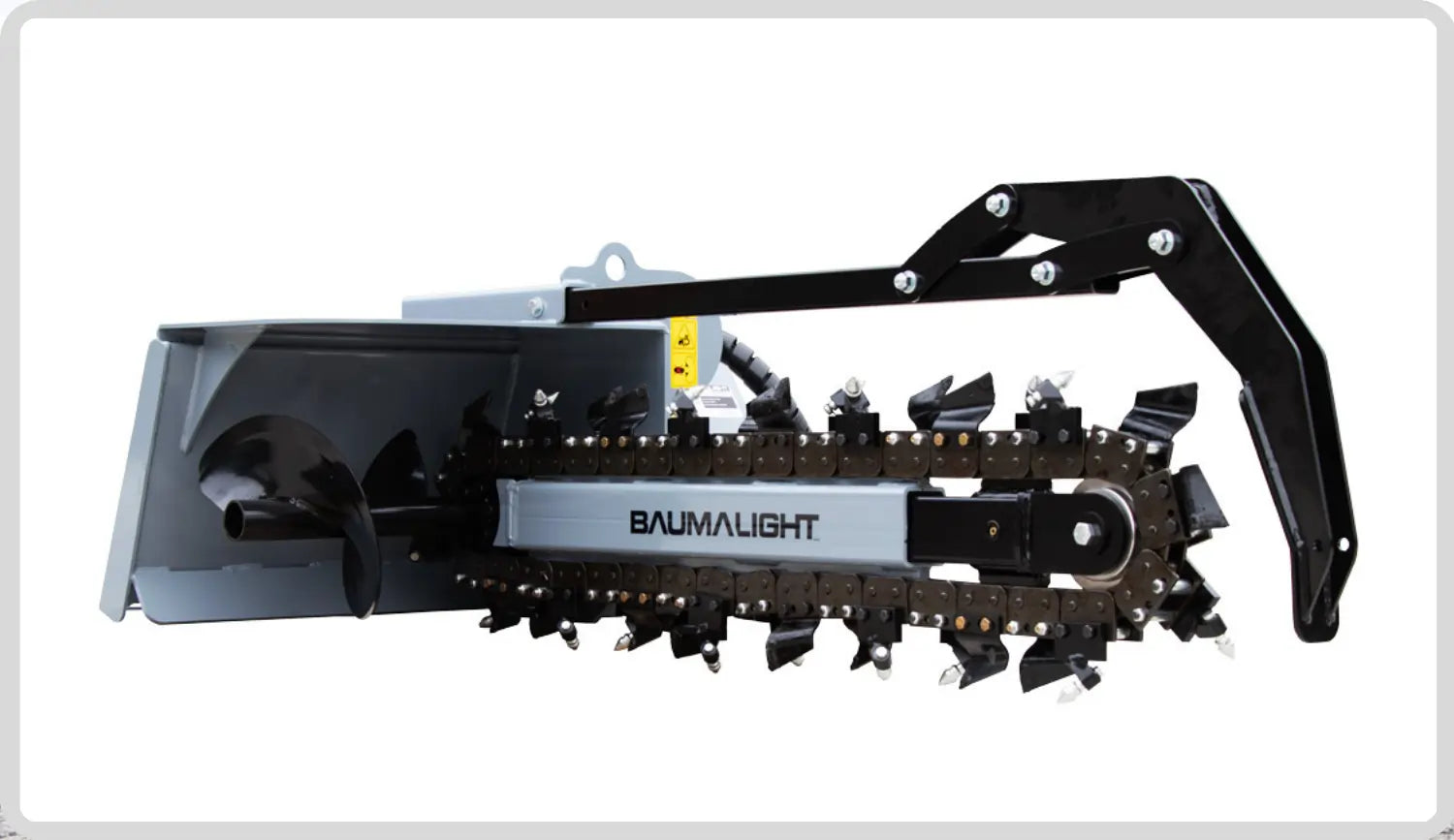

TNM336B Trencher

The TNM336B is engineered specifically for Bobcat mini skid steers, combining compact design with robust trenching ability. With its 36” depth, adjustable width, and hydraulic drive system, it’s built to deliver clean, reliable cuts in confined workspaces. Easy to operate and maintain, the TNM336B is a dependable tool for landscapers and contractors working with Bobcat mini machines.
