Name: Baumalight TN760 Trencher For Skid Steers
Brand: Baumalight
SKU: TN760-S6006
Price: 9440.0 USD
Availability: InStock

Baumalight TN760 Trencher For Skid Steers

See more by Baumalight

1 Video

Baumalight TN760 Trencher For Skid Steers

Chain Width 6"

Trenching Depth 60"

Best For Loam, Clay, Sand, Backfill

Commonly Used For

Fiber/Electric Lines

Construction

Road Maintenance

Baumalight TN760 Trencher For Skid Steers

See more by Baumalight

1 Video

Limited time deal

$9,440

List Price:

In Stock

Delivery By Monday, November 10

SKU: TN760-S6006

Weight: 1800.0 lb

Model

1

Frequently Bought With

Product Overview

The Baumalight TN760 Skid Steer Trencher is the most powerful trencher in Baumalight’s lineup, built for high-flow skid steers between 4,000–11,000 lbs. Engineered to cut trenches up to 60” deep and 6–10” wide, the TN760 makes quick work of burying water lines, gas lines, drainage pipes, and electrical lines. Its high-flow motor (up to 40 GPM) powers a planetary drive system that delivers direct hydraulic force to the digging chain sprocket, eliminating roller chains for smoother operation and lower maintenance. Ideal for farmers, landscapers, and contractors, the TN760 delivers unmatched trenching depth, strength, and efficiency.

✔ 60" Trench Depth
✔ 6-10" Trench Width

Specifications

Model	TN236	TNM336B	TNS336	TNS536	TN548	TN560	TN760
Mount	Standard Mini skidsteer	Bobcat mini skidsteer	Universal skidsteer	Universal skidsteer	Universal skidsteer	Universal skidsteer	Universal skidsteer
Trench Depth	36"	36"	36"	36"	48"	60"	60"
Trench Width	4" to 6"	4" to 6"	4" to 6"	6" to 10"	6" to 10"	6" to 10"	6" to 10"
Drive Type	Direct drive	Direct drive	Planetary	Planetary	Planetary	Planetary	Planetary
Main Shaft Size	1:10 taper hardened shaft	1:10 taper hardened shaft	1:10 taper hardened shaft	2-9/16" solid hardened steel	2-9/16" solid hardened steel	2-9/16" solid hardened steel	2-9/16" solid hardened steel
Trencher Chain Torque at 3,000 PSI	6,703 lbs-in	6,703 lbs-in	14,571 lbs-in	21,856 lbs-in	21,856 lbs-in	21,856 lbs-in	33,877 lbs-in
Over Torque Protection	Hydraulic relief	Hydraulic relief	Hydraulic relief	Hydraulic relief	Hydraulic relief	Hydraulic relief	Hydraulic relief
Horse Power (HP)	10 - 25	10 - 25	30 - 55	40 - 100	40 - 100	40 - 100	40 - 100
Carrier Weight (lb)	1,500 - 4,000	1,500 - 4,000	2,000 - 5,000	3,000 - 7,000	3,000 - 7,000	3,000 - 7,000	4,000 - 12,000
Min. / Max. GPM Skidsteer	7 to 18	7 to 18	10 to 20	12 to 25	15 to 25	12 to 25	20 to 42
Min. / Max. GPM Tractor	N/A	N/A	14 to 22	15 to 25	15 to 25	N/A	N/A
Weight	569 lb	535 lb	850 lb	1,200 lb	1,250 lb	1,500 lb	—

Technical Documents

Open Trenchers

Shipping & Returns

We offer FREE 2-5 day shipping (LTL Freight and Residential) for all Baumalight attachments. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com.

More information on refunds and returns can be found here.

Warranty

Baumalight Attachments are warranted to be free of defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase. This warranty covers parts and labor, but does not cover misuse, negligence, dealer travel time and shipping costs to and from the dealer.

Refer to manufacturer's manual for full warranty details.

See it in action!

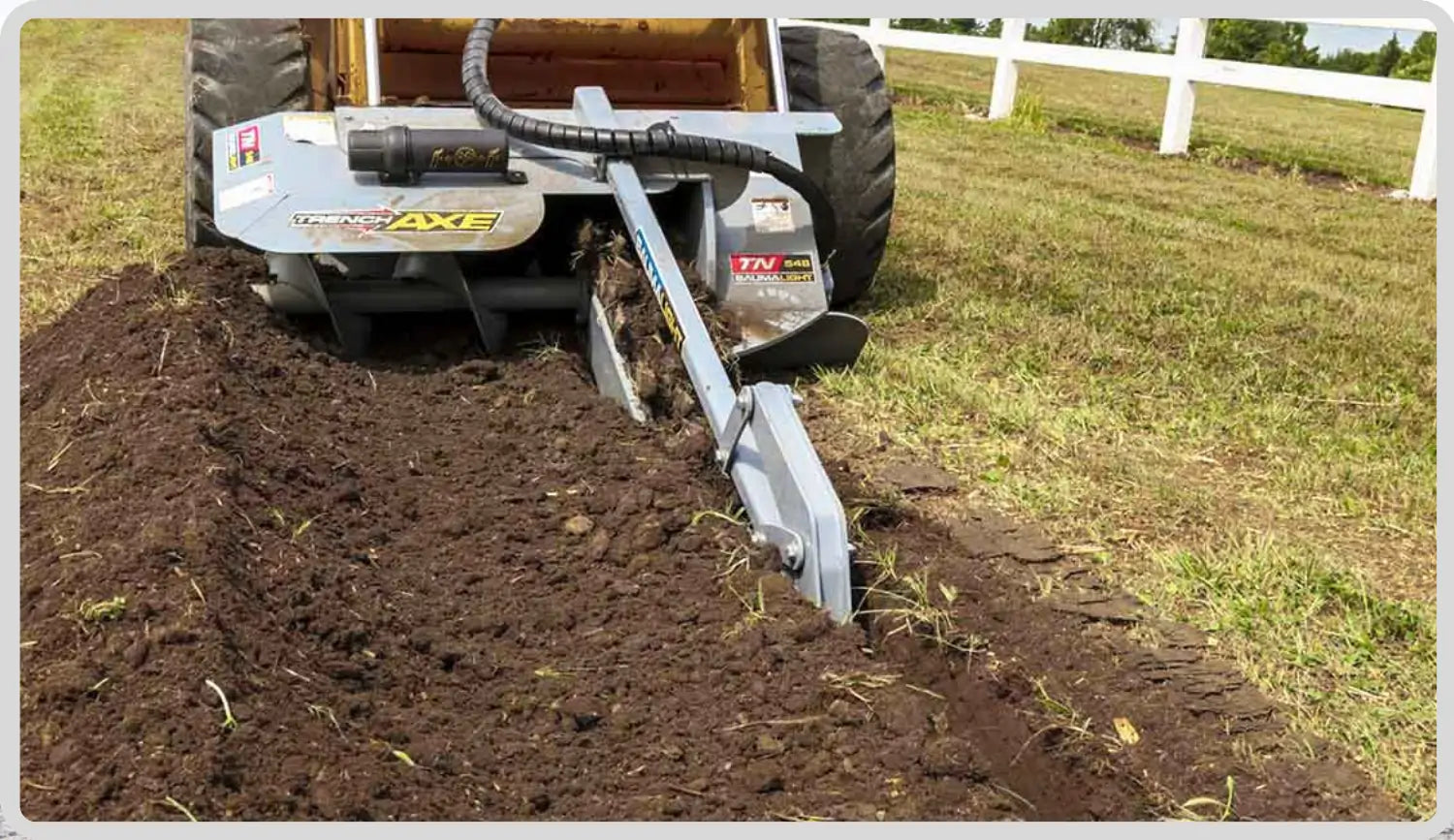

TN760 Skid Steer Trencher

The TN760 is designed for serious trenching power. With its high-flow motor and planetary drive, it cuts trenches 5 feet deep and up to 10 inches wide with ease. Built for larger skid steers, the TN760 is the go-to choice for anyone who needs efficient, reliable trenching for utilities, irrigation, or drainage.
