The Baumalight TN548 Tractor Trencher is engineered for powerful and precise trenching, making it the perfect choice for burying cables, irrigation lines, and utilities. With the optional 3-point hitch mount (D001393), it attaches securely to your tractor for dependable operation. Capable of cutting trenches up to 48” deep and 6–10” wide, the TN548 delivers flexibility for a wide range of applications. Its planetary drive system eliminates roller chains, sending hydraulic power directly to the digging sprocket for maximum efficiency, durability, and reduced maintenance in demanding jobs.
| Model | TN236 | TNM336B | TNS336 | TNS536 | TN548 | TN560 | TN760 |
|---|---|---|---|---|---|---|---|
| Mount | Standard Mini skidsteer | Bobcat mini skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer |
| Trench Depth | 36" | 36" | 36" | 36" | 48" | 60" | 60" |
| Trench Width | 4" to 6" | 4" to 6" | 4" to 6" | 6" to 10" | 6" to 10" | 6" to 10" | 6" to 10" |
| Drive Type | Direct drive | Direct drive | Planetary | Planetary | Planetary | Planetary | Planetary |
| Main Shaft Size | 1:10 taper hardened shaft | 1:10 taper hardened shaft | 1:10 taper hardened shaft | 2-9/16" solid hardened steel | 2-9/16" solid hardened steel | 2-9/16" solid hardened steel | 2-9/16" solid hardened steel |
| Trencher Chain Torque at 3,000 PSI | 6,703 lbs-in | 6,703 lbs-in | 14,571 lbs-in | 21,856 lbs-in | 21,856 lbs-in | 21,856 lbs-in | 33,877 lbs-in |
| Over Torque Protection | Hydraulic relief | Hydraulic relief | Hydraulic relief | Hydraulic relief | Hydraulic relief | Hydraulic relief | Hydraulic relief |
| Horse Power (HP) | 10 - 25 | 10 - 25 | 30 - 55 | 40 - 100 | 40 - 100 | 40 - 100 | 40 - 100 |
| Carrier Weight (lb) | 1,500 - 4,000 | 1,500 - 4,000 | 2,000 - 5,000 | 3,000 - 7,000 | 3,000 - 7,000 | 3,000 - 7,000 | 4,000 - 12,000 |
| Min. / Max. GPM Skidsteer | 7 to 18 | 7 to 18 | 10 to 20 | 12 to 25 | 15 to 25 | 12 to 25 | 20 to 42 |
| Min. / Max. GPM Tractor | N/A | N/A | 14 to 22 | 15 to 25 | 15 to 25 | N/A | N/A |
| Weight | 569 lb | 535 lb | 850 lb | 1,200 lb | 1,250 lb | 1,500 lb | — |
Open Trenchers_Manual
We offer FREE 2-5 day shipping (LTL Freight and Residential) for all orders over $5,000. Orders under that total will have shipping calculated at checkout. Products will ship out in 1-3 business days and tracking information will be provided.
30-DAY NO HASSLE REFUNDS AND RETURNSIf there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com. More information on refunds and returns can be found here.

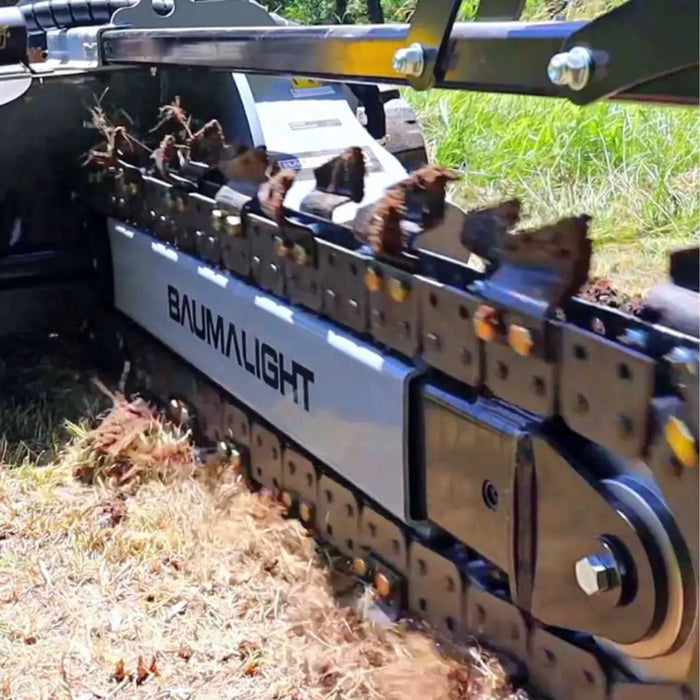

TN548 Tractor Trencher
Cleaner Trench Cuts
Sweeps Loose Dirt
Hinged for Flexibility
Solid Steel Build
Smooth Operation
Sealed Bearings
Quick Adjustment
Grease Cylinder
Easy Maintenance
Clears Loose Dirt
Faster Backfilling
Convenient Design
