Name: Baumalight TN548 Trencher For Skid Steers
Brand: Baumalight
SKU: TN548-S4806
Price: 7470.0 USD
Availability: InStock

Baumalight TN548 Trencher For Skid Steers

See more by Baumalight

1 Video

Baumalight TN548 Trencher For Skid Steers

Chain Width 6"

Trenching Depth 48"

Best For Loam, Clay, Sand, Backfill

Commonly Used For

Fiber/Electric Lines

Construction

Road Maintenance

Baumalight TN548 Trencher For Skid Steers

See more by Baumalight

1 Video

Limited time deal

$7,470

List Price:

In Stock

Delivery By Monday, November 10

SKU: TN548-S4806

Weight: 1250.0 lb

Model

1

Frequently Bought With

Product Overview

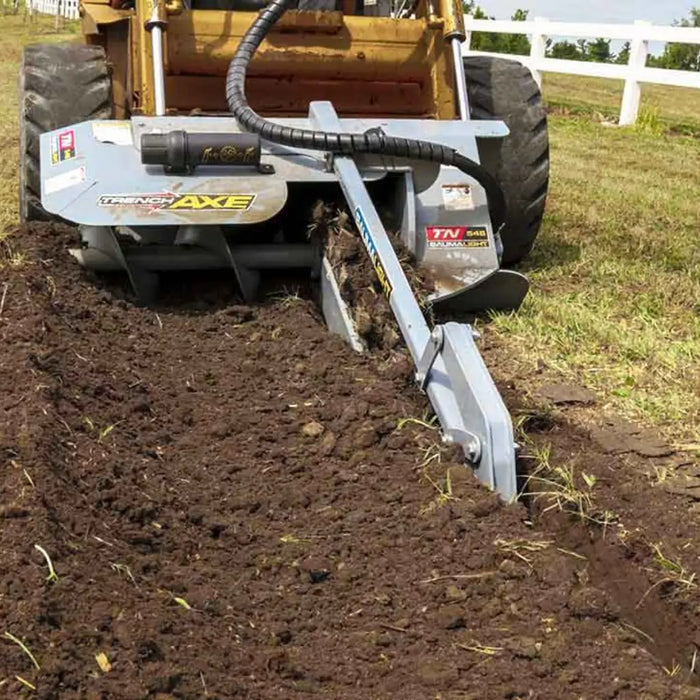

The Baumalight TN548 Skid Steer Trencher delivers serious trenching power for demanding jobs. Built for skid steers between 3,000–7,000 lbs., this 500 Series trencher cuts trenches up to 48" deep and 6–10" wide, making it ideal for burying cables, irrigation lines, and utilities. Its planetary drive system delivers hydraulic power directly to the sprocket, eliminating roller chains for greater efficiency and less maintenance. Rugged, reliable, and versatile, the TN548 is a professional-grade solution for skid steer trenching applications.

✔ 48" Trench Depth
✔ 6-10" Width Range

Specifications

Model	TN236	TNM336B	TNS336	TNS536	TN548	TN560	TN760
Mount	Standard Mini skidsteer	Bobcat mini skidsteer	Universal skidsteer	Universal skidsteer	Universal skidsteer	Universal skidsteer	Universal skidsteer
Trench Depth	36"	36"	36"	36"	48"	60"	60"
Trench Width	4" to 6"	4" to 6"	4" to 6"	6" to 10"	6" to 10"	6" to 10"	6" to 10"
Drive Type	Direct drive	Direct drive	Planetary	Planetary	Planetary	Planetary	Planetary
Main Shaft Size	1:10 taper hardened shaft	1:10 taper hardened shaft	1:10 taper hardened shaft	2-9/16" solid hardened steel	2-9/16" solid hardened steel	2-9/16" solid hardened steel	2-9/16" solid hardened steel
Trencher Chain Torque at 3,000 PSI	6,703 lbs-in	6,703 lbs-in	14,571 lbs-in	21,856 lbs-in	21,856 lbs-in	21,856 lbs-in	33,877 lbs-in
Over Torque Protection	Hydraulic relief	Hydraulic relief	Hydraulic relief	Hydraulic relief	Hydraulic relief	Hydraulic relief	Hydraulic relief
Horse Power (HP)	10 - 25	10 - 25	30 - 55	40 - 100	40 - 100	40 - 100	40 - 100
Carrier Weight (lb)	1,500 - 4,000	1,500 - 4,000	2,000 - 5,000	3,000 - 7,000	3,000 - 7,000	3,000 - 7,000	4,000 - 12,000
Min. / Max. GPM Skidsteer	7 to 18	7 to 18	10 to 20	12 to 25	15 to 25	12 to 25	20 to 42
Min. / Max. GPM Tractor	N/A	N/A	14 to 22	15 to 25	15 to 25	N/A	N/A
Weight	569 lb	535 lb	850 lb	1,200 lb	1,250 lb	1,500 lb	—

Technical Documents

Open Trenchers

Shipping & Returns

We offer FREE 2-5 day shipping (LTL Freight and Residential) for all Baumalight attachments. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com.

More information on refunds and returns can be found here.

Warranty

Baumalight Attachments are warranted to be free of defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase. This warranty covers parts and labor, but does not cover misuse, negligence, dealer travel time and shipping costs to and from the dealer.

Refer to manufacturer's manual for full warranty details.

See it in action!

TN548 Skid Steer Trencher

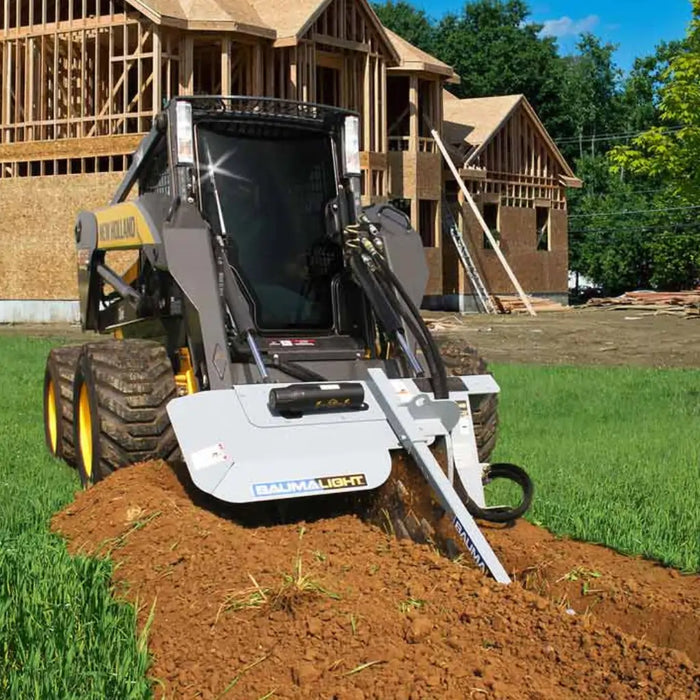

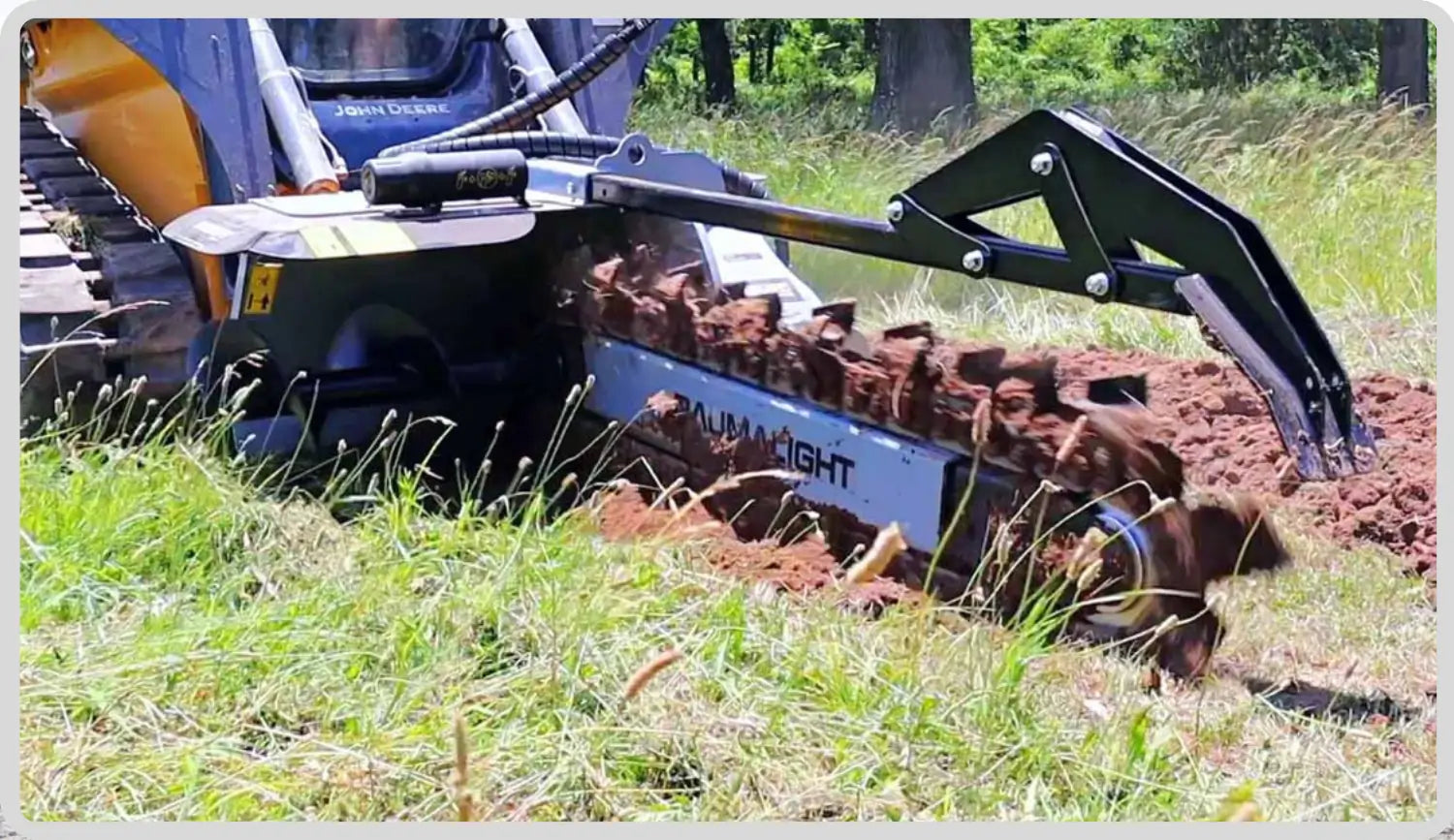

The TN548 is designed for skid steers that need dependable trenching performance. With a 48" trenching depth, adjustable chain widths, and a durable planetary drive, it makes fast, clean work of underground utility and cable installation. Built tough for long service life, the TN548 is the reliable choice for contractors, landscapers, and property owners.
