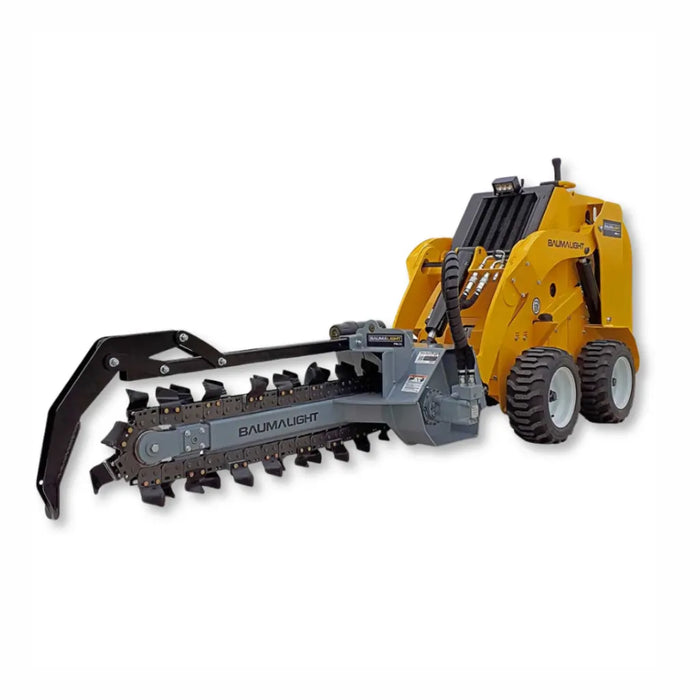

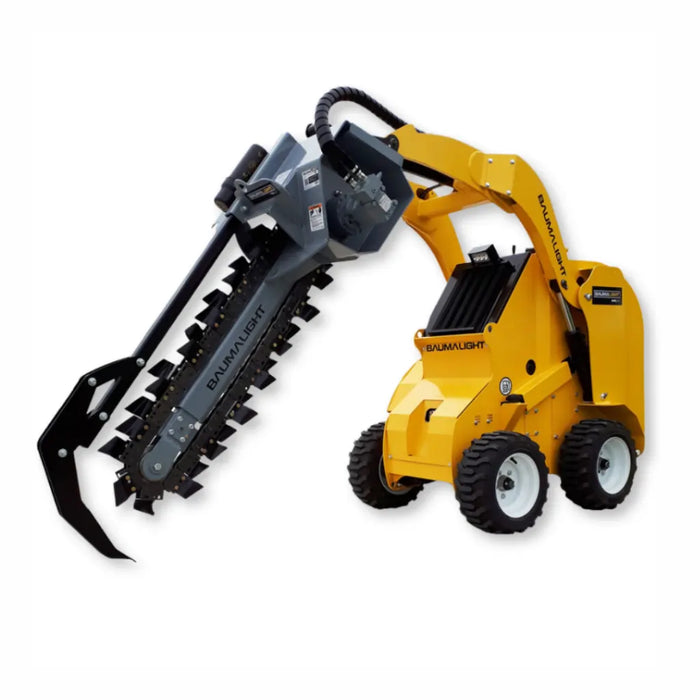

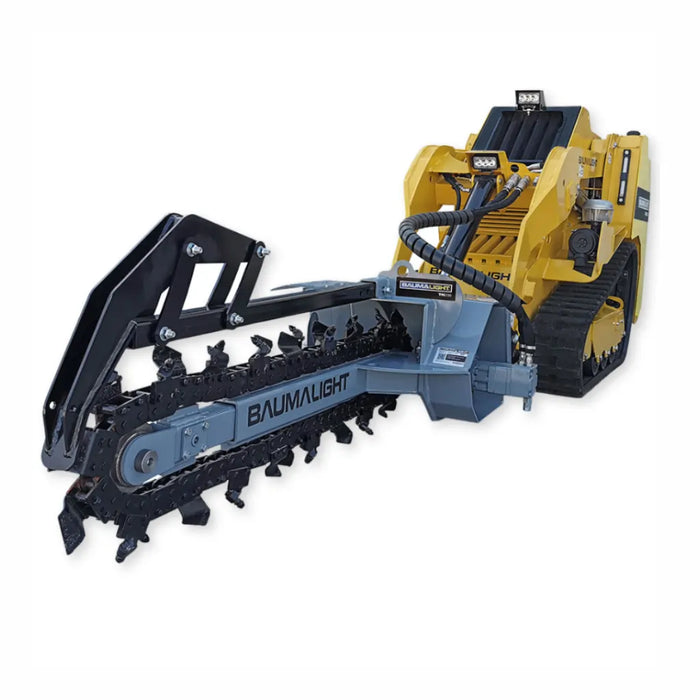

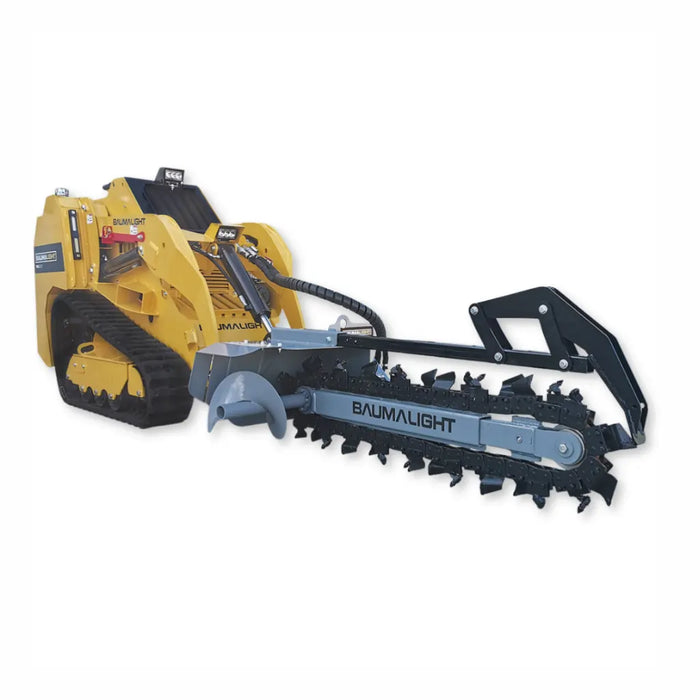

Baumalight TN236 Trencher For Mini Skid Steers
Chain Width
4"
Trenching Depth
36"
Best For
Loam, Clay, Sand, Backfill
Commonly Used For
Fiber/Electric Lines
Construction
Road Maintenance
Baumalight TN236 Trencher For Mini Skid Steers
Limited time deal
$4,320
List Price:
In Stock
Delivery By Wednesday, November 05
SKU: BML-TN236-S3604-1
Weight: 470.0 lb
1
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Product Overview

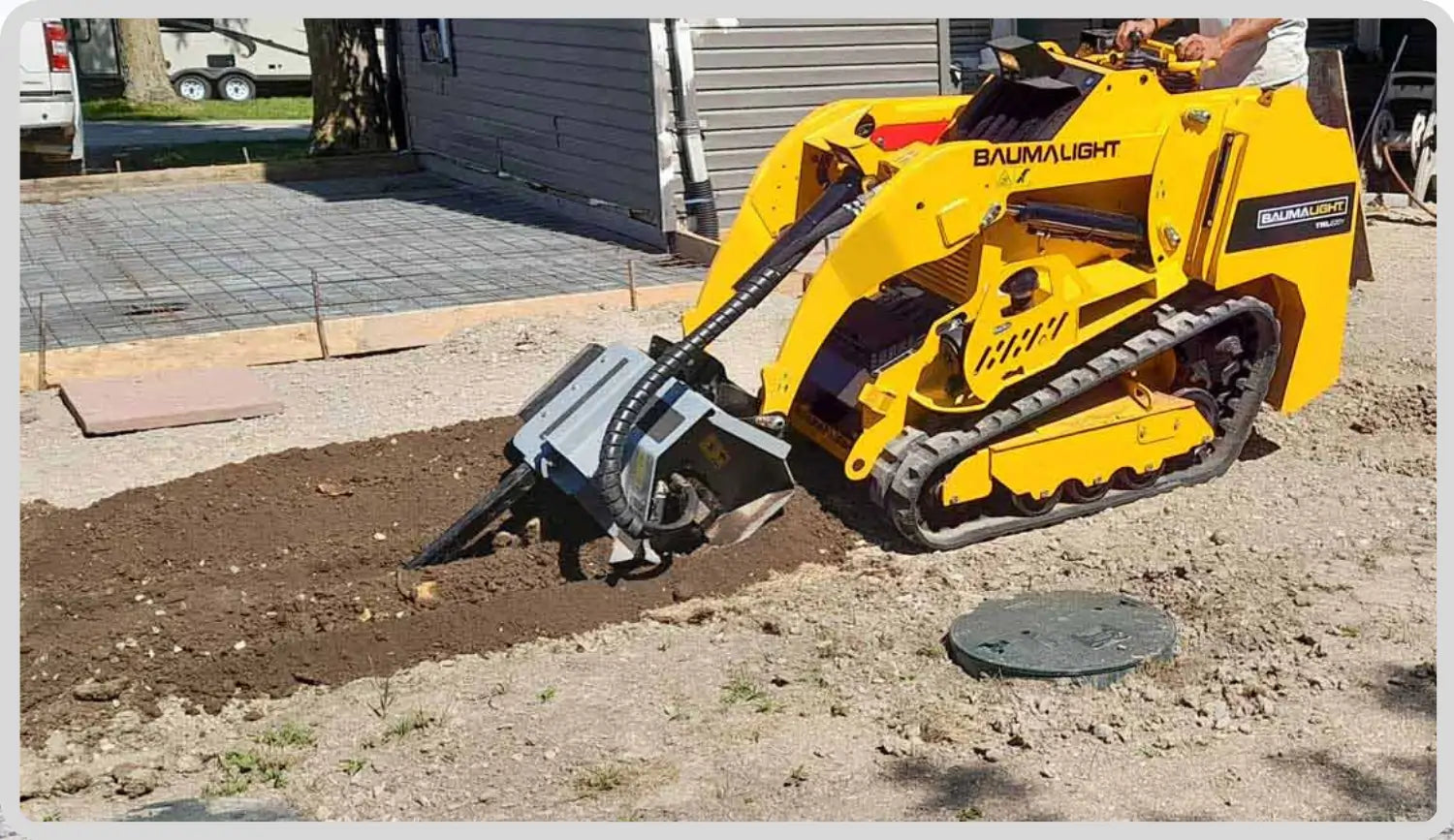

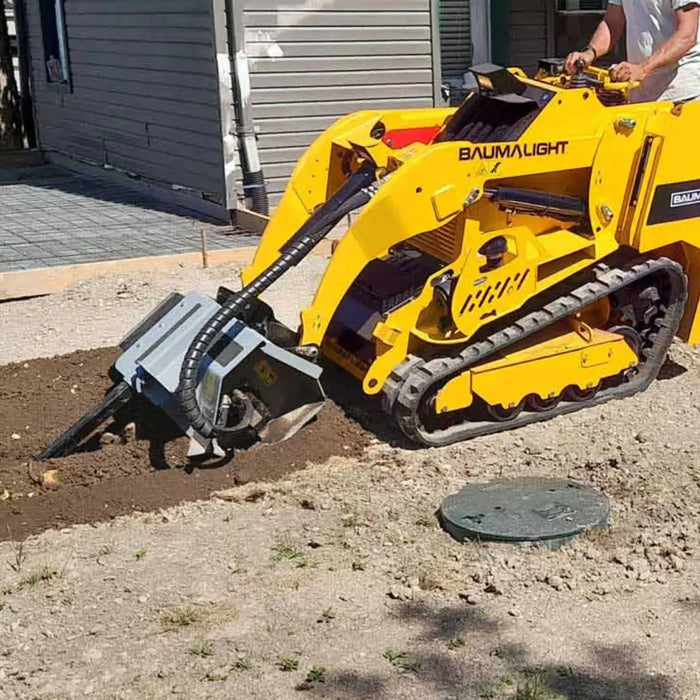

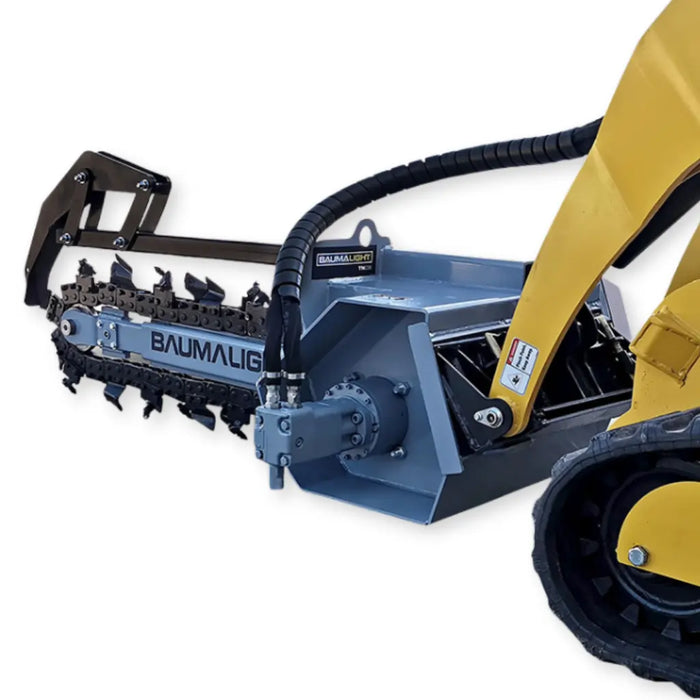

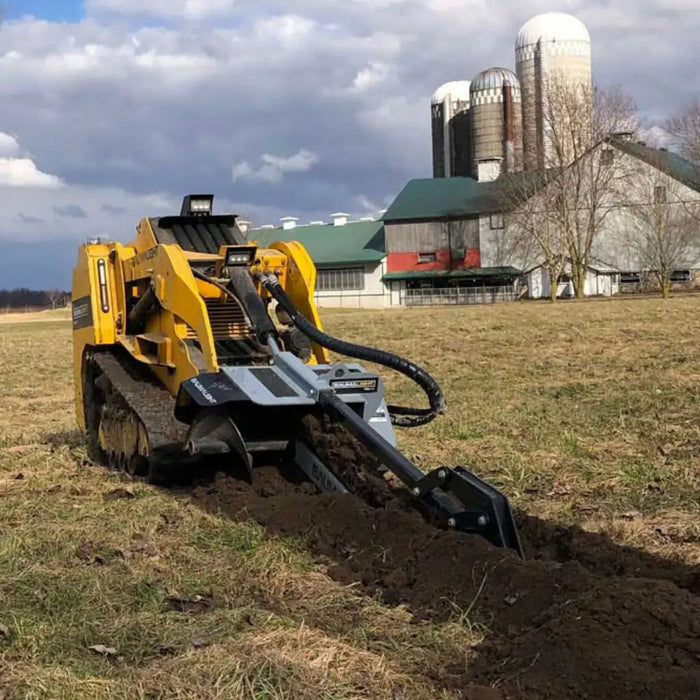

The Baumalight TN236 Trencher is the perfect choice for trenching in tight spaces with mini skid steers and mini track loaders between 1,500–4,000 lbs. Compact yet powerful, the TN236 cuts trenches up to 36” deep and 4–6” wide, making it ideal for landscapers installing cable, irrigation, or utility lines. Powered by a direct hydraulic drive, it eliminates roller chains and delivers consistent force directly to the sprocket of the digging chain for reliable, low-maintenance performance. Rugged and efficient, the TN236 is built to deliver clean, precise trenches in confined areas.
Specifications
| Model | TN236 | TNM336B | TNS336 | TNS536 | TN548 | TN560 | TN760 |
|---|---|---|---|---|---|---|---|
| Mount | Standard Mini skidsteer | Bobcat mini skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer |
| Trench Depth | 36" | 36" | 36" | 36" | 48" | 60" | 60" |
| Trench Width | 4" to 6" | 4" to 6" | 4" to 6" | 6" to 10" | 6" to 10" | 6" to 10" | 6" to 10" |
| Drive Type | Direct drive | Direct drive | Planetary | Planetary | Planetary | Planetary | Planetary |
| Main Shaft Size | 1:10 taper hardened shaft | 1:10 taper hardened shaft | 1:10 taper hardened shaft | 2-9/16" solid hardened steel | 2-9/16" solid hardened steel | 2-9/16" solid hardened steel | 2-9/16" solid hardened steel |
| Trencher Chain Torque at 3,000 PSI | 6,703 lbs-in | 6,703 lbs-in | 14,571 lbs-in | 21,856 lbs-in | 21,856 lbs-in | 21,856 lbs-in | 33,877 lbs-in |
| Over Torque Protection | Hydraulic relief | Hydraulic relief | Hydraulic relief | Hydraulic relief | Hydraulic relief | Hydraulic relief | Hydraulic relief |
| Horse Power (HP) | 10 - 25 | 10 - 25 | 30 - 55 | 40 - 100 | 40 - 100 | 40 - 100 | 40 - 100 |
| Carrier Weight (lb) | 1,500 - 4,000 | 1,500 - 4,000 | 2,000 - 5,000 | 3,000 - 7,000 | 3,000 - 7,000 | 3,000 - 7,000 | 4,000 - 12,000 |
| Min. / Max. GPM Skidsteer | 7 to 18 | 7 to 18 | 10 to 20 | 12 to 25 | 15 to 25 | 12 to 25 | 20 to 42 |
| Min. / Max. GPM Tractor | N/A | N/A | 14 to 22 | 15 to 25 | 15 to 25 | N/A | N/A |
| Weight | 569 lb | 535 lb | 850 lb | 1,200 lb | 1,250 lb | 1,500 lb | — |
Technical Documents
Open Trenchers
See it in action!
TN236 Trencher

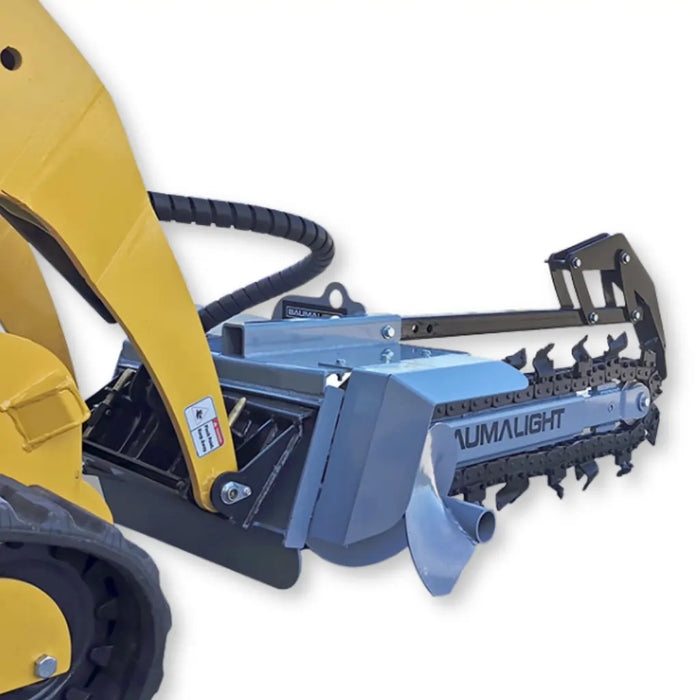

Crumb Scraper Bar
Heavy-duty scraper bar sweeps dirt into the chain, keeping trenches clean at any depth.
Cleaner Trench Cuts
Sweeps Loose Dirt
Hinged for Flexibility
read more
Heavy-duty scraper bar sweeps dirt into the chain, keeping trenches clean at any depth.
Solid Steel Nose
Precision steel nose with sealed bearings and grease fitting for smooth trenching.
Solid Steel Build
Smooth Operation
Sealed Bearings
read more
Precision steel nose with sealed bearings and grease fitting for smooth trenching.
Adjustable Tension
Grease cylinder lets you adjust chain tension quickly with just a few easy pumps.
Quick Adjustment
Grease Cylinder
Easy Maintenance
read more
Grease cylinder lets you adjust chain tension quickly with just a few easy pumps.
Side Auger
Side auger clears dirt from trench while keeping it nearby for fast backfilling.
Clears Loose Dirt
Faster Backfilling
Convenient Design
read more
Side auger clears dirt from trench while keeping it nearby for fast backfilling.
