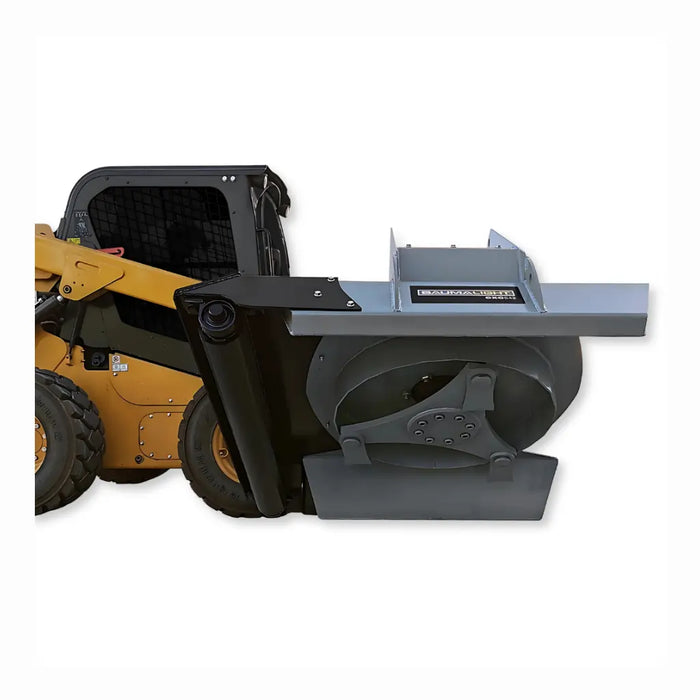

Name: Baumalight SWA750 Boom Mower For Skid Steers
Brand: Baumalight
SKU: BML-SWA750-HX550-JS4
Price: 26400.0 USD
Availability: InStock

Baumalight SWA750 Boom Mower For Skid Steers

See more by Baumalight

1 Video

Baumalight SWA750 Boom Mower For Skid Steers

Cuts Brush Up To 4.75" Diameter

Optimal Flow Range 20 - 30 GPM

Reach 7'

Commonly Used For

Landscaping

Roadside Maintenance

Forestry Work

Baumalight SWA750 Boom Mower For Skid Steers

See more by Baumalight

1 Video

Limited time deal

$26,400

List Price:

Built To Order

Delivery By Wednesday, January 21

SKU: BML-SWA750-HX550-JS4

Weight: 2050.0 lb

Motor Option Controller Kit

SET OF REPLACEMENT BLADES

FREE

Frequently Bought With

Product Overview

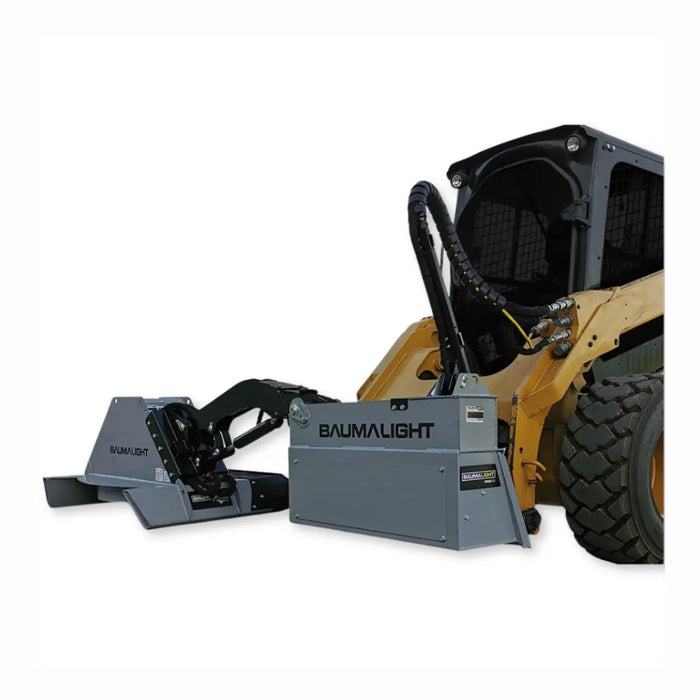

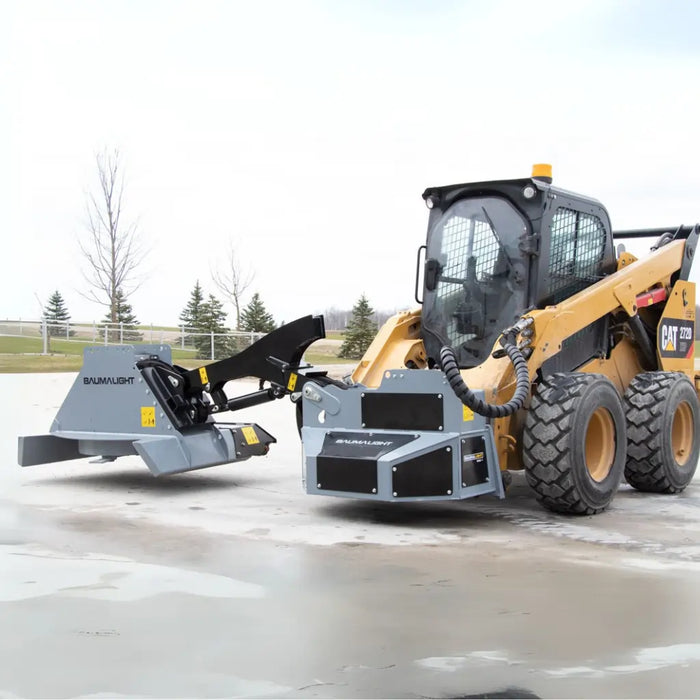

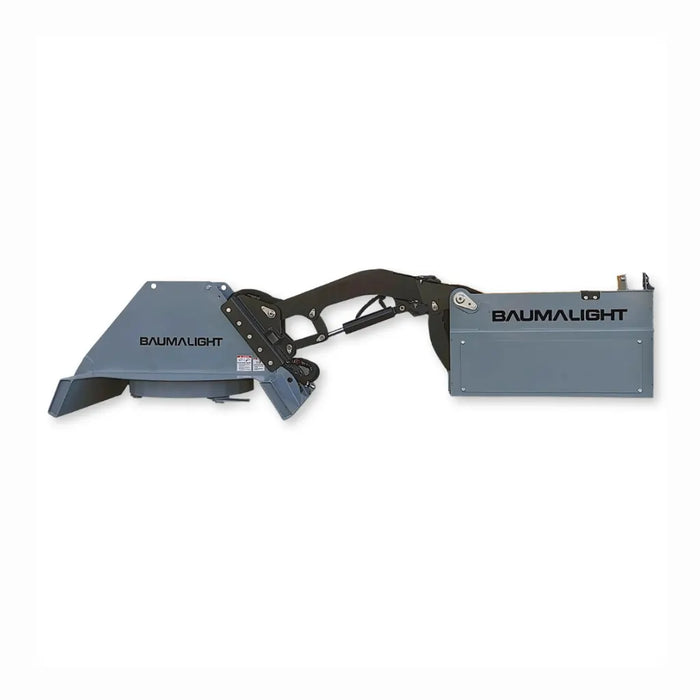

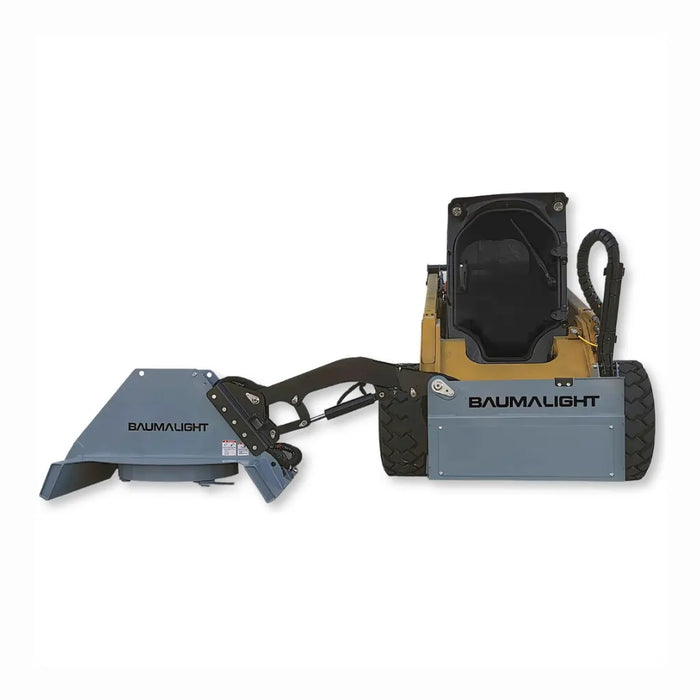

Simplify mowing ditches, roadsides, and fence lines with Baumalight's SWA750 Boom Mower for Skid steers. Featuring rotary cutting blades on a 42" wide adjustable height deck, this heavy-duty mower is designed for carriers weighing at least 8,000 lbs. The 7-foot curved single-arm boom provides easy access and conveniently folds up for better transport clearance.

✔ For Machines 20 - 40 GPM Flow
✔ 42" Wide Mowing Head
✔ 7" Cutting Diameter
👇 Specifications Below

Specifications

Model No.	SWA540	SWA550	SWA560	SWF560	SWF580	SWA750
Total reach when flat	6 ft	7 ft	10 ft	10 ft	14 ft	7 ft
Cutting Width	48"	60"	60"	48"	48"	42"
Boom Type	Single Arm	Single Arm	Single Arm	Boom & Stick	Boom & Stick	Single Arm
Type of Blades	Flail	Flail	Flail	Flail	Flail	Rotary cutter
Minimum Skidsteer weight Warning; not applicable to wheel loaders	4,500 lbs	5,000 lbs	5,500 lbs	6,000 lbs	8,000 lbs	8,000 lbs
Maximum Skidsteer weight	10,500 lbs	11,000 lbs	12,000 lbs	12,000 lbs	16,000 lbs	12,000 lbs
Requires Case Drain	Yes	Yes	Yes	Yes	Yes	Yes
Hydraulic Hose & Couplers	Hose only	Hose only	Hose only	Hose only	Hose only	Hose only
Max PSI	4,500	4,500	4,500	4,500	4,500	4,500
Motor type	Piston	Piston	Piston	Piston	Piston	Piston
Estimated dealer set-up time	6 hours	6 hours	6 hours	8 hours	9 hours	7 hours
No. of blade clusters F2000(Standard)	38	48	48	38	38	-
No. of blade clusters F3000(Optional)	76	96	96	76	76	-
Shipping weight	1775 lbs	1900 lbs	1750 lbs	1650 lbs	1800 lbs	2050 lbs

Motor options - brush size chart

MAXIMUM MOWING SIZE

(Brush Diameter in Inches)

MOTOR	MOTOR TYPE	CC	CASE DRAIN	IDEAL RPM	PSI	20 GPM	25 GPM	30 GPM	35 GPM	40 GPM
RPM						800	1100	1350
HX550	Piston	64	Critical	1400	3000 3500 4000	3.5" 4" 4.25"	3.75" 4.25" 4.5"	4" 4.5" 4.75"	- -	- -
RPM							850	1000	1200	1450
HX570	Piston	84	Critical	1200	3000 3500 4000	- - -	4" 4.5" 4.75"	4.5" 5" 5.5"	5" 5.5" 6"	5.5" 6" 7"

Technical Documents

Open SS_Boom_Mower

Shipping & Returns

We offer FREE 2-5 day shipping (LTL Freight and Residential) for all orders over $5,000. Orders under that total will have shipping calculated at checkout. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com. More information on refunds and returns can be found here.

Warranty

Baumalight Attachments are warranted to be free of defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase. This warranty covers parts and labor, but does not cover misuse, negligence, dealer travel time and shipping costs to and from the dealer.

Refer to manufacturer's manual for full warranty details.

See it in action!

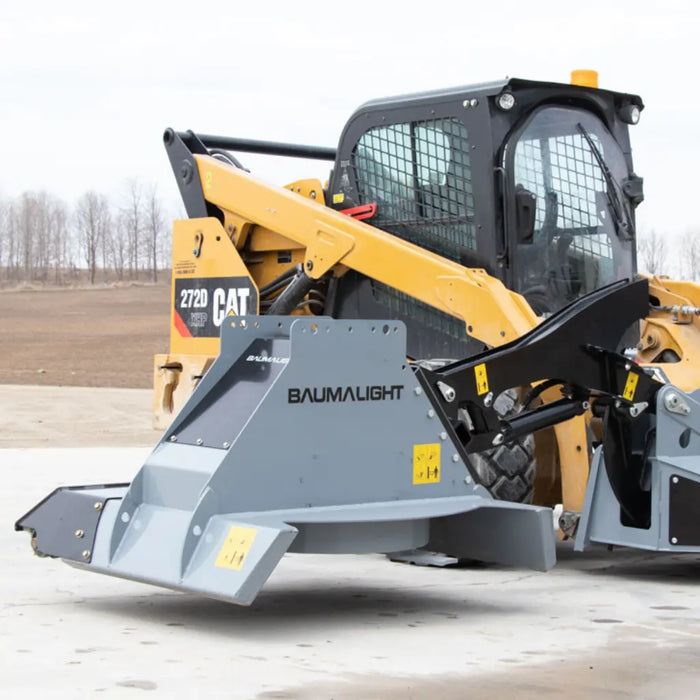

The SWA750 Boom Mower

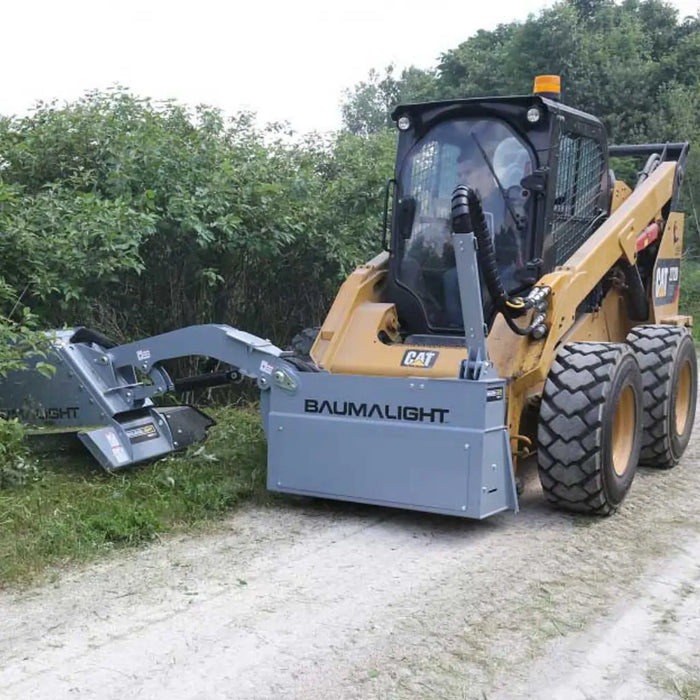

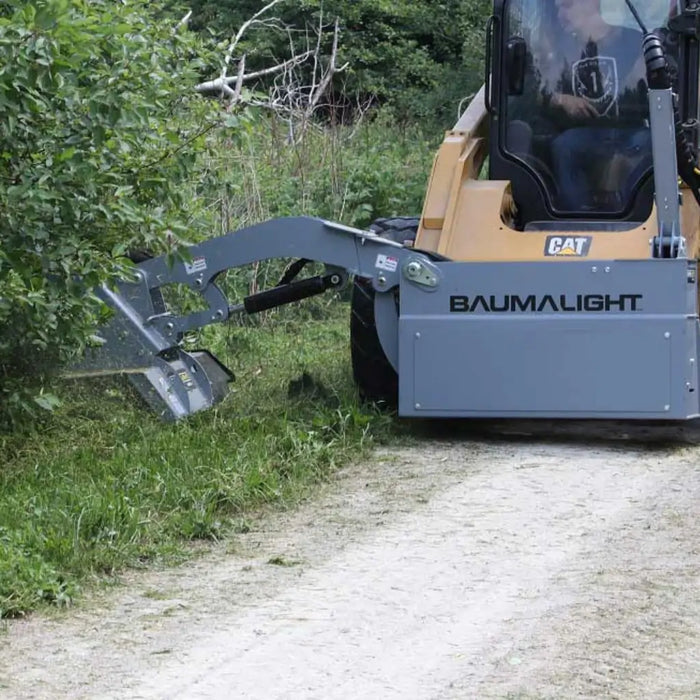

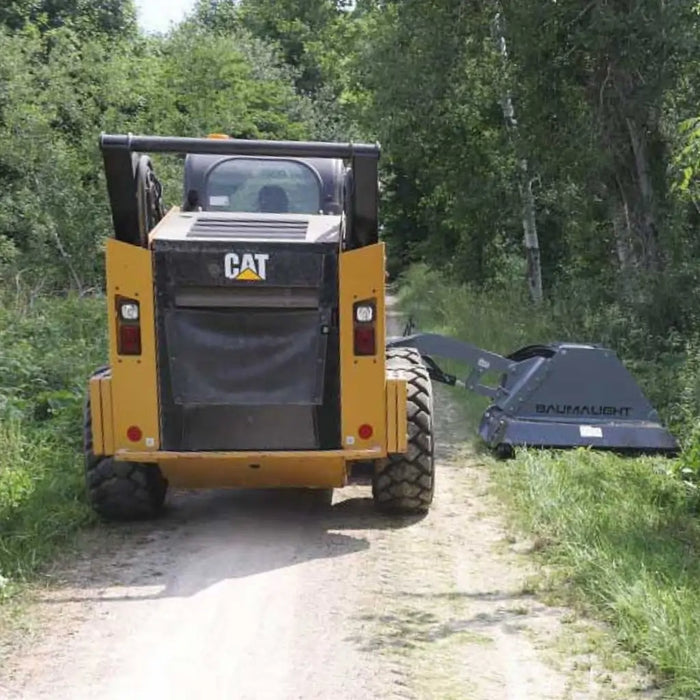

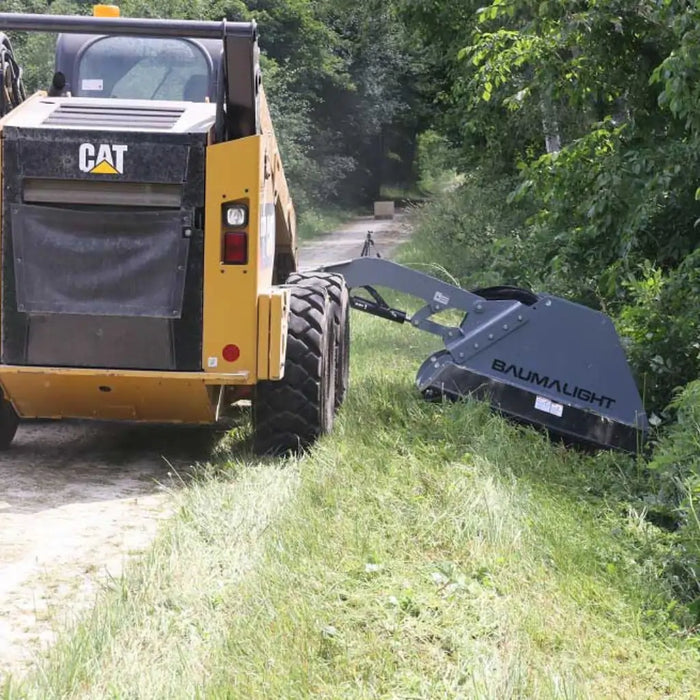

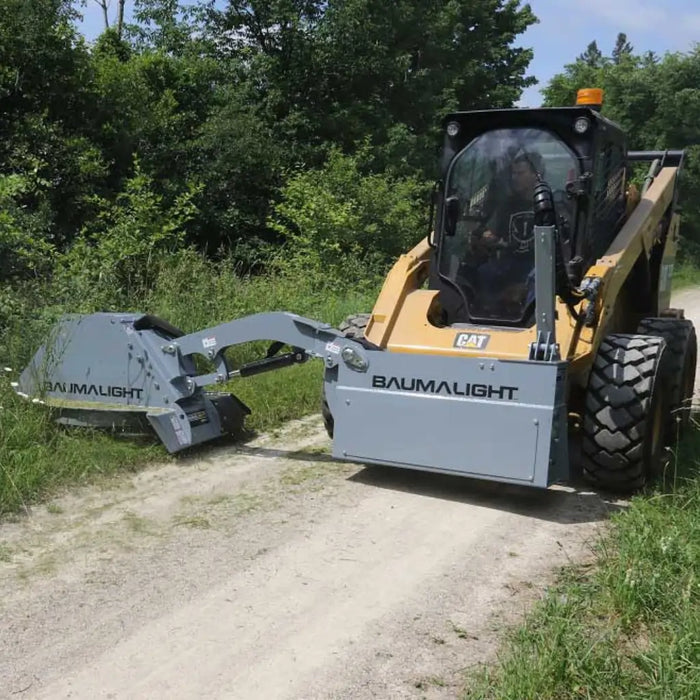

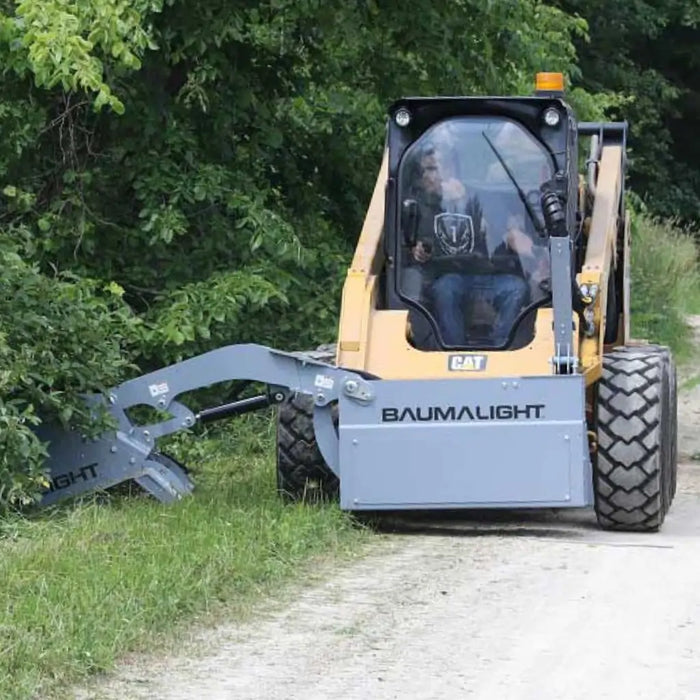

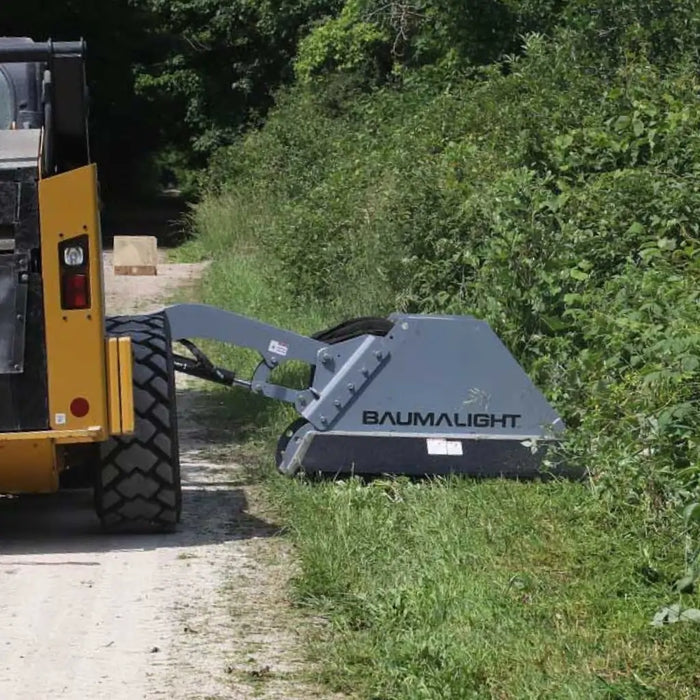

Baumalight’s SWA750 Boom Mower is a convenient skid steer attachment that makes mowing ditches, roadsides, and fence lines easier than ever. Unlike our other ditch mower models, the SWA750 uses rotary cutting blades instead of our flail teeth.

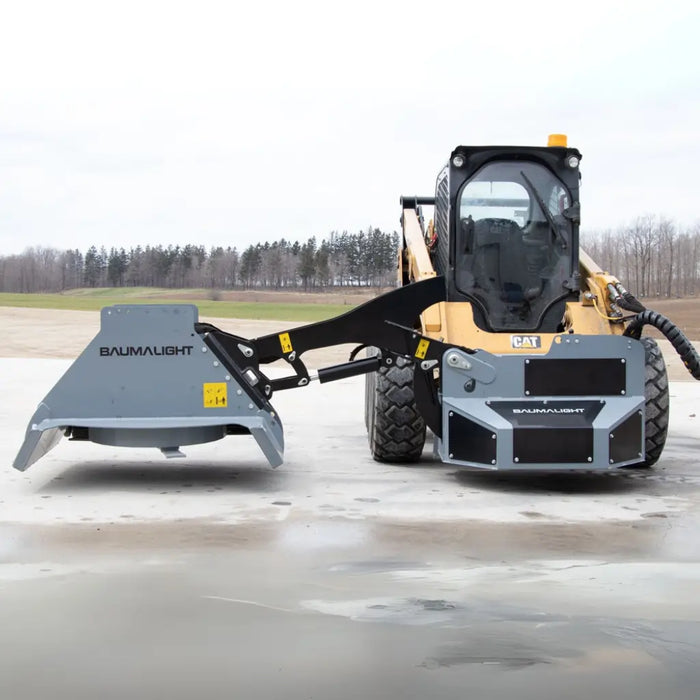

The cutting blades are mounted on a 42” wide adjustable height mowing deck. This heavy-duty ditch mower is designed to work with skid steers with a minimum carrier weight of 8,000 lbs. The SWA750 is available with two piston motor options.

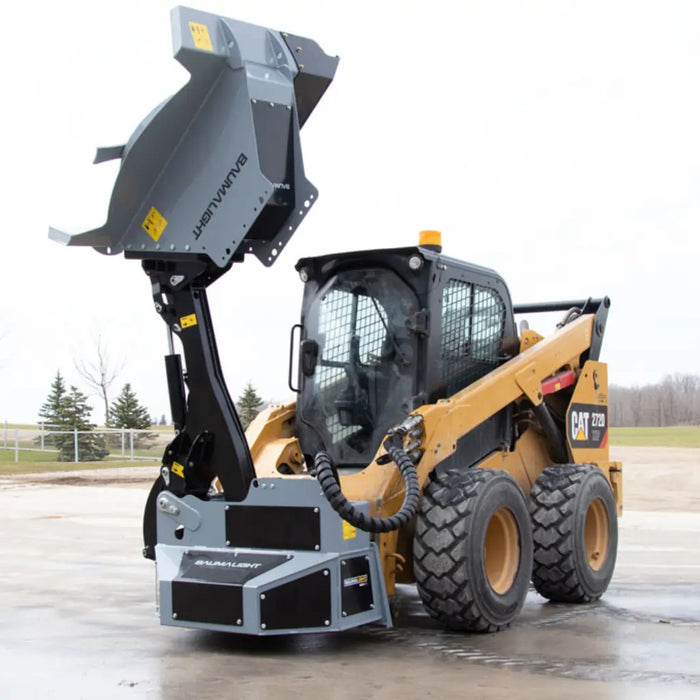

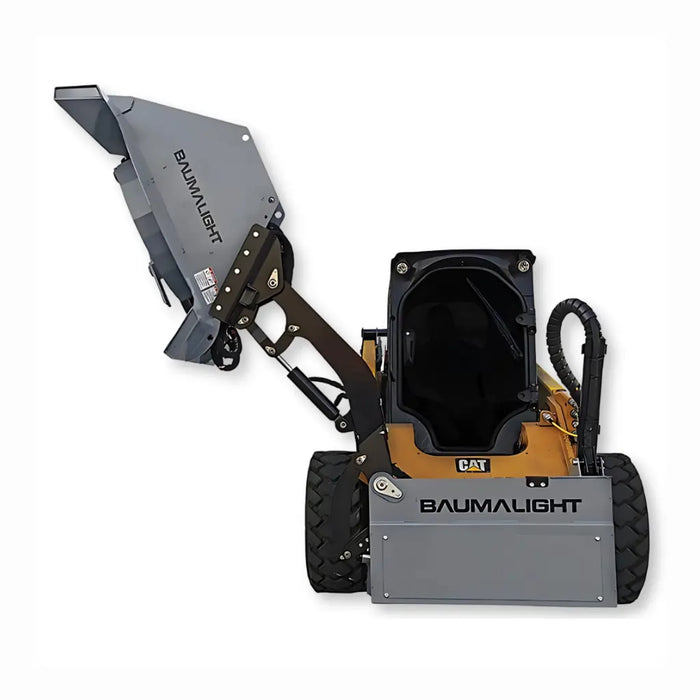

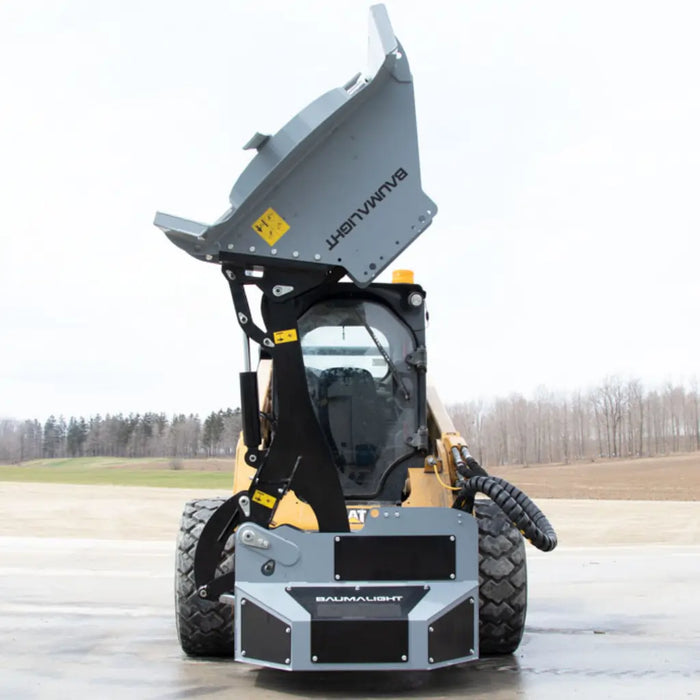

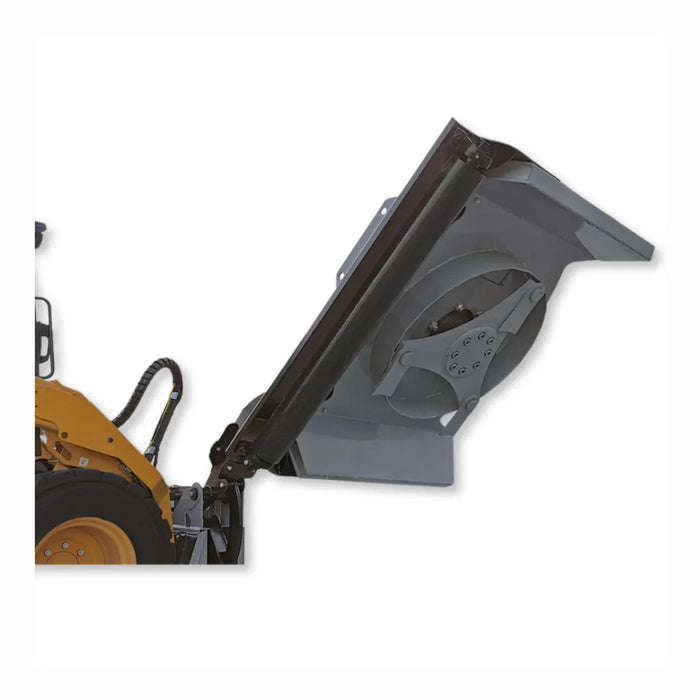

With a 7 foot reach, the curved single arm boom gives you easy access hard to reach grass. When it’s time to move on to the next project, the boom conveniently folds up for better clearance during travel.
