Name: Baumalight SWA550 Boom Mower For Skid Steers
Brand: Baumalight
SKU: BML-SWA550-D510-F2-JS4
Price: 20300.0 USD
Availability: InStock

Baumalight SWA550 Boom Mower For Skid Steers

See more by Baumalight

1 Video

Baumalight SWA550 Boom Mower For Skid Steers

Cuts Brush Up To 0.75" Diameter

Optimal Flow Range 20 - 30 GPM

Reach 7'

Commonly Used For

Landscaping

Roadside Maintenance

Forestry Work

Baumalight SWA550 Boom Mower For Skid Steers

See more by Baumalight

1 Video

Limited time deal

$20,300

List Price:

Built To Order

Delivery By Saturday, December 06

SKU: BML-SWA550-D510-F2-JS4

Weight: 1900.0 lb

Motor Option Blade Style Controller Kit

6 Replacement Teeth

Free

Frequently Bought With

Product Overview

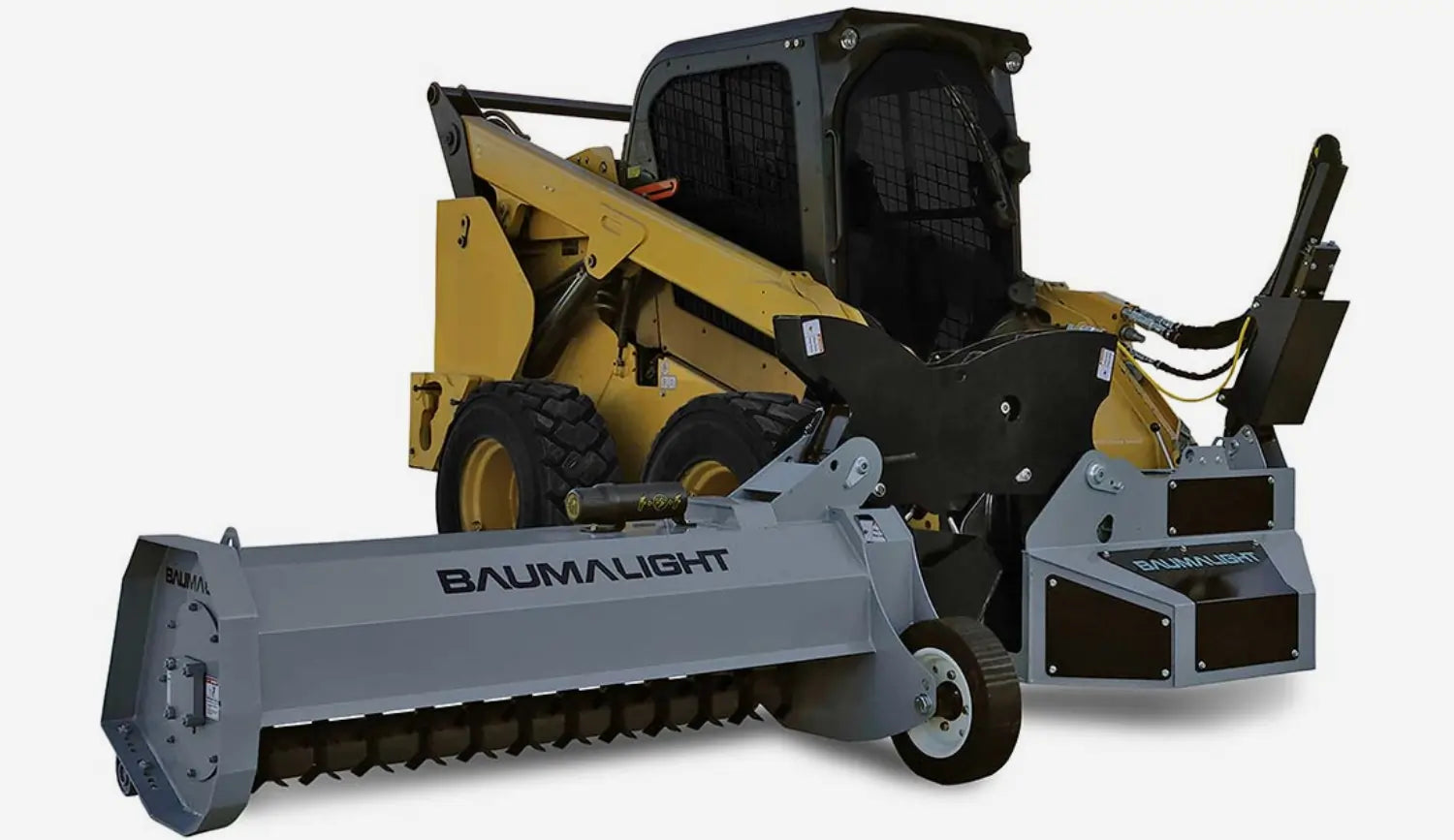

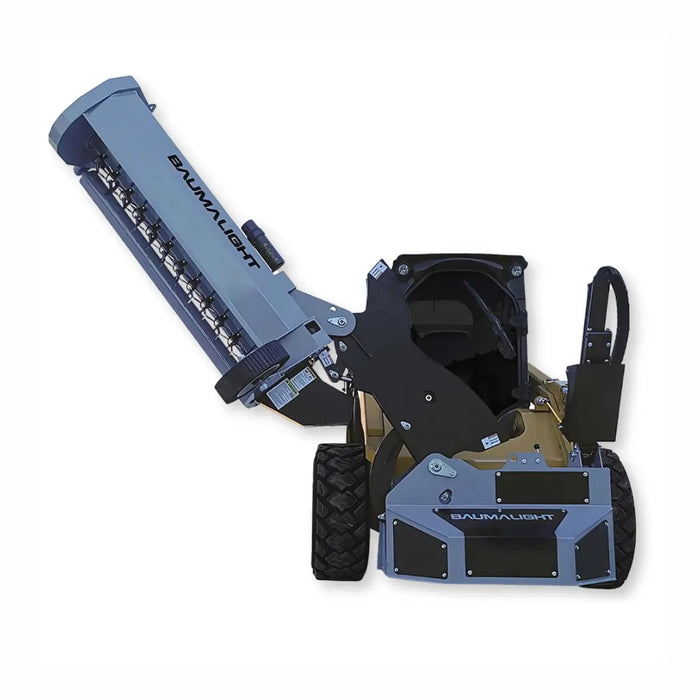

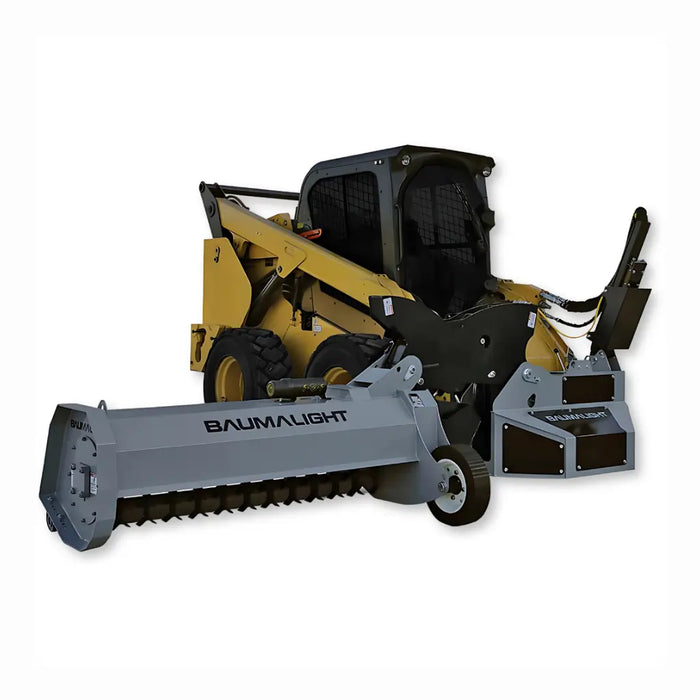

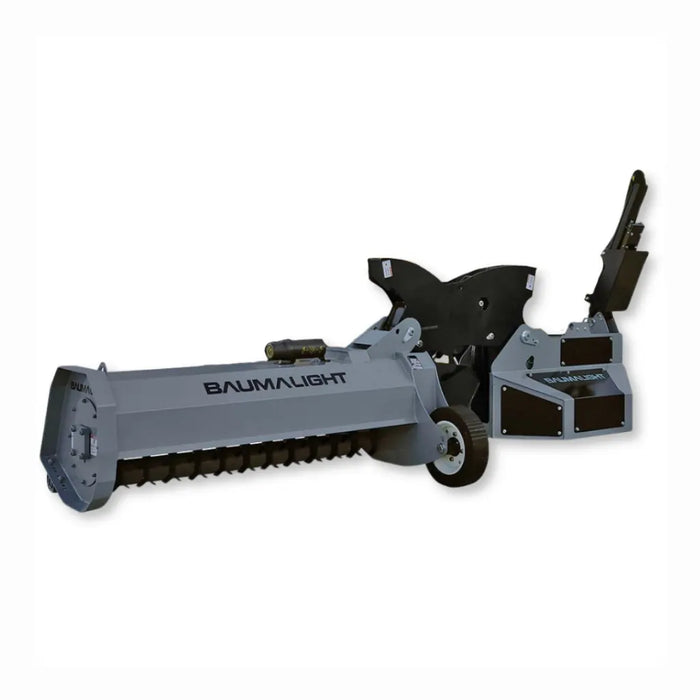

Effortlessly maintain ditches, roadsides, and fence lines with Baumalight's SWA550 Boom Mower for Skid steers. Featuring a curved single-arm boom with a 7-foot reach and a 60" wide mowing head, this mower is designed for carriers weighing at least 5,000 lbs. The flat-free tire creates a floating deck for easy transport between projects.

✔ For Machines 20 - 40 GPM Flow
✔ 60" Wide Mowing Head
✔ 7-Foot Boom Reach
👇 Specifications Below

Specifications

Model No.	SWA540	SWA550	SWA560	SWF560	SWF580	SWA750
Total reach when flat	6 ft	7 ft	10 ft	10 ft	14 ft	7 ft
Cutting Width	48"	60"	60"	48"	48"	42"
Boom Type	Single Arm	Single Arm	Single Arm	Boom & Stick	Boom & Stick	Single Arm
Type of Blades	Flail	Flail	Flail	Flail	Flail	Rotary cutter
Minimum Skidsteer weight Warning; not applicable to wheel loaders	4,500 lbs	5,000 lbs	5,500 lbs	6,000 lbs	8,000 lbs	8,000 lbs
Maximum Skidsteer weight	10,500 lbs	11,000 lbs	12,000 lbs	12,000 lbs	16,000 lbs	12,000 lbs
Requires Case Drain	Yes	Yes	Yes	Yes	Yes	Yes
Hydraulic Hose & Couplers	Hose only	Hose only	Hose only	Hose only	Hose only	Hose only
Max PSI	4,500	4,500	4,500	4,500	4,500	4,500
Motor type	Piston	Piston	Piston	Piston	Piston	Piston
Estimated dealer set-up time	6 hours	6 hours	6 hours	8 hours	9 hours	7 hours
No. of blade clusters F2000(Standard)	38	48	48	38	38	-
No. of blade clusters F3000(Optional)	76	96	96	76	76	-
Shipping weight	1775 lbs	1900 lbs	1750 lbs	1650 lbs	1800 lbs	2050 lbs

Motor options - brush size chart

MAXIMUM MOWING SIZE

(Brush Diameter in Inches)

MOTOR	MOTOR TYPE	CC	CASE DRAIN	IDEAL RPM	BLADE STYLE	PSI	20 GPM	25 GPM	30 GPM	35 GPM	40 GPM
RPM							1500	2000	2500	3000	3500
D510	Piston	34	Critical	2200	F2000	3000 3500	0.375" 0.5"	0.5" 0.75"	0.75" 0.75"	N/A	N/A
D510	Piston	34	Critical	2200	F3000	3000 3500	0.75" 1"	1" 1"	1" 1"	N/A	N/A

* Running a skidsteer at half throttle is ideal

MOTOR	MOTOR TYPE	CC	CASE DRAIN	IDEAL RPM	BLADE STYLE	PSI	20 GPM	25 GPM	30 GPM	35 GPM	40 GPM
RPM							1000	1500	1800	2100	2500
D530	Piston	47	Critical	2100	F2000	3000 3500	0.5" 0.75"	0.75" 0.75"	0.75" 0.75"	0.75" 0.75"	0.75" 0.75"
D530	Piston	47	Critical	2100	F3000	3000 3500	1" 1"	1" 1"	1" 1"	1" 1"	1" 1"

* Running a skidsteer at half throttle is ideal

Technical Documents

Open SS_Boom_Mower

Shipping & Returns

We offer FREE 2-5 day shipping (LTL Freight and Residential) for all Baumalight attachments. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com.

More information on refunds and returns can be found here.

Warranty

Baumalight Attachments are warranted to be free of defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase. This warranty covers parts and labor, but does not cover misuse, negligence, dealer travel time and shipping costs to and from the dealer.

Refer to manufacturer's manual for full warranty details.

See it in action!

The SWA550 Boom Mower

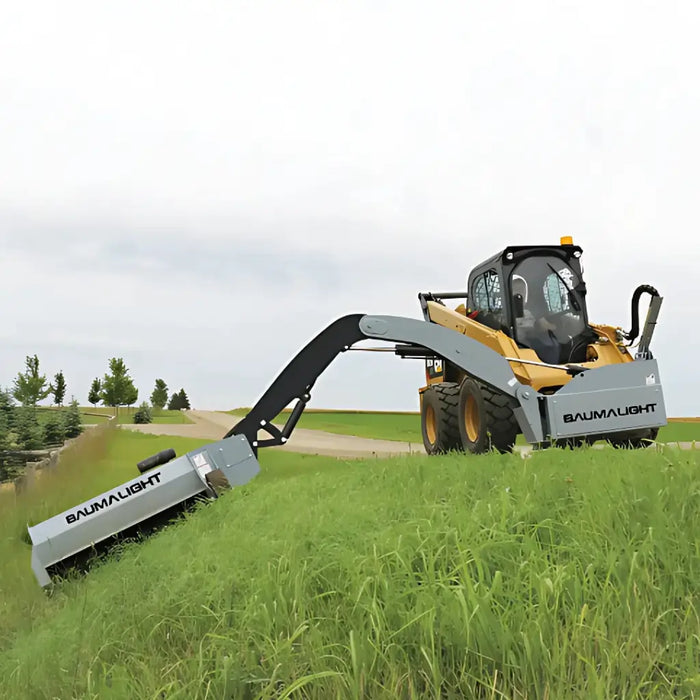

Baumalight’s SWA550 Boom Mower for Skidsteer allows you to easily access hard-to-reach grass and brush. With a 7-foot reach, the curved single-arm boom is ideal for maintaining your ditches, roadsides, and fence lines.

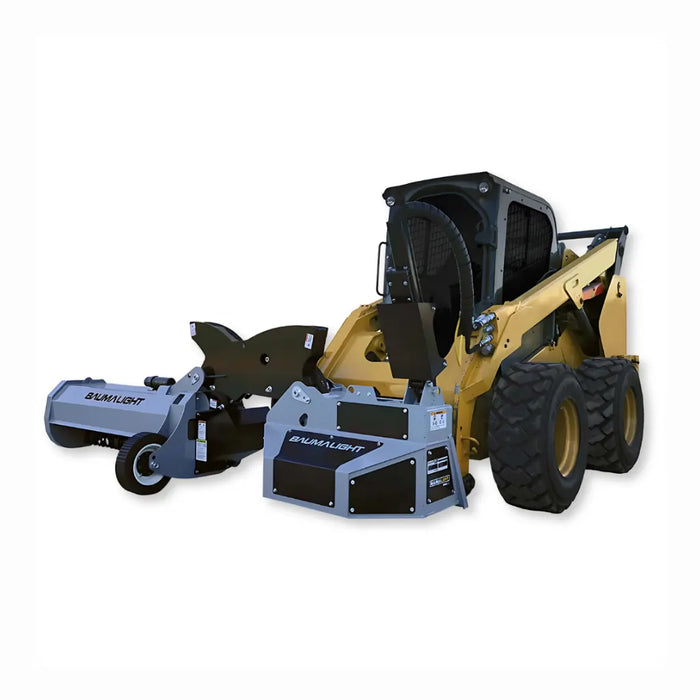

The SWA550 is designed to work with skid steers with a minimum carrier weight of 5,000 lbs. This ditch mower has a full 60” wide mowing head and features our 200 series flail teeth. The head is supported by a durable solid flat-free tire that creates a floating deck, relieving the weight off the skid steer. When it’s time to move on to the next project, the boom conveniently folds up for travel.
