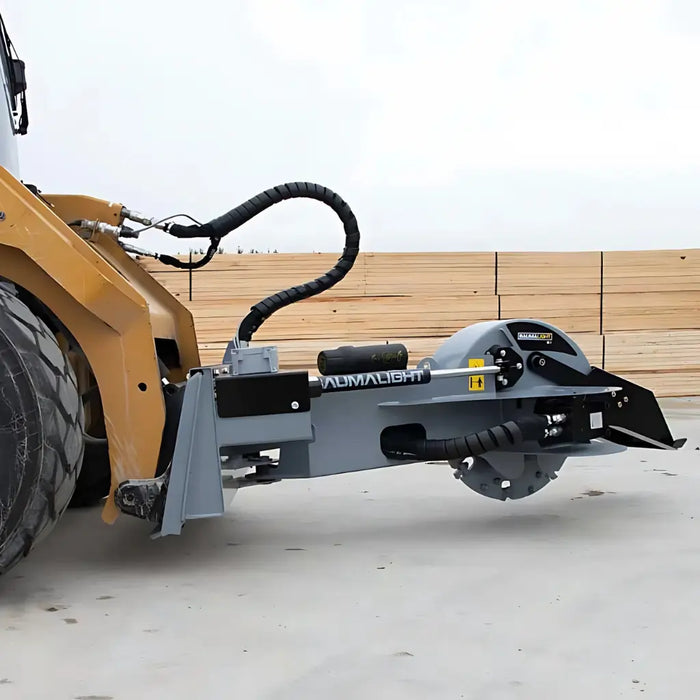

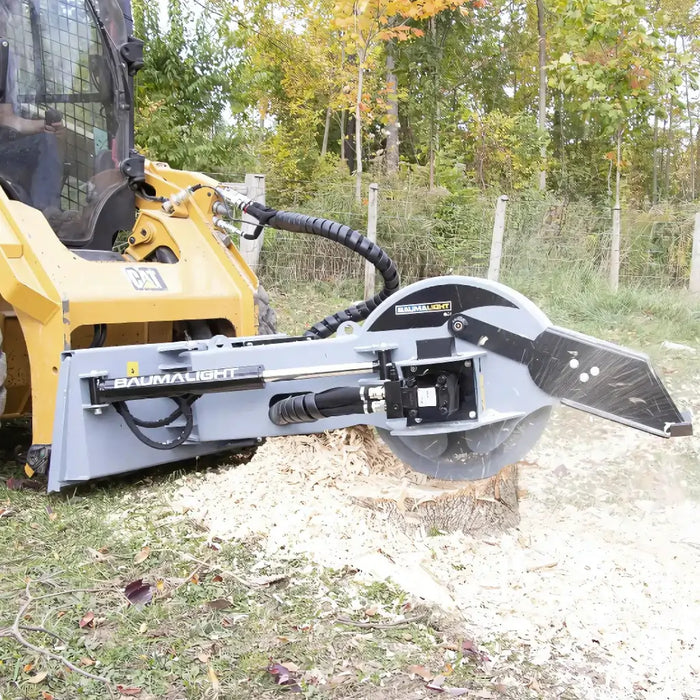

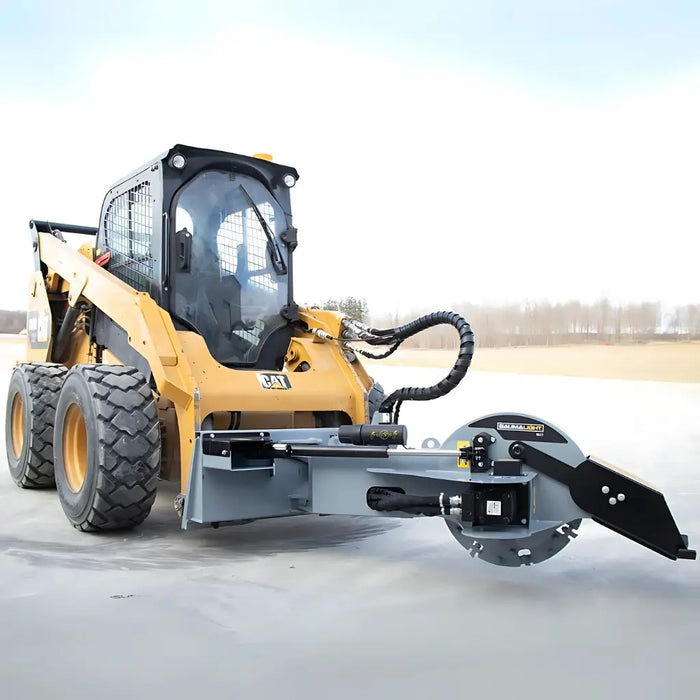

Name: Baumalight S22 Stump Grinder With 12V Swing Actuator For Skid Steers
Brand: Baumalight
SKU: BML-S22-S450-AUX
Price: 4710.0 USD
Availability: InStock

Baumalight S22 Stump Grinder With 12V Swing Actuator For Skid Steers

See more by Baumalight

1 Video

Baumalight S22 Stump Grinder With 12V Swing Actuator For Skid Steers

Optmal Flow Range 12 - 20 GPM

Mount Universal Quick Attach

Cutting Time For 24" Stump 30 min @ 3000 PSI

Commonly Used For

Baumalight S22 Stump Grinder With 12V Swing Actuator For Skid Steers

See more by Baumalight

1 Video

Limited time deal

$4,710

List Price:

Built To Order

Delivery By Saturday, November 15

SKU: BML-S22-S450-AUX

Weight: 800.0 lb

Motor Option Electric Function Kit

6 Replacement Teeth

Free

1

Frequently Bought With

Product Overview

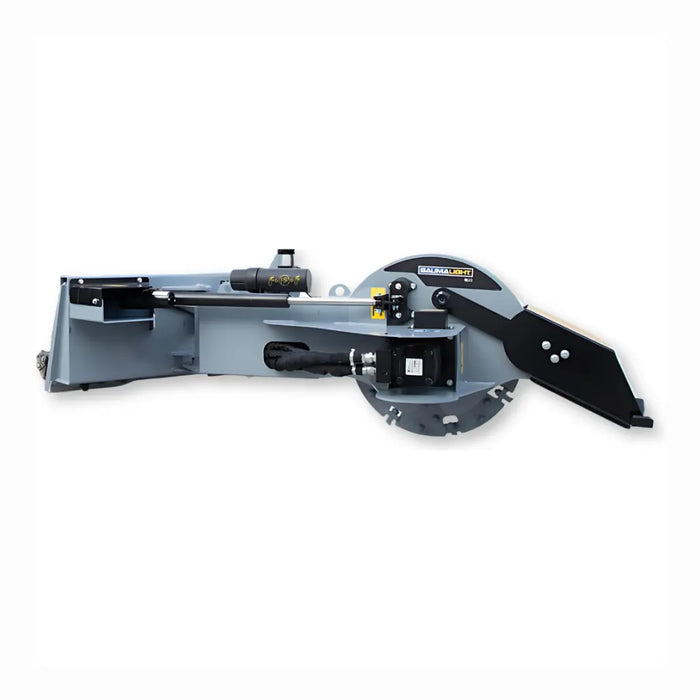

This innovative model uses a 12V electric linear actuator for enhanced torque and efficient grinding, bypassing traditional hydraulic systems. The S22 boasts three-sided carbide teeth that project 1-¼ inches for optimal clearance. Durability is guaranteed with hardened steel bushings and greaseable pins, designed to resist corrosion and ensure smooth operation.

✔ For Machines 12- 30 GPM
✔ Grinds Stumps in 15 min👇 Specifications Below

Specifications

Model No.	S14	S16	S18	S22	S24	S28	S40
Recommended HP Size	Mini Skidsteer	Mini Skidsteer	25-80	25-65	30-80	50-120	50-120
Maximum Carrier Size	Check GPM & PSI	Check GPM & PSI	Check GPM & PSI	Check GPM & PSI	Check GPM & PSI	Check GPM & PSI	Check GPM & PSI
Motor Type	Gerotor	Bent Axis Piston	Gerotor	Gerotor	Gerotor	Gerotor	Bent Axis Piston
Hydraulic GPM	Check Stump Cutting Size Chart	Check Stump Cutting Size Chart	Check Stump Cutting Size Chart	Check Stump Cutting Size Chart	Check Stump Cutting Size Chart	Check Stump Cutting Size Chart	Check Stump Cutting Size Chart
Rotor Size	18"	18"	24"	24"	24"	24"	24"
Number of Teeth	12	24	34	34	34	34	20
Tooth Part number	H3000	H3000	S1000	S1000	S1000	S1000	H3000
Tooth Construction	High speed	High speed	Planer	Planer	Planer	Planer	High speed
Cutting Wheel Speed	Depends on GPM	Depends on GPM	Depends on GPM	Depends on GPM	Depends on GPM	Depends on GPM	Depends on GPM
Cutting Height - Above Ground	No limit	No limit	No limit	No limit	No limit	No limit	No limit
Cutting Depth - Below Ground	6"	6"	10"	10"	10"	10"	24"
Maximum Cutting Depth - Per Pass	2"	2"	5"	6"	6"	6"	1"
Maximum Horizontal Cut	12"	12"	22"	22"	22"	22"	22"
Swing Arc	Self-feeding	56°	Self-feeding	60°	60°	63°	85°
Hub Torque	150 Ft.-Lbs.	-	250 Ft.-Lbs.	250 Ft.-Lbs.	250 Ft.-Lbs.	803 Ft.-Lbs.	-
Over Torque Protection	Relieve valve	Relieve valve	Relieve valve	Relieve valve	Relieve valve	Relieve valve	Remote
Hitch	1" pivot pins	1" pivot pins	Mini Plate	Quick Attach	Quick Attach	Quick Attach	Quick Attach
No. of Remotes Required - Hydraulic	1	1	1	1	1	1	1
Requires 12 Volt DC	No	Yes	No	Yes	Yes	Yes	Yes
Unit Weight (Shipping) Lbs.	394	400	642	-	995	995	1,200

Motor options - stump cutting time chart

Stump Cutting Times

STUMP CUTTING TIMES BASED ON 24" STUMP

Motor	Case Drain	PSI	Cutting Time (Minutes)							CC	Motor Type	RPM at MAX GPM
Motor	Case Drain	PSI	12 GPM	15 GPM	20 GPM	25 GPM	30 GPM	35 GPM	40 GPM	CC	Motor Type	RPM at MAX GPM
S450 Motor Available for: S14, S18, S22	Not Required	2,500	60 min	40 min	35 min	--	--	--	--	125	Roller Vane	520
S450 Motor Available for: S14, S18, S22		3,000	50 min	30 min	30 min	--	--	--	--
S550 Motor Available for: S18, S22	Recommended	3,000	--	30 min	25 min	20 min	16 min	--	--	130	Roller Vane	700
S550 Motor Available for: S18, S22		3,500*	--	30 min	25 min	20 min	16 min	--	--

Shipping & Returns

We offer FREE 2-5 day shipping (LTL Freight and Residential) for all Baumalight attachments. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com.

More information on refunds and returns can be found here.

Warranty

Baumalight Attachments are warranted to be free of defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase. This warranty covers parts and labor, but does not cover misuse, negligence, dealer travel time and shipping costs to and from the dealer.

Refer to manufacturer's manual for full warranty details.

See it in action!

Baumalight S22 Stump Grinder

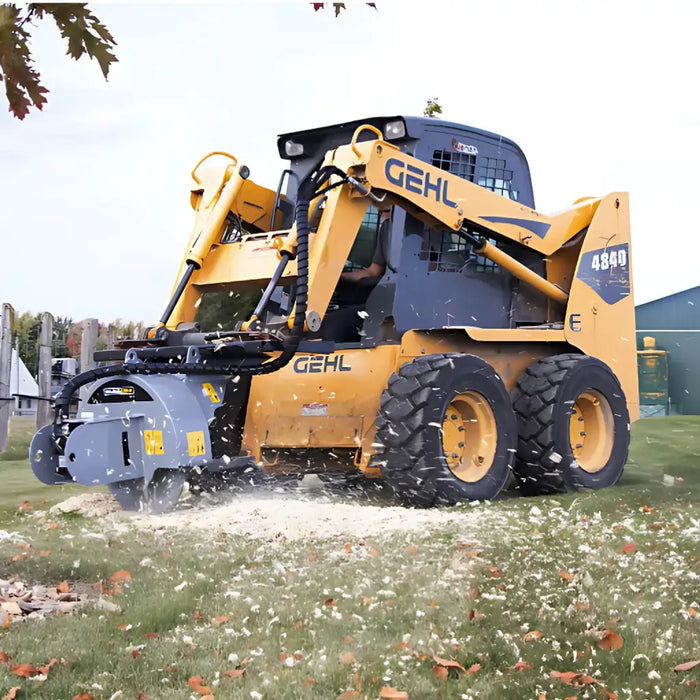

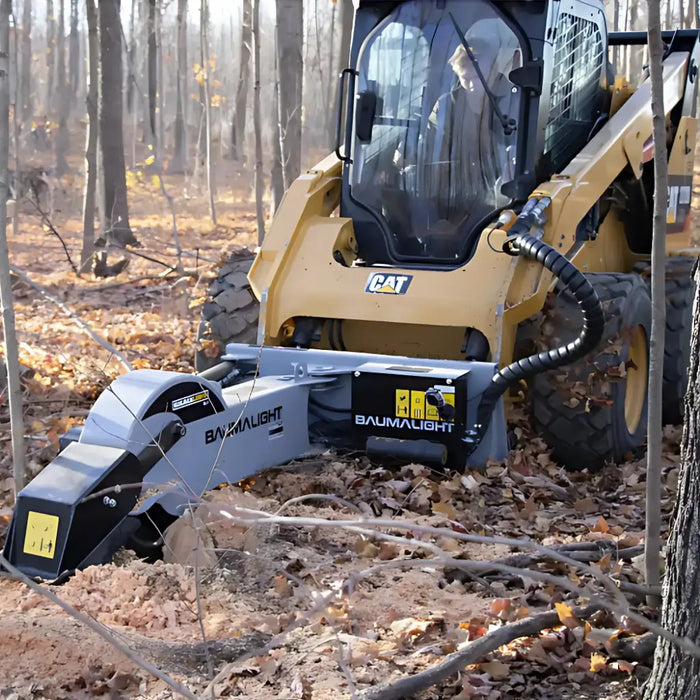

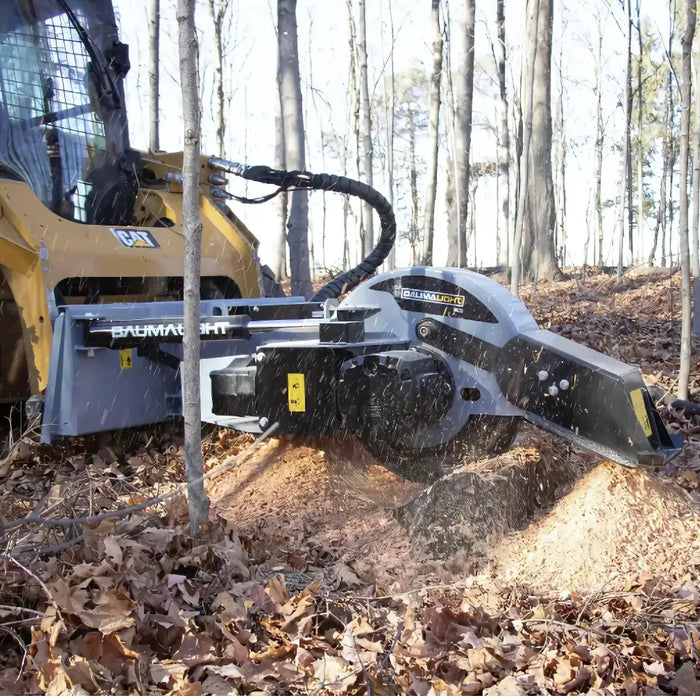

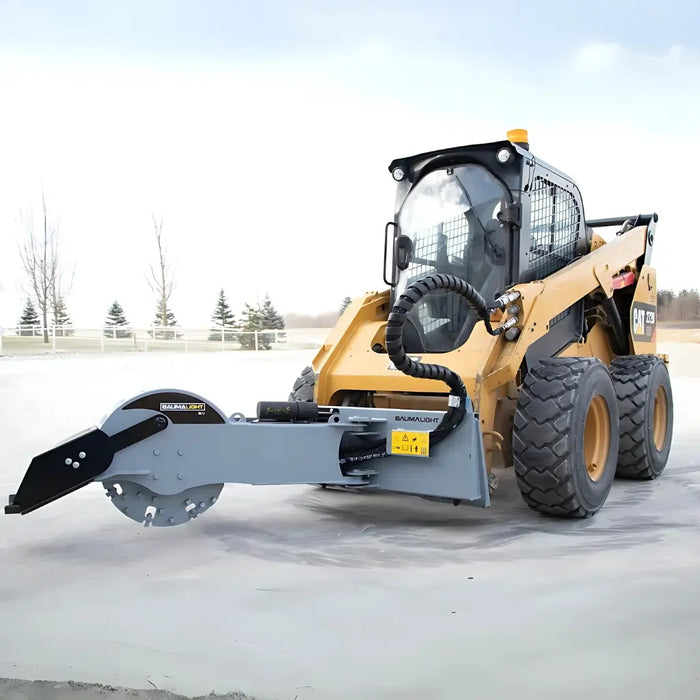

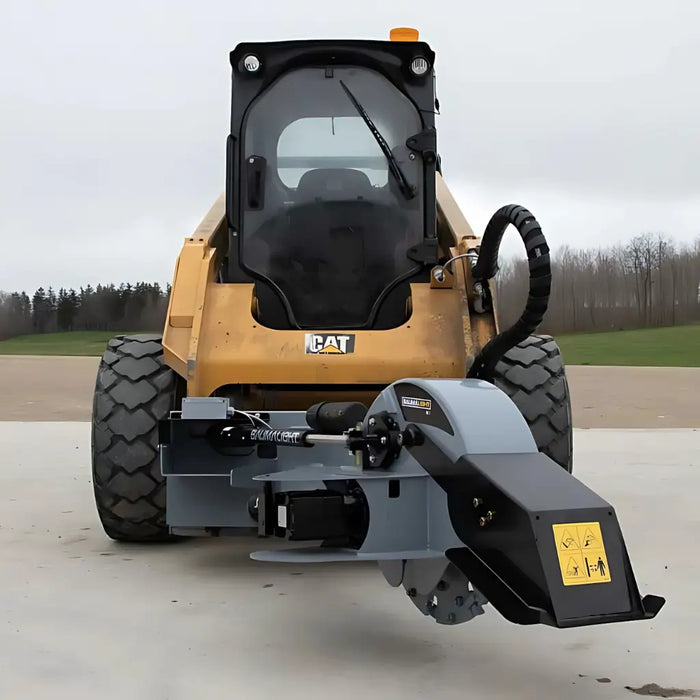

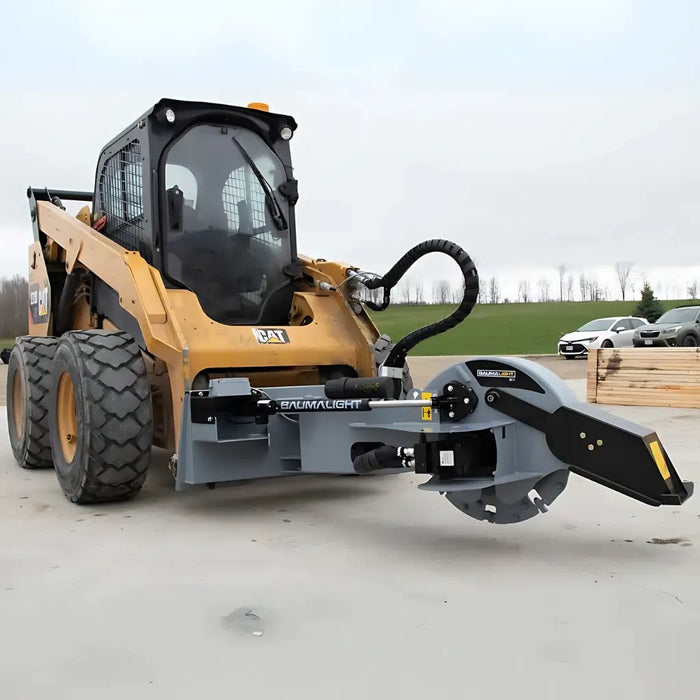

Harness the power of the Baumalight S22 Skid Steer Stump Grinder, a premier tool in stump removal technology, designed specifically for full-sized Skid Steers. This robust grinder features a 12V electric linear actuator, enhancing the machine's efficiency by allowing you to swing the grinder while still channeling all hydraulic flow and pressure directly to the motor. This innovative design drastically speeds up the grinding process, ensuring swift and effective stump removal.

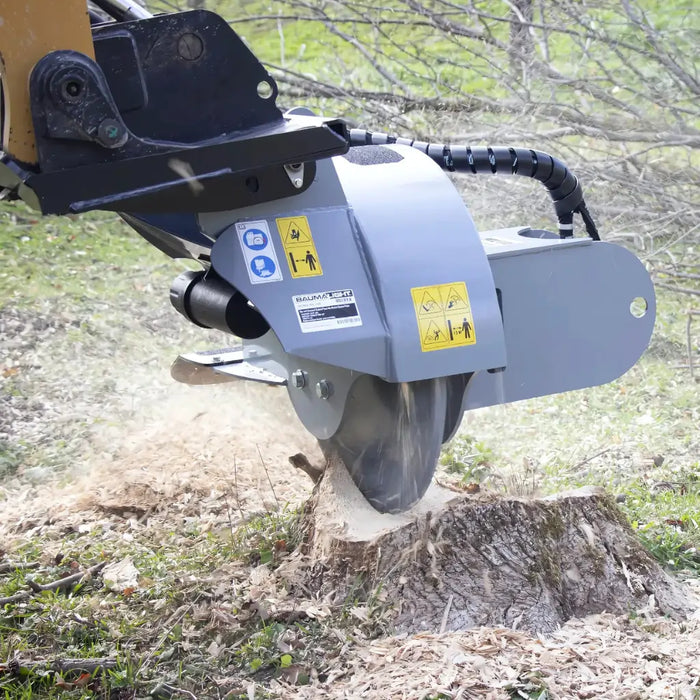

The S22 is built to last with hardened steel bushings and greaseable pins, expertly crafted to resist corrosion and maintain smooth joint operation throughout its lifespan. Additionally, the stump grinder provides exceptional clearance with carbide teeth that extend 1-¼ inches from the rotor, promoting efficient debris removal and reducing rotor heat buildup for extended durability. Every S22 comes with a set of six replacement teeth, making maintenance straightforward and cost-effective.
