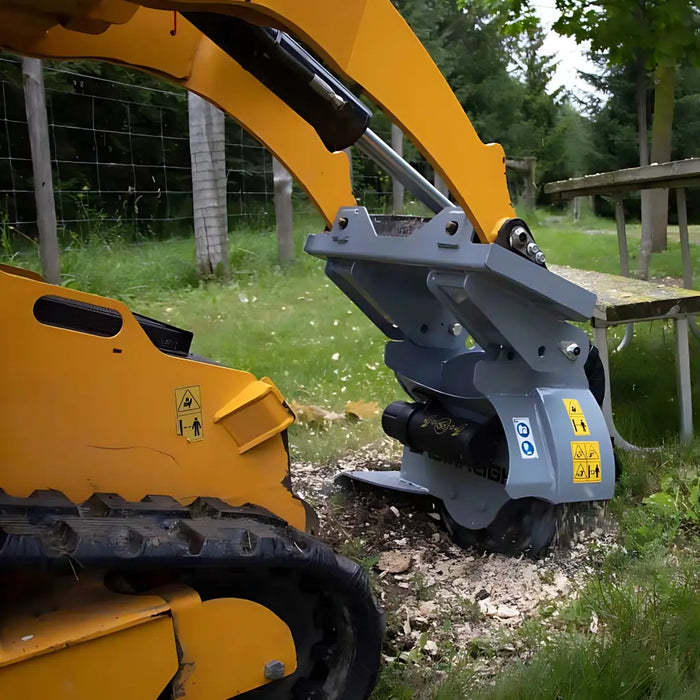

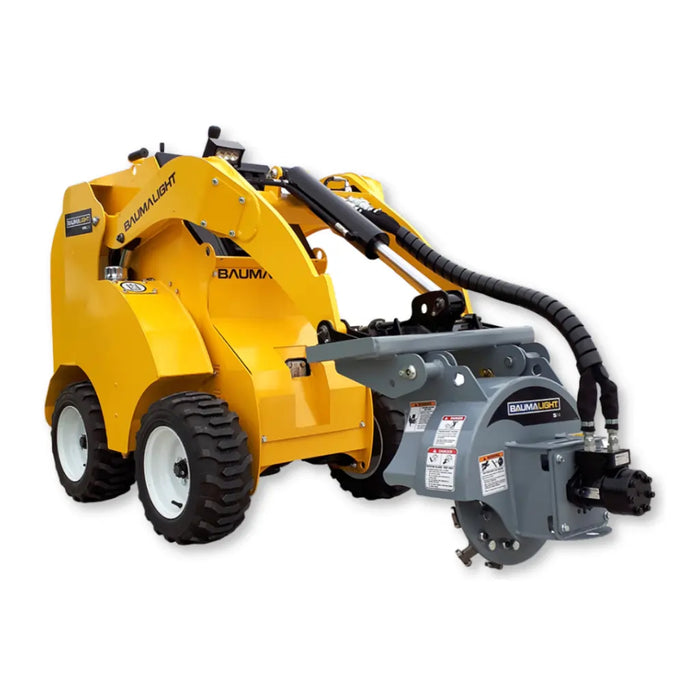

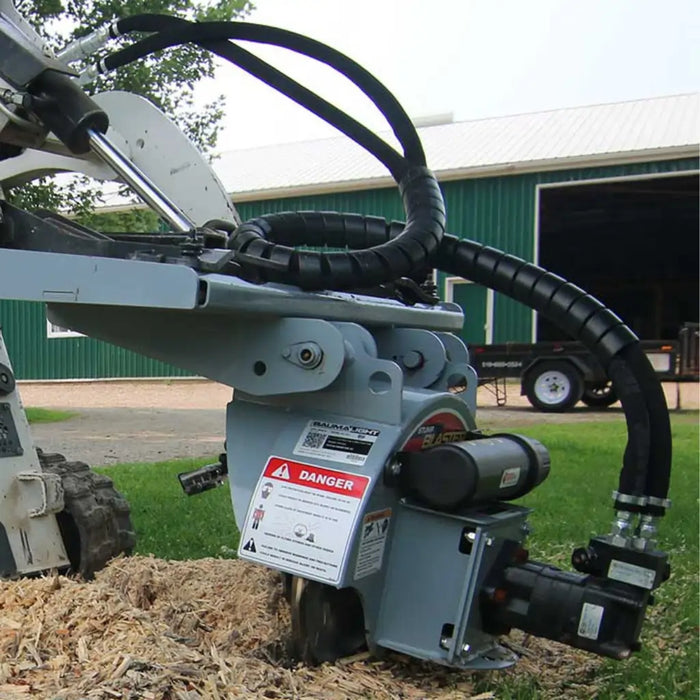

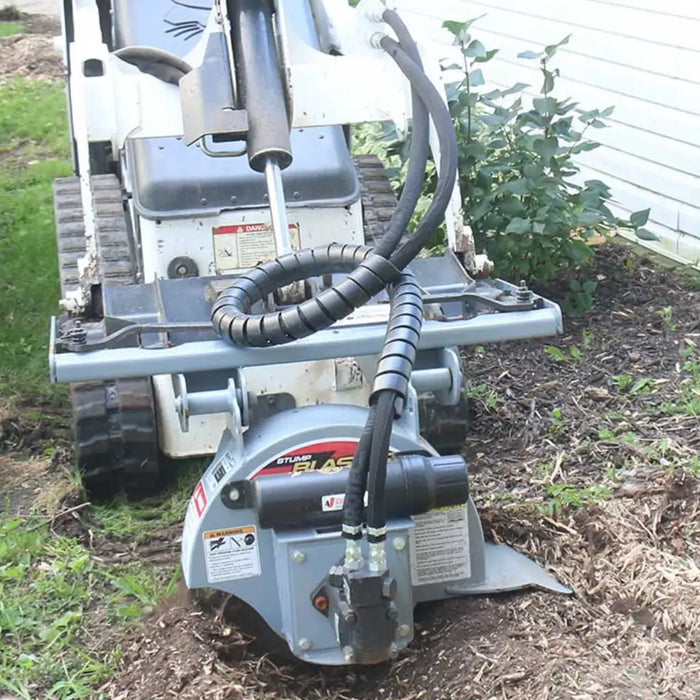

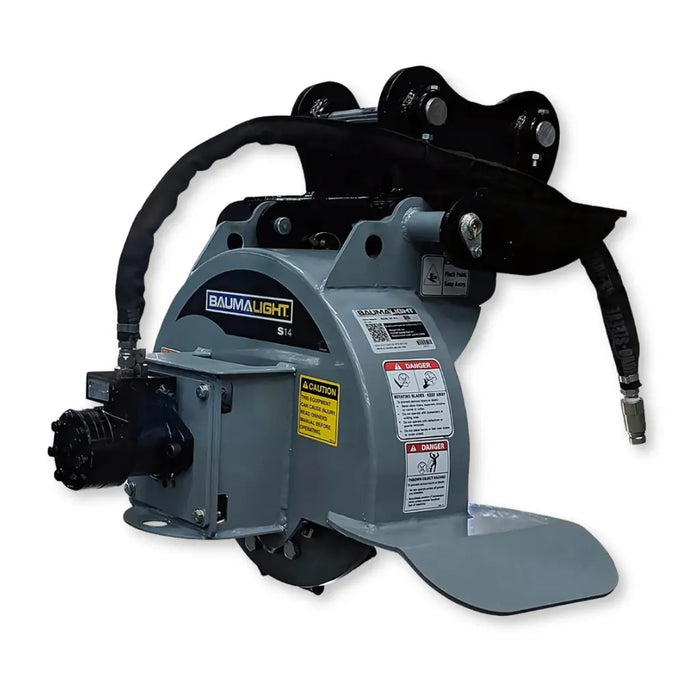

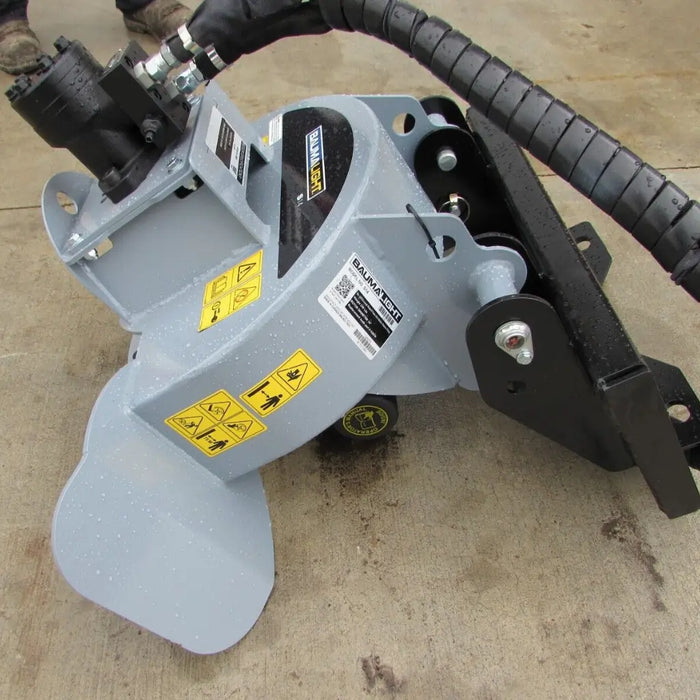

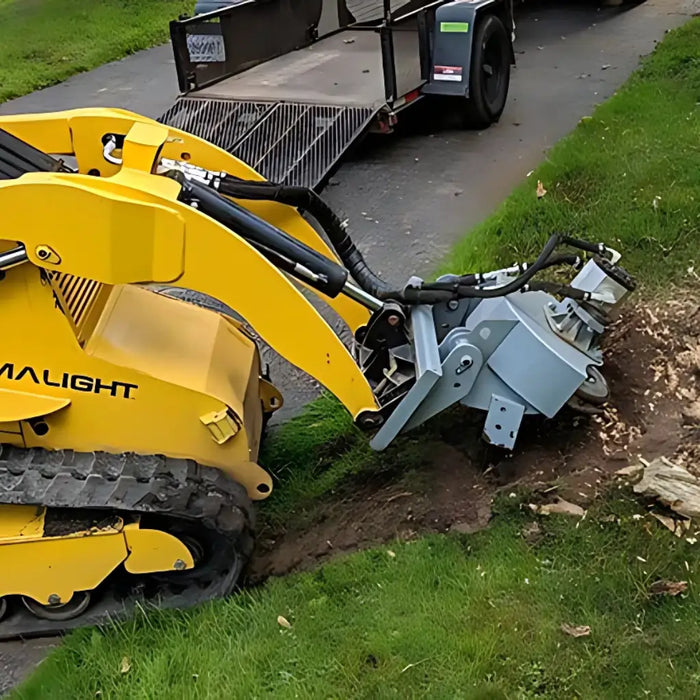

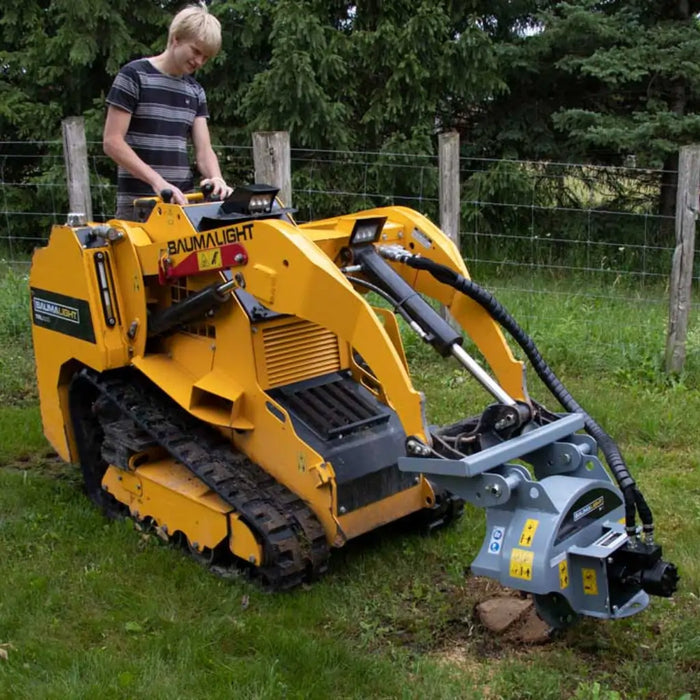

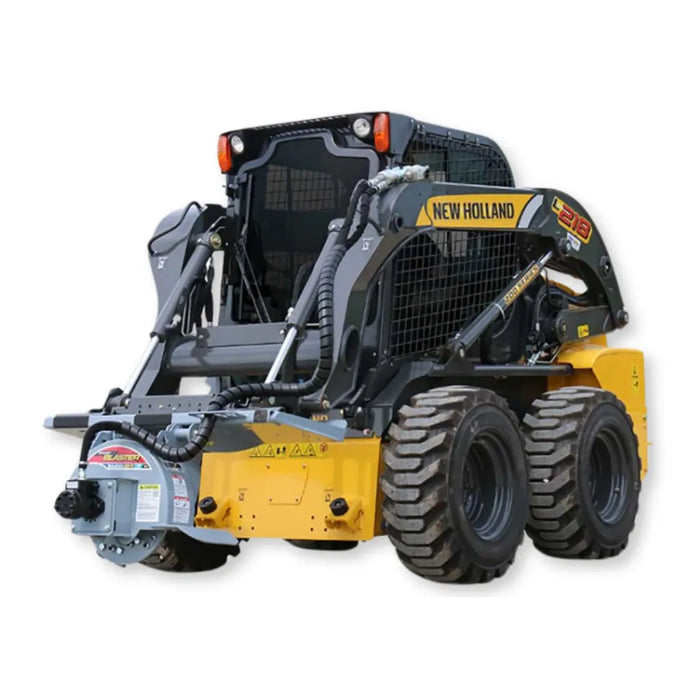

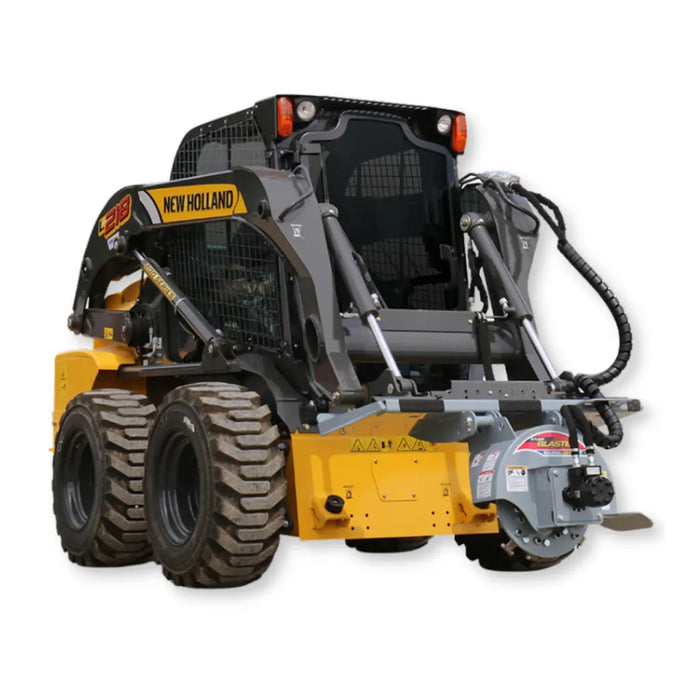

Name: Baumalight S14 Stump Grinder For Mini Skid Steers
Brand: Baumalight
SKU: BML-S14-S250-MU
Price: 2700.0 USD
Availability: InStock

Baumalight S14 Stump Grinder For Mini Skid Steers

See more by Baumalight

1 Video

Baumalight S14 Stump Grinder For Mini Skid Steers

Optmal Flow Range 12 - 15 GPM

Cutting Time For 24" Stump 35 min @ 3000 PSI

Cutting Depth 6"

Commonly Used For

Landscaping

Property Maintenance

Clearing Land

Baumalight S14 Stump Grinder For Mini Skid Steers

See more by Baumalight

1 Video

Limited time deal

-$71 $2,700

List Price: ~~$2,771~~

In Stock

Delivery By Wednesday, November 05

SKU: BML-S14-S250-MU

Weight: 394.0 lb

Motor Option Mount Option

6 Replacement Teeth

Free

Frequently Bought With

Product Overview

Experience superior stump removal with the Baumalight S14 Mini Skid Steer Stump Grinder. It features a hydraulic drive for optimal torque and durable, rotatable carbide teeth for extended use. The robust design includes a heavy-duty deflector and a solid rotor, ensuring smooth operation and deep cutting up to 10 inches below ground.

✔ For Machines 12 - 20 GPM
✔ Grinds Stumps Up To 24" Diameter👇 Specifications Below

Specifications

Model No.	S14	S16	S18	S24	S28	S40
Recommended HP Size	Mini Skidsteer	Mini Skidsteer	25-80	30-80	50-120	50-120
Maximum Carrier Size	Check GPM & PSI	Check GPM & PSI	Check GPM & PSI	Check GPM & PSI	Check GPM & PSI	Check GPM & PSI
Motor Type	Gerotor	Bent Axis Piston	Gerotor	Gerotor	Gerotor	Bent Axis Piston
Hydraulic GPM	Check Stump Cutting Size Chart	Check Stump Cutting Size Chart	Check Stump Cutting Size Chart	Check Stump Cutting Size Chart	Check Stump Cutting Size Chart	Check Stump Cutting Size Chart
Rotor Size	18"	18"	24"	24"	24"	24"
Number of Teeth	12	24	34	34	34	20
Tooth Part number	H3000	H3000	S1000	S1000	S1000	H3000
Tooth Construction	High speed	High speed	Planer	Planer	Planer	High speed
Cutting Wheel Speed	Depends on GPM	Depends on GPM	Depends on GPM	Depends on GPM	Depends on GPM	Depends on GPM
Cutting Height - Above Ground	No limit	No limit	No limit	No limit	No limit	No limit
Cutting Depth - Below Ground	6"	6"	10"	10"	10"	24"
Maximum Cutting Depth - Per Pass	2"	2"	5"	6"	6"	1"
Maximum Horizontal Cut	12"	12"	22"	22"	22"	22"
Swing Arc	Self-feeding	56°	Self-feeding	60°	63°	85°
Hub Torque	150 Ft.-Lbs.	-	250 Ft.-Lbs.	250 Ft.-Lbs.	803 Ft.-Lbs.	-
Over Torque Protection	Relieve valve	Relieve valve	Relieve valve	Relieve valve	Relieve valve	Remote
Hitch	1" pivot pins	1" pivot pins	Mini Plate	Quick Attach	Quick Attach	Quick Attach
No. of Remotes Required - Hydraulic	1	1	1	1	1	1
Requires 12 Volt DC	No	Yes	No	Yes	Yes	Yes
Unit Weight (Shipping) Lbs.	394	400	642	995	995	1,200

Motor options - stump cutting time chart

STUMP CUTTING TIMES BASED ON 24" STUMP

* Motor will run at this PSI but excess pressure is dumping over relief.

Motor	Case Drain	PSI	12 GPM	15 GPM	20 GPM	25 GPM	30 GPM	35 GPM	40 GPM	CC	Motor Type	RPM at MAX GPM
S250 Motor Available for : S14	Not Required	2,500	50 min	40 min	--	--	--	--	--	50	Roller Vane	910
S250 Motor Available for : S14	Not Required	3,000	40 min	35 min	--	--	--	--	--	50	Roller Vane	910
S450 Motor Available for : S14,S18	Not Required	2,500	60 min	40 min	35 min	--	--	--	--	125	Roller Vane	520
S450 Motor Available for : S14,S18	Not Required	3,000	50 min	30 min	30 min	--	--	--	--	125	Roller Vane	520
S550 Motor Available for : S18	Recommended	3,000	--	30 min	25 min	20 min	16 min	--	--	130	Roller Vane	700
S550 Motor Available for : S18	Recommended	3,500*	--	30 min	25 min	20 min	16 min	--	--	130	Roller Vane	700
S650 Motor Available for : S18	Recommended	3,000	--	--	40 min	25 min	15 min	12 min	10 min	245	Roller Vane	540
S650 Motor Available for : S18	Recommended	3,500*	--	--	30 min	20 min	10 min	8 min	6 min	245	Roller Vane	540

Technical Documents

Open S14_S18

Shipping & Returns

We offer FREE 2-5 day shipping (LTL Freight and Residential) for all Baumalight attachments. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com.

More information on refunds and returns can be found here.

Warranty

Baumalight Attachments are warranted to be free of defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase. This warranty covers parts and labor, but does not cover misuse, negligence, dealer travel time and shipping costs to and from the dealer.

Refer to manufacturer's manual for full warranty details.

See it in action!

Baumalight S14 Stump Grinder

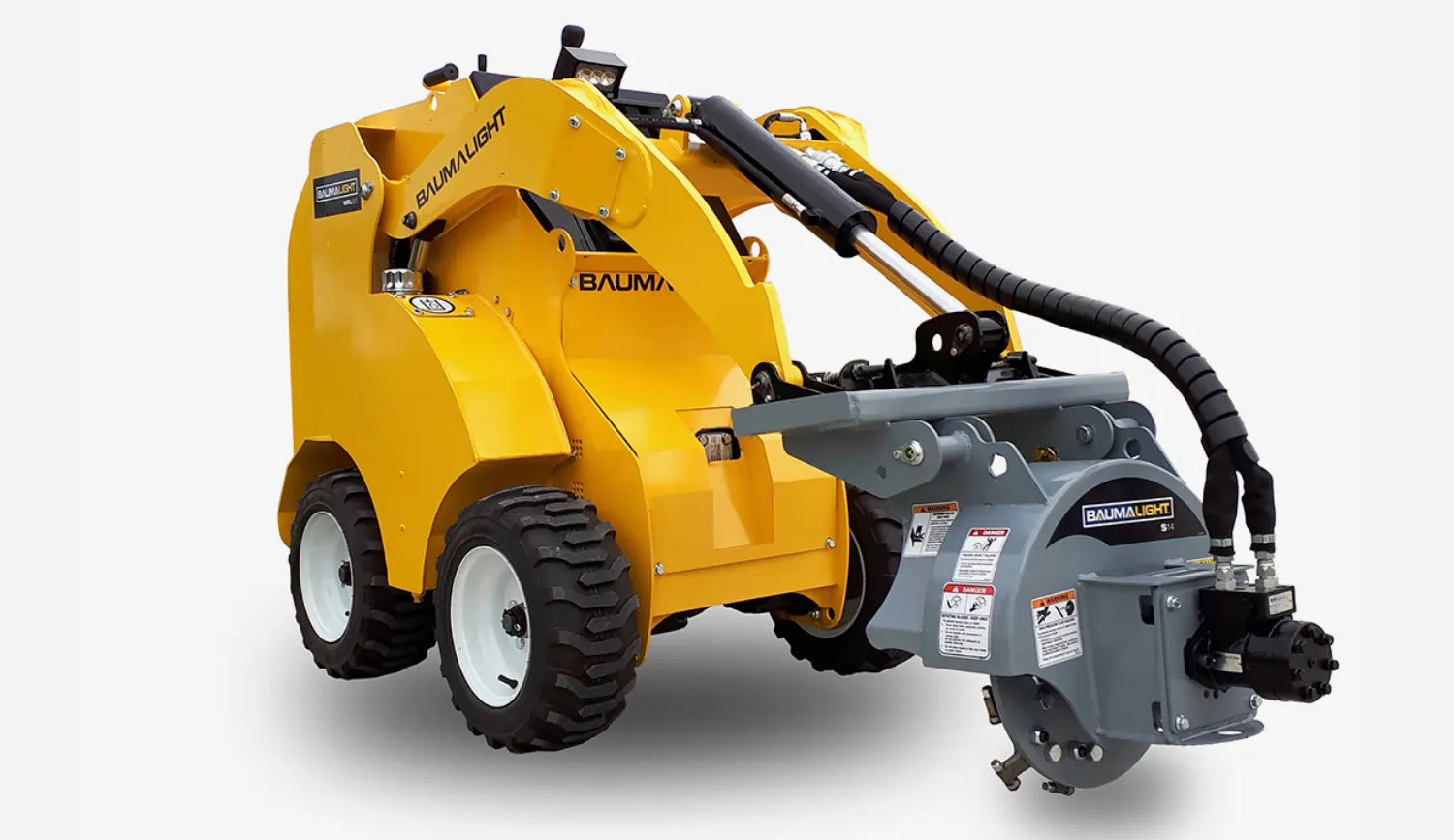

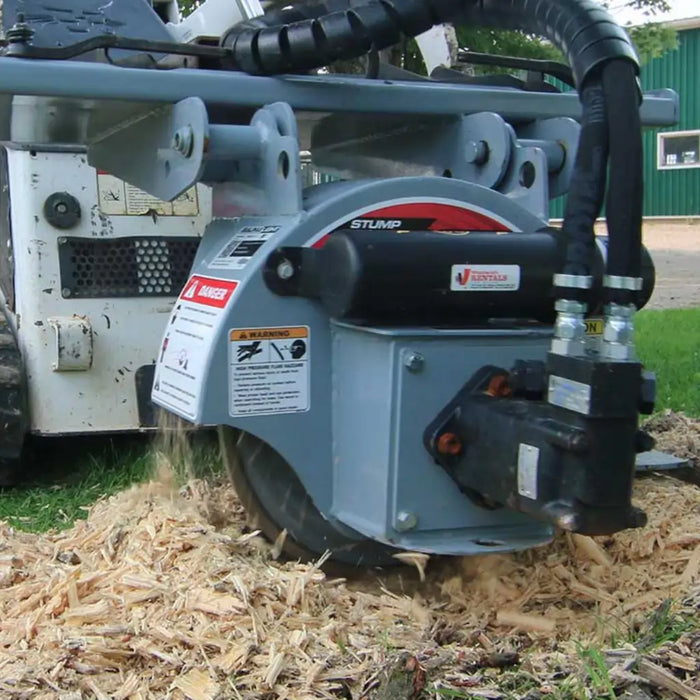

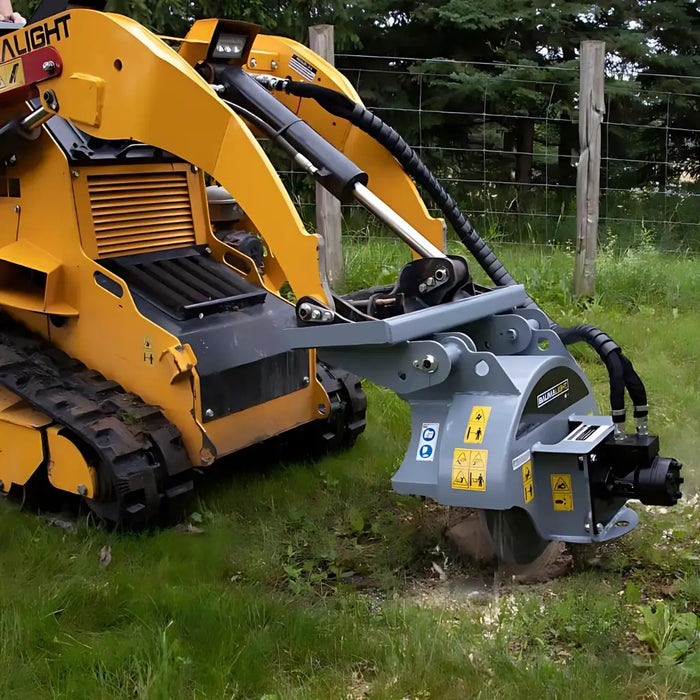

Experience unrivaled efficiency with the Baumalight S14 Mini Skid Steer Stump Grinder, meticulously engineered for robust operation without an electrical connection. Its direct flow hydraulic drive delivers optimum torque and RPM, ensuring powerful performance with a specialized cutting head. Designed to keep operations straightforward, the S14 boasts round, rotatable carbide teeth that extend the usability of each tooth through three rotations, providing prolonged, aggressive cutting action with minimal maintenance.

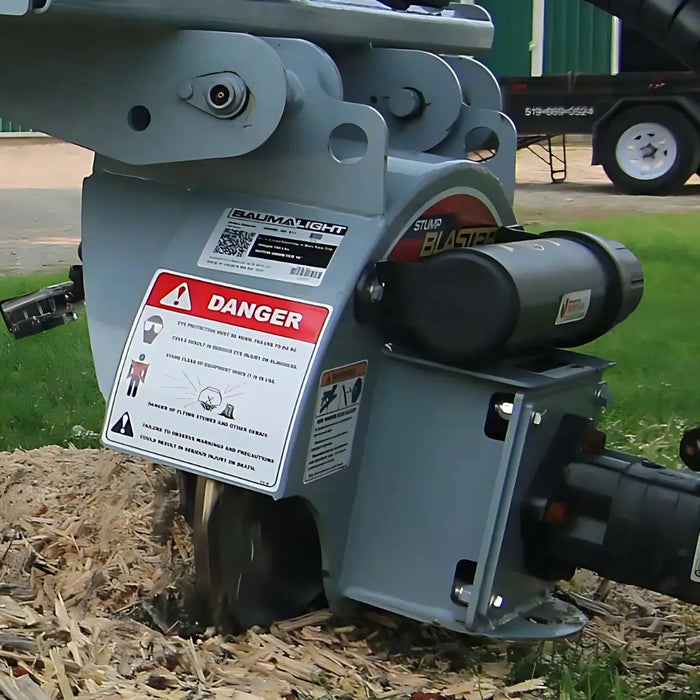

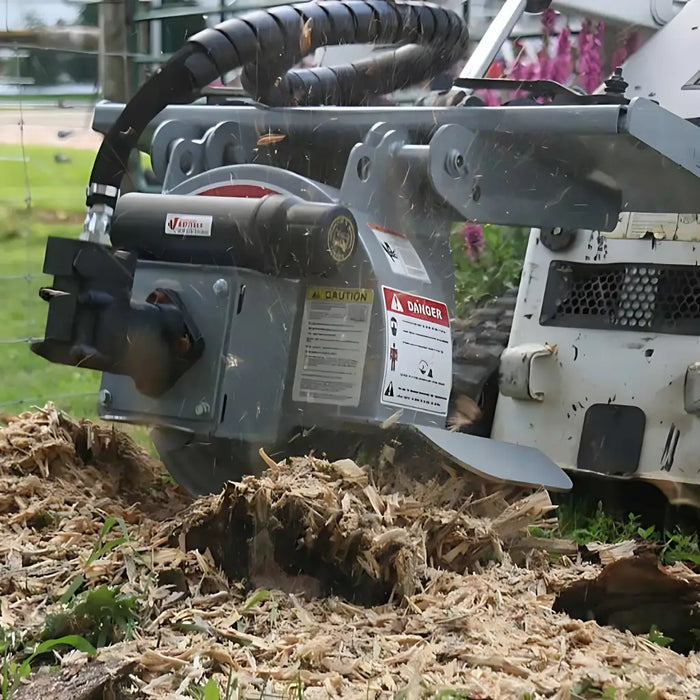

The S14 is not just potent but also user-friendly. It offers an exceptional view of the grinding process, a vital feature for precision and safety. The heavy-duty fixed deflector efficiently channels debris, maintaining a clean work area. This compact unit reaches up to 10 inches below ground, allowing for thorough stump removal. The design facilitates excellent access to tight spaces, making it an indispensable tool for both commercial and rental use.

Durability meets innovation in the S14's construction. The robust 0.5-inch thick steel rotor forms a solid base for the high-speed teeth, ensuring steady, flex-free operation even in the toughest conditions. This grinder comes equipped with six free replacement teeth, enhancing value and convenience for users. Match the hydraulic motor to your equipment’s flow rate for best results, ensuring seamless integration and optimum performance from this elite Baumalight model.
