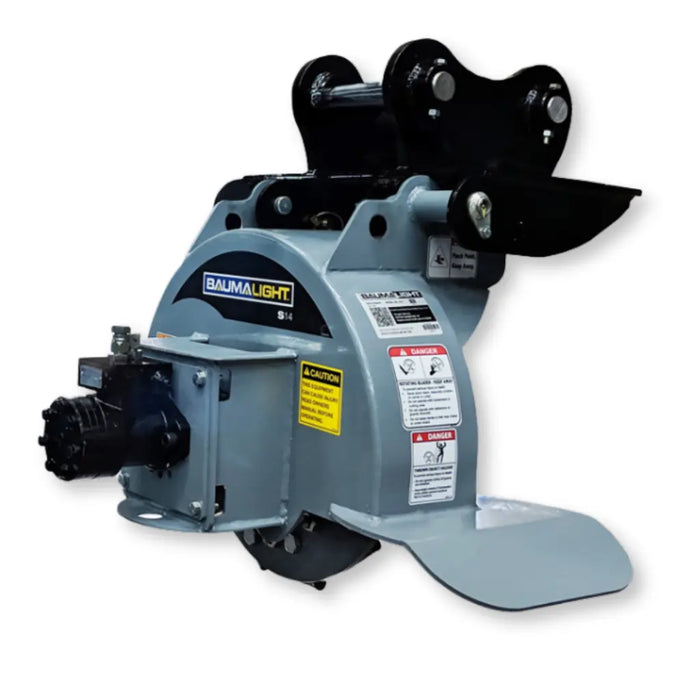

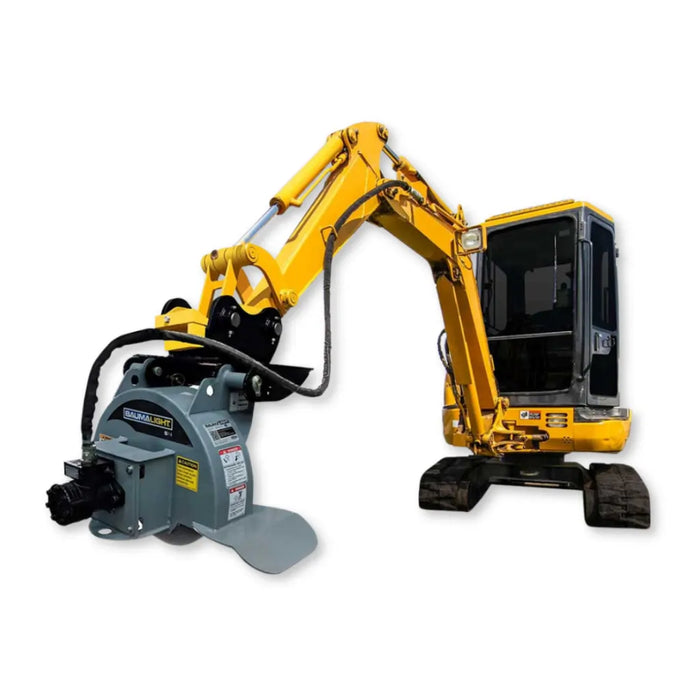

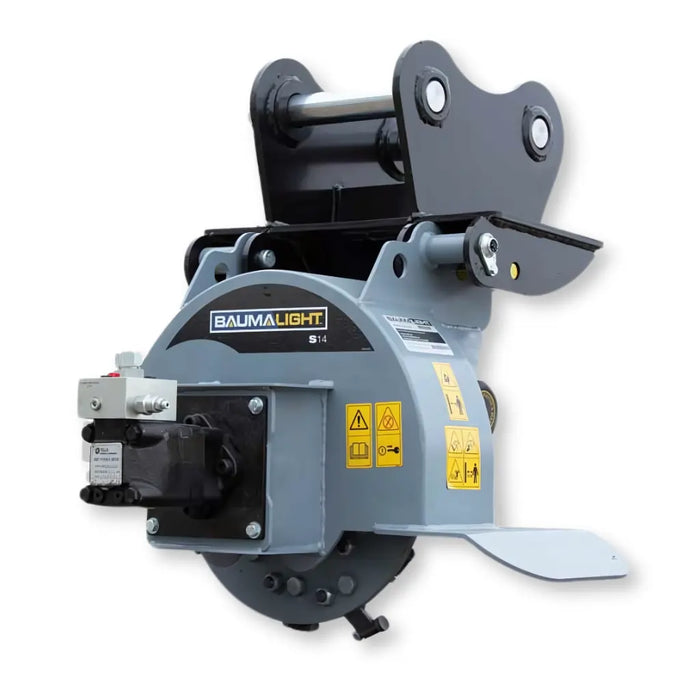

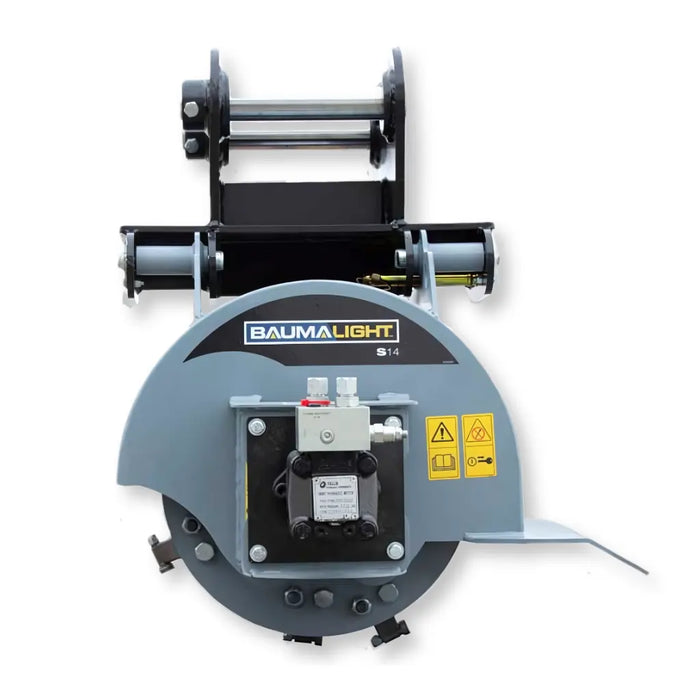

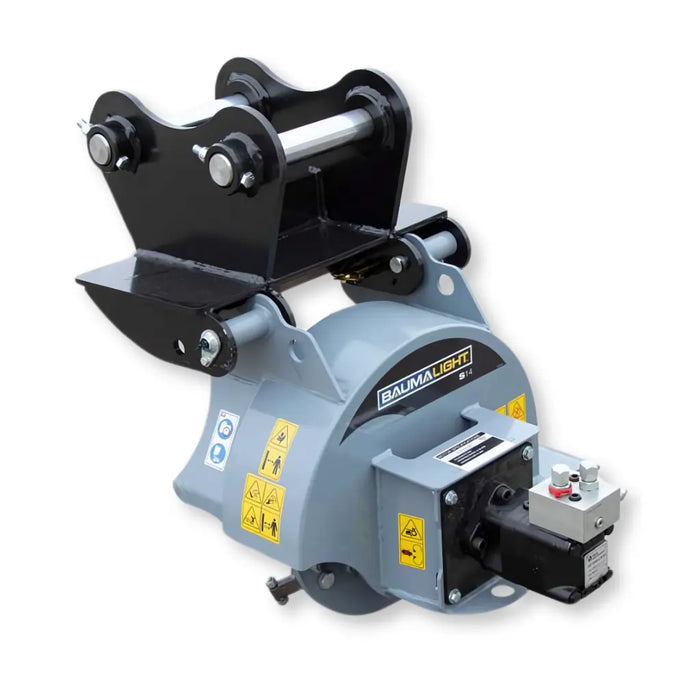

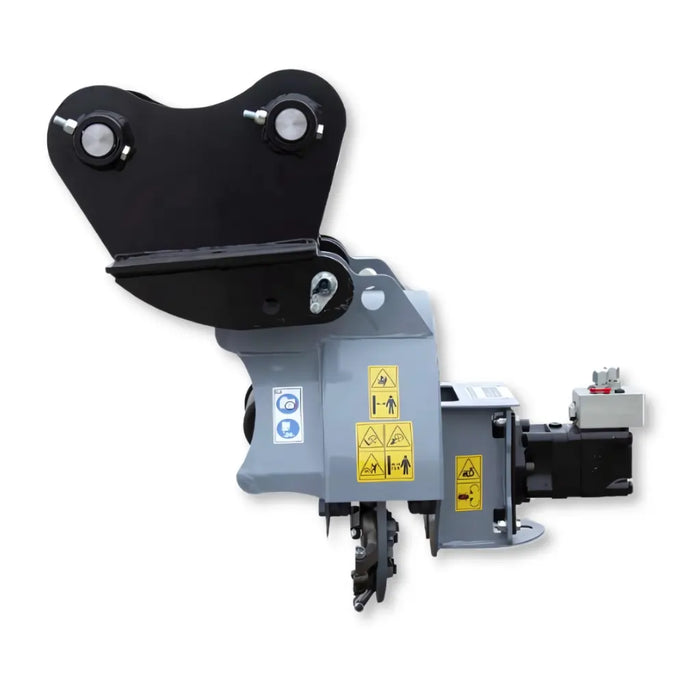

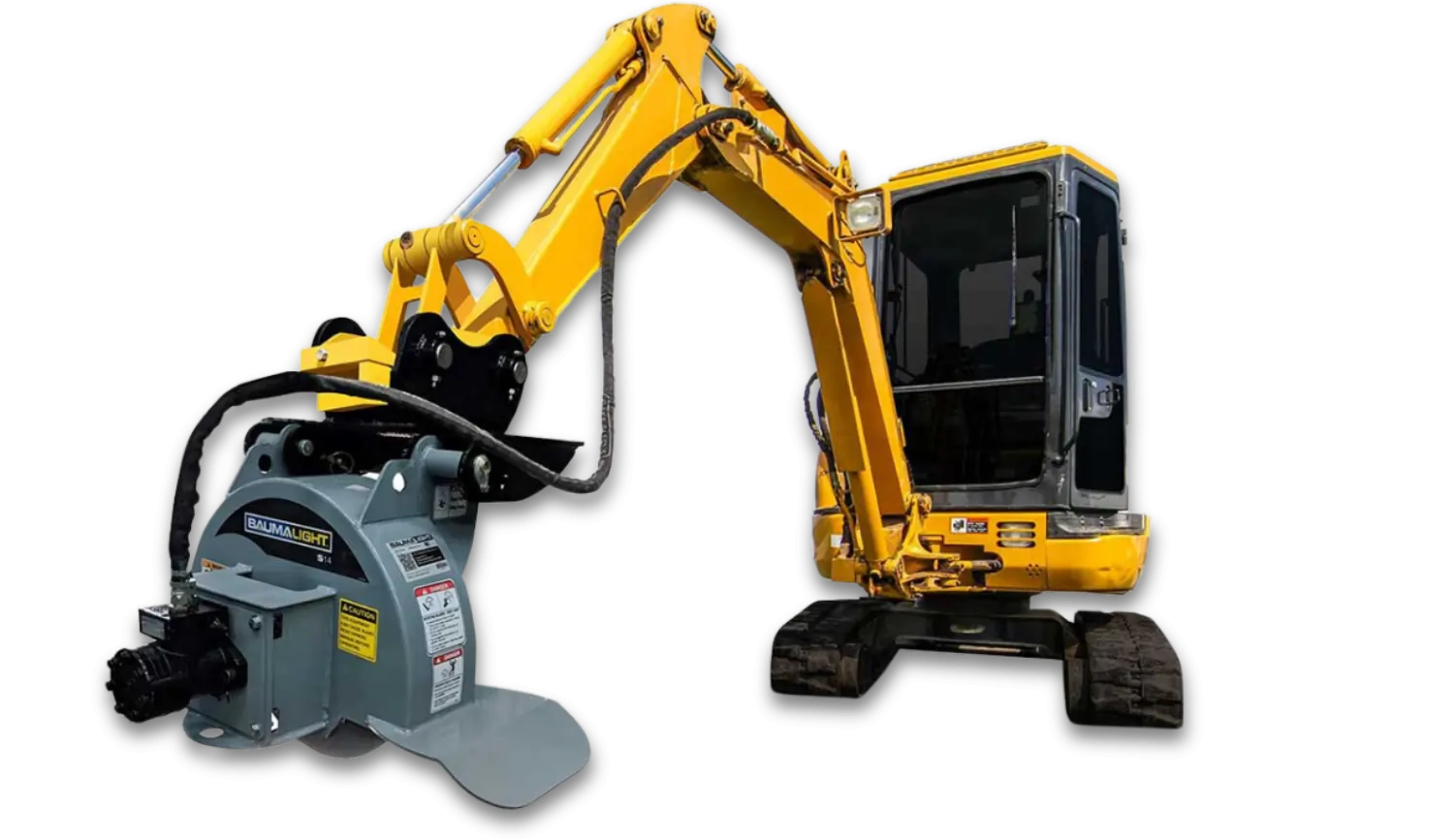

Name: Baumalight S14 Stump Grinder For 1 - 2 Ton Mini Excavators
Brand: Baumalight
SKU: BML-S14-S250-B
Price: 2760.0 USD
Availability: InStock

Baumalight S14 Stump Grinder For 1 - 2 Ton Mini Excavators

See more by Baumalight

1 Video

Baumalight S14 Stump Grinder For 1 - 2 Ton Mini Excavators

Optimal Flow Range 12 - 15 GPM

Cutting Time For 24" Stump 35 min @ 3000 PSI

Case Drain Not Required

Commonly Used For

Construction

Storm Clean-Up

Clearing Land

Baumalight S14 Stump Grinder For 1 - 2 Ton Mini Excavators

See more by Baumalight

1 Video

Limited time deal

-$167 $2,760

List Price: ~~$2,927~~

In Stock

Delivery By Wednesday, November 05

SKU: BML-S14-S250-B

Weight: 394.0 lb

Motor Option Mount Option

6 Replacement Teeth

Free

1

Frequently Bought With

Product Overview

The S14 stump grinder, designed for mini skidsteers and excavators, features a quick-change skidsteer plate and direct flow hydraulic drive for optimal cutting head performance. With rotatable round carbide teeth, the S14 offers aggressive cutting action and extended tooth life, making stump removal efficient and cost-effective. Versatile mounting options ensure maximum productivity.

✔ For Machines Up To 2 Ton
✔ Grinds Stumps Up To 24" Diameter👇 Specifications Below

Specifications

Model No.	S14	S18	GXM350	GXM550	GXM750
Baumalight Connection Code	A04	A04	A02	A02	A02
Recommended Carrier Size	1-2 ton	1.5-4 ton	1.5-4.5 ton	3.5-8 ton	7-18 ton
Motor Type	Gerotor	Gerotor	High efficiency bent axis piston	High efficiency bent axis piston	High efficiency bent axis piston
Hydraulic GPM	Check Motor Options	Check Motor Options	Check Motor Options	Check Motor Options	Check Motor Options
Rotor Size	18"	24"	19"	24"	24"
Number of Teeth	12	34	12	12	12
Tooth Part number	H3000	S1000	H3000	H3000	H3000
Tooth Construction	High speed	Planer	High speed	High speed	High speed
Cutting Wheel Speed	Depends on GPM	Depends on GPM	Depends on GPM	Depends on GPM	Depends on GPM
Cutting Height - Above Ground	No limit	No limit	No limit	No limit	No limit
Cutting Depth - Below Ground	6"	10"	16"	24"	24"
Maximum Cutting Depth - Per Pass	2"	5"	3/4"	1"	1"
Maximum Horizontal Cut	12"	22"	12"	22"	22"
Over Torque Protection	Relieve valve	Relieve valve	Relieve valve	Relieve valve	Relieve valve
Hitch	1" pivot pins	1" pivot pins	Bolt on	Bolt on	Bolt on
No. of Remotes Required - Hydraulic	1	1	1	1	1
Requires 12 Volt DC	No	No	No	No	No
Unit Weight (Shipping) Lbs.	394	642	650	822	1300

Motor options - stump cutting time chart

STUMP CUTTING TIMES BASED ON 24" STUMP

* Motor will run at this PSI but excess pressure is dumping over relief.

Motor	Case Drain	PSI	12 GPM	15 GPM	20 GPM	25 GPM	30 GPM	35 GPM	40 GPM	CC	Motor Type	RPM at MAX GPM
S250 Motor Available for : S14	Not Required	2,500	50 min	40 min	--	--	--	--	--	50	Roller Vane	910
S250 Motor Available for : S14	Not Required	3,000	40 min	35 min	--	--	--	--	--	50	Roller Vane	910
S450 Motor Available for : S14,S18	Not Required	2,500	60 min	40 min	35 min	--	--	--	--	125	Roller Vane	520
S450 Motor Available for : S14,S18	Not Required	3,000	50 min	30 min	30 min	--	--	--	--	125	Roller Vane	520
S550 Motor Available for : S18	Recommended	3,000	--	30 min	25 min	20 min	16 min	--	--	130	Roller Vane	700
S550 Motor Available for : S18	Recommended	3,500*	--	30 min	25 min	20 min	16 min	--	--	130	Roller Vane	700
S650 Motor Available for : S18	Recommended	3,000	--	--	40 min	25 min	15 min	12 min	10 min	245	Roller Vane	540
S650 Motor Available for : S18	Recommended	3,500*	--	--	30 min	20 min	10 min	8 min	6 min	245	Roller Vane	540

Shipping & Returns

We offer FREE 2-5 day shipping (LTL Freight and Residential) for all Baumalight attachments. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com.

More information on refunds and returns can be found here.

Warranty

Baumalight Attachments are warranted to be free of defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase. This warranty covers parts and labor, but does not cover misuse, negligence, dealer travel time and shipping costs to and from the dealer.

Refer to manufacturer's manual for full warranty details.

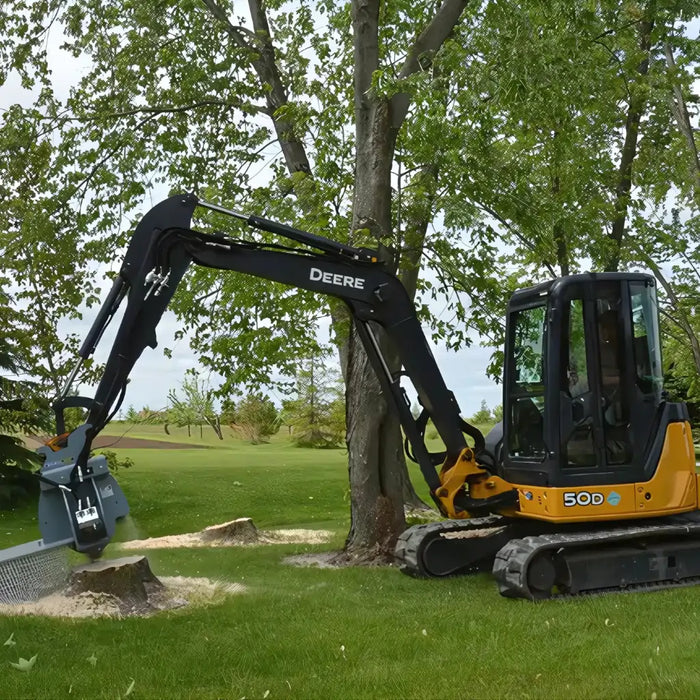

See it in action!

Baumalight S14 Stump Grinder

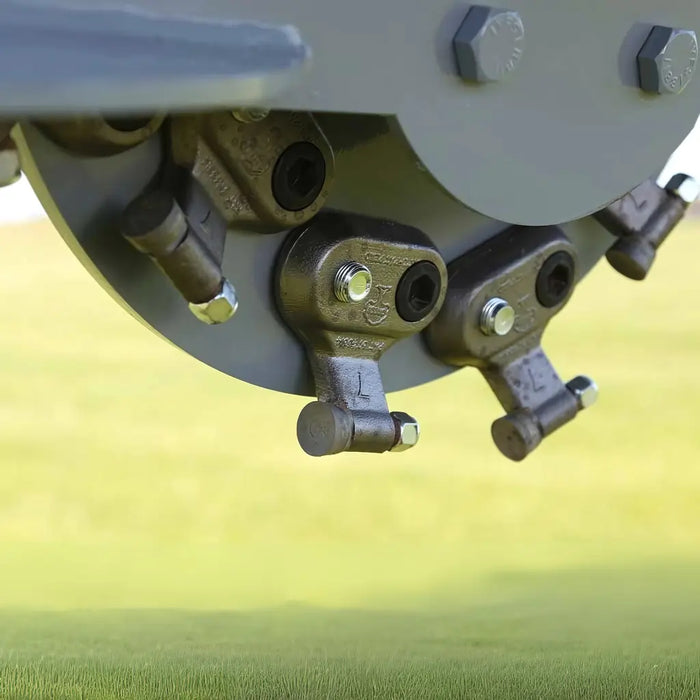

Experience unrivaled efficiency with the Baumalight S14 Mini Excavator Stump Grinder, meticulously engineered for robust operation without an electrical connection. Its direct flow hydraulic drive delivers optimum torque and RPM, ensuring powerful performance with a specialized cutting head. Designed to keep operations straightforward, the S14 boasts round, rotatable carbide teeth that extend the usability of each tooth through three rotations, providing prolonged, aggressive cutting action with minimal maintenance.

The S14 is not just potent but also user-friendly. It offers an exceptional view of the grinding process, a vital feature for precision and safety. The heavy-duty fixed deflector efficiently channels debris, maintaining a clean work area. This compact unit reaches up to 10 inches below ground, allowing for thorough stump removal. The design facilitates excellent access to tight spaces, making it an indispensable tool for both commercial and rental use.

Durability meets innovation in the S14's construction. The robust 0.5-inch thick steel rotor forms a solid base for the high-speed teeth, ensuring steady, flex-free operation even in the toughest conditions. This grinder comes equipped with six free replacement teeth, enhancing value and convenience for users. Match the hydraulic motor to your equipment’s flow rate for best results, ensuring seamless integration and optimum performance from this elite Baumalight model.
