Name: Baumalight RSX780 Planer 20 - 55 GPM For Excavators
Brand: Baumalight
SKU: BML-RSX780-PLA-1
Price: 7280.0 USD
Availability: InStock

Baumalight RSX780 Planer 20 - 55 GPM For Excavators

See more by Baumalight

1 Video

Baumalight RSX780 Planer 20 - 55 GPM For Excavators

Planer Tool 2" Hex, 4-knife stump planer

Maximum Stump Diameter 20" Diameter

Case Drain Required

Commonly Used For

Forestry

Lumber Yards

Agriculture

Baumalight RSX780 Planer 20 - 55 GPM For Excavators

See more by Baumalight

1 Video

Black Friday Sale

-$390 $7,280

List Price: ~~$7,670~~

Built To Order

Delivery By Friday, January 02

SKU: BML-RSX780-PLA-1

Weight: 1000.0 lb

Mount Option Bit Option

1

Frequently Bought With

Product Overview

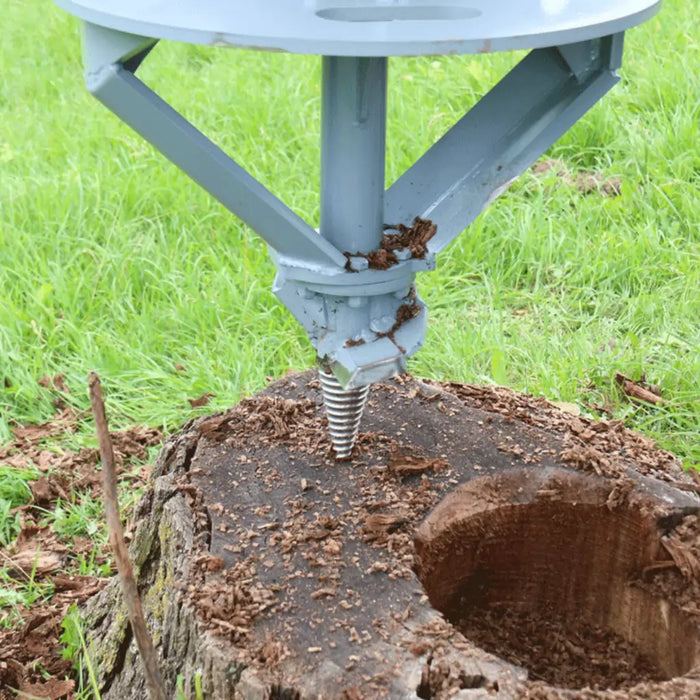

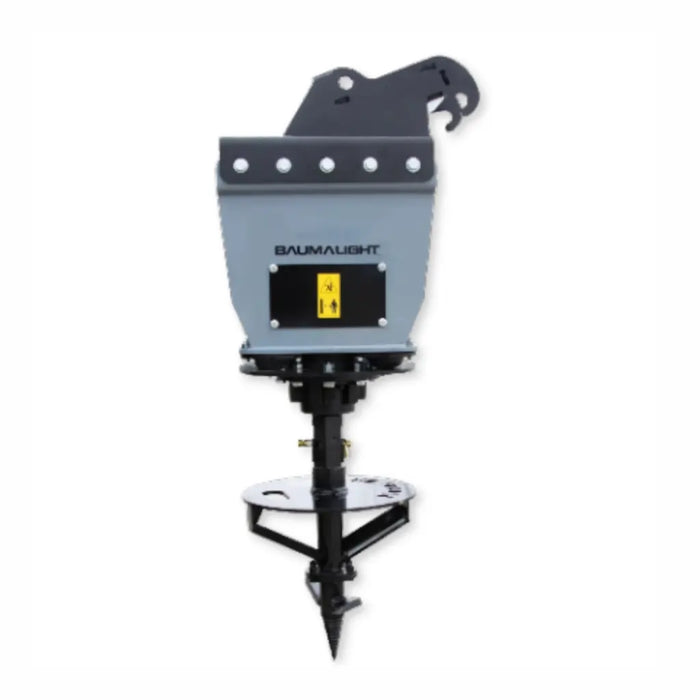

The Baumalight RSX780 Stump Planer is a high-capacity excavator-mounted tool built for efficient stump grinding in tight-access or urban environments. Operating at low RPMs, the RSX780 keeps wood chips contained, reducing cleanup and noise. Its design allows you to grind larger stumps faster using lower hydraulic power, making it ideal for 18–20 ton carriers. The planer includes a bolt-on mount, hardened replaceable tip, and sharpenable blades—delivering long wear life and effective performance with less mess and downtime.

✔ Low-RPM Grinding
✔ Bold-On Mount
👇 Specifications Below

Specifications

Model	RSX380	RSX580	RSX780
Baumalight Connection Code	A02	A02	A03
Planer Tools	2" Hex 20" dia.4-knife stump planer (D002771)	2" Hex 20" dia.4-knife stump planer (D002771)	8-bolt flange mount stump planer (D003381)
Adaptor	Bolt on	Bolt on	Bolt on
Carrier weight for planer	5 ton (Max lbs)	8 ton (Max lbs)	18 ton (Max lbs)
Carrier weight for splitter	10 ton (Max lbs)	10 ton (Max lbs)	20 ton (Max lbs)
Rec. GPM	20-40	20-45	20-55
Max. GPM	45	45	65
Rec. PSI	2500-3000	2500-3000	2500-4500
Max. PSI	3500	3500	5000
Drive Size	2" Hex	2" Hex	8 Bolt Flange
Drive Type	Planetary	Planetary	Planetary
Hoses Included	No	No	No

Technical Documents

Open RSX_Splinter_Stump_Planer

Shipping & Returns

We offer FREE 2-5 day shipping (LTL Freight and Residential) for all orders over $5,000. Orders under that total will have shipping calculated at checkout. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com. More information on refunds and returns can be found here.

Warranty

Baumalight Attachments are warranted to be free of defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase. This warranty covers parts and labor, but does not cover misuse, negligence, dealer travel time and shipping costs to and from the dealer.

Refer to manufacturer's manual for full warranty details.

See it in action!

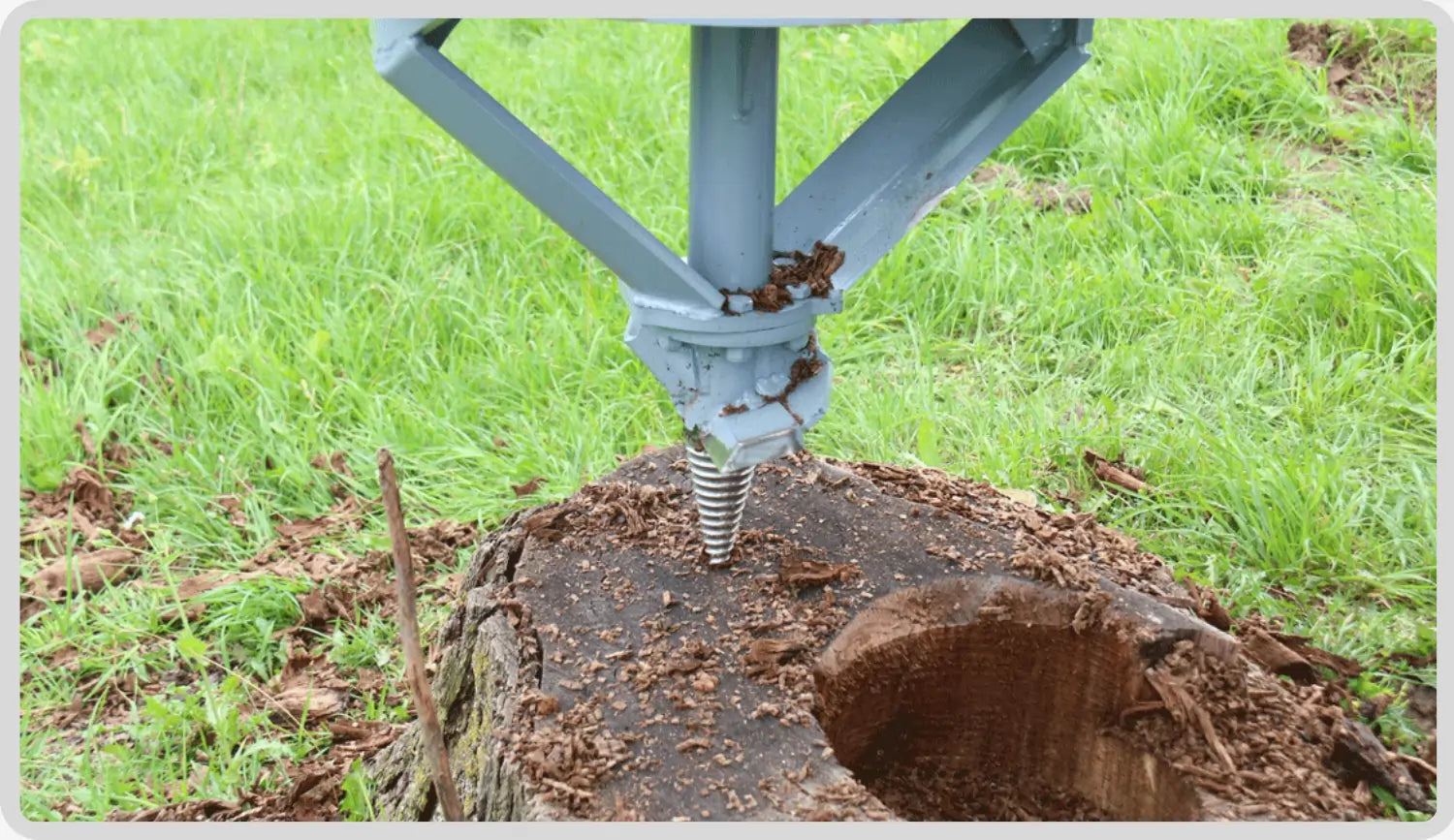

RSX780 Excavator Planer

The RSX780 is Baumalight’s largest stump planer for excavators, purpose-built for powerful and clean stump removal. Designed for use in urban areas or tight spaces, it produces larger chips with less mess than high-speed cutters, and it grinds quickly with lower power draw. With a rugged bolt-on mount, replaceable tip, and serviceable blades, it’s a reliable solution for forestry contractors and municipal operators running 18–20 ton machines.
