Name: Baumalight QC Series - 4 Pole PTO Generators - 480 Volt 3-Phase
Brand: Baumalight
SKU: QC30-4
Price: 11330.0 USD
Availability: InStock

Baumalight QC Series - 4 Pole PTO Generators - 480 Volt 3-Phase

See more by Baumalight

4 Videos

Baumalight QC Series - 4 Pole PTO Generators - 480 Volt 3-Phase

Tractor HP for 100% Load 49

Inclusions Mounting Deck and PTO Shaft

Full Output Amps (Main Breaker) 50

Commonly Used For

In-Field Repairs

Backup Power Supply

Agriculture

Baumalight QC Series - 4 Pole PTO Generators - 480 Volt 3-Phase

See more by Baumalight

4 Videos

Black Friday Sale

-$600 $11,330

List Price: ~~$11,930~~

In Stock

Delivery By Tuesday, December 02

SKU: QC30-4

Weight: 779.0 lb

Model

1

Frequently Bought With

Product Overview

The Baumalight QC Series PTO Generators configured for 480V 3-phase power are engineered for 24/7 power reliability in heavy-duty rural, agricultural, and light industrial applications. With continuous output from 33 kW to 113 kW, and high surge capacity reaching up to 315 kW, these tractor-powered generators are built to run large equipment, motors, and high-demand systems. The 480V configuration features a specialized panel and breaker setup, and does not include the standard welder or 20-amp duplex receptacles. Each unit includes a trailer, PTO shaft, and 10 ft Anderson connector cord for field-ready deployment.

✔ 24/7 Power Reliability
✔ High Surge Capacity
👇 Specifications Below

Specifications

Model No.	Connection	KW	Momentary Surge KW	50% Load	100% Load	RPM	Welder Receipt Voltage (50 amp)	Volts	Number of Poles	Internal RPM	Full Output Amps (Main Breaker)	Phase	Shipping Weight(lbs)

QC 30-4	Series High WYE	33	85	20HP	49HP	540	n/a	277/480	4	1,800	50	3	779
QC 45-4	Series High WYE	50	120	31HP	75HP	540	n/a	277/480	4	1,800	70	3	980
QC 68-4	Series High WYE	76	190	50HP	105HP	540	n/a	277/480	4	1,800	125	3	1159
QC 105-4	Series High WYE	113	315	72HP	155HP	1000	n/a	277/480	4	1,800	150	3	1474

Technical Documents

Open QC_KR_Series_Generators

Shipping & Returns

We offer FREE 2-5 day shipping (LTL Freight and Residential) for all orders over $5,000. Orders under that total will have shipping calculated at checkout. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com. More information on refunds and returns can be found here.

Warranty

Baumalight Attachments are warranted to be free of defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase. This warranty covers parts and labor, but does not cover misuse, negligence, dealer travel time and shipping costs to and from the dealer.

Refer to manufacturer's manual for full warranty details.

See it in action!

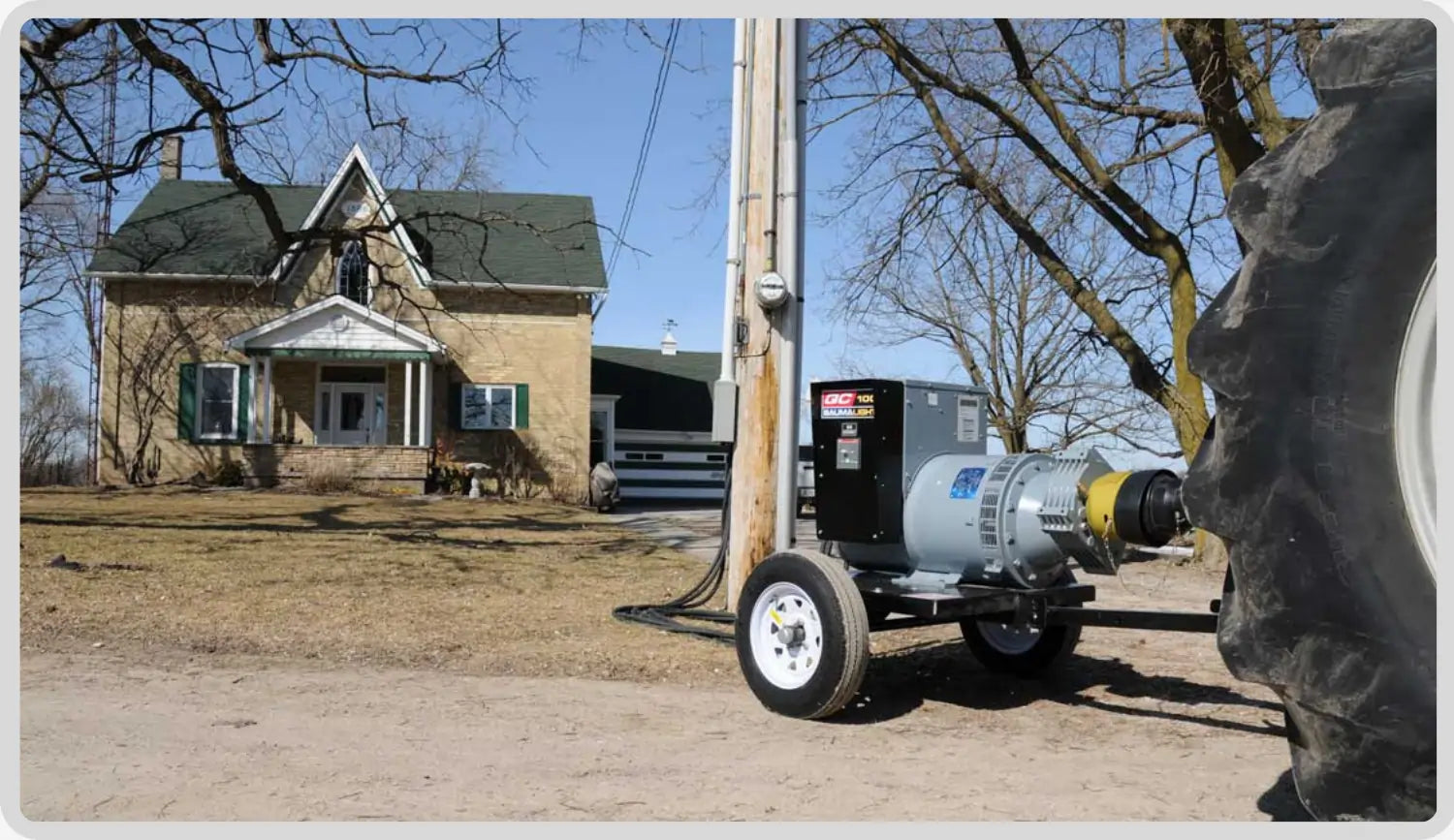

480 Volt 3-Phase

The QC Series 480V 3-phase PTO generators are designed for high-voltage applications where stability, surge protection, and continuous output matter most. With models offering 33 to 113 kW at 100% load, these generators are ideal for powering commercial-grade systems, irrigation controls, or remote facilities with 480V service. This -4 configuration uses a unique control panel and breaker system tailored to 480V output, eliminating standard receptacles. For sizing and model selection, Baumalight’s Power Calculator and Principles Chart offer easy-to-use online tools.
