Name: Baumalight MX948R Fixed Tooth Brush Mulcher For Excavators Starting at 12 Tons
Brand: Baumalight
SKU: BML-MX948R-C940-EWC12-15-B
Price: 22230.0 USD
Availability: InStock

Baumalight MX948R Fixed Tooth Brush Mulcher For Excavators Starting at 12 Tons

See more by Baumalight

Cuts Brush Up To 8" Diameter

Optimal Flow Range 25 - 35 GPM

Case Drain Required

Commonly Used For

Clearing Land

Trail Maintenance

Brush Management

Baumalight MX948R Fixed Tooth Brush Mulcher For Excavators Starting at 12 Tons

See more by Baumalight

Black Friday Sale

-$1,170 $22,230

List Price: ~~$23,400~~

Built To Order

Delivery By Friday, December 05

SKU: BML-MX948R-C940-EWC12-15-B

Weight: 2838.0 lb

Motor Option Excavator Weight Class Mount Option

6 Replacement Teeth

Free

Frequently Bought With

Product Overview

The Baumalight MX948R Fixed Tooth Mulcher, designed for excavators starting at 12 tons, offers superior brush and tree clearing capabilities. Featuring a robust 48” rotor and a sweeping 70” path, it is equipped with 27 double carbide-tipped teeth (R9000) for effective mulching. The integrated root rake teeth efficiently rip out rocks and reposition logs.

✔ Perfect For Contractors
✔ Cuts Brush Up To 12" Diameter👇 Specifications Below
👇 Specifications Below

Specifications

Model No.	MX230	MX330	MX530	MX530R	MX548R	MX948R	MX960R	MX1160R
	A02	A02	A02	A02	A03	A03	A03	A03
Path Width	38"	38"	40"	40"	62"	70"	90"	90"
Rotor Width	30"	30"	30"	30"	48"	48"	60"	60"
Minimum Tracked Excavator Ton	2	3	4	4	7	12	18	18
Minimum Wheeled Excavator Ton	4	5	6	6	9	15	21	21
Max Tracked Excavator Ton	6	8	12	12	20	30	33	33
Max wheeled Excavator Ton	8	10	14	14	22	33	36	36
Cutting Depth	Level	Level	1.5" Above to 1" Below Grade	1.5" Above to 1" Below Grade	1.5" Above to 1" Below Grade	Level	Level	Level
Holder Style	Swing	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed
Cutting Style	Flail	High Speed Teeth	Carbide Tipped Bolt In	Carbide Tipped Bolt In	Carbide Tipped Bolt In	Double Tipped Carbide	Double Tipped Carbide	Sharpenable Planer teeth
Tooth Part number	F2000	H3000	P5000	P5000	P5000	R9000	R9000	P11000
Number of cutters	22	36	44	44	72	27	38	31
Rotor Shaft Size	1.5"	2"	2"	2"	2"	2"	2"	2"
Rotor Diameter (tool tips)	17.25"	15"	15"	15"	15"	18.5"	18.5"	18.5"
Rotor Weight (with tools)	125 lbs	175 lbs	300 lbs	300 lbs	408 lbs	617 lbs	860 lbs	872 lbs
No. of Motor	1	1	1	1	1	1	1	1
Case Drain	Not important	Not important	See motor options	See motor options	Critical	Critical	Critical	Critical
Unit Weight	500 lbs	750 lbs	1036 lbs	1166 lbs	2167 lbs	2838 lbs	2910 lbs	2925 lbs

Motor options - brush size chart

MAXIMUM BRUSH CUTTING SIZES

(Brush Diameter in Inches)

900 Series

MOTOR	PSI	CASE DRAIN	20 GPM	25 GPM	30 GPM	35 GPM	40 GPM	45 GPM	50 GPM	55 GPM	60 GPM	65 GPM	70 GPM	75 GPM
RPM			1450	1800	2100
C930 Bent Axis Piston	2500 3000 3500 4000	Critical	3.5" 4" 4.5" 5.5"	4.5" 5" 5.5" 6"	5.5" 6" 6.5" 7"	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --
RPM				1500	1800	2100
C940 Bent Axis Piston	2500 3000 3500 4000	Critical	-- -- -- --	4.25" 4.75" 5.25" 5.75"	6.25" 6.5" 6.75" 7"	6.5" 7" 7.5" 8"	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --
RPM					1600	1875	2140
C950 Bent Axis Piston	2500 3000 3500 4000	Critical	-- -- -- --	-- -- -- --	5.5" 6" 6.5" 6.75"	7" 7.5" 8" 8.5"	7.5" 8" 8.5" 9"	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --
RPM						1400	1630	1830	2030
C970 Bent Axis Piston	2500 3000 3500 4000	Critical	-- -- -- --	-- -- -- --	-- -- -- --	5.5" 6" 7.5" 8"	6" 6.5" 7" 7.5"	7.5" 8" 8.5" 9"	8" 8.5" 9" 9.5"	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --
RPM								1400	1570	1750	1900
C990 Bent Axis Piston	3000 3500 4000	Critical	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	6" 6.5" 7"	8.5" 9" 10"	10" 10.5" 11"	10.5" 11" 12"	-- -- -- --	-- -- -- --	-- -- -- --
RPM			Adjustable
D97X2 Two speed	2500 3000 3500 4000	Critical	4.25" 5" 5.5" 6.75"	5.5" 6.25" 6.75" 7.5"	7.75" 8" 8.5" 8.75"	8.75" 9.25" 10" 10.5"	9.25" 10" 10.5" 11.25"	10.25" 11" 11.5" 12.25"	11.25" 12" 12.5" 13.25"	12.25" 13" 13.5" 14.25"	13.25" 14" 14.5" 15.25"	14.25" 15" 15.5" 16.25"	15.25" 16" 16.5" 17.25"	16.25" 17" 17.5" 18.25"

Technical Documents

Open MX948R_MX960R_MX1160R

Shipping & Returns

We offer FREE 2-5 day shipping (LTL Freight and Residential) for all orders over $5,000. Orders under that total will have shipping calculated at checkout. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com. More information on refunds and returns can be found here.

Warranty

Baumalight Attachments are warranted to be free of defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase. This warranty covers parts and labor, but does not cover misuse, negligence, dealer travel time and shipping costs to and from the dealer.

Refer to manufacturer's manual for full warranty details.

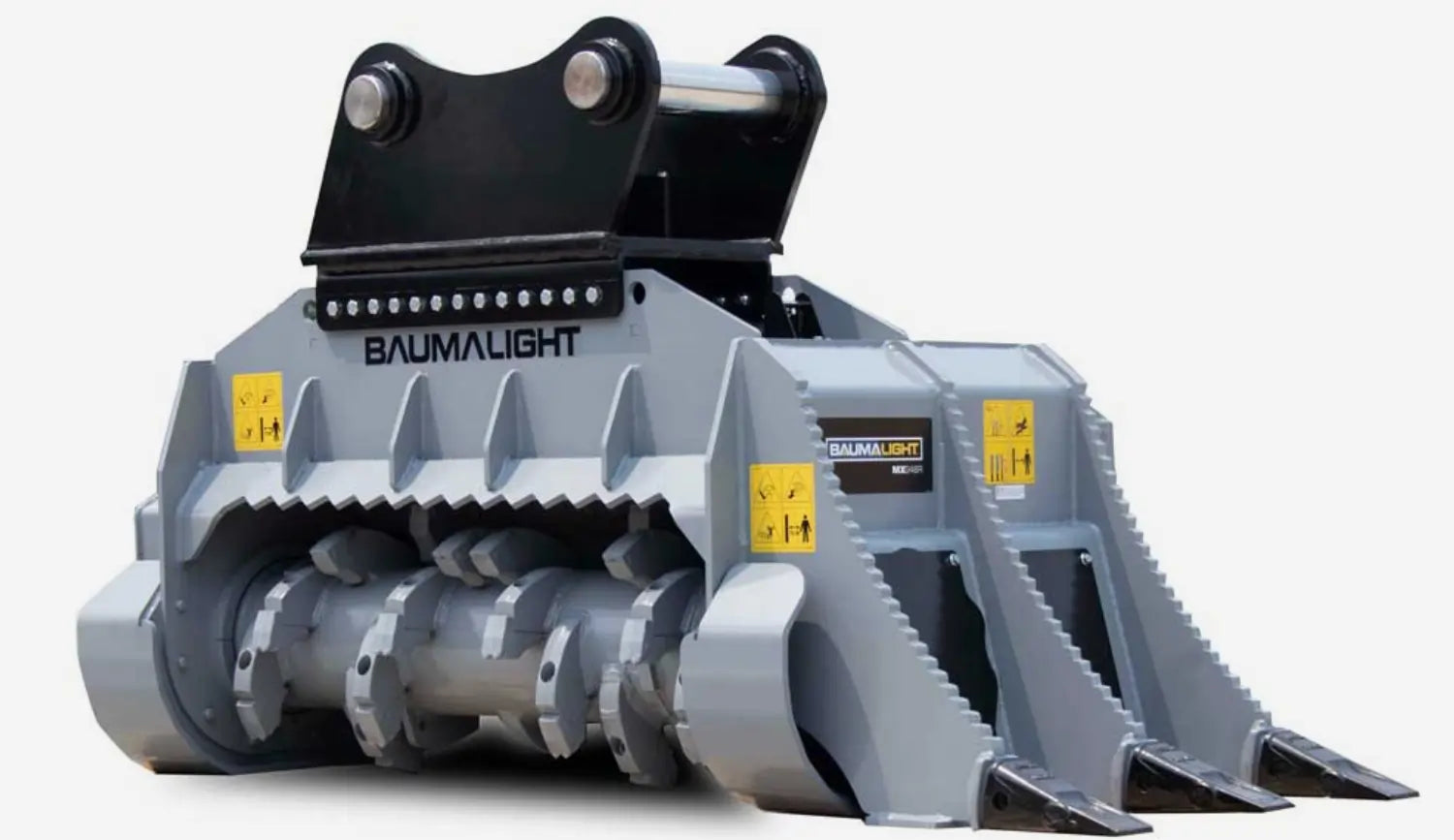

Baumalight MX948R Mulcher

The Baumalight MX948R Fixed Tooth Mulcher for excavators starting at 12 tons, is the epitome of robustness and efficiency in land clearing. Equipped with a 48-inch rotor and a sweeping 70-inch path, this powerhouse effortlessly clears heavy brush and trees. Featuring 27 heavy-duty, double carbide-tipped teeth and integrated aggressive root rake teeth, the MX948R not only mulches but also excels in ripping out rocks and relocating logs, enhancing your operational capabilities.

Constructed from low-weight, high-strength AR400 steel, the MX948R ensures durability without compromising on performance. It is fortified with replaceable body wear plates that extend the lifespan of the mulcher, proving to be a cost-effective solution for intensive usage. The optional two-speed motor adjusts to varying materials, maximizing rotor speed and torque, thus optimizing the mulching process.
