Name: Baumalight MX1160R Heavy Duty Fixed Tooth Brush Mulcher For Excavators - 18 to 33 Tons
Brand: Baumalight
SKU: BML-MX1160R-C1140-EWC12-15-B
Price: 27600.0 USD
Availability: InStock

Baumalight MX1160R Heavy Duty Fixed Tooth Brush Mulcher For Excavators - 18 to 33 Tons

See more by Baumalight

Cuts Brush Up To 10" Diameter

Optimal Flow Range 25 - 35 GPM

Case Drain Required

Commonly Used For

Clearing Land

Trail Maintenance

Brush Management

Baumalight MX1160R Heavy Duty Fixed Tooth Brush Mulcher For Excavators - 18 to 33 Tons

See more by Baumalight

Limited time deal

$27,600

List Price:

Built To Order

Delivery By Saturday, November 08

SKU: BML-MX1160R-C1140-EWC12-15-B

Weight: 2925.0 lb

Motor Option Excavator Weight Class Mount Option

6 Replacement Teeth

Free

Frequently Bought With

Product Overview

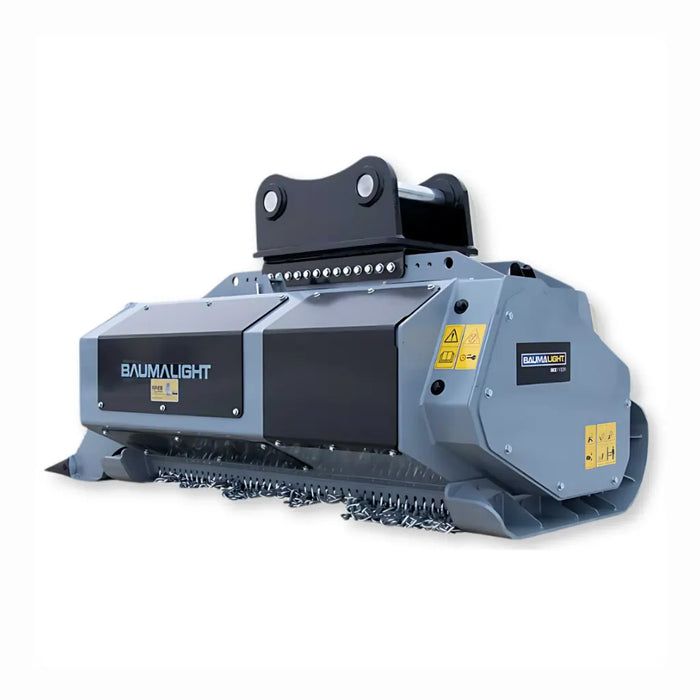

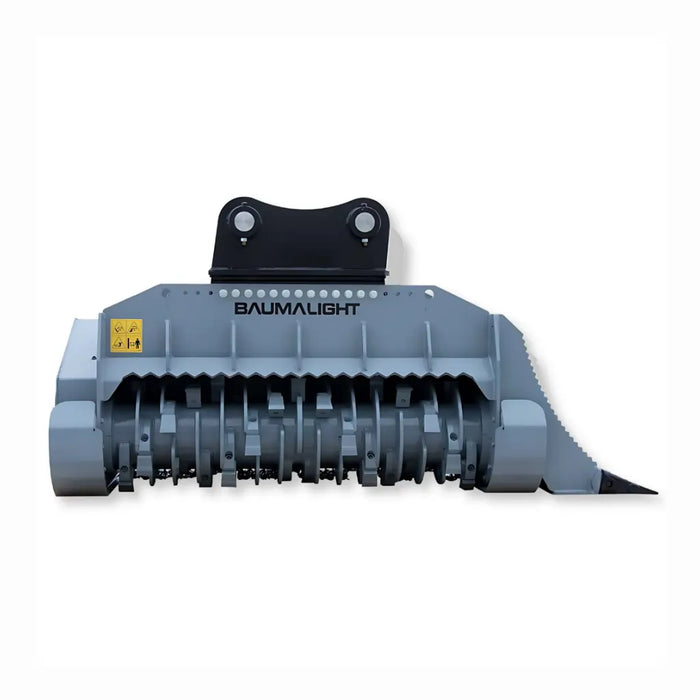

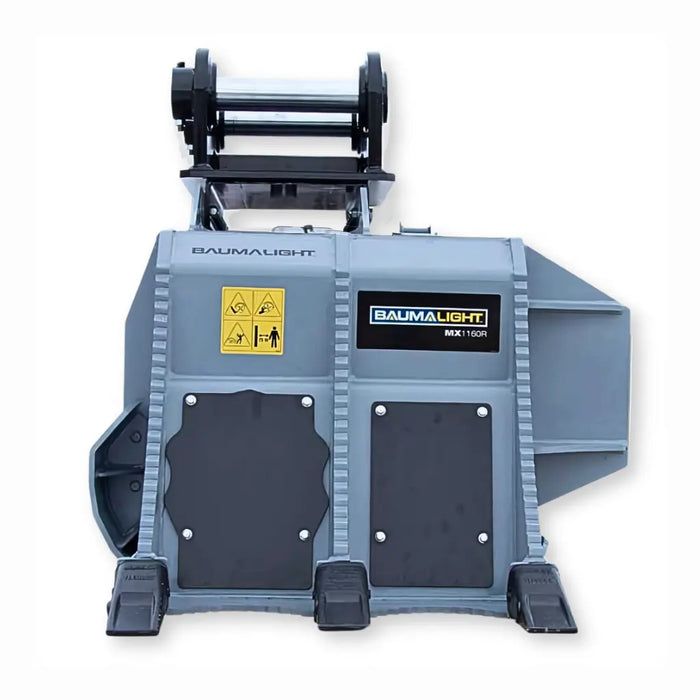

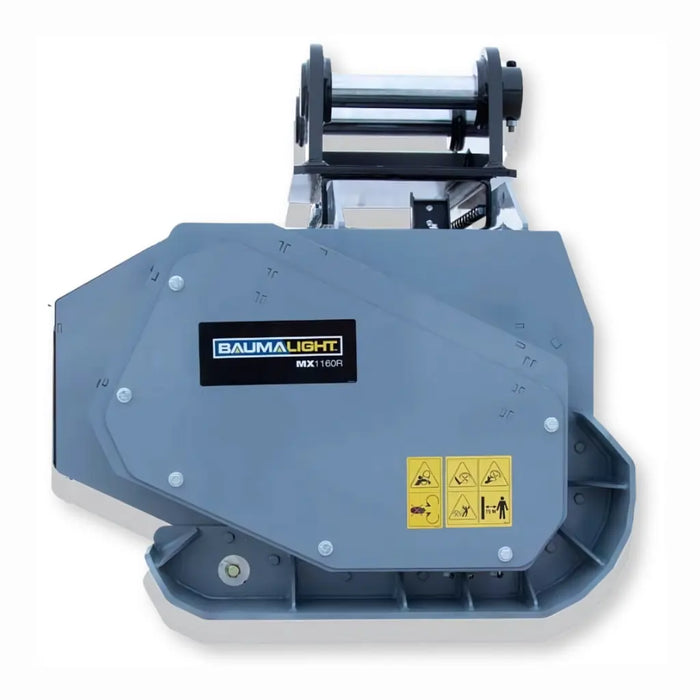

The Baumalight MX1160R Brush Mulcher is built for 18 to 33-ton excavators and features a 60” rotor. With performance boosting mulcher rings, it enhances mulching speed and efficiency while safeguarding tooth holders. This mulcher is equipped with 31 sharpenable planer teeth and aggressive root rake ripper teeth, all housed in a robust, AR400 steel frame.

✔ Perfect For Commercial Work
✔ Cuts Brush Up To 16.5" Diameter👇 Specifications Below
👇 Specifications Below

Specifications

Model No.	MX230	MX330	MX530	MX530R	MX548R	MX948R	MX960R	MX1160R
	A02	A02	A02	A02	A03	A03	A03	A03
Path Width	38"	38"	40"	40"	62"	70"	90"	90"
Rotor Width	30"	30"	30"	30"	48"	48"	60"	60"
Minimum Tracked Excavator Ton	2	3	4	4	7	12	18	18
Minimum Wheeled Excavator Ton	4	5	6	6	9	15	21	21
Max Tracked Excavator Ton	6	8	12	12	20	30	33	33
Max wheeled Excavator Ton	8	10	14	14	22	33	36	36
Cutting Depth	Level	Level	1.5" Above to 1" Below Grade	1.5" Above to 1" Below Grade	1.5" Above to 1" Below Grade	Level	Level	Level
Holder Style	Swing	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed
Cutting Style	Flail	High Speed Teeth	Carbide Tipped Bolt In	Carbide Tipped Bolt In	Carbide Tipped Bolt In	Double Tipped Carbide	Double Tipped Carbide	Sharpenable Planer teeth
Tooth Part number	F2000	H3000	P5000	P5000	P5000	R9000	R9000	P11000
Number of cutters	22	36	44	44	72	27	38	31
Rotor Shaft Size	1.5"	2"	2"	2"	2"	2"	2"	2"
Rotor Diameter (tool tips)	17.25"	15"	15"	15"	15"	18.5"	18.5"	18.5"
Rotor Weight (with tools)	125 lbs	175 lbs	300 lbs	300 lbs	408 lbs	617 lbs	860 lbs	872 lbs
No. of Motor	1	1	1	1	1	1	1	1
Case Drain	Not important	Not important	See motor options	See motor options	Critical	Critical	Critical	Critical
Unit Weight	500 lbs	750 lbs	1036 lbs	1166 lbs	2167 lbs	2838 lbs	2910 lbs	2925 lbs

Motor options - brush size chart

MAXIMUM BRUSH CUTTING SIZES

(Brush Diameter in Inches)

1100 Series

MOTOR	PSI	CASE DRAIN	20 GPM	25 GPM	30 GPM	35 GPM	40 GPM	45 GPM	50 GPM	55 GPM	60 GPM	65 GPM	70 GPM	75 GPM
RPM			1450	1800	2100
C1130 Bent Axis Piston	2500 3000 3500 4000	Critical	4.5" 5" 5.5" 6.5"	5.5" 6" 6.5" 7"	6.5" 7" 7.5" 8"	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --
RPM				1500	1800	2100
C1140 Bent Axis Piston	2500 3000 3500 4000	Critical	-- -- -- --	6.25" 6.75" 7.25" 7.75"	8.25" 8.5" 8.75" 9"	8.5" 9" 9.5" 10"	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --
RPM					1600	1875	2140
C1150 Bent Axis Piston	2500 3000 3500 4000	Critical	-- -- -- --	-- -- -- --	8.5" 9" 9.5" 9.75"	10" 10.5" 11" 11.5"	10.5" 11" 11.5" 12"	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --
RPM						1400	1630	1830	2030
C1170 Bent Axis Piston	2500 3000 3500 4000	Critical	-- -- -- --	-- -- -- --	-- -- -- --	9.5" 10" 11.5" 12"	10" 10.5" 11" 11.5"	11.5" 12" 12.5" 13"	12" 12.5" 13" 13.5"	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --
RPM								1400	1570	1750	1900
C1190 Bent Axis Piston	2500 3000 3500 4000	Critical	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	-- -- -- --	10" 10.5" 11" 11.5"	12.5" 13" 13.5" 14.5"	14" 14.5" 15" 15.5"	14.5" 15" 15.5" 16.5"	-- -- -- --	-- -- -- --	-- -- -- --
RPM			Adjustable
D117X2 Two speed	2500 3000 3500 4000	Critical	5.5" 6.25" 6.75" 8"	7.75" 8.25" 9" 9.5"	10.5" 11.25" 11.5" 12"	12.5" 13" 13.5" 14.25"	13" 13.75" 14.25" 15"	14.25" 15" 15.5" 16.25"	15.5" 16.25" 16.75" 18"	17.5" 18" 18.75" 19.25"	18" 18.75" 19.25" 20.5"	19" 19.75" 20.25" 21.5"	20" 20.75" 21.25" 22.5"	21" 21.75" 22.25" 23.5"

Technical Documents

Open MX948R_MX960R_MX1160R

Shipping & Returns

We offer FREE 2-5 day shipping (LTL Freight and Residential) for all Baumalight attachments. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com.

More information on refunds and returns can be found here.

Warranty

Baumalight Attachments are warranted to be free of defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase. This warranty covers parts and labor, but does not cover misuse, negligence, dealer travel time and shipping costs to and from the dealer.

Refer to manufacturer's manual for full warranty details.

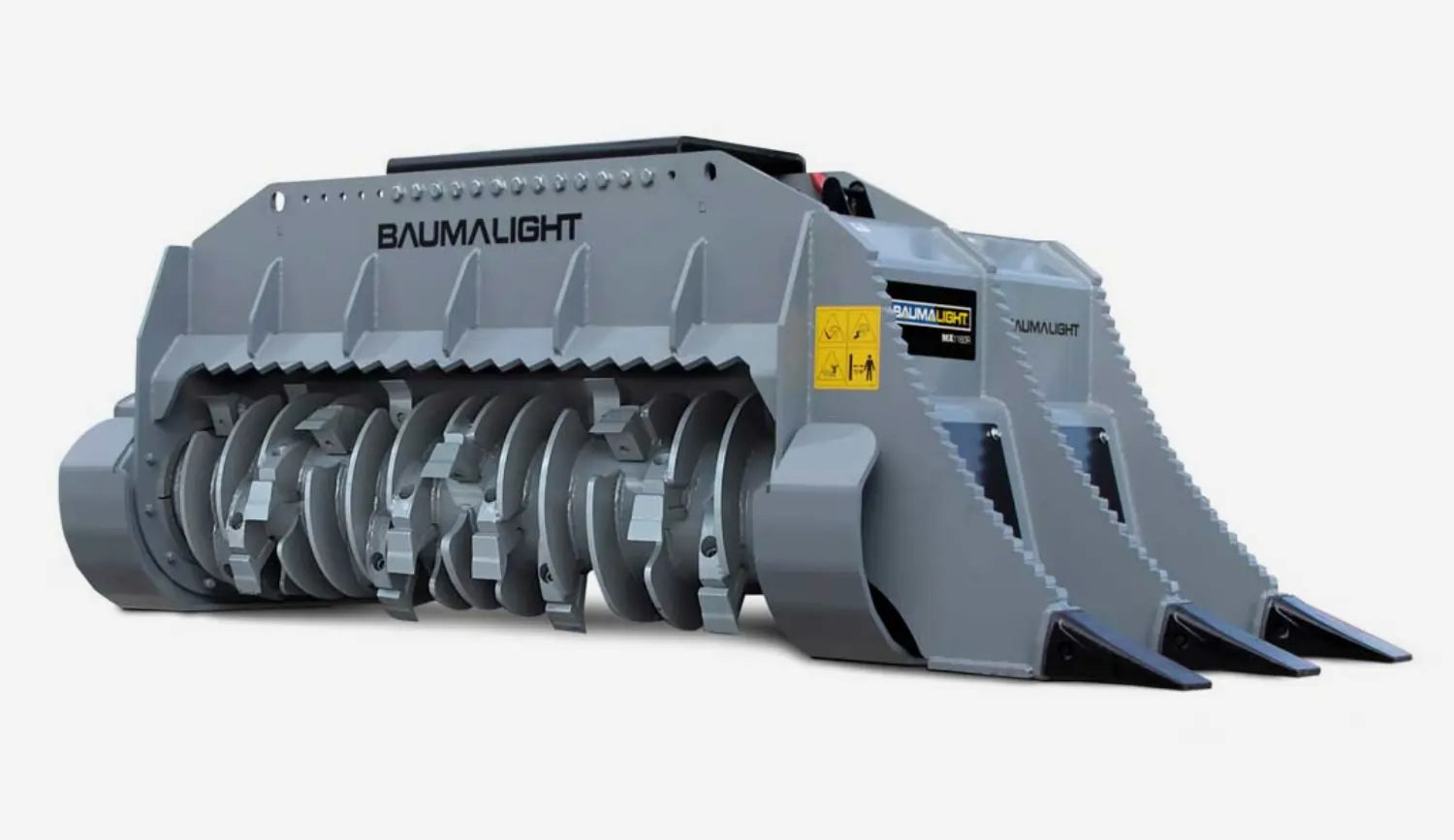

Baumalight MX1160R Mulcher

The Baumalight MX1160R Heavy Duty Fixed Tooth Mulcher for Excavators represents the pinnacle of innovation and rugged efficiency for the demanding tasks in the forestry and land-clearing sectors. Engineered for excavators weighing 18 to 33 tons, this mulcher features a robust 60” rotor equipped with 31 sharpenable planer teeth (P11000), ensuring deep penetration and effective mulching of large materials. Its cutting-edge design incorporates unique mulcher rings licensed by Denis Cimaf, enhancing the mulching speed while simultaneously reducing the risk of tooth holder breakage by controlling bite sizes.

Built to endure the toughest environments, the MX1160R's body is crafted from high-strength, low-weight AR400 steel, equipped with built-in aggressive root rake ripper teeth. These teeth are adept at extracting rocks and repositioning logs, amplifying the mulcher's utility on varied terrains. Additionally, the replaceable bolt-in liner made from the same AR400 steel ensures easy maintenance and prolonged durability, enhancing the machine’s uptime and operational efficiency.
