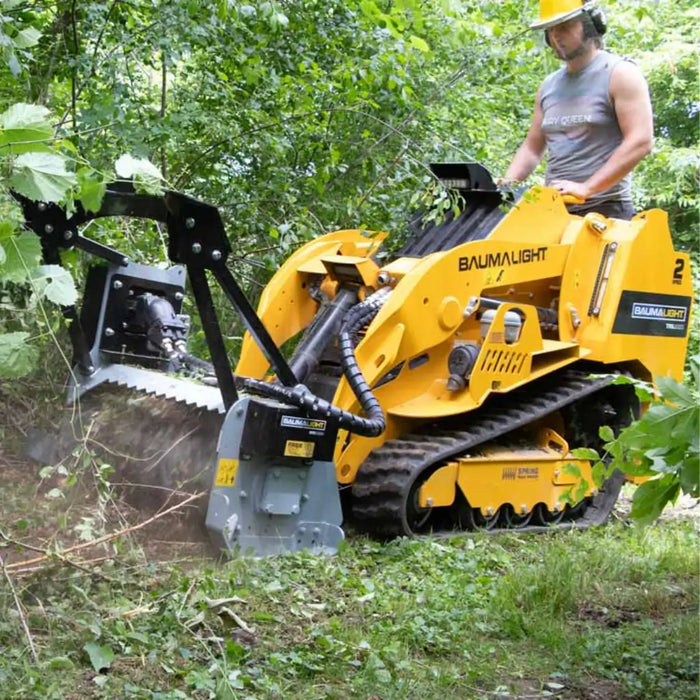

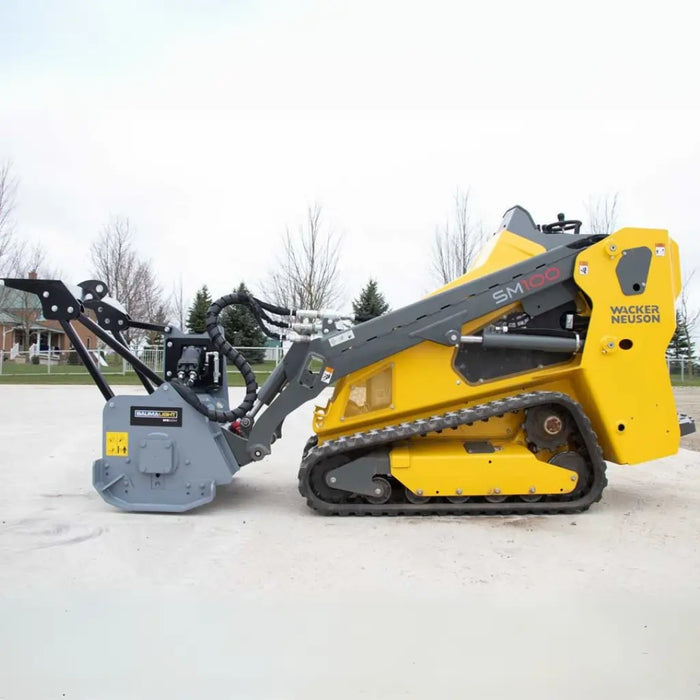

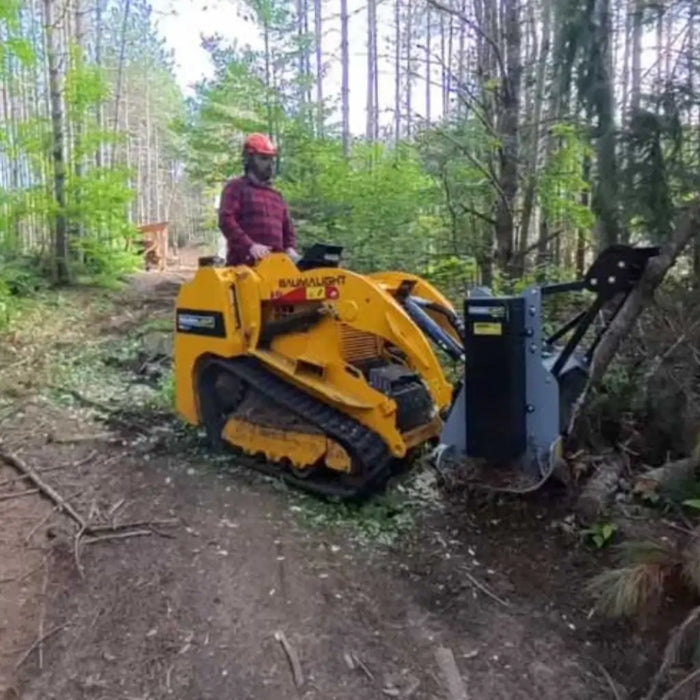

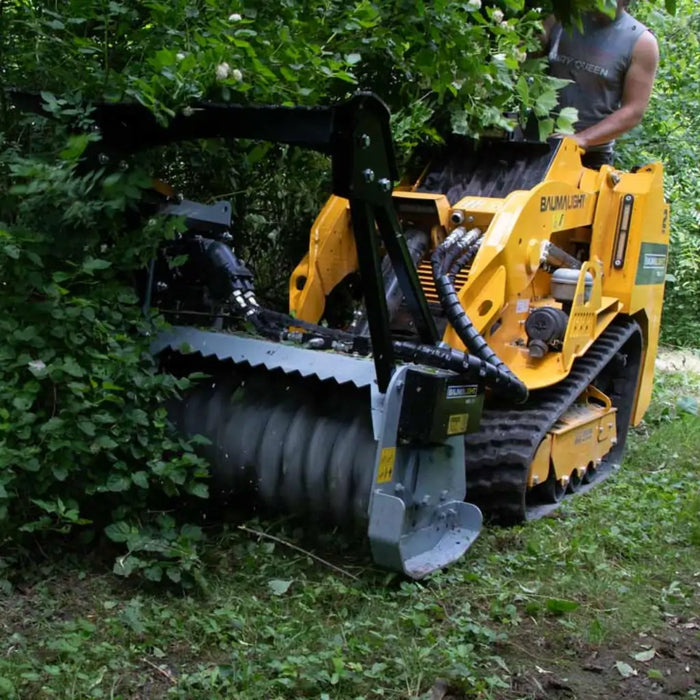

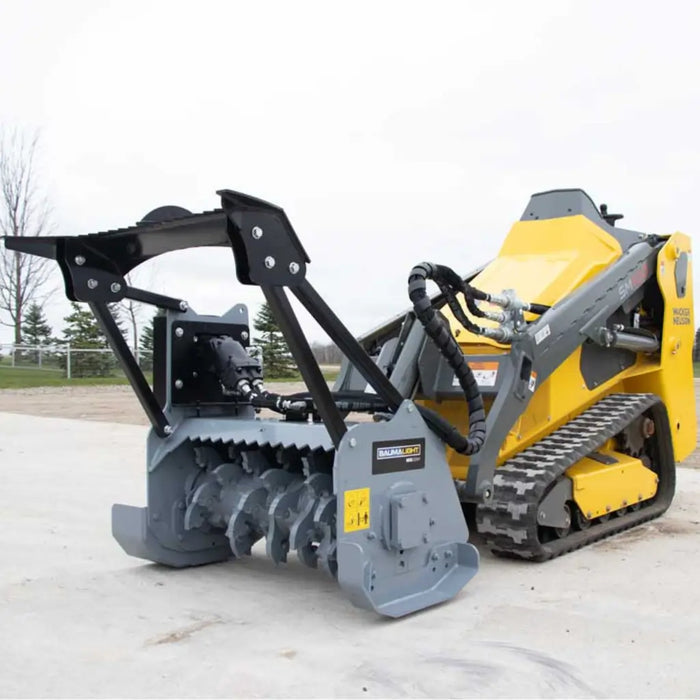

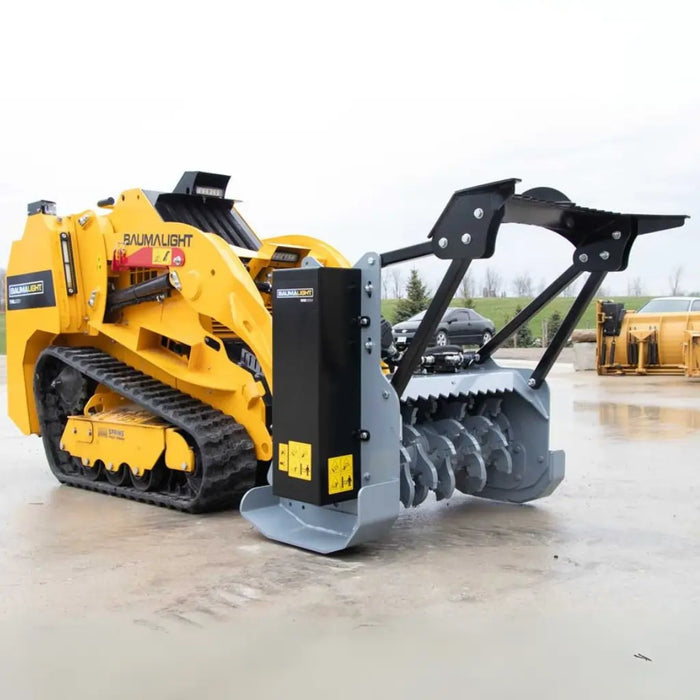

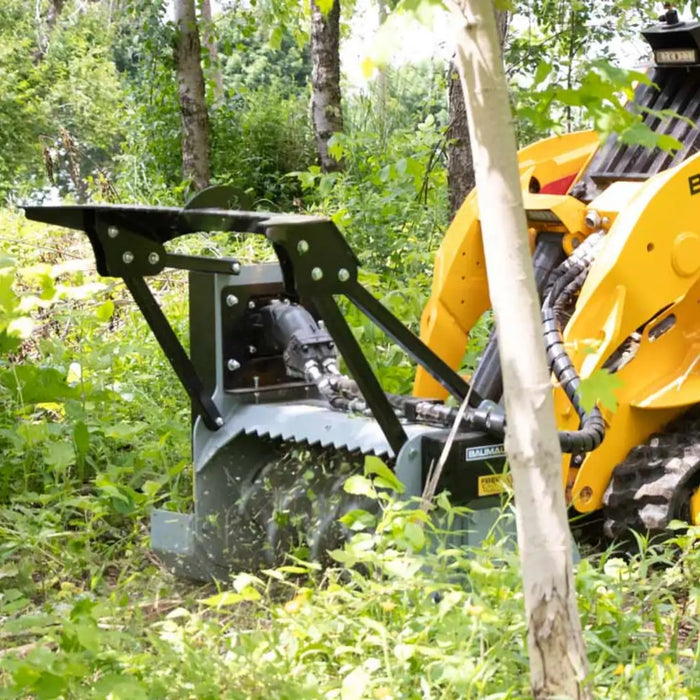

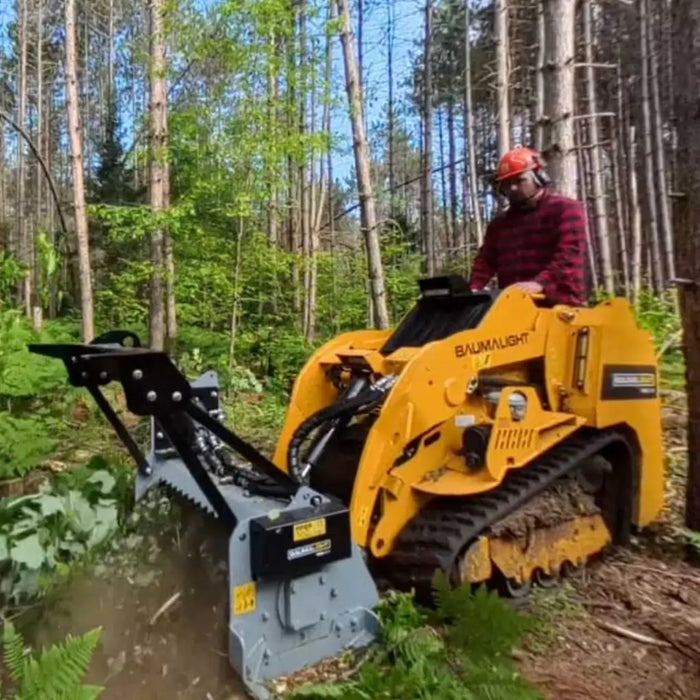

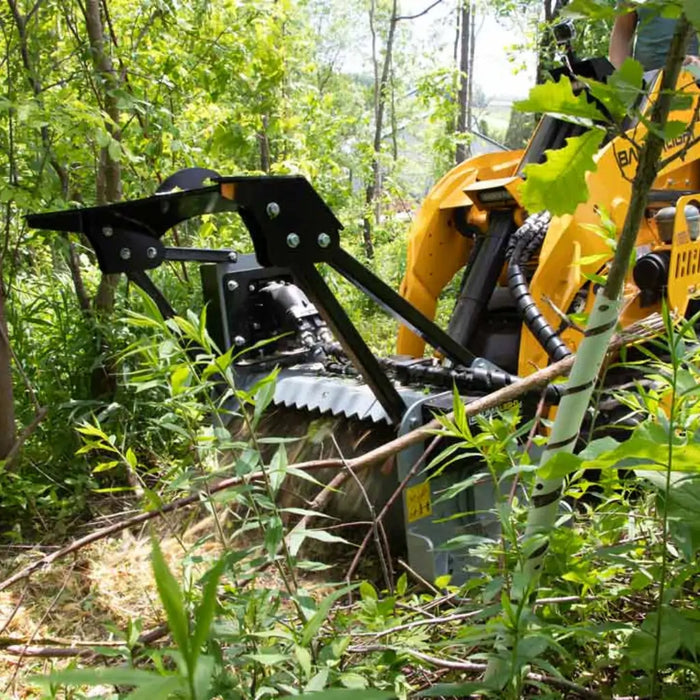

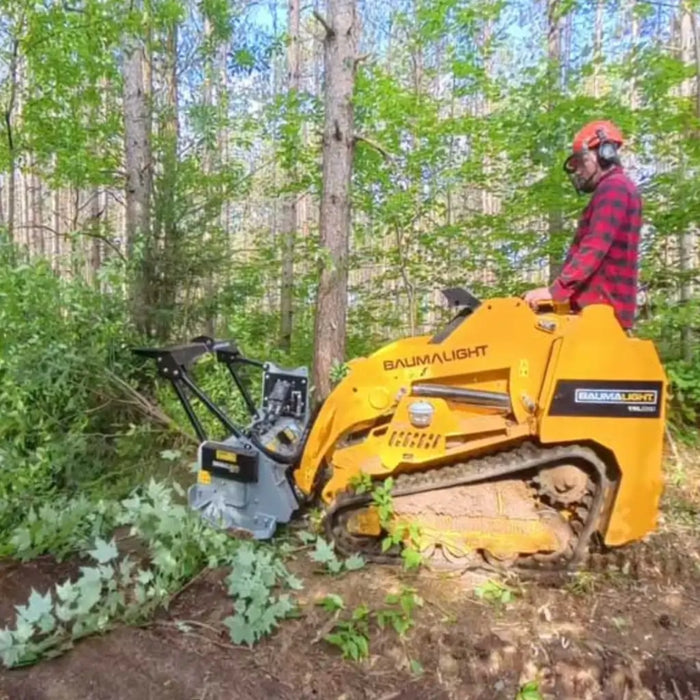

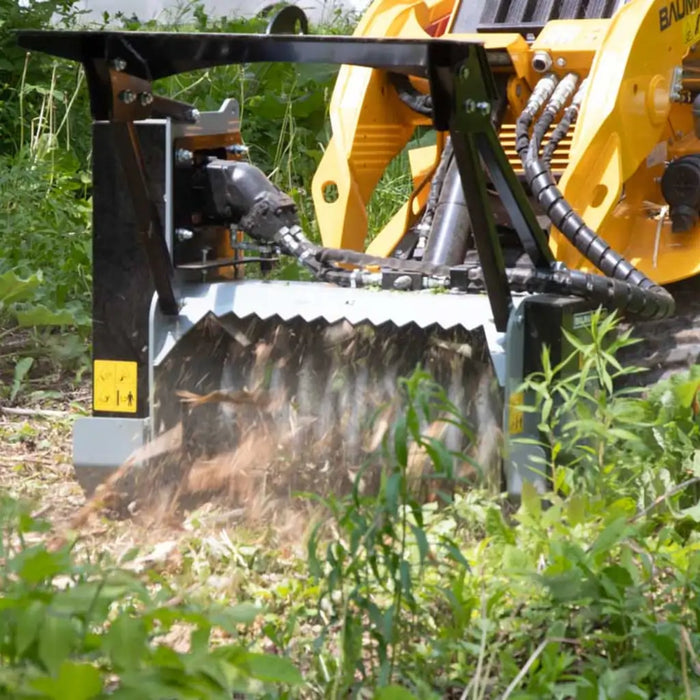

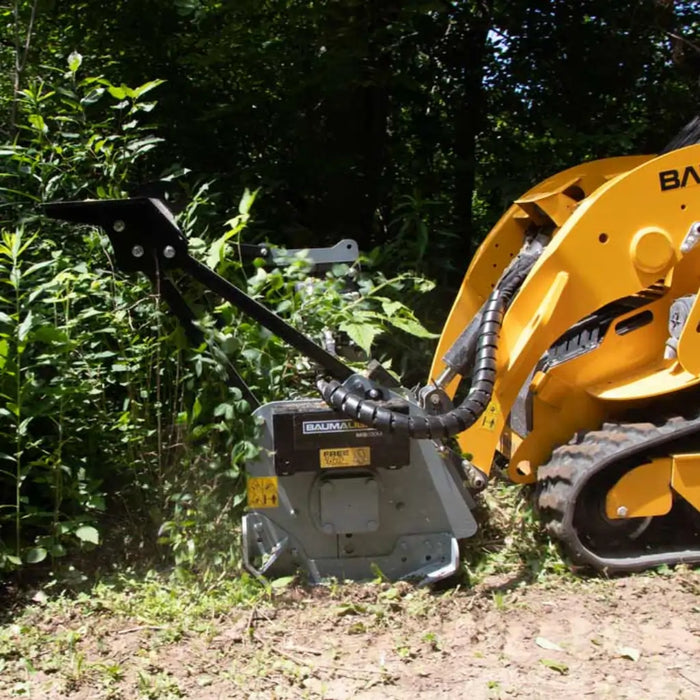

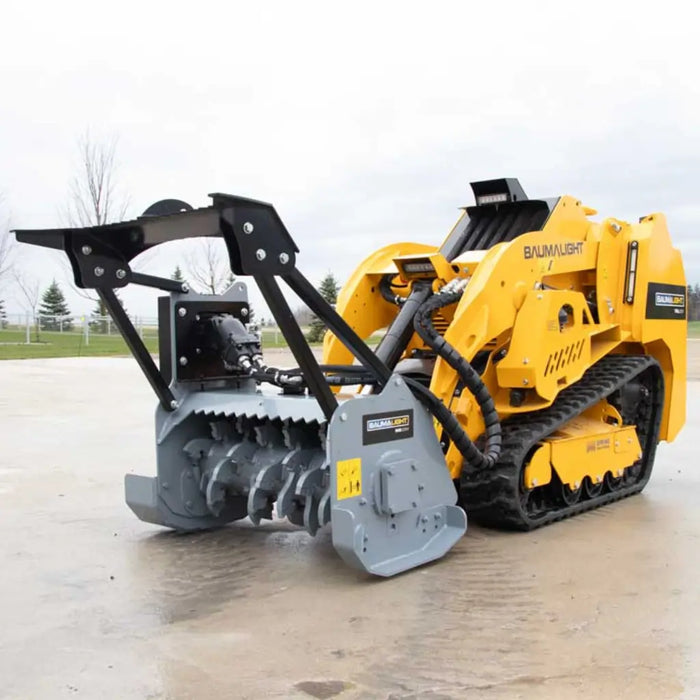

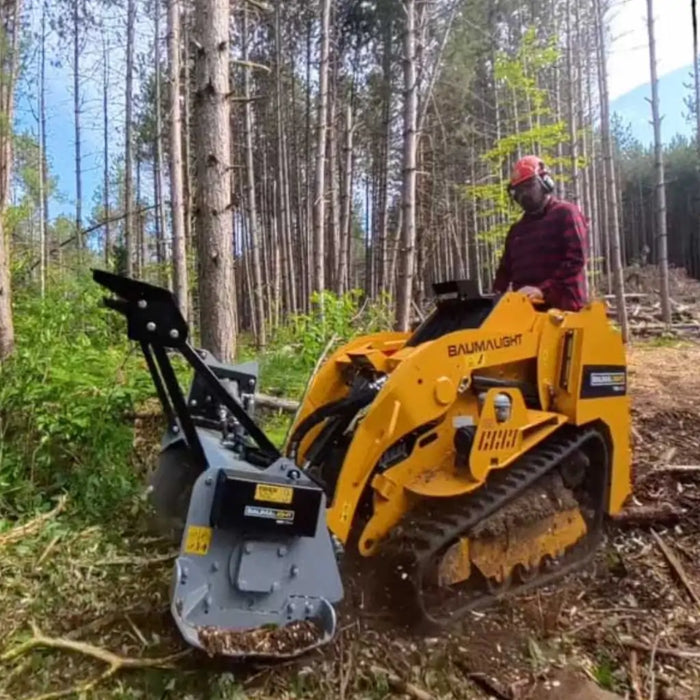

Baumalight MS530M Fixed Tooth Mulcher for Mini Skid Steers
Rotor Width
30"
Case Drain Required
Yes
Maximum Brush Diameter
4"
Commonly Used For
Land Clearing
Trail Maintenance
Forestry
Baumalight MS530M Fixed Tooth Mulcher for Mini Skid Steers
Limited time deal
$7,950
List Price:
In Stock
Delivery By Wednesday, November 05
SKU: MS530M-C508
Weight: 715.0 lb
1
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Product Overview
The Baumalight MS530M Fixed Tooth Mulcher is a compact powerhouse designed for Mini Skidsteers, built to handle aggressive brush clearing, small tree removal, and vegetation control. Featuring hardened V-Notch teeth in a spiral pattern, a reinforced belt drive system, and a rugged bent axis piston motor, this Mini Skidsteer mulcher delivers exceptional torque and cutting consistency. Its adjustable skid shoes, standard wire guard kit, and integrated push bar make it ideal for dense terrain and fence line maintenance. Durable, efficient, and low-maintenance, the MS530M is built for professionals who demand results in forestry mulching, land clearing, and vegetation management applications.
Specifications
| Model No. | MS348 | MS530M | MS530B | MS548 | MS560 | MS572 | MS960 | MS972 | MS1160 |
|---|---|---|---|---|---|---|---|---|---|
| Mount | Universial skidsteer | Standard Mini skindsteer | Bobcat mini skidsteer | Universial skidsteer | Universial skidsteer | Universial skidsteer | Universial skidsteer | Universial skidsteer | Universial skidsteer |
| Path Width | 60" | 42" | 42" | 62" | 75" | 87" | 75" | 84" | 75" |
| Rotor Width | 48" | 30" | 30" | 48" | 60" | 72" | 60" | 72" | 60" |
| Minimum carrier weight | 3,000 | 2,000 | 2,000 | 4,000 | 5,500 | 6,000 | 7,000 | 7,500 | 7,000 |
| Cutting Depth | Level | 1.5" Above to Level | 1.5" Above to Level | 1.5" Above to Level | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | 1.5" Above to 2" Below Grade | 1.5" Above to 2" Below Grade | 1.125" Above to 2.375" Below Grade |
| Holder Style | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Tool Style | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped | Double Tipped | Sharpenable Planer |
| Tooth Part number | H3000 | P5000 | P5000 | P5000 | P5000 | P5000 | R9000 | R9000 | P11000 |
| Number of cutters | 60 | 44 | 44 | 72 | 92 | 112 | 38 | 43 | 31 |
| Rotor Diameter (tool tips) | 15" | 15" | 15" | 15" | 15" | 15" | 18.5" | 18.5" | 19.3" |
| Rotor Weight (with tools) | 230 lbs | 300 lbs | 300 lbs | 480 lbs | 575 lbs | 700 lbs | 860 lbs | 1,105 lbs | 860 lbs |
| Case Drain | Not important | Critical | Critical | See motor options | Critical | Critical | Critical | Critical | Critical |
| Hydraulic Couplers | Included | Included | Included | Not included | Not included | Not included | Not Included | Not Included | Not Included |
| Unit Shipping Weight | 950 lbs | 715 lbs | 758 lbs | 1491 lbs | 2115 lbs | 2266 lbs | 2975 lbs | 3115 lbs | 2800 lbs |
Motor options - brush size chart
MAXIMUM BRUSH CUTTING SIZES
(Brush Diameter in Inches)
500 Series
| MOTOR | PSI | CASE DRAIN | 8 GPM |
12 GPM |
15 GPM |
20 GPM |
25 GPM |
30 GPM |
35 GPM |
40 GPM |
45 GPM |
50 GPM |
55 GPM |
60 GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RPM | 555 | 832 | 1060 | 1390 | ||||||||||
| A450 Roller-Vane | 2500 3000 3500 |
Not Needed Not Needed Recommended |
0.25" 0.5" 0.5" |
0.75" 1" 1" |
1" 1.25" 1.25" |
1.5" 2" 2" |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
| RPM | 640 | 846 | 1100 | 1370 | 1600 | |||||||||
| B550 Roller-Vane | 2500 3000 3500 |
Not Needed Recommended Needed |
-- -- -- |
0.25" 0.5" 0.5" |
0.75" 1" 1" |
1.25" 1.75" 1.75" |
2.5" 3" 3" |
3" 3.5" 3.5" |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
| RPM | 1090 | 1640 | 2050 | |||||||||||
| C508 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | 1" 1.5" 2" 2.5" |
1.75" 2.25" 2.75" 3.25" |
2.25" 2.75" 3.25" 4" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1190 | 1490 | 2000 | 2490 | ||||||||||
| C510 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
1.5" 2" 2.5" 3" |
2" 2.5" 3" 3.5" |
2.5" 3" 3.5" 4.5" |
3" 3.5" 4.5" 5" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1450 | 1800 | 2100 | |||||||||||
| C530 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
2.5" 3" 3.5" 4.5" |
3.5" 4" 4.5" 5" |
4.5" 5" 5.5" 5.75" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1500 | 1800 | 2100 | |||||||||||
| C540 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
3.25" 3.75" 4.25" 4.75" |
5" 5.5" 5.75" 6" |
5.5" 6" 6.5" 7" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1600 | 1875 | 2140 | |||||||||||
| C550 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
4.5" 5" 5.5" 5.75" |
6" 6.5" 7" 7.5" |
6.5" 7" 7.5" 8" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1400 | 1630 | 1830 | 2030 | ||||||||||
| C570 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
5.5" 6" 6.5" 7" |
5" 5.5" 6" 6.5" |
6.5" 7" 7.5" 8" |
7" 7.5" 8" 8.5" |
-- -- -- |
-- -- -- |
| RPM | 1400 | 1570 | 1750 | 1900 | ||||||||||
| C590 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
4.5" 5" 5.5" 6" |
7" 7.5" 8" 9" |
8.5" 9" 9.5" 10" |
9" 9.5" 10" 11" |
Technical Documents
Open MS530M_Mulcher
See it in action!

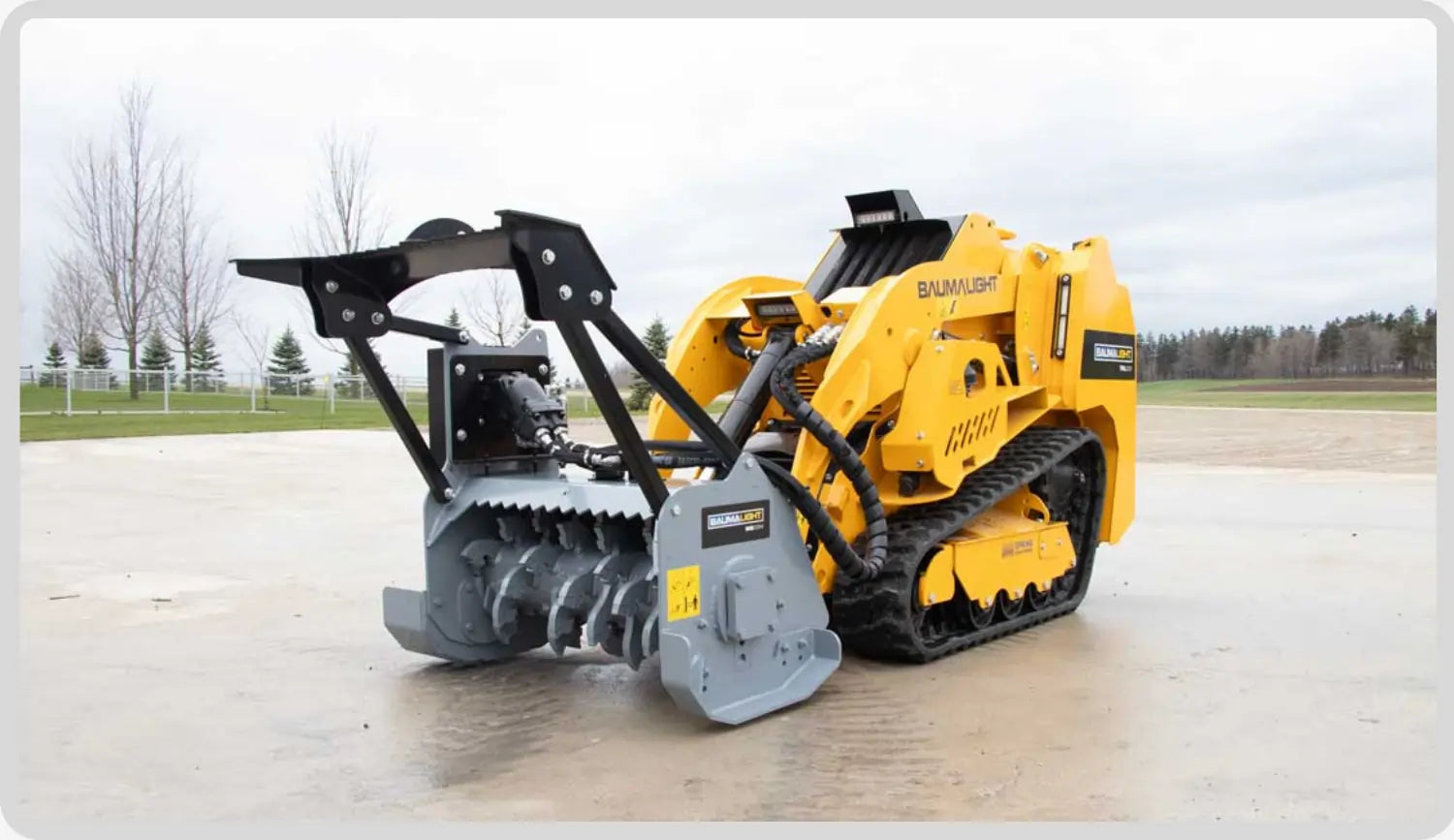

MS530M Fixed Tooth Mulcher

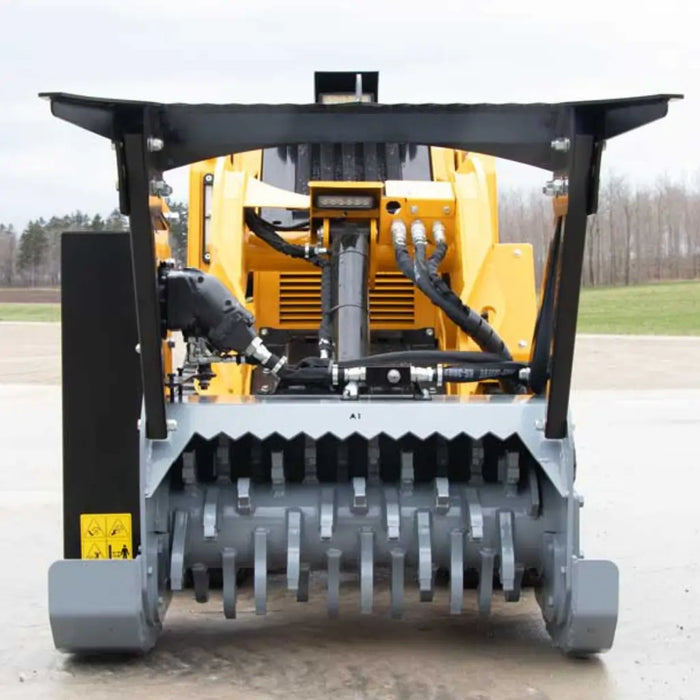

Integrated Push Bar
Integrated push bar bends and controls tall brush for more efficient, safer mulching.
Controls tall brush
Aids in safer mulching
More cutting control
read more
Integrated push bar bends and controls tall brush for more efficient, safer mulching.

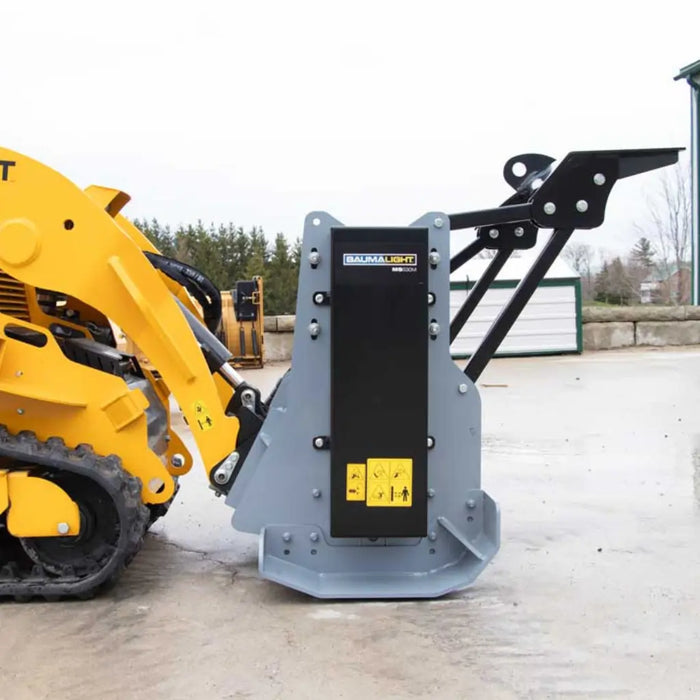

Adjustable Skid Shoes
Two-position skid shoes let you set cutting height for optimal mulching performance.
Adjustable height
Two-position setup
Controls cutting depth
read more
Two-position skid shoes let you set cutting height for optimal mulching performance.
Armoured and Sleeved
Double-shielded, sleeved hoses protect operator and hydraulic lines from damage.
Sleeved for safety
Resists hose damage
Protects from debris
read more
Double-shielded, sleeved hoses protect operator and hydraulic lines from damage.
Hardened Tooth Holders
Heavy-duty tooth holders resist bending and extend service life in tough conditions.
Resists tooth flexing
Heavy-duty steel build
Extends tooth life
read more
Heavy-duty tooth holders resist bending and extend service life in tough conditions.
