Baumalight MS530B Fixed Tooth Mulcher for Bobcat Mini Skid Steers
Rotor Width
30"
Case Drain Required
Yes
Maximum Brush Diameter
4"
Commonly Used For
Land Clearing
Trail Maintenance
Forestry
Baumalight MS530B Fixed Tooth Mulcher for Bobcat Mini Skid Steers
Limited time deal
$8,650
List Price:
Built To Order
Delivery By Saturday, November 08
SKU: MS530B-C508
Weight: 758.0 lb
1
Frequently Bought With
Frequently Bought With
Product Overview

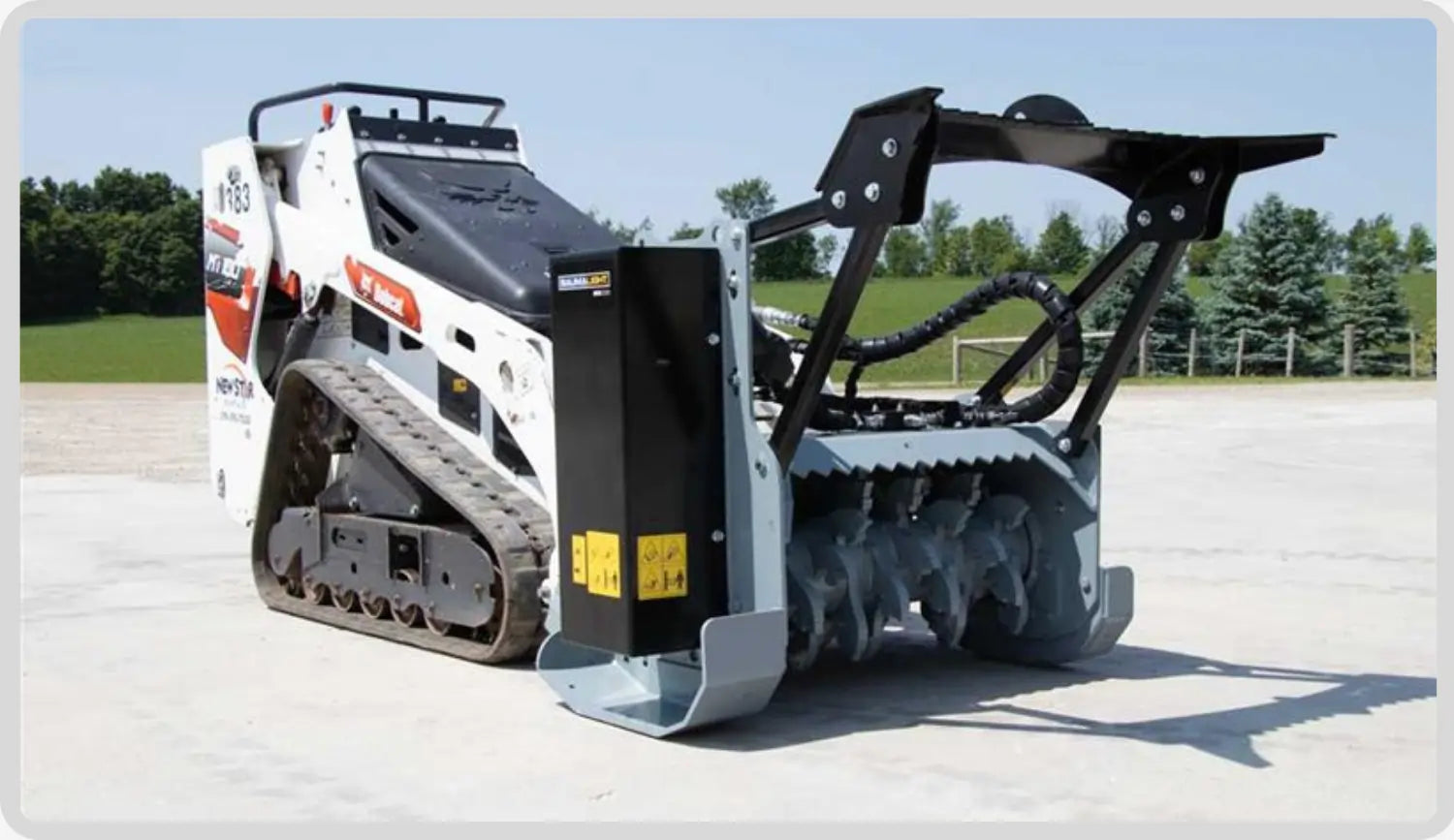

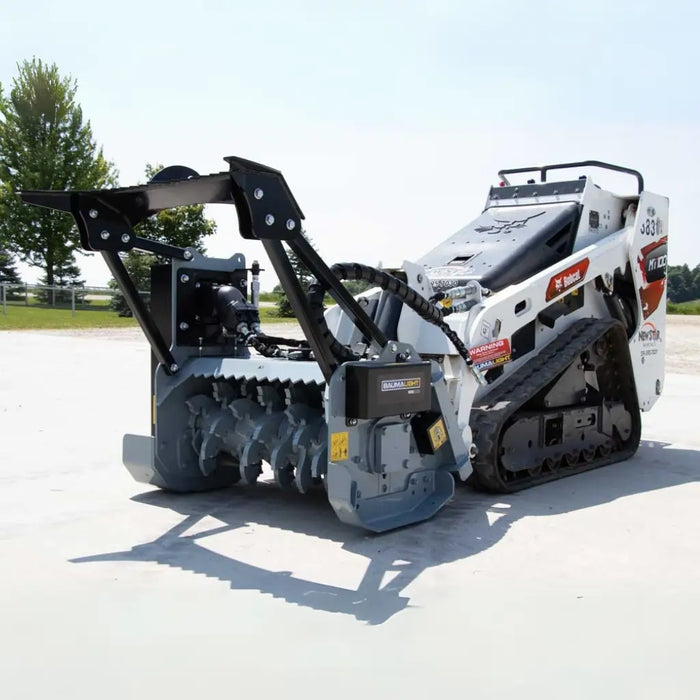

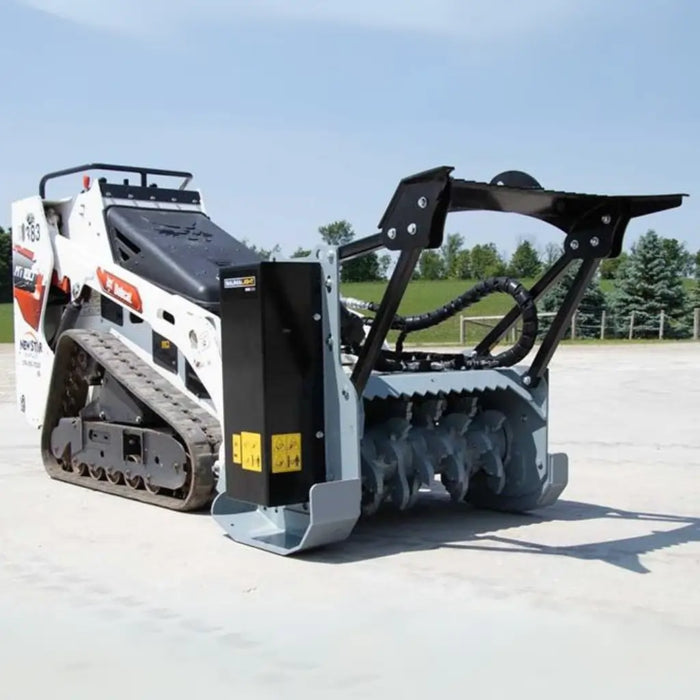

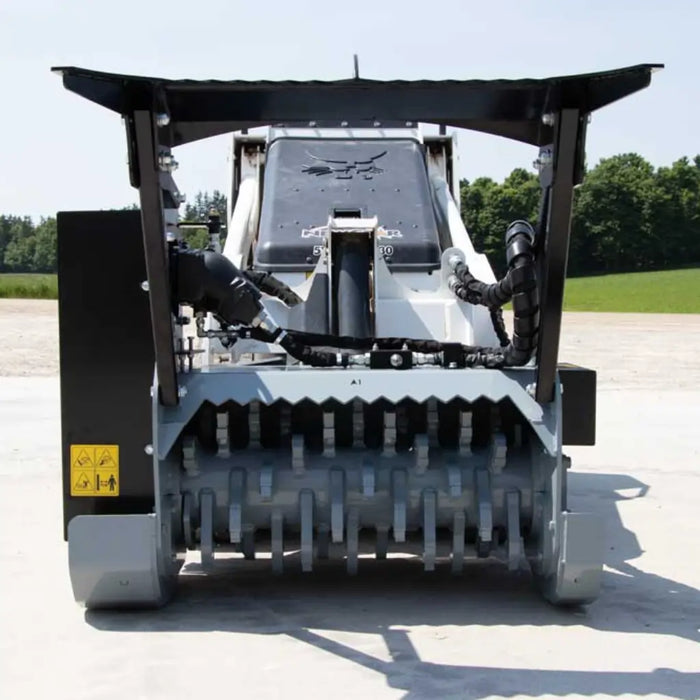

The Baumalight MS530B Fixed Tooth Mulcher is built specifically for Bobcat MT-series Mini Skidsteers, with a longer frame and custom mount plate to accommodate Bobcat’s oversized Quickattach handles. This heavy-duty brush mulcher for Bobcat mini skidsteers features a spiral-pattern rotor with hardened V-Notch teeth, armored hydraulic hoses, and an integrated push bar for bending and clearing thick brush. Designed for precise cutting with adjustable skid shoes, the MS530B delivers serious power through a reinforced belt drive and bent axis piston motor. A case drain is required—check compatibility before operating. Ideal for land clearing, overgrowth removal, and property maintenance.
Specifications
| Model No. | MS348 | MS530M | MS530B | MS548 | MS560 | MS572 | MS960 | MS972 | MS1160 |
|---|---|---|---|---|---|---|---|---|---|
| Mount | Universal skidsteer | Standard Mini skidsteer | Bobcat mini skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer |
| Path Width | 60" | 42" | 42" | 62" | 75" | 87" | 75" | 84" | 75" |
| Rotor Width | 48" | 30" | 30" | 48" | 60" | 72" | 60" | 72" | 60" |
| Min. Carrier Weight | 3,000 lbs | 2,000 lbs | 2,000 lbs | 4,000 lbs | 5,500 lbs | 6,000 lbs | 7,000 lbs | 7,500 lbs | 7,000 lbs |
| Cutting Depth | Level | 1.5" Above to Level | 1.5" Above to Level | 1.5" Above to Level | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | 1.5" Above to 2" Below Grade | 1.5" Above to 2" Below Grade | 1.125" Above to 2.375" Below Grade |
| Holder Style | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Tool Style | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped | Double Tipped | Sharpenable Planer |
| Tooth Part Number | H3000 | P5000 | P5000 | P5000 | P5000 | P5000 | R9000 | R9000 | P11000 |
| Number of Cutters | 60 | 44 | 44 | 72 | 92 | 112 | 38 | 43 | 31 |
| Rotor Diameter (Tool Tips) | 15" | 15" | 15" | 15" | 15" | 15" | 18.5" | 18.5" | 19.3" |
| Rotor Weight (w/ Tools) | 230 lbs | 300 lbs | 300 lbs | 480 lbs | 575 lbs | 700 lbs | 860 lbs | 1,105 lbs | 860 lbs |
| Case Drain | Not important | Critical | Critical | See motor options | Critical | Critical | Critical | Critical | Critical |
| Hydraulic Couplers | Included | Included | Included | Not included | Not included | Not included | Not included | Not included | Not included |
Motor options - brush size chart
MAXIMUM BRUSH CUTTING SIZES
(Brush Diameter in Inches)
500 Series
| MOTOR | PSI | CASE DRAIN | 8 GPM |
12 GPM |
15 GPM |
20 GPM |
25 GPM |
30 GPM |
35 GPM |
40 GPM |
45 GPM |
50 GPM |
55 GPM |
60 GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RPM | 555 | 832 | 1060 | 1390 | ||||||||||
| A450 Roller-Vane | 2500 3000 3500 |
Not Needed Not Needed Recommended |
0.25" 0.5" 0.5" |
0.75" 1" 1" |
1" 1.25" 1.25" |
1.5" 2" 2" |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
| RPM | 640 | 846 | 1100 | 1370 | 1600 | |||||||||
| B550 Roller-Vane | 2500 3000 3500 |
Not Needed Recommended Needed |
-- -- -- |
0.25" 0.5" 0.5" |
0.75" 1" 1" |
1.25" 1.75" 1.75" |
2.5" 3" 3" |
3" 3.5" 3.5" |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
| RPM | 1090 | 1640 | 2050 | |||||||||||
| C508 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | 1" 1.5" 2" 2.5" |
1.75" 2.25" 2.75" 3.25" |
2.25" 2.75" 3.25" 4" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1190 | 1490 | 2000 | 2490 | ||||||||||
| C510 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
1.5" 2" 2.5" 3" |
2" 2.5" 3" 3.5" |
2.5" 3" 3.5" 4.5" |
3" 3.5" 4.5" 5" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1450 | 1800 | 2100 | |||||||||||
| C530 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
2.5" 3" 3.5" 4.5" |
3.5" 4" 4.5" 5" |
4.5" 5" 5.5" 5.75" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1500 | 1800 | 2100 | |||||||||||
| C540 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
3.25" 3.75" 4.25" 4.75" |
5" 5.5" 5.75" 6" |
5.5" 6" 6.5" 7" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1600 | 1875 | 2140 | |||||||||||
| C550 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
4.5" 5" 5.5" 5.75" |
6" 6.5" 7" 7.5" |
6.5" 7" 7.5" 8" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1400 | 1630 | 1830 | 2030 | ||||||||||
| C570 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
5.5" 6" 6.5" 7" |
5" 5.5" 6" 6.5" |
6.5" 7" 7.5" 8" |
7" 7.5" 8" 8.5" |
-- -- -- |
-- -- -- |
| RPM | 1400 | 1570 | 1750 | 1900 | ||||||||||
| C590 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
4.5" 5" 5.5" 6" |
7" 7.5" 8" 9" |
8.5" 9" 9.5" 10" |
9" 9.5" 10" 11" |
Technical Documents
Open MS530M_Mulcher_d504794b-3a1d-4a80-a18c-464b7206ee8c
See it in action!
Bobcat Mini MS530B Mulcher
Integrated Push Bar
Integrated push bar bends and controls tall brush for more efficient, safer mulching.
Controls tall brush
Aids in safer mulching
More cutting control
read more
Integrated push bar bends and controls tall brush for more efficient, safer mulching.
Adjustable Skid Shoes
Two-position skid shoes let you set cutting height for optimal mulching performance.
Adjustable height
Two-position setup
Controls cutting depth
read more
Two-position skid shoes let you set cutting height for optimal mulching performance.
Armoured and Sleeved
Double-shielded, sleeved hoses protect operator and hydraulic lines from damage.
Sleeved for safety
Resists hose damage
Protects from debris
read more
Double-shielded, sleeved hoses protect operator and hydraulic lines from damage.
Hardened Tooth Holders
Heavy-duty tooth holders resist bending and extend service life in tough conditions.
Resists tooth flexing
Heavy-duty steel build
Extends tooth life
read more
Heavy-duty tooth holders resist bending and extend service life in tough conditions.
