Name: Baumalight DXH752 Tree Saw for 10-22 Ton Excavators
Brand: Baumalight
SKU: BML-DXH752-10T-BLANK
Price: 18900.0 USD
Availability: InStock

Baumalight DXH752 Tree Saw for 10-22 Ton Excavators

See more by Baumalight

1 Video

Baumalight DXH752 Tree Saw for 10-22 Ton Excavators

Optimal Flow Range 25 - 60 GPM

Cutting Time For 10" Limb 5 Seconds @ 4000 PSI

Case Drain Required

Commonly Used For

Forestry Work

Storm Clean-Up

Clearing Land

Baumalight DXH752 Tree Saw for 10-22 Ton Excavators

See more by Baumalight

1 Video

Limited time deal

$18,900

List Price:

Built To Order

Delivery By Sunday, December 07

SKU: BML-DXH752-10T-BLANK

Weight: 2033.0 lb

Excavator Weight Class Mount Option

6 Replacement Teeth

Free

Frequently Bought With

Product Overview

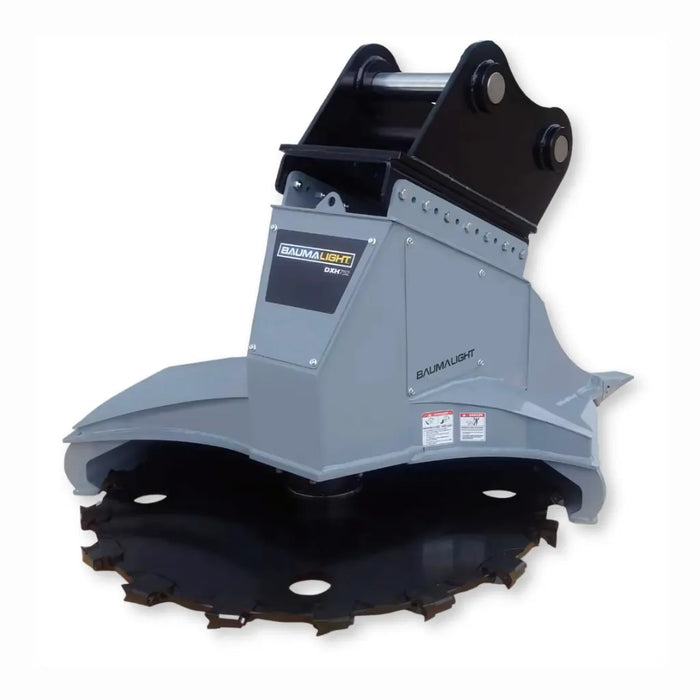

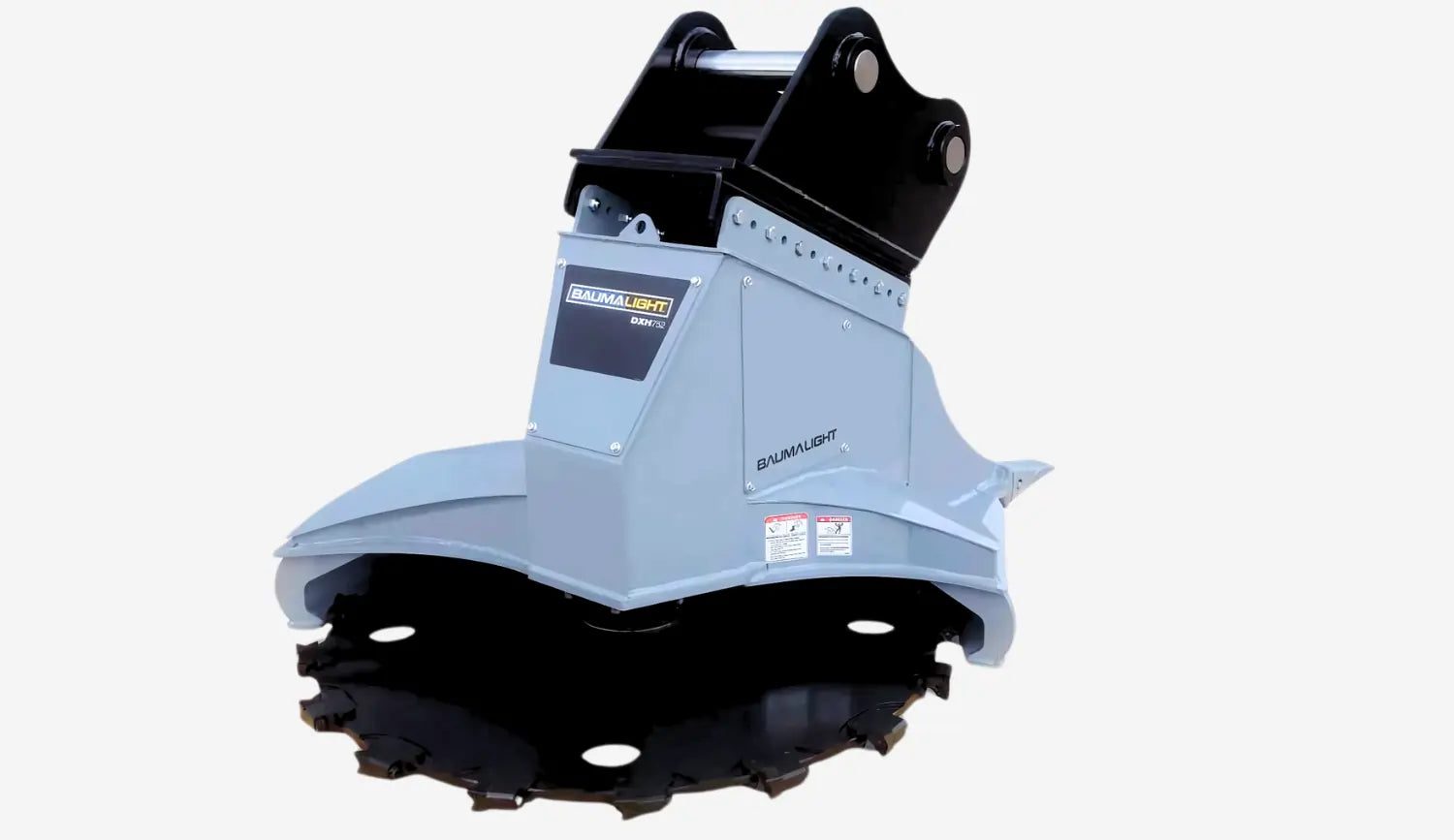

The Baumalight DXH752 Excavator Tree Saw is a hydraulically driven, heavy-duty 52" tree saw built for excavators (10–22 tons). Equipped with replaceable Beaver teeth, it excels in pasture maintenance, right-of-way clearing, and commercial tree cutting. Customizable motor options ensure compatibility with your excavator's flow rate. Durable, efficient, and reliable for your toughest clearing jobs.

✔ For Excavators with a 25 - 60 GPM Flow
✔ For 10 - 22 Ton Excavators👇 Specifications Below

Specifications

Model #	DXM530	DXA530	DXD752	DXH752
Adaptor	Bolt-on	Bolt-on	Bolt-on	Bolt-on
Maximum Carrier Ton	12	12	22	22
Minimum Carrier Ton	4	4	10	10
Blade Angle	180°	180°	360°	Horizontal
Rotation	Manual	Actuator	Actuator	Fixed
Actuator	-	Helical	Slew Drive	-
GPM	10-40	10-45	25-60	25-60
PSI	5,000	5,000	5,000	5,000
Electrical AUX	Not required	2 ON/OFF pins & G	2 ON/OFF pins & G	Not required
Hydraulic Hose	Not Supplied	Not Supplied	Not Supplied	Not Supplied
Hydraulic Couplers	Not Supplied	Not Supplied	Not Supplied	Not Supplied
Motor Type	Bend Axis Piston	Bend Axis Piston	Bend Axis Piston	Bend Axis Piston
Motor cc	47	47	108	108
Motor Option	T530	T530	T590	T590
Blade Diameter	30"	30"	52"	52"
Max Cut	10"	10"	20"	20"
Blade Material	1/2" AR400 Blade	1/2" AR400 Blade	3/4" Steel Blade	3/4" Steel Blade
Cut Thickness	3/4"	3/4"	1-5/8"	1-5/8"
Tooth Part number	H3000	H3000	B8000	B8000
Type of Teeth	High Speed Teeth	High Speed Teeth	Beaver	Beaver
No. of Edges per Tooth	3	3	4	4
Number of Teeth	12	12	18	18
Unit Shipping Weight	652 lbs	620 lbs	2380 lbs	1808 lbs

Motor Options - Stump Cutting Time Chart

Cutting Time for 10" Limb

Motor	Motor Type	CC	Case Drain	RPM at Max GPM	PSI	20 GPM	25 GPM	30 GPM	35 GPM	40 GPM	50 GPM	60 GPM
T590	Piston	108	Critical	1900	3000	12 sec	10 sec	8 sec	8 sec	8 sec	5 sec	5 sec

Technical Documents

Open DXH752_10-22_Ton_Excavator_Tree_Saw_Operator_Manual

What's Included

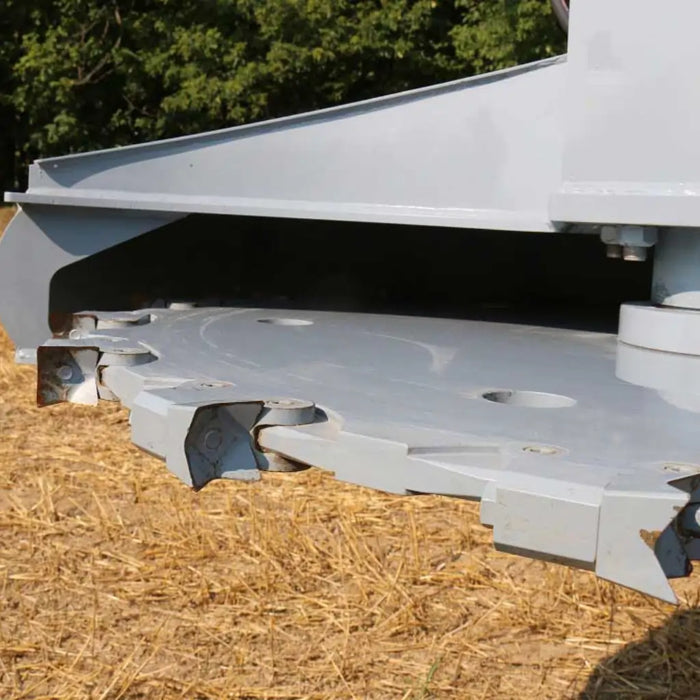

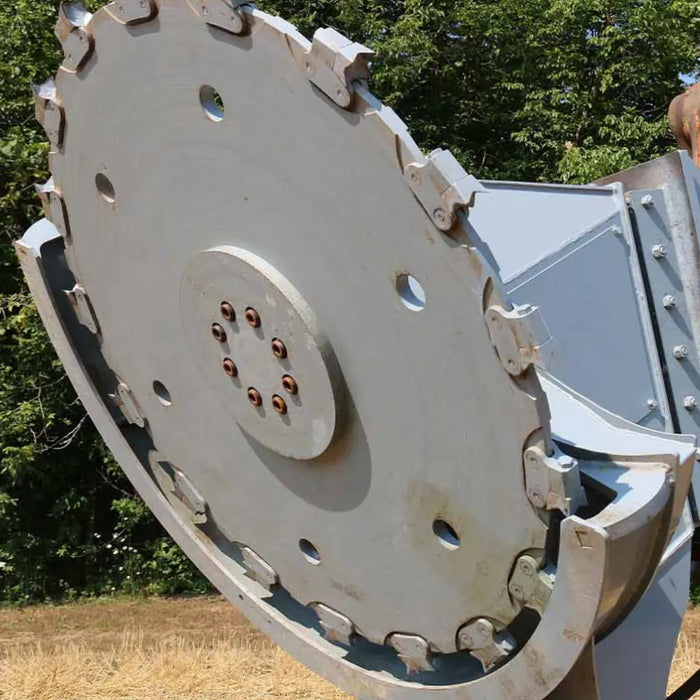

Replaceable Beaver Teeth

Made from high-grade alloy steel, the Beaver style, with its straight edges, is a very durable tooth. Tips can be re-sharpened right on the blade with a teeth grinder and are mounted on replaceable holders.

All DXH752 Tree Saws come with a free set of 6 replacement teeth.

Beaver teeth

Bolt-On Excavator Adaptor

Baumalight's Bolt-On Mounting Adaptors provide strength and future flexibility. If needed, your tree saw can easily be bolted to another adaptor to mount to your new excavator.

Bolt on excavator adapter

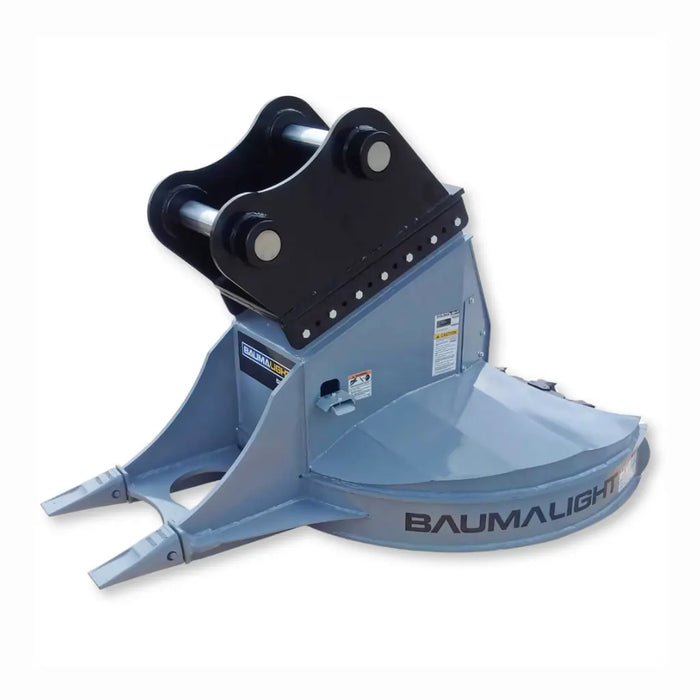

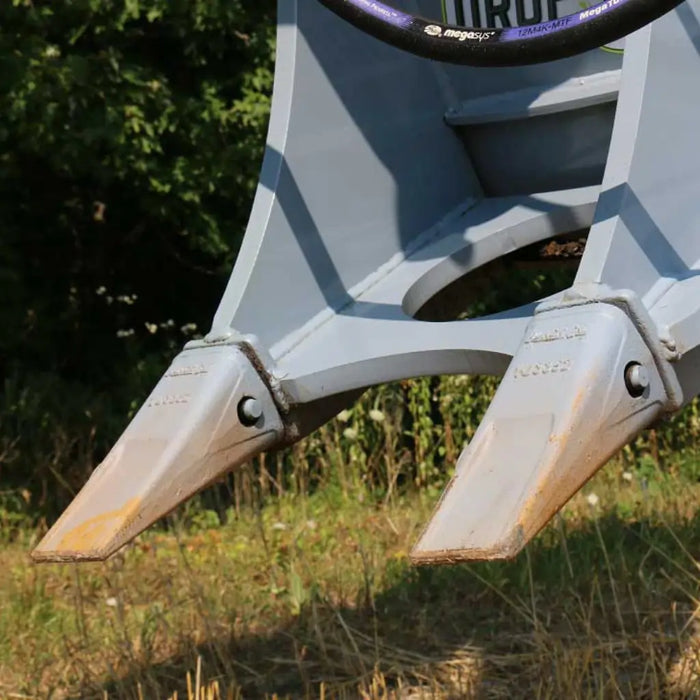

Root Rake

The DXD752 is equipped with a root rake for pushing cut logs or other debris out of the way. The root rake uses replaceable bucket-style scrapper teeth.

Root rake

Protective Powder Coat Finish

Heavy duty construction and a durable powder coated finish provides superior protection against rust, corrosion, and wear, ensuring durability even in the harshest environments.

Powder coat

Features

Bent Axis Piston Motor
Easy-Change Teeth

Also included with this purchase:

6 FREE Replacement Teeth
Baumalight DXH752 Operating Manual
1-Year Manufacturer Warranty
Attachments King Equipment Compatibility Guarantee
BONUS! 30-Day Dedicated 1-on-1 Support for Attachment Install & Use from an Attachments King Expert

Shipping & Returns

We offer FREE 2-5 day shipping (LTL Freight and Residential) for all Baumalight attachments. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com.

More information on refunds and returns can be found here.

Warranty

Baumalight Attachments are warranted to be free of defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase. This warranty covers parts and labor, but does not cover misuse, negligence, dealer travel time and shipping costs to and from the dealer.

Refer to manufacturer's manual for full warranty details.

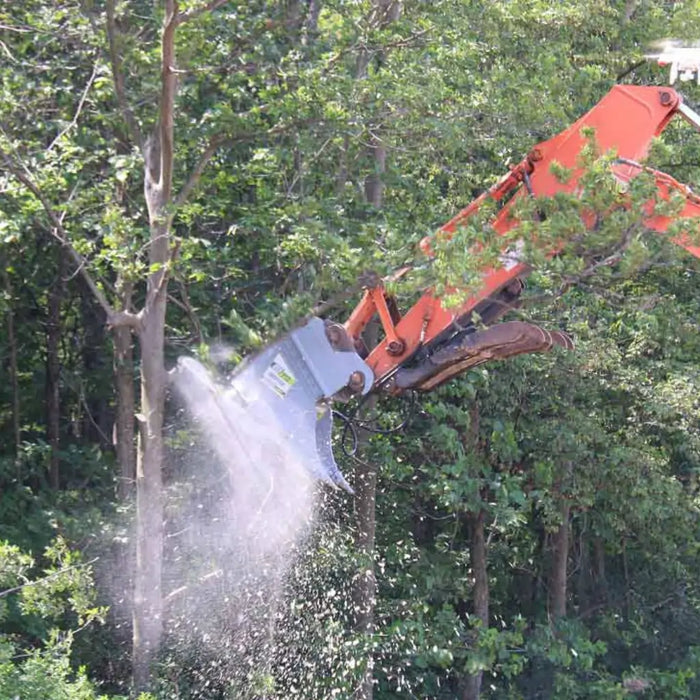

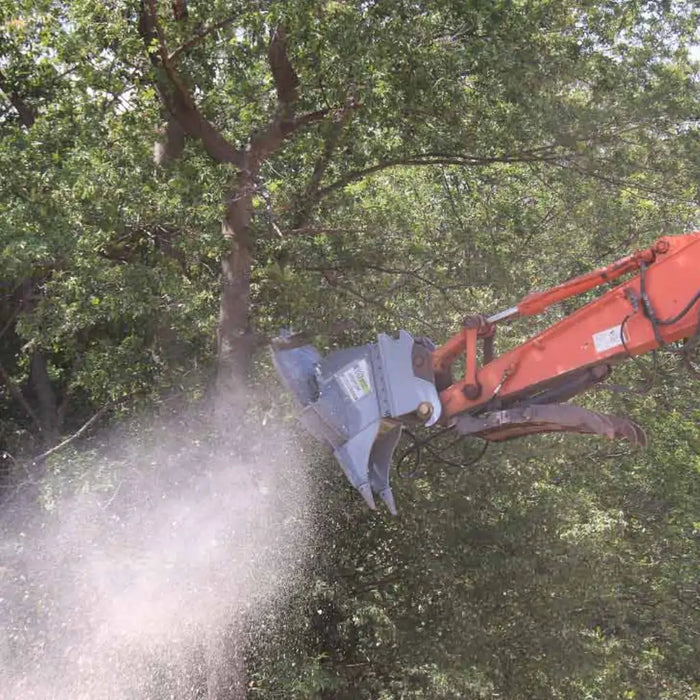

See it in action!

Baumalight DXH752 Tree Saw for 10-22 Ton Excavators

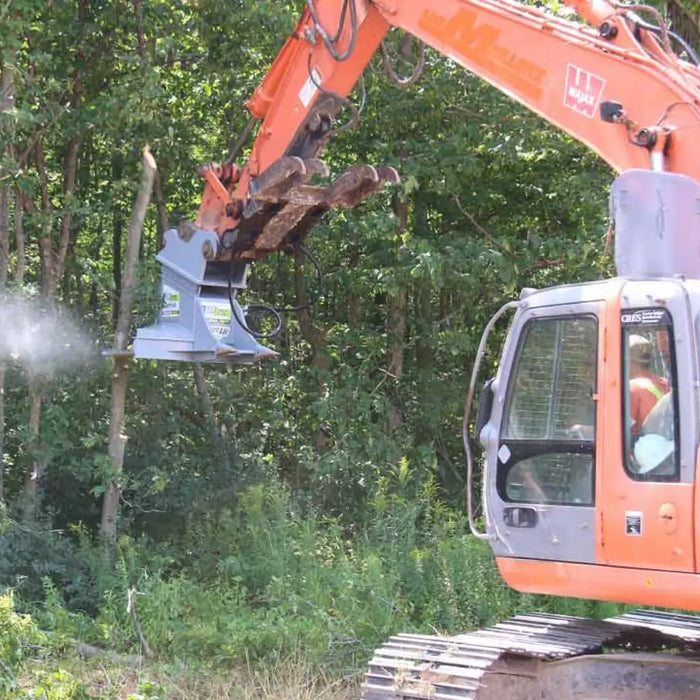

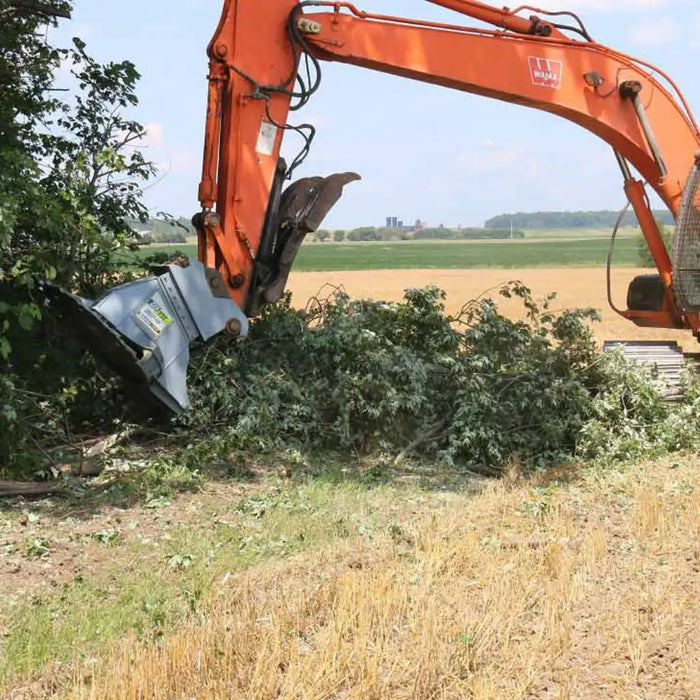

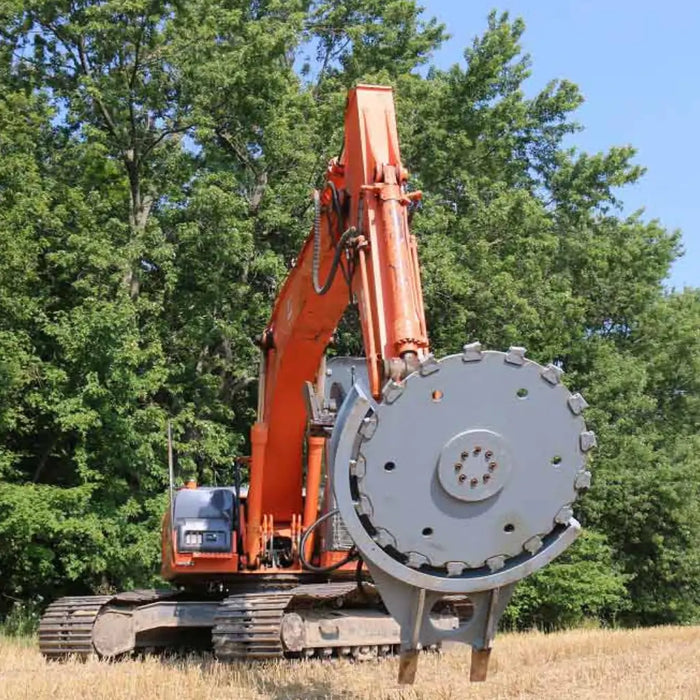

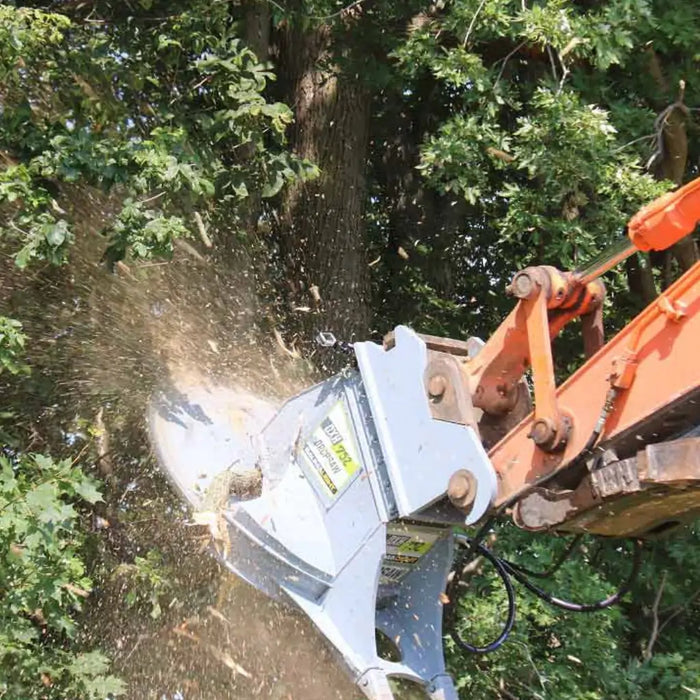

The Baumalight DXH752 is designed for demanding applications on 10-22 ton excavators, providing exceptional cutting power for tackling dense brush and small trees. Its 52” blade, fitted with replaceable Beaver teeth, offers durability and efficiency for high-volume tasks. This heavy-duty attachment excels in commercial clearing, pasture maintenance, and right-of-way management.

Whether trimming limbs along fence lines or cutting downed trees into manageable logs, the DXH752 delivers versatility and reliability on every job. Its rugged construction and high-speed cutting capabilities make it an indispensable tool for professional contractors and property owners alike, ensuring efficient performance under the most challenging conditions.

Ease of use and maintenance are key features of the DXH752. Pre-designed hydraulic connections streamline setup, while routine tasks like replacing or rotating cutting teeth are straightforward to perform. This attachment is a durable, reliable solution built to meet tough demands.
