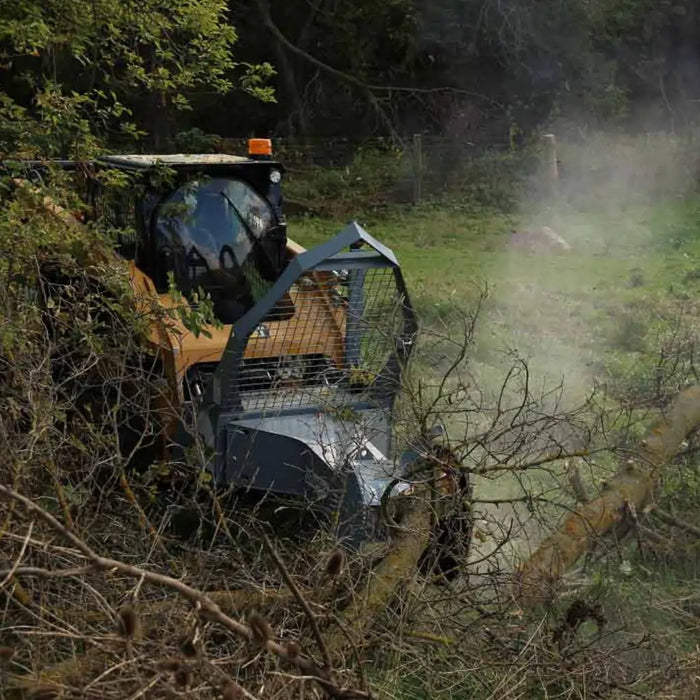

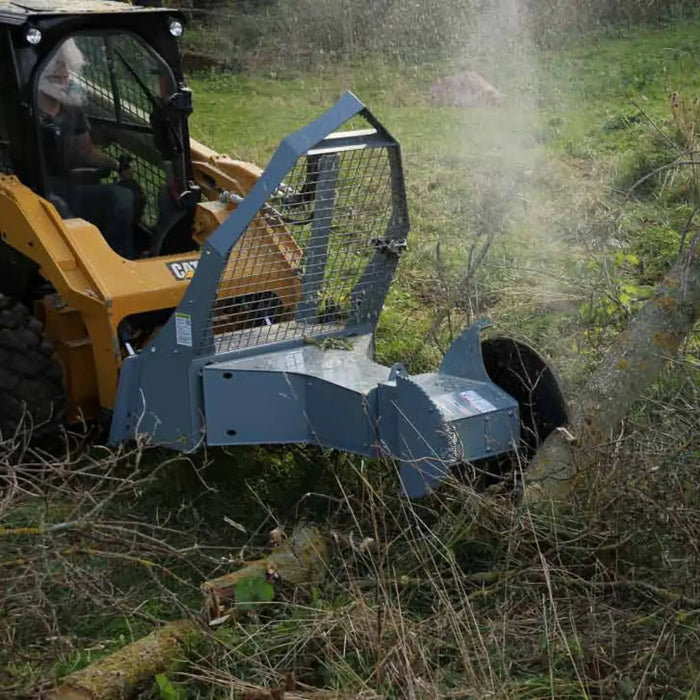

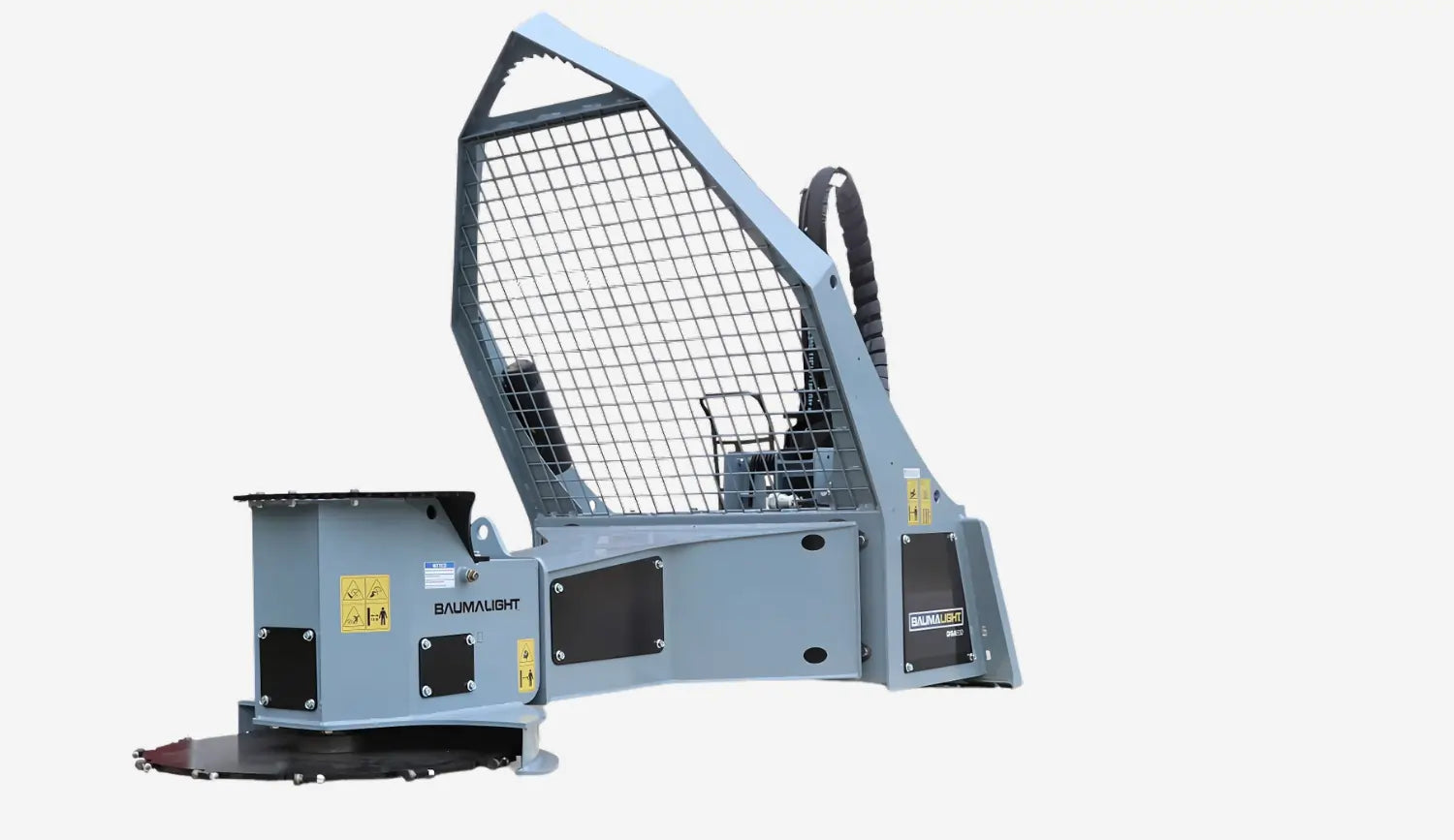

Tackle dense brush and small trees with precision using the DSA530 Tree Saw for skid steers. Featuring a 180° rotating helical actuator for clean cuts, AR400 steel blade, and replaceable carbide teeth. Designed with internal hose routing, safety push bars, and in-cab controls for efficiency and durability on tough landscaping and forestry job sites.
| Model # | DSM230 | DSM530 | DSA530 |
|---|---|---|---|
| ADAPTOR | MINI SKIDSTEER | UNIVERSAL SKIDSTEER | UNIVERSAL SKIDSTEER |
| Blade Angle | 180° | 180° | 180° |
| Rotation | Bolt-on | Bolt-on | Actuator |
| Actuator | Manual | Manual | Helical |
| GPM | 6-20 | 10-40 | 10-45 |
| PSI | 4,000 | 4,000 | 4,000 |
| Electrical AUX | Not required | Not required | 2 ON/OFF pins & G |
| Requires Case Drain | Yes | Yes | Yes |
| Hydraulic Hose | Supplied | Supplied | Supplied |
| Hydraulic Couplers | Supplied | Not Supplied | Not Supplied |
| Motor Type | Bend Axis Piston | Bend Axis Piston | Bend Axis Piston |
| Motor Cc | 25 | 47 | 47 |
| Motor Option | T508 | T530 | T530 |
| Blade Diameter | 30" | 30" | 30" |
| Max Cut | 10" | 10" | 10" |
| Blade Material | AR400 | AR400 | AR400 |
| Cut Thickness | 3/4" | 3/4" | 3/4" |
| Tooth part number | H3000 | H3000 | H3000 |
| Type of Teeth | High Speed Teeth | High Speed Teeth | High Speed Teeth |
| No. of Edges per Tooth | 3 | 3 | 3 |
| Number of Teeth | 12 | 12 | 12 |
| Weight | 650 lbs | 800 lbs | 900 lbs |
Cutting Time for 10" Limb
| MOTOR | MOTOR TYPE |
CC | CASE DRAIN | RPM AT MAX GPM |
PSI | 9 GPM |
12 GPM |
15 GPM |
20 GPM |
25 GPM |
30 GPM |
40 GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T530 | Piston | 47 | Critical | 2600 | 4,000 | 20sec | 12sec | 10sec | 8sec | 5sec | 5sec | 5sec |
Open DSA530_Tree_Saw_Operators_Manual

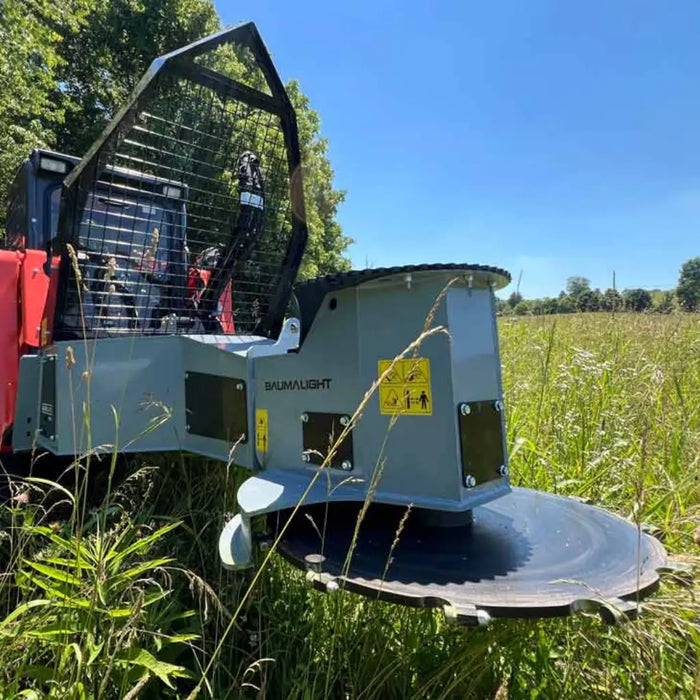

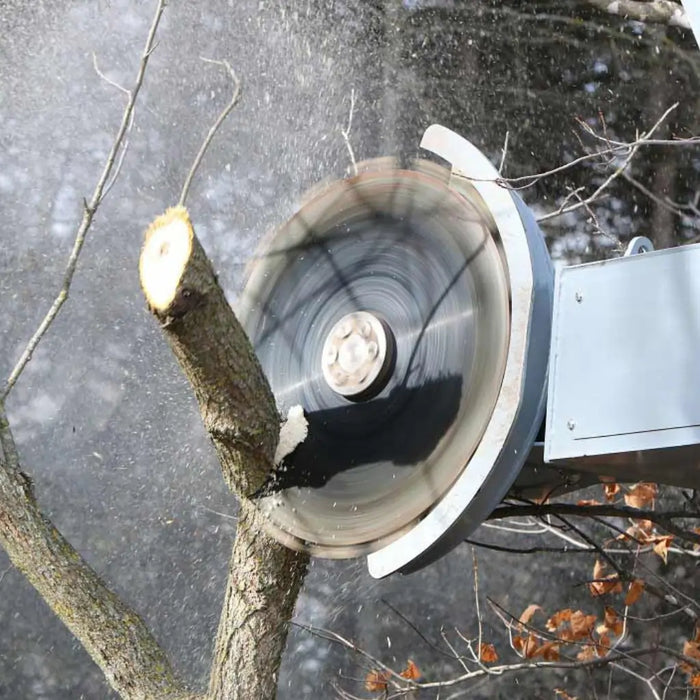

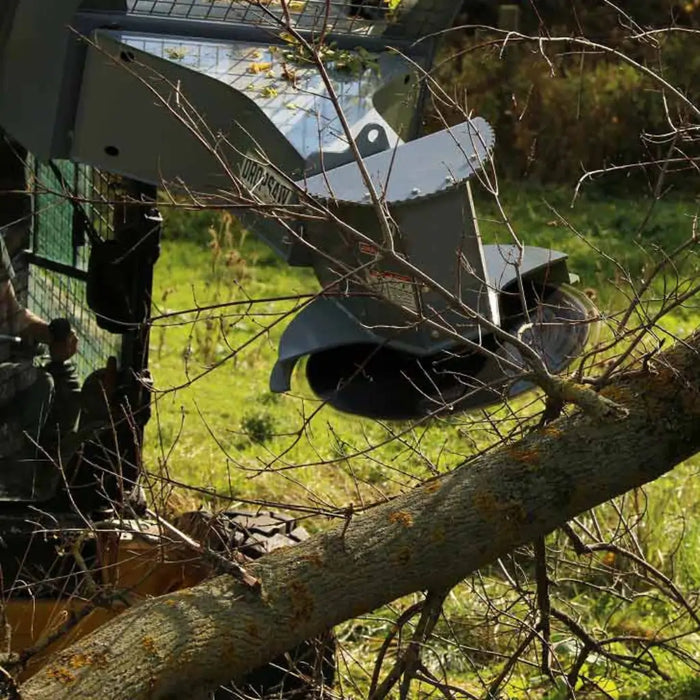

AR400 Steel Blade
This heavy-duty circular blade is engineered to withstand the toughest cutting conditions, ensuring it will stand up to the toughest jobs. Designed for rugged performance, the AR400 blade is ideal for trimming, pruning, and clearing, providing reliable precision with every cut.
Rotatable Teeth
The concave shaped carbide tip of Baumalight's High Speed Teeth provide aggressive cutting action by chipping the brush bit by bit. This round tooth is 3 teeth in 1. Simply loosen the lock nut and rotate the tooth to a fresh, sharp cutting edge. This can be done three times, extending the life of each tooth.
All DSA530 Tree Saws come with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in a robust enclosed compartment on top of the frame.

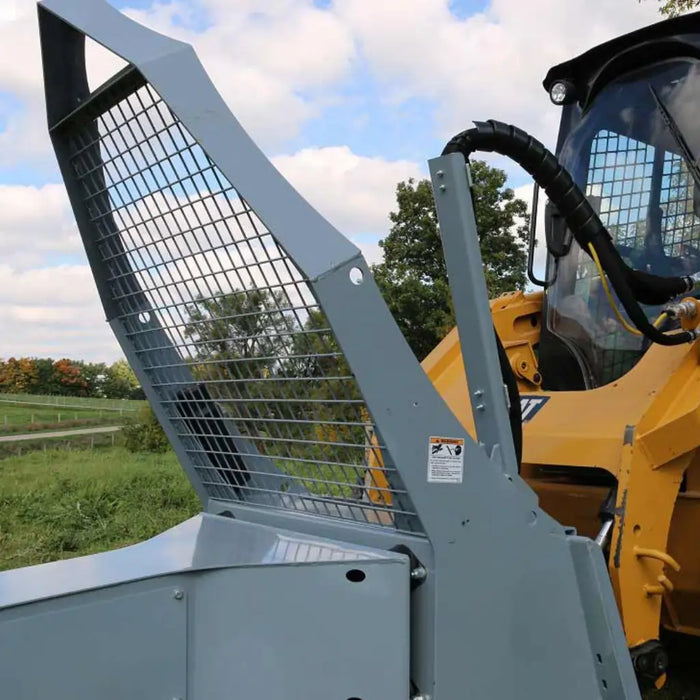

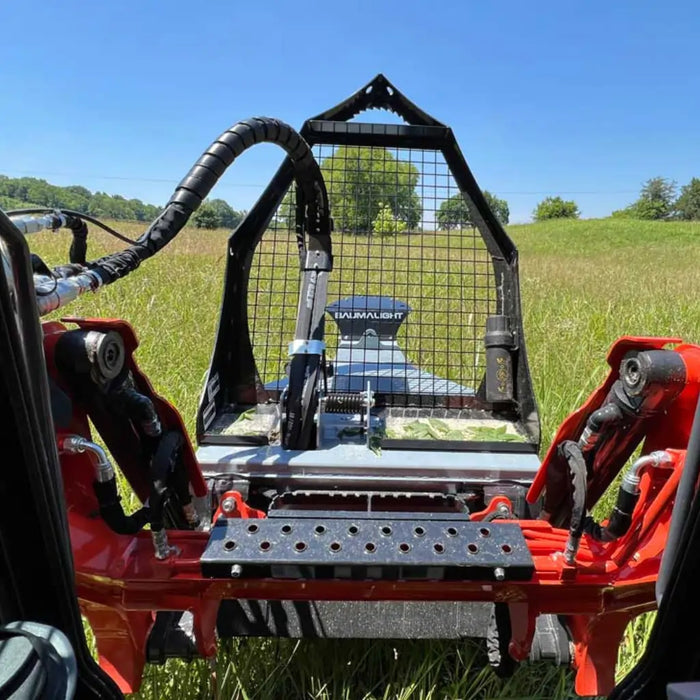

Angled Push Bar
A solid serrated steel plate and a large angled push bar with integrated safety mesh is angled to help guide any falling debris away from the operator..

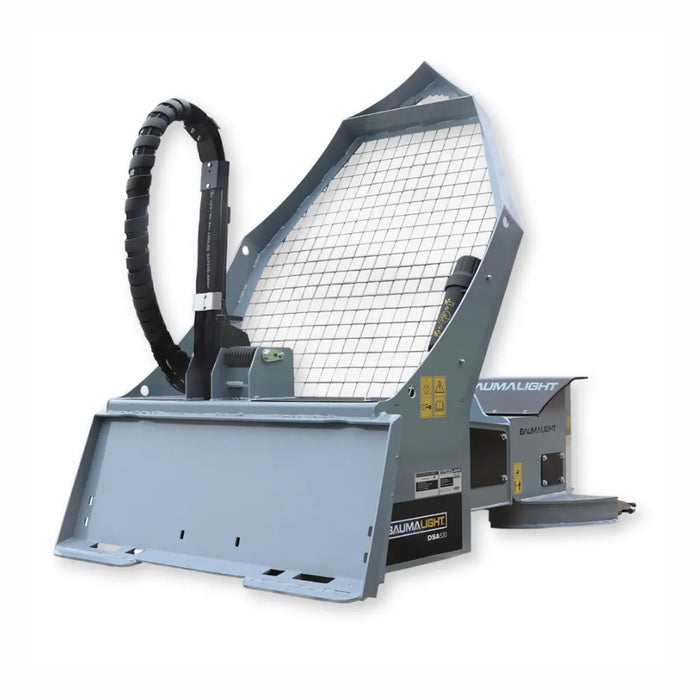

Double-Shielded Hoses
Skid steer tree saw models ship with the necessary hydraulic hoses, so you can connect and go to work. All of the hydraulic hoses are routed internally where possible and sleeved for operator and hose protection, while the connecting hoses are sleeved and wrapped in hose armor for double protection.
Features
- Powder Coat Finish
- Easy-Change Teeth
- Hose Supports
Also included with this purchase:
- 6 FREE Replacement Teeth
- Baumalight DSA530 Operating Manual
- 1-Year Manufacturer Warranty
- Attachments King Equipment Compatibility Guarantee
- BONUS! 30-Day Dedicated 1-on-1 Support for Attachment Install & Use from an Attachments King Expert
We offer FREE 2-5 day shipping (LTL Freight and Residential) for all Baumalight attachments. Products will ship out in 1-3 business days and tracking information will be provided. 30-DAY NO HASSLE REFUNDS AND RETURNS If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com. More information on refunds and returns can be found here.

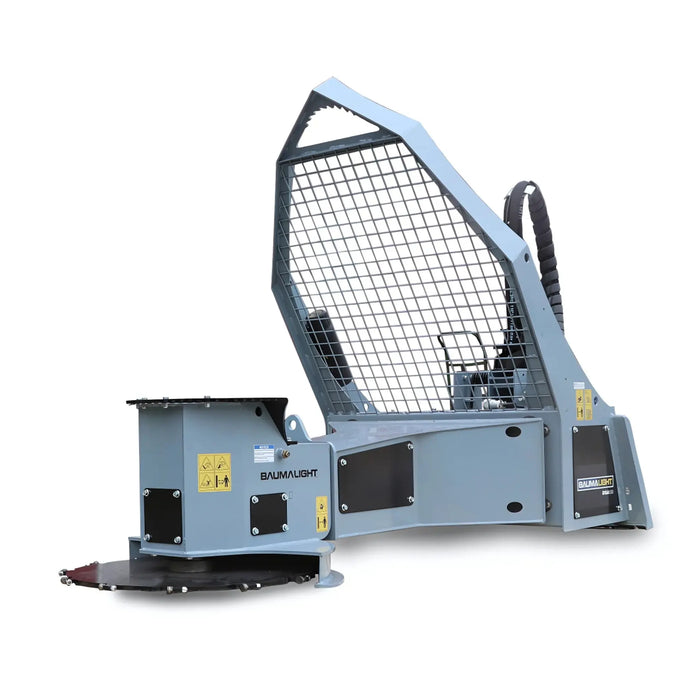

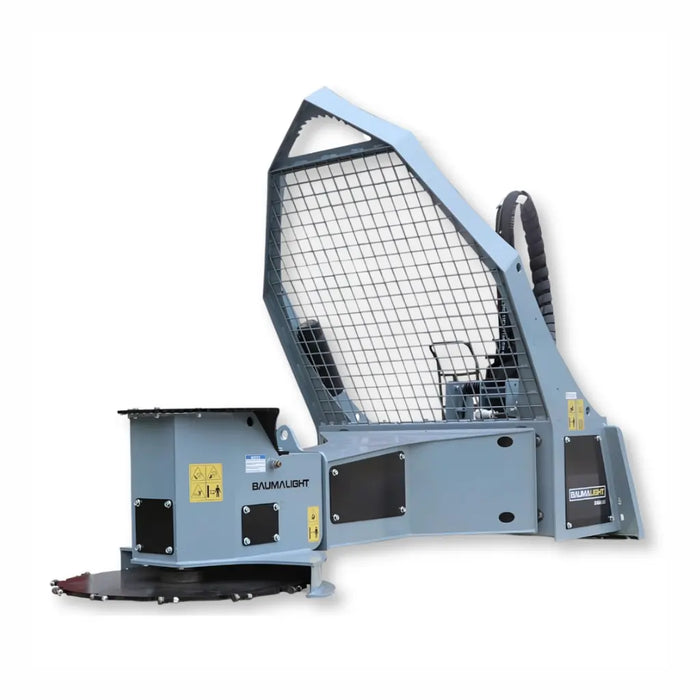

Baumalight DSA530 Tree Saw
Adjusts on the Fly
Horizontal To Vertical
180 Degree Blade Angle
Strong and Durable
Abrasion Resistant
Ready for Tough Jobs
Simple Maintenance
Easy Upkeep
Minimizes Downtime
Long-Lasting Design
Quality Materials
Handles Demanding Jobs
