Baumalight BMM230 Barrier Mower For Mini Skid Steers
Baumalight BMM230 Barrier Mower For Mini Skid Steers Baumalight BMM230 Barrier Mower For Mini Skid Steers Baumalight BMM230 Barrier Mower For Mini Skid Steers Baumalight BMM230 Barrier Mower For Mini Skid Steers
Baumalight BMM230 Barrier Mower For Mini Skid Steers Baumalight BMM230 Barrier Mower For Mini Skid Steers Baumalight BMM230 Barrier Mower For Mini Skid Steers Baumalight BMM230 Barrier Mower For Mini Skid Steers
Cutting Width 32"
Maximum Brush Diameter 1"
Discharge Protection Sheet metal Curtain & Back
Commonly Used For
Land Clearing
Trail Maintenance
Road Maintenance
Baumalight BMM230 Barrier Mower For Mini Skid Steers
Limited time deal
$5,320
List Price:
Compatible Others compatible Not compatible
In Stock
Delivery By Wednesday, November 05
SKU: BMM230-C508
Weight: 425.0 lb
1

Frequently Bought With

Frequently Bought With

Frequently Bought With

Frequently Bought With

Product Overview
down arrow

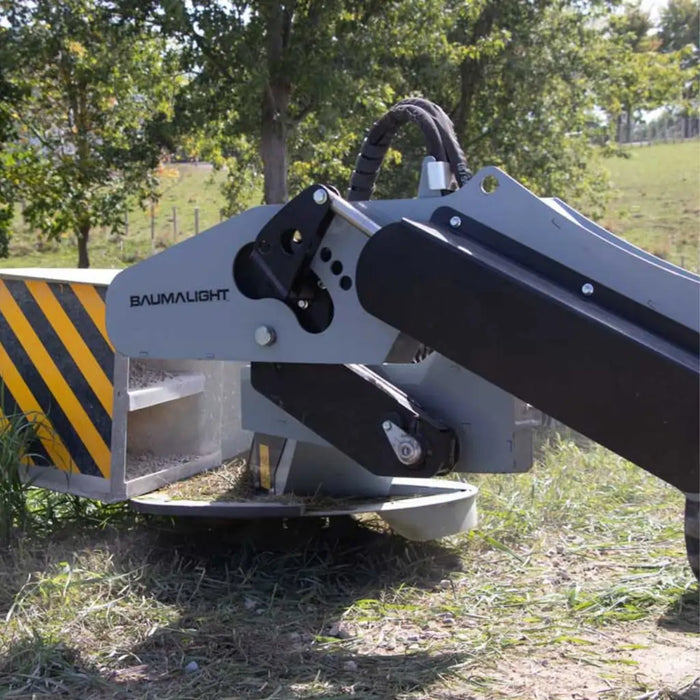

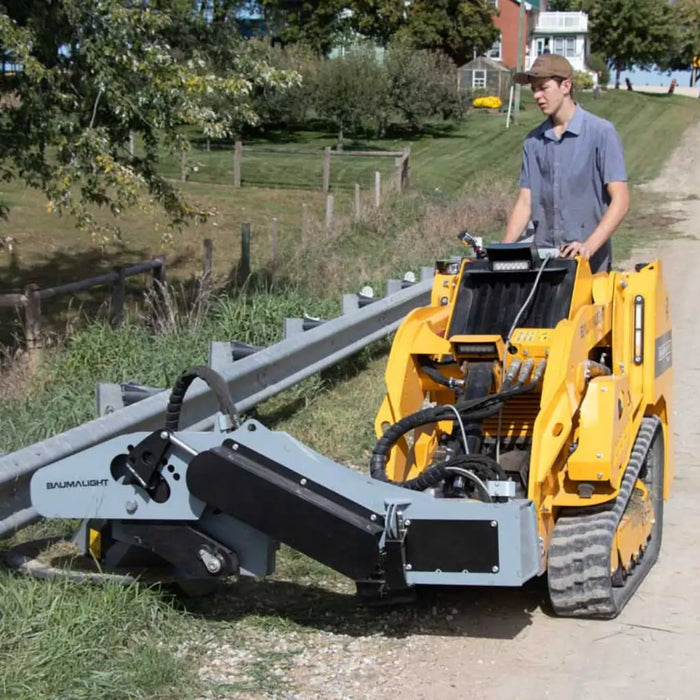

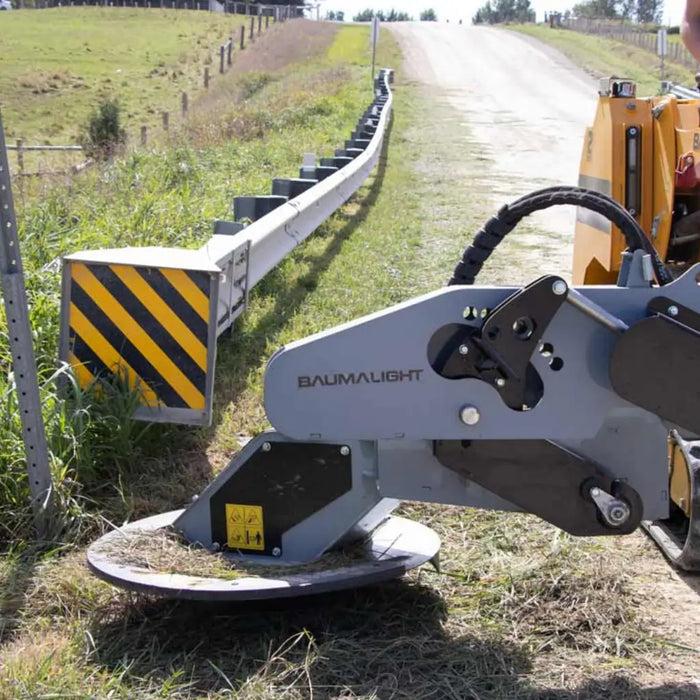

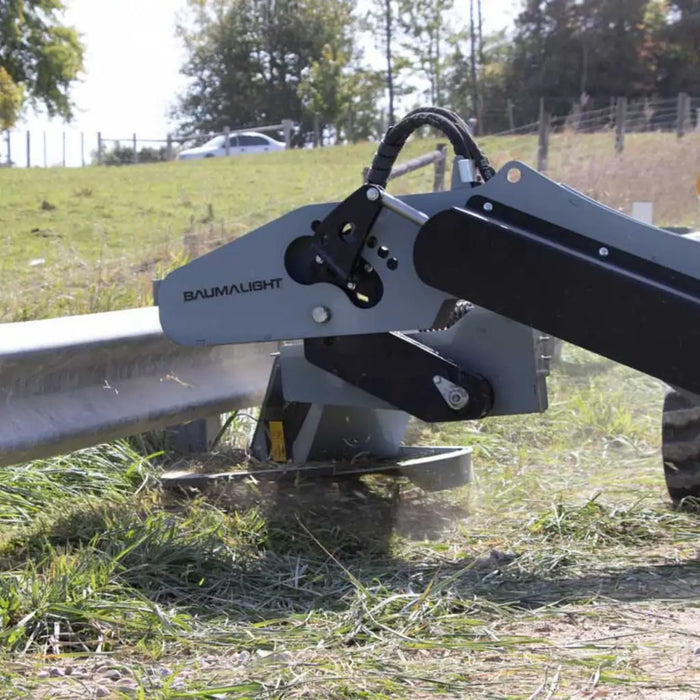

The Baumalight BMM230 Mini Barrier Mower is built for Mini Skid Steers and designed to cut through thick grass, brush, and overgrowth with a 30" cutting path and dual AR400 blades. Its compact build makes it ideal for fence line mowing, vineyard maintenance, orchard clearing, and guardrail vegetation control. A rear discharge shield keeps debris directed away from the operator, and the mower’s ability to maneuver around posts and obstacles makes it more than just a grass mower. With manual angle adjustment—plus an optional electric actuator—the BMM230 delivers precise, low-profile cutting on uneven ground.

✔ 30" Cutting Width
✔ 8-15 GPM Flow
👇 Specifications Below

Specifications
down arrow
Model No. BMM230 BMS530
Available Motor Options C508
Max Brush Felling Size 1" 1"
Discharge Protection Sheet metal Curtain & Back Sheet metal Curtain & Back
Reach (Plate to Disk Edge)
Cutting Width 32" 40"
Low Cutting Height 3" 3"
Number of Blades 2 2
Attachment Type Universal Mini Skidsteer Skidsteer
Min Carrier Weight 2,100 - 4,000 lbs 3,100 - 10,000 lbs
GPM 8-15 12-25
PSI 2700-4000 2700-4000
Minimum Required Amps 30 amps 30 amps
Video Video Video
System Protection Carrier hydraulic relief system Carrier hydraulic relief system
Dimensions (L x W x H) 90" x 40" x 30" 137" x 72" x 29"
Deck Structure 4,000 lb
Unit Weight 425 lbs
Technical Documents
down arrow
Open bmm230-barrier-mower-om

BMM230 Mini Barrier Mower

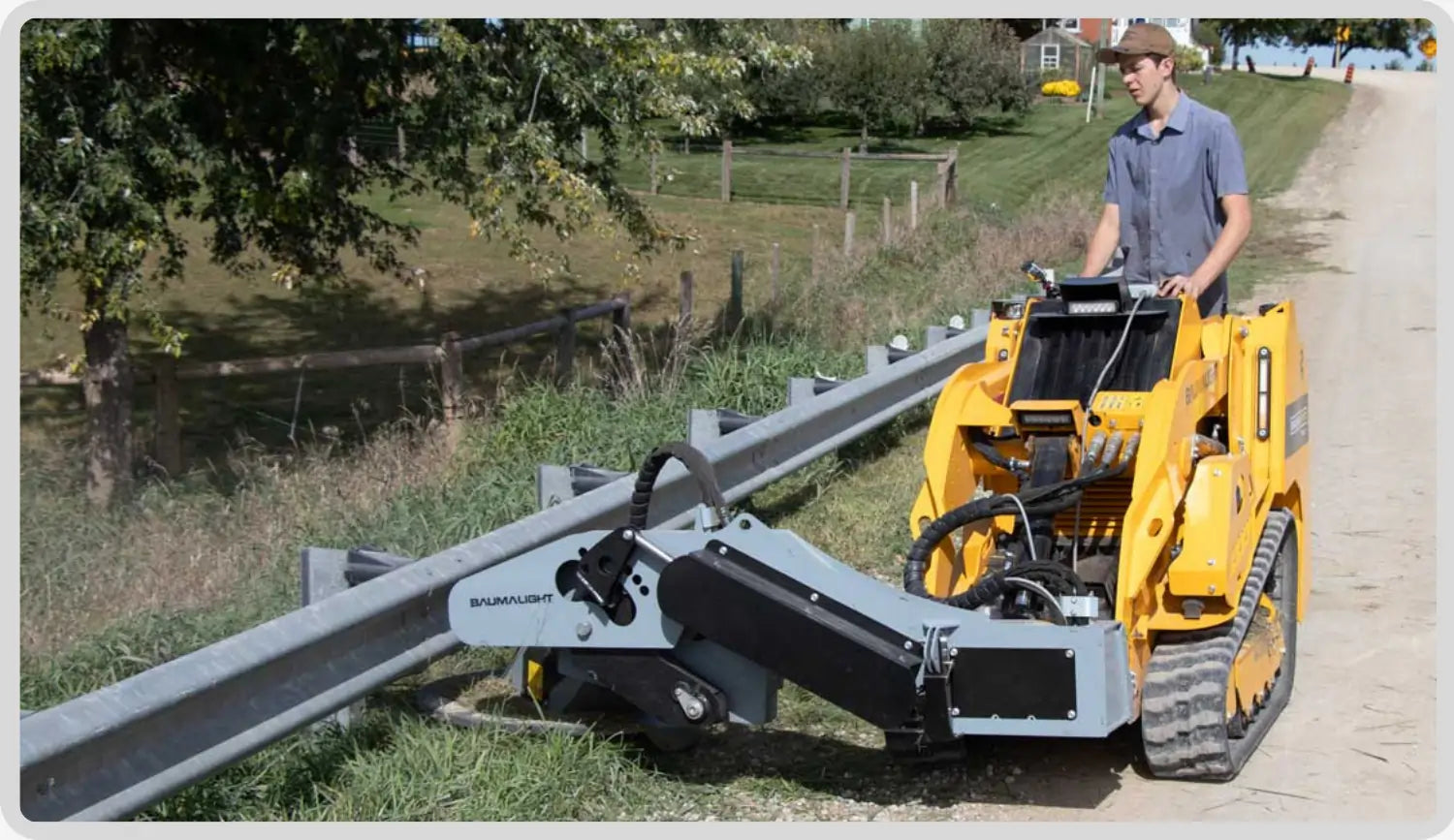

Designed for mini skid steers with 8–15 GPM flow, the BMM230 Mini Barrier Mower features a 30" cutting width, rugged AR400 steel blades, and a shielded rear discharge. It’s purpose-built for tight, obstacle-filled areas like fence lines, vineyards, orchards, and roadside barriers. With its compact design, manual angle control, and optional electric actuator upgrade, the BMM230 delivers consistent cutting performance in terrain where traditional mowers can’t operate effectively.

Blade Mount
Blade Mount
Welded collar and Grade 8 hardware prevent binding and secure blades during operation.
Grade 8 bolt hardware Prevents blade binding Stable tough cutting
read more down arrow
Welded collar and Grade 8 hardware prevent binding and secure blades during operation.
2-Way Model
2-Way Model
One-piece 2-way rotor with blades on both ends delivers up to 26 slashes per second.
Dual-end blade setup 26 slashes per second High-speed cutting
read more down arrow
One-piece 2-way rotor with blades on both ends delivers up to 26 slashes per second.
Hardened Steel Bushing
Hardened Steel Bushing
Main pivots use AISI 6150 chrome-vanadium bushings for strength and long service life.
AISI 6150 steel Reinforced pivot point Built for high loads
read more down arrow
Main pivots use AISI 6150 chrome-vanadium bushings for strength and long service life.
Greaseable Pins
Greaseable Pins
Zinc-plated grease pins resist corrosion and keep pivot joints running smooth for years
Zinc-plated finish Extended pin life Smooth joint action
read more down arrow
Zinc-plated grease pins resist corrosion and keep pivot joints running smooth for years
