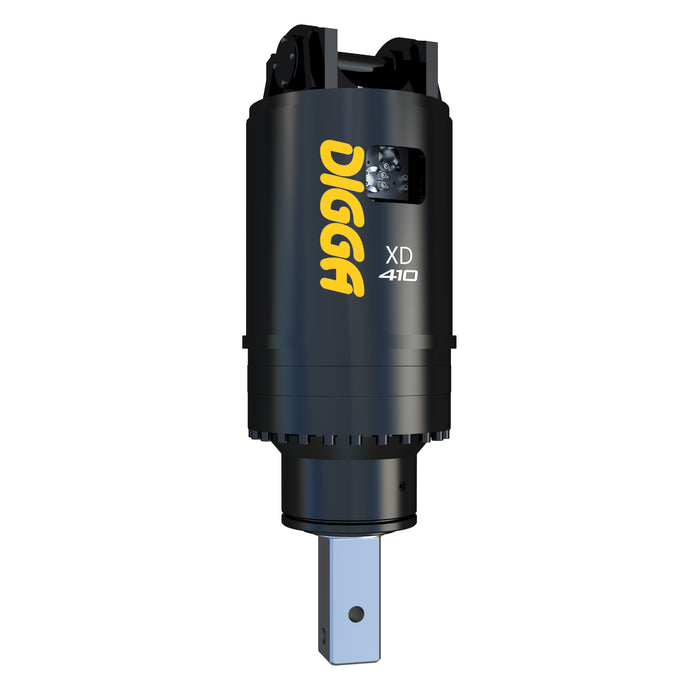

Digga "Xtreme" Heavy-Duty Two-Speed Piling Anchor Drive
Max Pressure
3500 PSI @ 100 GPM
Output Shaft
200 mm Square
Included Valves
Pressure Relief and Energy Control
Commonly Used For
Foundation Construction
Installing Wind Turbines
Bridge and Highway Construction
Digga "Xtreme" Heavy-Duty Two-Speed Piling Anchor Drive
Limited time deal
$170,300
List Price:
Built To Order
Delivery By Saturday, November 15
SKU: XD-270-T3
Weight: 6345.0 lb
1
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Product Overview
Digga's world-beating "Xtreme Drive" range of 2-speed anchor drives are designed and manufactured in-house to deliver the highest levels of ultra-high torque performance up to 360,000 FT-LBS. Engineered and manufactured in-house, this drive has been carefully optimized so your machine can operate in its most efficient HP range while minimizing wear and tear. Digga's standard Pressure Relief Valve (PRV) and Energy Control Valve (ECV) are designed to prevent rapid decompression from pile kick-back and protect your investment. All Ultra series drives also ship with an included 10ft electrical connection, 2-speed control box, cigarette lighter power lead, and 50ft boom extension harness. Go above and beyond the needs of the most demanding jobs with the never before seen speed and power of Digga's Xtreme series.
Note: Case drain is required for all 2-speed drives. Hoses and machine mounts sold separately.
Note: Case drain is required for all 2-speed drives. Hoses and machine mounts sold separately.
Specifications
| Models/Features | XD 270 | XD 310 | XD 410 | XD 500 |
|---|---|---|---|---|
| Nominal Torque (ft-lbs) | 192,755 | 226,025 | 295,734 | 356,465 |
| Max Flow (Gpm) | 100 GPM @ 3,500 PSI | 100 GPM @ 3,500 PSI | 100 GPM @ 3,500 PSI | 100 GPM @ 3,500 PSI |
| Maximum Pressure - Do Not Exceed | 3,500 PSI @100 GPM | 3,500 PSI @100 GPM | 3,500 PSI @100 GPM | 3,500 PSI @100 GPM |
| Maximum Horse Power | 201 | 201 | 201 | 201 |
| Motor Type | Radial Piston | Radial Piston | Radial Piston | Radial Piston |
| Pressure Relief Valve | Included | Included | Included | Included |
| Energy Control Valve | Included | Included | Included | Included |
| Standard Output Shaft | 200mm Square | 200mm Square | 200mm Square | 200mm Square |
| Weight (lbs) | 6345 | 6345 | 6345 | 6345 |
| Overall Length (in) | 95 | 95 | 95 | 95 |
| Diameter (in) | 32.3 | 32.3 | 32.3 | 32.3 |
Technical Documents
Open Xtreme_Tech_PDF
What's Included
Digga "Xtreme" 2-Speed Large Piling Anchor Drive
Fitted with supremely efficient radial piston motors, robust Digga-manufactured gearboxes, and integrated pressure relief valves Digga’s Xtreme series of drives is built to consistently deliver in the highest torque applications. Digga’s unique design allows for extreme torque performance and improved durability for the toughest screw piling and ground anchor installations.
Over 30 years of design and development have perfected this drive, delivering the industry’s top choice in extreme torque drive units.
- Fitted with a Digga-manufactured gearbox to deliver top-level performance from a low profile and durable form factor.
- Integrated energy control valve (ECV), pressure relief valve (PRV), and a lack of complex hoses, valving, or filtration make for optimal durability and simplified maintenance while protecting your gear.
- Compatible with machines with 3500 PSI.
Digga anchor drives are backed by industry-leading warranties and local factory support.
Also included with this purchase:
- Digga Xtreme Anchor Drive Unit Operating Manual
- 10ft Electrical Connection
- Digga 2-Speed Control Box
- Cigarette Lighter Power Lead
- 50ft Boom Extension Harness
- Digga 1-Year Gearbox Warranty
- Digga 1-Year Motor Warranty
- Digga 12-Month Manufacturer Warranty
- Attachments King Vehicle Compatibility Guarantee
- BONUS! 30-Day Dedicated 1-on-1 Support for Attachment Install & Use from an Attachments King Expert
Note: All 2-speed drives require a case drain. Hoses and machine mounts sold separately.
