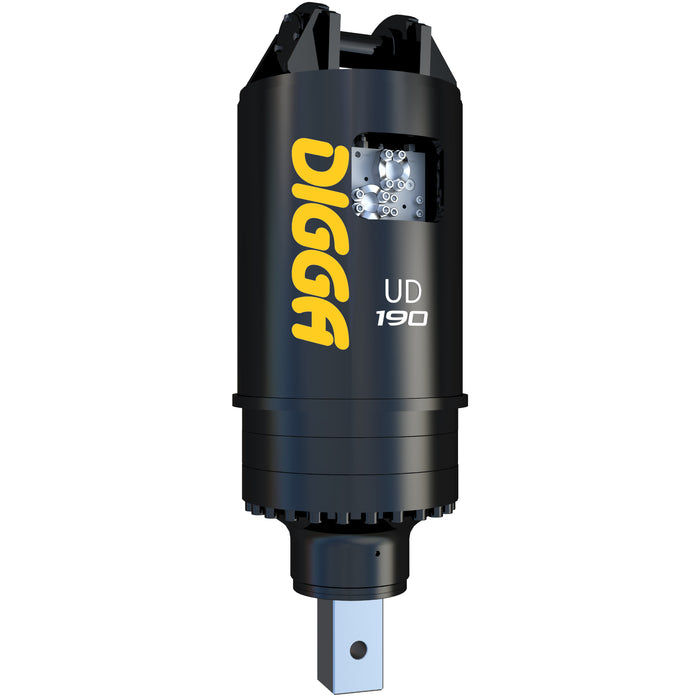

Digga "Ultra" Series 2-Speed Large Anchor Drive
Max Pressure
3500 PSI @ 100 GPM
Output Shaft
150 mm Square
Included Valves
Pressure Relief and Energy Control
Commonly Used For
Foundation Construction
Installing Wind Turbines
Bridge and Highway Construction
Digga "Ultra" Series 2-Speed Large Anchor Drive
Limited time deal
$119,000
List Price:
Built To Order
Delivery By Saturday, November 15
SKU: UD-190-T3
Weight: 2633.0 lb
1
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Product Overview
Digga's industry-leading "Ultra Drive" range of 2-speed anchor drives are designed and manufactured in-house to deliver the ultimate in ultra-high torque performance up to 230,000 FT-LBS. Engineered and manufactured in-house, this drive has been carefully optimized so your machine can operate in its most efficient HP range while minimizing wear and tear. Digga's standard Pressure Relief Valve (PRV) and Energy Control Valve (ECV) are designed to prevent rapid decompression from pile kick-back and protect your investment. All Ultra series drives also ship with an included 10ft electrical connection, 2-speed control box, cigarette lighter power lead, and 50ft boom extension harness. Open up a world of new jobs for you and your team with this industry-leading anchor drive.
Note: Case drain is required for all 2-speed drives. Hoses and machine mounts sold separately.
Note: Case drain is required for all 2-speed drives. Hoses and machine mounts sold separately.
Specifications
| Model | Max Torque (ft-lbs) | Max Speed (RPM) | Max Flow - Do Not Exceed | Max Pressure - Do Not Exceed | Max Power (hp) | Motor | PRV | ECV | Overall Length (In) | Diameter (In) | Weight No Hitch/Oil - (lbs) | Shaft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UD 190 | 138,476 | 15 | 100 GPM @ 3,500 PSI | 3,500 PSI @ 100 GPM | 201 | Radial Piston | Included | Included | 75.5 | 26.5 | 2633 | 150mm Square |

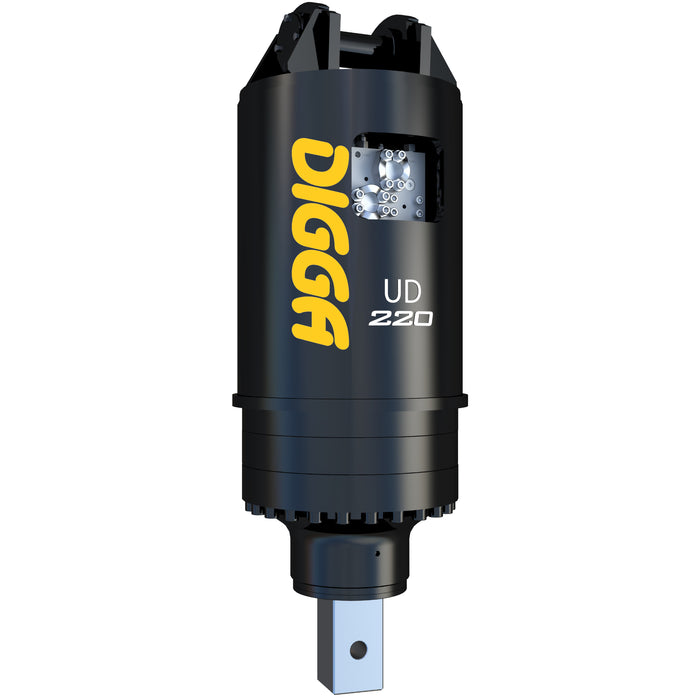

| UD 220 | 154,064 | 14 | 100 GPM @ 3,500 PSI | 3,500 PSI @ 100 GPM | 201 | Radial Piston | Included | Included | 75.5 | 26.5 | 3467 | 150mm Square |
| UD 250 | 180,656 | 12 | 100 GPM @ 3,500 PSI | 3,500 PSI @ 100 GPM | 201 | Radial Piston | Included | Included | 75.5 | 26.5 | 3467 | 150mm Square |
| UD 300 | 226,563 | 9 | 100 GPM @ 3,500 PSI | 3,500 PSI @ 100 GPM | 201 | Radial Piston | Included | Included | 75.5 | 26.5 | 3467 | 150mm Square |
Technical Documents
Open Ultra-Drives
What's Included
Digga "Ultra" 2-Speed Large Piling Anchor Drive
Fitted with optimally efficient radial piston motors, compact Digga-manufactured gearboxes, and integrated pressure relief valves this drive dominates the global market. Digga’s unique design allows for ultra-high torque performance and improved durability for the top levels of screw piling and ground anchor installation.
Over 30 years of design and development have perfected this drive, delivering the gold standard in ultra-high torque drive units.
- Fitted with a Digga-manufactured gearbox to deliver top-tier performance from a low profile and robust form factor.
- Integrated energy control valve (ECV), pressure relief valve (PRV), and a lack of complex hoses, valving, or filtration make for optimal durability and simplified maintenance while protecting your gear.
- Compatible with machines with 3500 PSI.
Digga anchor drives are backed by industry-leading warranties and local factory support.
Also included with this purchase:
- Digga Ultra Anchor Drive Unit Operating Manual
- 10ft Electrical Connection
- Digga 2-Speed Control Box
- Cigarette Lighter Power Lead
- 50ft Boom Extension Harness
- Digga 1-Year Gearbox Warranty
- Digga 1-Year Motor Warranty
- Digga 12-Month Manufacturer Warranty
- Attachments King Vehicle Compatibility Guarantee
- BONUS! 30-Day Dedicated 1-on-1 Support for Attachment Install & Use from an Attachments King Expert
Note: All 2-speed drives require a case drain. Hoses and machine mounts sold separately.
Shipping & Returns
We offer FREE 2-5 day shipping (LTL Freight and Residential) for all Digga attachments. Products will ship out in 1-3 business days and tracking information will be provided. 30-DAY NO HASSLE REFUNDS AND RETURNS If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com. More information on refunds and returns can be found here.
Warranty
See it in action!
The Future of Drilling Is Here!
Attachments King is proud to partner with Digga and bring their cutting-edge technology to operators nationwide.
For over 40 years, Digga has been working with operators to improve and refine their implements. Today, they provide access to the most advanced equipment in the industry.
View our Digga Collection
Years Of Experience
As a world leader in auger and anchor drive technology, Digga's been manufacturing attachments since 1981.
Operating Since 1981
Worldwide Success
Global Industry Leader
read more
As a world leader in auger and anchor drive technology, Digga's been manufacturing attachments since 1981.
40 Years Of Industry Dominance
Manufactured In-House
Not just assemblers, Digga's facilities feature the most advanced machine shops in the country.
Guarantees Quality
Ensures Rigorous Testing
Maximizes Performance
read more
Not just assemblers, Digga's facilities feature the most advanced machine shops in the country.
End-to-End Research And Design
Cutting-Edge Tech
State-of-the-art technology creates smoother operations and skyrockets job quality.
Skyrockets Job Output
Work Becomes a Breeze
Avoids Costly Mistakes
read more
State-of-the-art technology creates smoother operations and skyrockets job quality.
On The Forefront of Auger Technology
Precision-Engineered
Years of field-testing and customer feedback ensures attachments surpass performance expectations.
Buttery-Smooth Operation
Flawless Output Curve
Handles Difficult Jobs
read more
Years of field-testing and customer feedback ensures attachments surpass performance expectations.
State-Of-The-Art Facilities Worldwide
Customer Reviews
