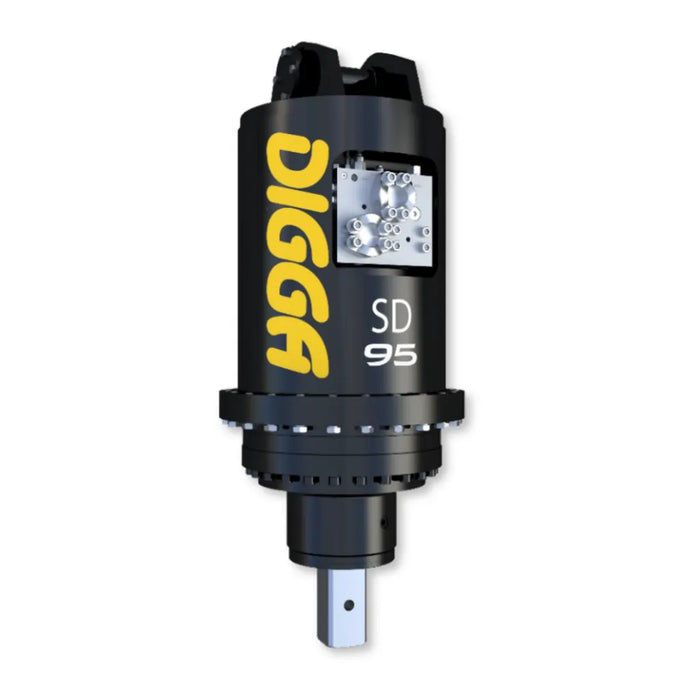

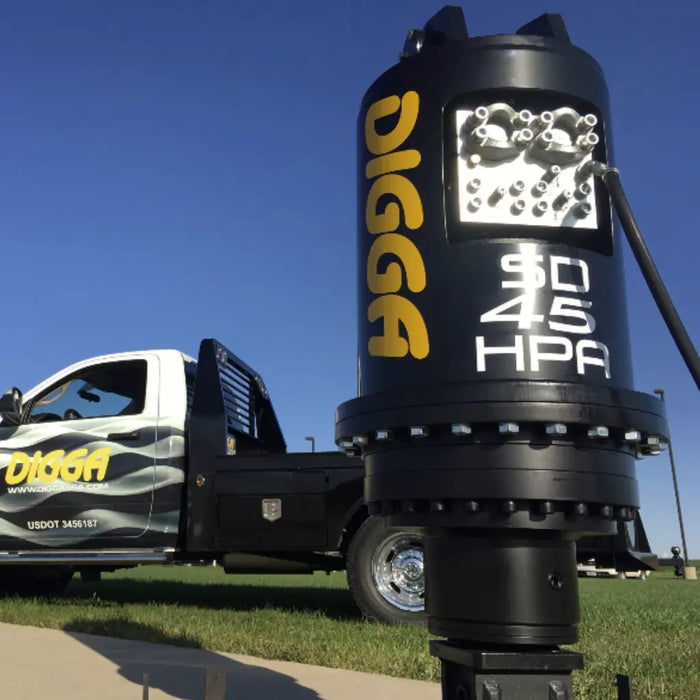

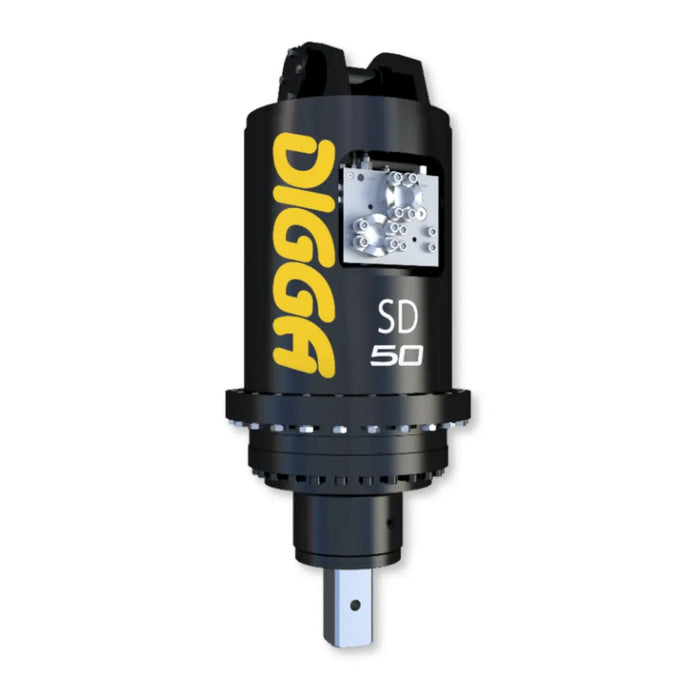

Digga "Supa" Series 2-Speed Large Anchor Drive
Max Pressure
3500 PSI @ 100 GPM
Output Shaft
100 mm Square
Included Valves
Pressure Relief and Energy Control
Commonly Used For
Foundation Construction
Installing Wind Turbines
Bridge and Highway Construction
Digga "Supa" Series 2-Speed Large Anchor Drive
Limited time deal
$43,000
List Price:
Built To Order
Delivery By Saturday, November 15
SKU: SD-45-T3
Weight: 1848.0 lb
1
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Product Overview

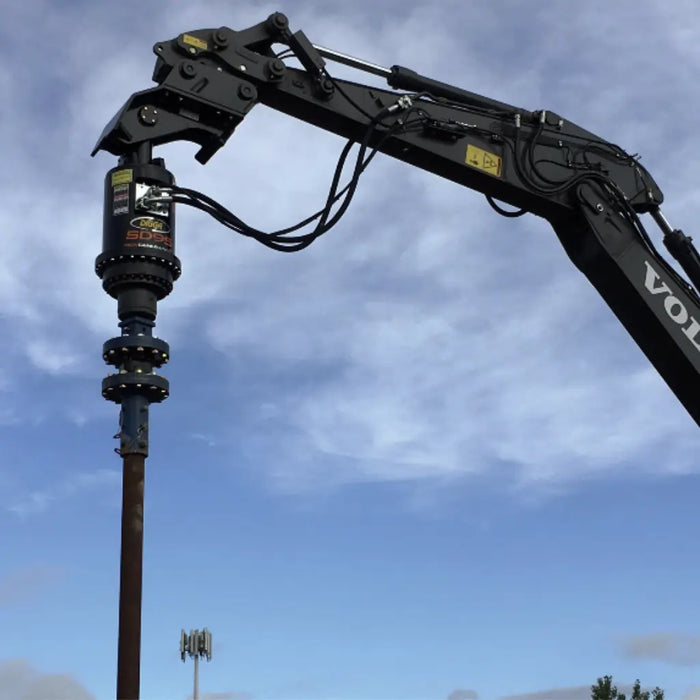

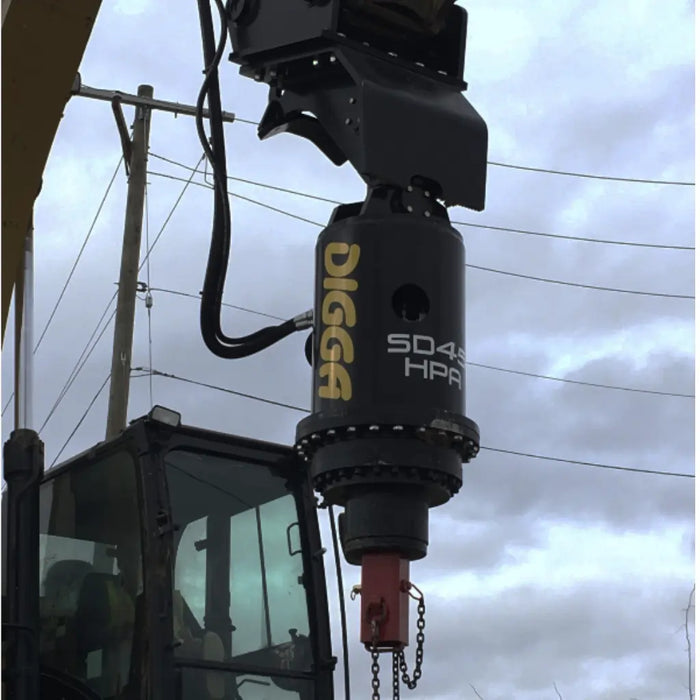

Digga's industry-leading "Supa Drive" range of 2-speed anchor drives are designed and manufactured in-house to deliver versatile power for screw piling and ground anchor installation up to 70,000 FT-LBS. Engineered and manufactured in-house, this drive has been meticulously optimized so your machine can operate in its most efficient HP range while minimizing wear and tear. Digga's standard Pressure Relief Valve (PRV) and Energy Control Valve (ECV) are designed to prevent rapid decompression from pile kick-back and protect your gear. All Supa series drives also ship with an included 10ft electrical connection, 2-speed control box, cigarette lighter power lead, and 50ft boom extension harness. Open up a world of new jobs for you and your team with this industry-leading anchor drive.
Note: Case drain is required for all 2-speed drives. Hoses and machine mounts sold separately.
Note: Case drain is required for all 2-speed drives. Hoses and machine mounts sold separately.
Specifications
| Feature/Specification | SD 45 | SD 50 | SD 70 | SD 80 | SD 95 |
|---|---|---|---|---|---|
| Maximum Torque (ft-lbs) | 32,892 | 38,569 | 50,465 | 60,828 | 67,675 |
| Max Flow (Gpm) | 100 GPM @ 3,500 PSI | 100 GPM @ 3,500 PSI | 100 GPM @ 3,500 PSI | 100 GPM @ 3,500 PSI | 100 GPM @ 3,500 PSI |
| Maximum Pressure - Do Not Exceed | 3,500 PSI @100 GPM | 3,500 PSI @100 GPM | 3,500 PSI @100 GPM | 3,500 PSI @100 GPM | 3,500 PSI @100 GPM |
| Maximum Horse Power | 201 | 201 | 201 | 201 | 201 |
| Motor Type | Radial Piston | Radial Piston | Radial Piston | Radial Piston | Radial Piston |
| Pressure Relief Valve | Included | Included | Included | Included | Included |
| Energy Control Valve | Included | Included | Included | Included | Included |
| Standard Output Shaft | 100mm Square | 100mm Square | 100mm Square | 100mm Square | 100mm Square |
| Weight (lbs) | 1848 | 1843 | 1843 | 1843 | 1859 |
| Overall Length (in) | 50.9” | 50.9” | 50.9” | 50.9” | 50.9” |
| Diameter (in) | 23.6” | 23.6” | 23.6” | 23.6” | 23.6” |
Technical Documents
Open Supa_30-70_Tech_Docs
What's Included
Digga "Supa" 2-Speed Large Piling Anchor Drive
Fitted with a compact Digga manufactured gearbox, integrated pressure relief valve, and a 2-speed drive system this industry-leading design allows for optimal performance and durability when installing large screw piles and ground anchors.
Over 30 years of design and development have perfected this drive, delivering the highest volumetrically efficient motor available.
- Fitted with a Dagga-manufactured gearbox to deliver maximum performance from a compact form factor.
- Integrated energy control valve (ECV), pressure relief valve (PRV), and a lack of complex hoses, valving, or filtration make for optimal durability and simplified maintenance.
- Compatible with machines with 3500 PSI.
Digga anchor drives are backed by industry-leading warranties and local factory support.
Also included with this purchase:
- Digga Supa Anchor Drive Unit Operating Manual
- 10ft Electrical Connection
- Digga 2-Speed Control Box
- Cigarette Lighter Power Lead
- 50ft Boom Extension Harness
- Digga 1-Year Gearbox Warranty
- Digga 1-Year Motor Warranty
- Digga 12-Month Manufacturer Warranty
- Attachments King Vehicle Compatibility Guarantee
- BONUS! 30-Day Dedicated 1-on-1 Support for Attachment Install & Use from an Attachments King Expert
Note: All 2-speed drives require a case drain. Hoses and machine mounts sold separately.
