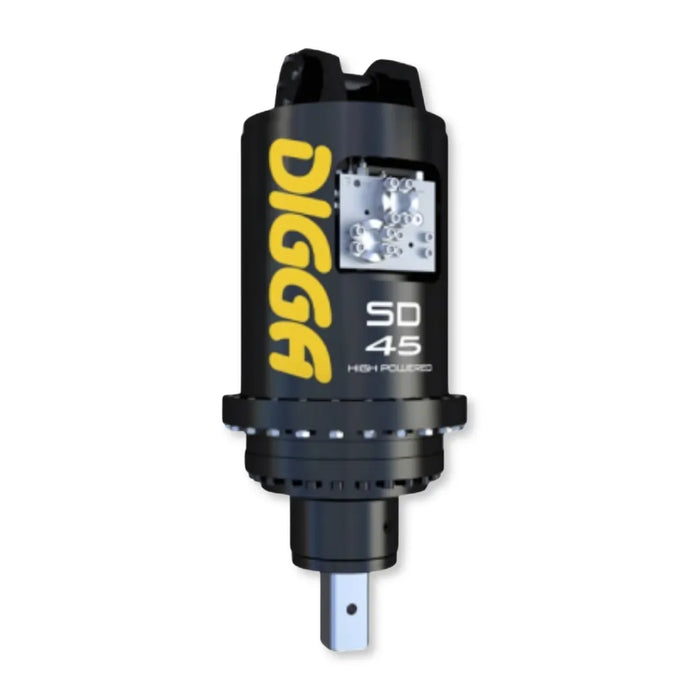

Digga SD45 2 Speed "Supa" Anchor Auger Drive
See more by Digga
Digga SD45 2 Speed Digga SD45 2 Speed Digga SD45 2 Speed
Digga SD45 2 Speed Digga SD45 2 Speed Digga SD45 2 Speed
Max Pressure 3500 PSI @ 100 GPM
Output Shaft 100 mm Square
Max Torque 32,892 FT-LBS
Commonly Used For
Foundation Construction
Utility Pole Installation
Bridge and Highway Construction
Digga SD45 2 Speed "Supa" Anchor Auger Drive
See more by Digga
Limited time deal
$43,000
List Price:
Compatible Others compatible Not compatible
Built To Order
Delivery By Sunday, November 16
SKU: SD45
Weight: 1600.0 lb
1

Frequently Bought With

Product Overview
down arrow

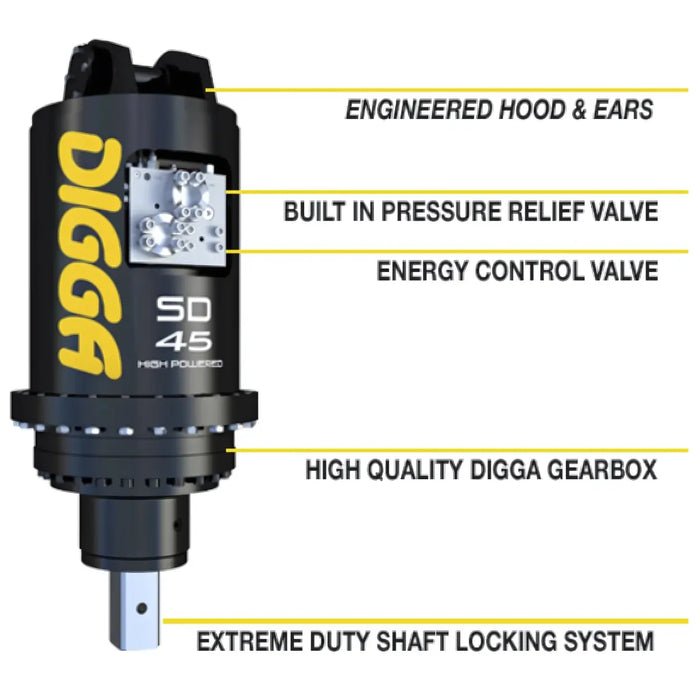

Experience unmatched exclusivity with Digga's SD45 2-Speed Supa Anchor Auger Drive—a premium choice for professionals. Boasting next-gen technology, it delivers versatile, powerful performance up to 70,000 ft-lbs for screw piling and anchoring. Industry-leading features like the Energy Control Valve and built-in Pressure Relief Valve safeguard your investment. Note: Hoses and Mount sold separately.

📦 Fast Shipping
👇 Specifications Below

Specifications
down arrow
SPECS SD 45 SD 50 SD 70 SD 80 SD 95
MAX TORQUE 32,892 FT-LBS 38,569 FT-LBS 50,465 FT-LBS 60,828 FT-LBS 67,675 FT-LBS
MAX FLOW DO NOT EXCEED 100 GPM @ 3,500 PSI
MAX PRESSURE DO NOT EXCEED 3,500 PSI @ 100 GPM
MAX POWER DO NOT EXCEED 201 HP
MOTOR RADIAL PISTON RADIAL PISTON RADIAL PISTON RADIAL PISTON RADIAL PISTON
PRV INCLUDED INCLUDED INCLUDED INCLUDED INCLUDED
ECV INCLUDED INCLUDED INCLUDED INCLUDED INCLUDED
OVERALL LENGTH 50.9 50.9 50.9 50.9 50.9
DIAMETER 23.6 23.6 23.6 23.6 23.6
WEIGHT
(NO HITCH / OIL)		 1848 LBS 1843 LBS 1843 LBS 1843 LBS 1859 LBS
SHAFT 100MM SQUARE 100MM SQUARE 100MM SQUARE 100MM SQUARE 100MM SQUARE


Output Torque

SD 45 SD 50 SD 70 SD 80 SD 95
PSI HI TORQUE LO TORQUE HI TORQUE LO TORQUE HI TORQUE LO TORQUE HI TORQUE LO TORQUE HI TORQUE LO TORQUE
LOW SPD HIGH SPD LOW SPD HIGH SPD LOW SPD HIGH SPD LOW SPD HIGH SPD LOW SPD HIGH SPD
700 6,578 3,289 7,714 3,857 10,093 5,046 12,166 6,083 13,535 6,768
800 7,518 3,759 8,816 4,408 11,535 5,767 13,904 6,952 15,469 7,734
900 8,458 4,229 9,918 4,959 12,977 6,488 15,641 7,821 17,402 8,701
1,000 9,398 4,699 11,020 5,510 14,418 7,209 17,379 8,690 19,336 9,668
1,100 10,338 5,169 12,122 6,061 15,860 7,930 19,117 9,559 21,269 10,635
1,200 11,277 5,639 13,224 6,612 17,302 8,651 20,855 10,428 23,203 11,601
1,300 12,217 6,109 14,326 7,163 18,744 9,372 22,593 11,297 25,136 12,568
1,400 13,157 6,578 15,428 7,714 20,186 10,093 24,331 12,166 27,070 13,535
1,500 14,097 7,048 16,530 8,265 21,628 10,814 26,069 13,035 29,004 14,502
1,600 15,036 7,518 17,632 8,816 23,070 11,535 27,807 13,904 30,937 15,469
1,700 15,976 7,988 18,734 9,367 24,511 12,256 29,545 14,773 32,871 16,435
1,800 16,916 8,458 19,836 9,918 25,953 12,977 31,283 15,641 34,804 17,402
1,900 17,856 8,928 20,938 10,469 27,395 13,698 33,021 16,510 36,738 18,369
2,000 18,796 9,398 22,040 11,020 28,837 14,418 34,759 17,379 38,672 19,336
2,100 19,735 9,868 23,142 11,571 30,279 15,139 36,497 18,248 40,605 20,303
2,200 20,675 10,338 24,244 12,122 31,721 15,860 38,235 19,117 42,539 21,269
2,300 21,615 10,807 25,346 12,673 33,163 16,581 39,973 19,986 44,472 22,236
2,400 22,555 11,277 26,448 13,224 34,604 17,302 41,711 20,855 46,406 23,203
2,500 23,494 11,747 27,550 13,775 36,046 18,023 43,449 21,724 48,339 24,170
2,600 24,434 12,217 28,652 14,326 37,488 18,744 45,187 22,593 50,273 25,136
2,700 25,374 12,687 29,754 14,877 38,930 19,465 46,924 23,462 52,207 26,103
2,800 26,314 13,157 30,856 15,428 40,372 20,186 48,662 24,331 54,140 27,070
2,900 27,254 13,627 31,958 15,979 41,814 20,907 50,400 25,200 56,074 28,037
3,000 28,193 14,097 33,060 16,530 43,255 21,628 52,138 26,069 58,007 29,004
3,100 29,133 14,567 34,162 17,081 44,697 22,349 53,876 26,938 59,941 29,970
3,200 30,073 15,036 35,264 17,632 46,139 23,070 55,614 27,807 61,874 30,937
3,300 31,013 15,506 36,366 18,183 47,581 23,791 57,352 28,676 63,808 31,904
3,500 32,892 16,446 38,569 19,285 50,465 25,232 60,828 30,414 67,675 33,838
Technical Documents
down arrow
Open Supa-Drives_-_Drilling
Shipping & Returns
down arrow
We offer FREE 2-5 day shipping (LTL Freight and Residential) for all Digga attachments. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com.

More information on refunds and returns can be found here.
Warranty
down arrow

All Digga attachments carry a 12-month warranty against defects in material or workmanship.

Refer to manufacturer's manual for full warranty details.

Warranty Guidelines:
-Warranties are subject to approval from Digga
-Warranty repairs are not to be carried out without pre-approval from Digga
-Maintenance must be carried out as per the operator's manual to maintain warranty
-Do not disassemble a Digga product before getting approval and instructions from Digga
-Ensure attachments are utilized only for their intended use as outlined by Digga

The following warranty applies to the specific components of the below models:

MDS / DSS / DDS Drives - Drilling
5 year gearbox | 3 year motor | 1 year manufacturer
INCLUSIVITY / USAGE
Used for drilling. If a DSS or DSS drive is used for anchoring, an ECV (Energy Control Valve) must be fitted for the warranty to be valid.

ADS / ALS Drives - Anchor Application (ECV)
3 year gearbox | 2 year motor | 1 year manufacturer
INCLUSIVITY / USAGE
Anchor application - 5ADL-30ADL - ECV fitted (Energy Control Valve).

DSS / DDS / DLS Drives - Anchor Application
2 year gearbox | 1 year motor | 1 year manufacturer
INCLUSIVITY / USAGE
Anchor application up to 12,000lbs - ECV not fitted (Energy Control Valve).

Bigfoot / Hydrive Trenchers
3 year gearbox | 2 year motor | 1 year manufacturer
INCLUSIVITY / USAGE
Trenching applications.
