Digga "Mega" Series 2-Speed Large Anchor Drive
Max Pressure
3500 PSI @ 100 GPM
Output Shaft
130 mm Square
Included Valves
Pressure Relief and Energy Control
Commonly Used For
Foundation Construction
Installing Wind Turbines
Bridge and Highway Construction
Digga "Mega" Series 2-Speed Large Anchor Drive
Limited time deal
$58,300
List Price:
Built To Order
Delivery By Saturday, November 15
SKU: MD-110-T3
Weight: 2267.0 lb
1
Frequently Bought With
Frequently Bought With
Frequently Bought With
Product Overview
Digga's industry-leading "Mega Drive" range of 2-speed anchor drives are designed to suit the extremely demanding needs of the screw anchor and foundation drilling contractor with torque performance of up to 150,000 FT-LBS of torque. Engineered and manufactured in-house, this drive has been meticulously optimized so your machine can operate in its most efficient HP range while minimizing wear and tear. Digga's standard Pressure Relief Valve (PRV) and Energy Control Valve (ECV) are designed to prevent rapid decompression from pile kick-back and protect your gear.
All Mega series drives also ship with an included 10ft electrical connection, 2-speed control box, cigarette lighter power lead, and 50ft boom extension harness. Consistently meet the needs of your toughest jobs week after week.
Note: Case drain is required for all 2-speed drives. Hoses and machine mounts sold separately.
All Mega series drives also ship with an included 10ft electrical connection, 2-speed control box, cigarette lighter power lead, and 50ft boom extension harness. Consistently meet the needs of your toughest jobs week after week.
Note: Case drain is required for all 2-speed drives. Hoses and machine mounts sold separately.
Specifications
| Model | Max Torque (ft-lbs) | Max Speed (RPM) | Max Flow | Max Pressure | Max Power (hp) | Motor | PRV | ECV | Overall Length (In) | Diameter (In) | Weight No Hitch/Oil - (lbs) | Output Shaft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

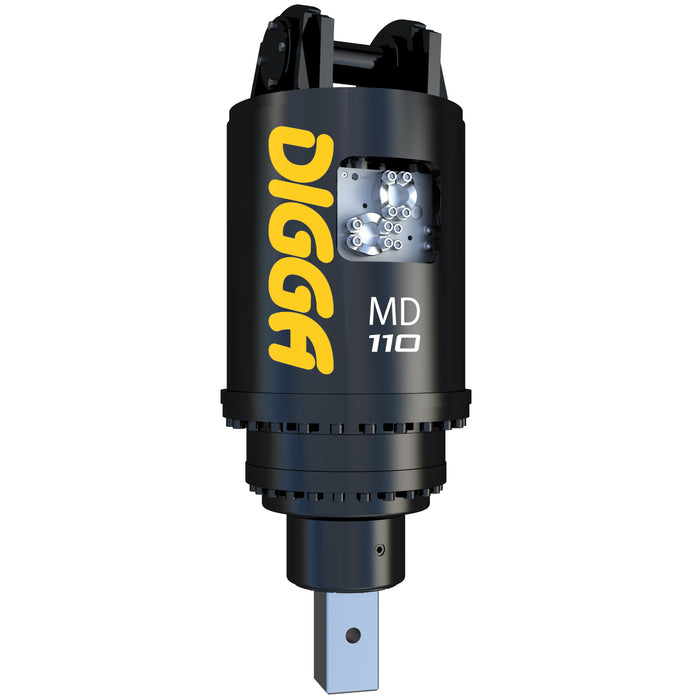

| MD 110 | 84,873 | 25 | 100 GPM @ 3,500 PSI | 3,500 PSI @ 100 GPM | 201 | Radial Piston | Included | Included | 64 | 24 | 2267 | 130mm Square |

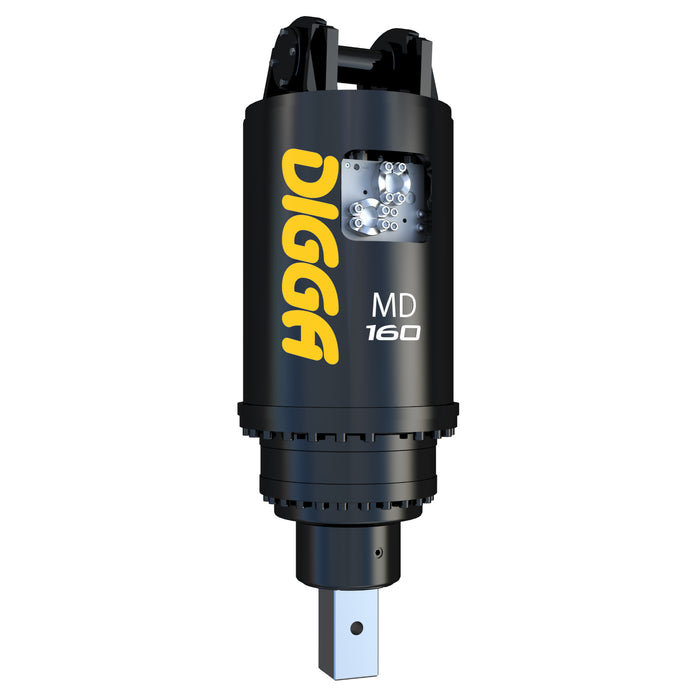

| MD 160 | 125,648 | 17 | 100 GPM @ 3,500 PSI | 3,500 PSI @ 100 GPM | 201 | Radial Piston | Included | Included | 70 | 24 | 2626 | 130mm Square |
| MD 190 | 147,335 | 15 | 100 GPM @ 3,500 PSI | 3,500 PSI @ 100 GPM | 201 | Radial Piston | Included | Included | 70 | 24 | 2633 | 130mm Square |
Technical Documents
Open Mega-Drives
What's Included
Digga "Mega" 2-Speed Large Piling Anchor Drive
Fitted with highly efficient radial piston motors, compact Digga manufactured gearboxes, and integrated pressure relief valves this industry-leading design allows for ultimate high-torque performance and durability when installing large screw piles and ground anchors.
Over 30 years of design and development have perfected this drive, delivering the gold standard in very high torque drive units.
- Fitted with a Digga-manufactured gearbox to deliver maximum performance from a compact and robust form factor.
- Integrated energy control valve (ECV), pressure relief valve (PRV), and a lack of complex hoses, valving, or filtration make for optimal durability and simplified maintenance.
- Compatible with machines with 3500 PSI.
Digga anchor drives are backed by industry-leading warranties and local factory support.
Also included with this purchase:
- Digga Mega Anchor Drive Unit Operating Manual
- 10ft Electrical Connection
- Digga 2-Speed Control Box
- Cigarette Lighter Power Lead
- 50ft Boom Extension Harness
- Digga 1-Year Gearbox Warranty
- Digga 1-Year Motor Warranty
- Digga 12-Month Manufacturer Warranty
- Attachments King Vehicle Compatibility Guarantee
- BONUS! 30-Day Dedicated 1-on-1 Support for Attachment Install & Use from an Attachments King Expert
Note: All 2-speed drives require a case drain. Hoses and machine mounts sold separately.
