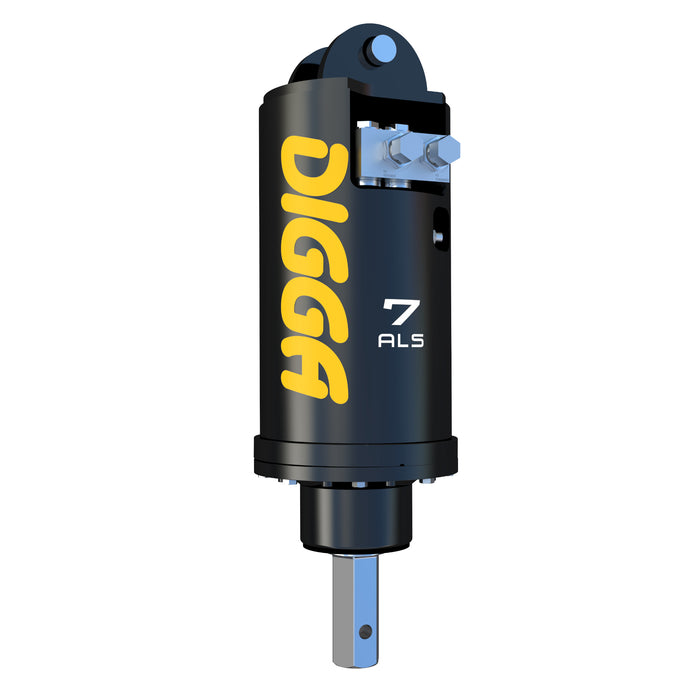

Name: Digga "ALS" Low-Pressure Piling Anchor Drive For Excavators
Brand: Digga
SKU: 7ALS
Price: 7100.0 USD
Availability: InStock

Digga "ALS" Low-Pressure Piling Anchor Drive For Excavators

See more by Digga

2 Videos

Max Pressure 3000 PSI @ 27 GPM

Output Shaft 2.5" Hex

Included Valves Pressure Relief and Energy Control

Commonly Used For

Residential Foundation Construction

Solar Panel Installation

Light Pole Installation

Digga "ALS" Low-Pressure Piling Anchor Drive For Excavators

See more by Digga

2 Videos

Limited time deal

$7,100

List Price:

Built To Order

Delivery By Sunday, November 16

SKU: 7ALS

Weight: 288.0 lb

Max Torque Includes Halo

Frequently Bought With

Product Overview

Upgrade your job site with Digga's "ALS" series of single-speed anchor drives, optimized for low-pressure machines with 3000PSI. Digga's in-house engineered drives are optimized to deliver increase efficiency and consistent performance. Equipped with Digga's industry-leading Energy Control Valve (ECV), Digga drives are designed to minimize wear and tear from pile kick-back. Take your projects to the next level with the industry leader in piling and anchor drives.

Note: Hoses and Mount sold separately.

✔ Perfect for 3000 PSI Machines
✔ Integrated Pressure Relief Valve
✔ ECV to Prevent Rapid Decompression

Specifications

Product Specifications

	7ALS	9ALS	12ALS	13ALS	16ALS	20ALS	25ALS
Nominal Torque (FT LBS)	7,166	9,893	12,445	13,810	17,334	21,012	26,375
Max Pressure	3000psi @ 27gpm	3000psi @ 29gpm	3000psi @ 29gpm	3000psi @ 33gpm	3000psi @ 33gpm	3000psi @ 33gpm	3000psi @ 33gpm
Max Flow	55gpm @ 1700psi	55gpm @ 1800psi	55gpm @ 1800psi	61gpm @ 1800psi	61gpm @ 1800psi	61gpm @ 1800psi	61gpm @ 1800psi
Max Horse Power	55	60	60	67	67	67	67
Pressure Relief Valve	Included	Included	Included	Included	Included	Included	Included
Energy Control Valve	Included	Included	Included	Included	Included	Included	Included
Standard Output Shaft	2.5” Hex	2.5” Hex	2.5” Hex	3” Hex	3” Hex	100mm Square	100mm Square
Weight (lbs)	288	351	351	392	392	637	637
Overall Length (in)	33.7”	37.2”	37.2”	39.6”	39.6”	45.3”	45.3”
Diameter (in)	11.4”	11.4”	11.4”	11.4”	11.4”	14”	14”

Technical Documents

Open 5ADS_6ADS_7ADS

Open 9ADS_12ADS

Open 13ADS_16ADS

Open 20ADS_25ADS_30ADS

What's Included

Digga ALS Anchor Drive

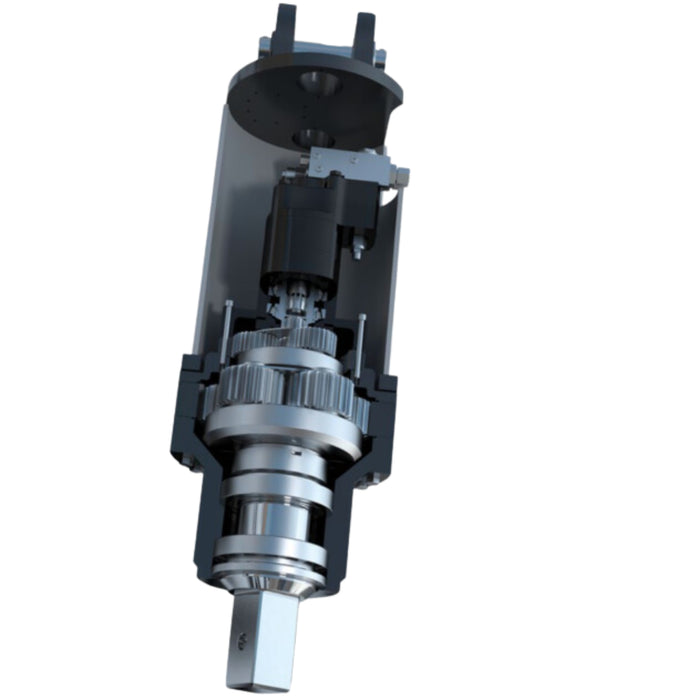

Digga "ALS" Low-Pressure Piling Anchor Drive
Fitted with Digga-designed Eaton bell motors with an integrated pressure relief valve and input housing, the industry-leading design allows for optimal performance returns.

Over 30 years of design and development have perfected this drive, enabling maximum performance in a sleek, ergonomic profile.

Fitted with Digga-designed Eaton bell motors including an integrated pressure relief valve that prevents damage from pile kick-back.
Engineered hood and ears along with extreme duty shaft retaining system provide maximum strength.
Compatible with machines with 3000 PSI, see high-pressure "ADS" series for machines with 3500 PSI.

Digga anchor drives are backed by industry-leading warranties and local factory support.

Also included with this purchase:

Digga ALS Anchor Drive Unit Operating Manual
Digga 3-Year Gearbox Warranty
Digga 2-Year Motor Warranty
Digga 12-Month Manufacturer Warranty
Attachments King Vehicle Compatibility Guarantee
BONUS! 30-Day Dedicated 1-on-1 Support for Attachment Install & Use from an Attachments King Expert

Hoses & Mount Sold Separately

Shipping & Returns

We offer FREE 2-5 day shipping (LTL Freight and Residential) for all Digga attachments. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com.

More information on refunds and returns can be found here.

Warranty

All Digga attachments carry a 12-month warranty against defects in material or workmanship.

Refer to manufacturer's manual for full warranty details.

Warranty Guidelines:
-Warranties are subject to approval from Digga
-Warranty repairs are not to be carried out without pre-approval from Digga
-Maintenance must be carried out as per the operator's manual to maintain warranty
-Do not disassemble a Digga product before getting approval and instructions from Digga
-Ensure attachments are utilized only for their intended use as outlined by Digga

The following warranty applies to the specific components of the below models:

MDS / DSS / DDS Drives - Drilling
5 year gearbox | 3 year motor | 1 year manufacturer
INCLUSIVITY / USAGE
Used for drilling. If a DSS or DSS drive is used for anchoring, an ECV (Energy Control Valve) must be fitted for the warranty to be valid.

ADS / ALS Drives - Anchor Application (ECV)
3 year gearbox | 2 year motor | 1 year manufacturer
INCLUSIVITY / USAGE
Anchor application - 5ADL-30ADL - ECV fitted (Energy Control Valve).

DSS / DDS / DLS Drives - Anchor Application
2 year gearbox | 1 year motor | 1 year manufacturer
INCLUSIVITY / USAGE
Anchor application up to 12,000lbs - ECV not fitted (Energy Control Valve).

Bigfoot / Hydrive Trenchers
3 year gearbox | 2 year motor | 1 year manufacturer
INCLUSIVITY / USAGE
Trenching applications.
