Bring your piling and anchoring jobs to the next level with Digga's industry-leading two speed ADT anchor drive. Engineered and manufactured in-house, this drive has been meticulously optimized so your machine can operate in its most efficient HP range while minimizing wear and tear. Including both Pressure Relief Valve (PRV) and Energy Control Valve (ECV), this drive is equipped to protect your host machine from rapid oil decompression caused by pile kick-back.
Note: Case drain is required for all 2-speed drives. 2-speed controller unit kit, hoses, and mount are sold separately.

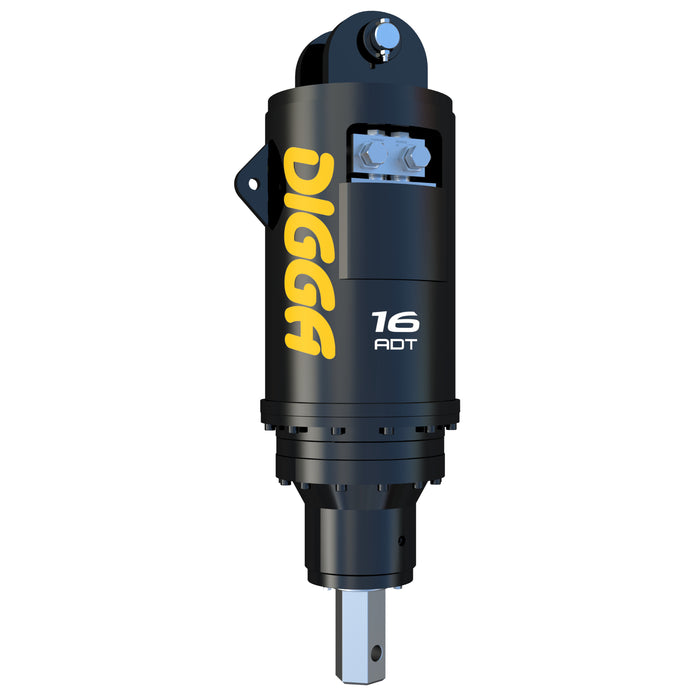

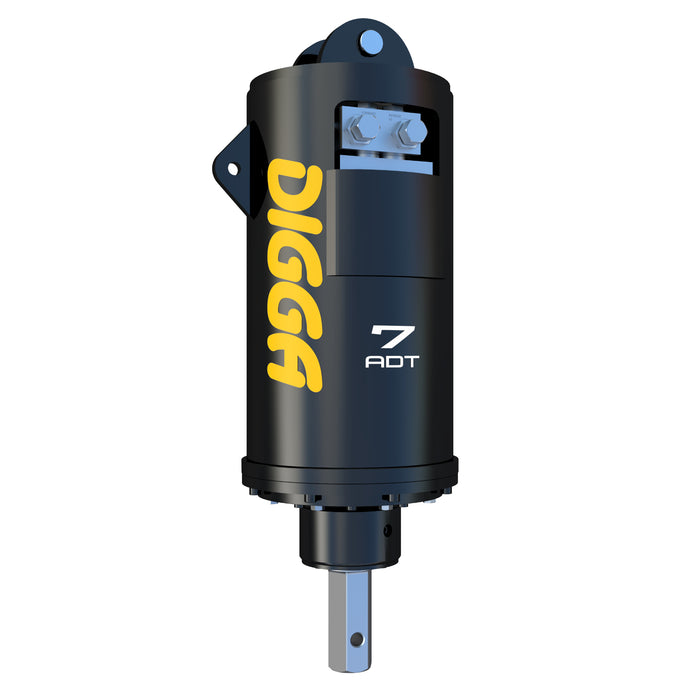

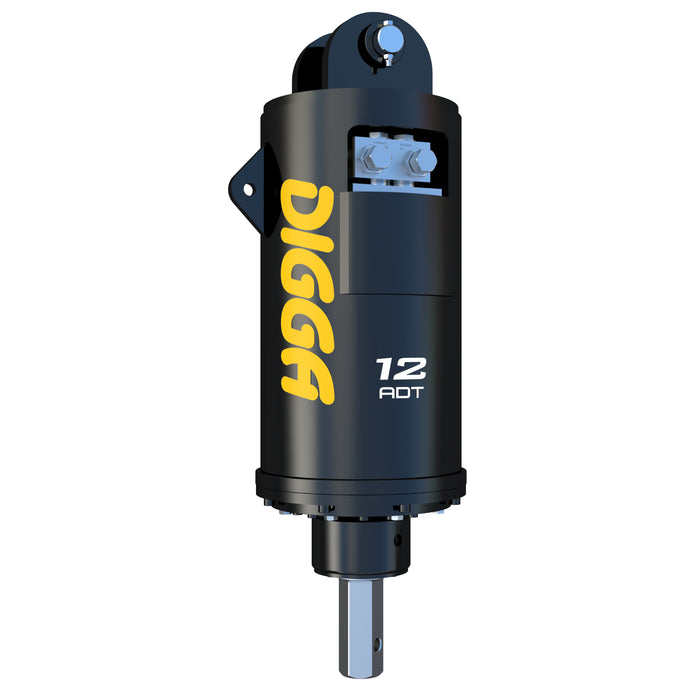

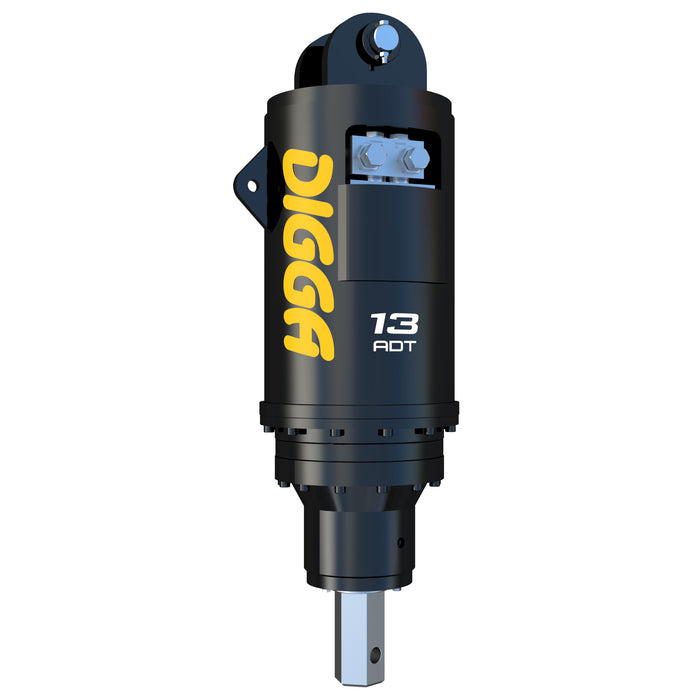

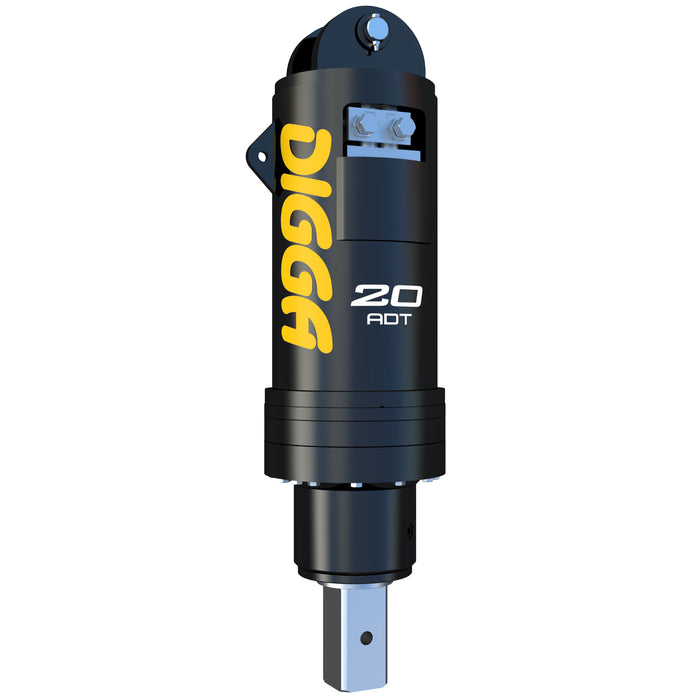

| Feature/Specification | 7ADT | 12ADT | 13ADT | 16ADT | 20ADT | 25ADT | 30ADT |
|---|---|---|---|---|---|---|---|
| Nominal Torque (FT LBS) | 7,357 | 12,028 | 13,347 | 16,448 | 20,309 | 25,027 | 31,489 |
| Max Pressure - Do Not Exceed | 3500psi @ 27gpm | 3500psi @ 29gpm | 3500psi @ 33gpm | 3500psi @ 33gpm | 3500psi @ 39gpm | 3500psi @ 39gpm | 3500psi @ 39gpm |
| Max Flow - Do Not Exceed | 53gpm @1800psi | 53gpm @1950psi | 53gpm @ 2200psi | 53gpm @ 2200psi | 53gpm @ 2600psi | 53gpm @ 2600psi | 53gpm @ 2600psi |
| Max Horse Power | 55 | 60 | 67 | 67 | 80 | 80 | 80 |
| Pressure Relief Valve | Included | Included | Included | Included | Included | Included | Included |
| Energy Control Valve | Included | Included | Included | Included | Included | Included | Included |
| Standard Output Shaft | 2.5” Hex | 2.5” Hex | 3” Hex | 3” Hex | 100mm Square | 100mm Square | 100mm Square |
| Weight (lbs) | 400 | 485 | 485 | 485 | 675 | 675 | 675 |
| Overall Length (in) | 37.9” | 39.3” | 42.1” | 42.1” | 49.5” | 49.5” | 49.5” |
| Diameter (in) | 13.4” | 13.4” | 13.4” | 13.4” | 14” | 14” | 14” |
Open 7ADT
Open 12ADT
Open 13ADT_16ADT
Open 20ADT_25ADT_30ADT
Digga "ADT" 2-Speed Piling Anchor Drive

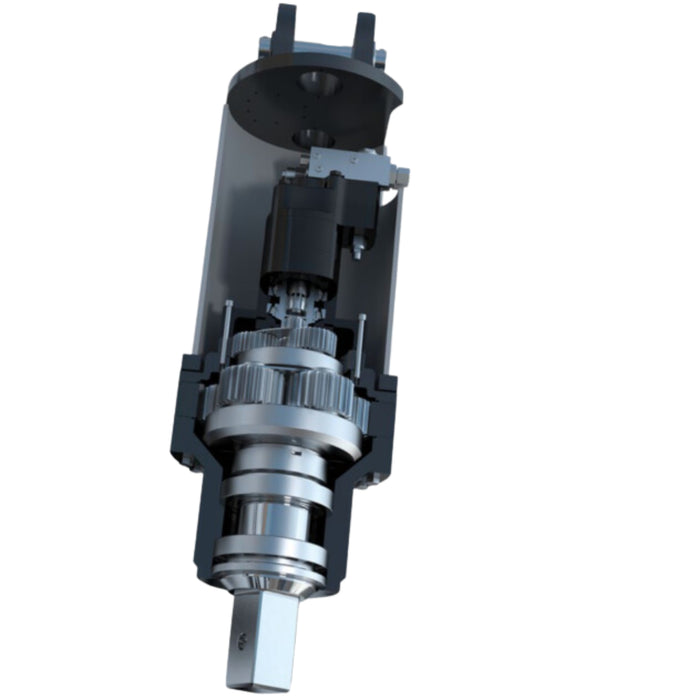

Fitted with Digga-designed Eaton bell motors with an integrated pressure relief valve and input housing, the industry-leading design allows for optimal performance returns when installing both large and small piles.
Over 30 years of design and development have perfected this drive, enabling maximum performance in a sleek, compact profile.
- Fitted with Digga-designed Eaton bell motors including an integrated pressure relief valve that prevents damage from pile kick-back.
- 2-speed capability is like having two drives in one, allowing you to install larger piles with ease and smaller piles with increased efficiency at the flick of a switch.
- Compatible with machines with 3500 PSI, see low-pressure "ALT" series for machines with 3000 PSI.
Digga anchor drives are backed by industry-leading warranties and local factory support.
Also included with this purchase:
- Digga ADT Anchor Drive Unit Operating Manual
- Digga 3-Year Gearbox Warranty
- Digga 2-Year Motor Warranty
- Digga 12-Month Manufacturer Warranty
- Attachments King Vehicle Compatibility Guarantee
- BONUS! 30-Day Dedicated 1-on-1 Support for Attachment Install & Use from an Attachments King Expert
Note: Case drain is required for all 2-speed drives. All 2-speed drives come fitted with a 10ft electrical connection. 2-speed controller, hoses, and mount sold separately.
