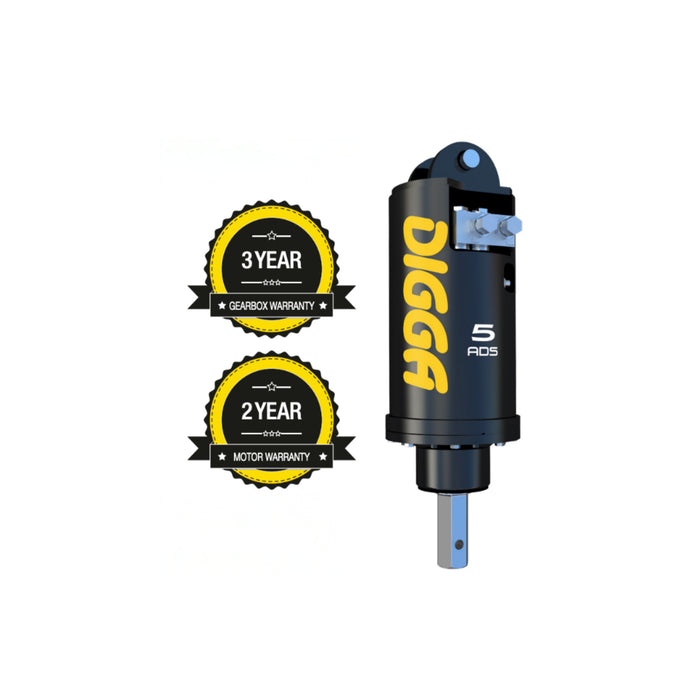

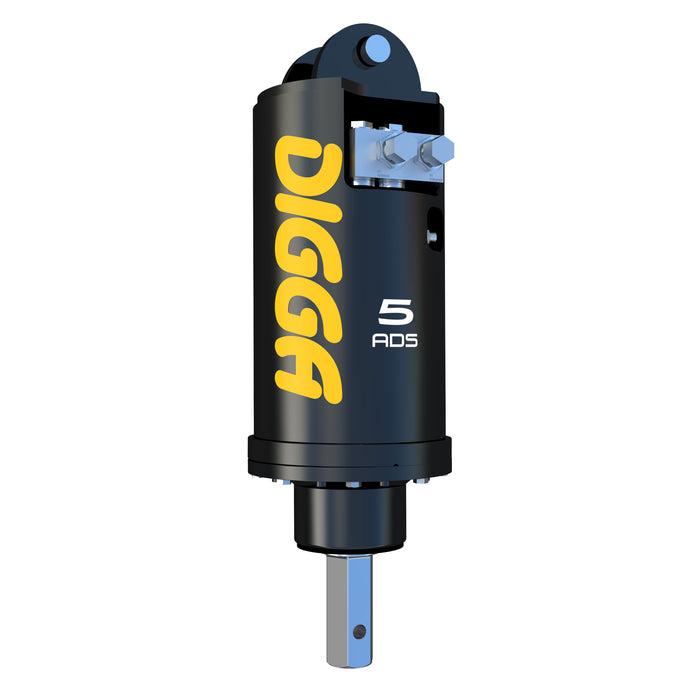

Name: Digga "ADS" Piling Anchor Drive For Excavators
Brand: Digga
SKU: 5ADS
Price: 6900.0 USD
Availability: InStock

Digga "ADS" Piling Anchor Drive For Excavators

See more by Digga

4 Videos

Max Pressure 3500 PSI @ 27 GPM

Included Valves Pressue Relief and Energy Control

Max Flow 55 GPM @ 1700 PSI

Commonly Used For

["Foundation Construction

Bridge and Highway Construction

Retaining Wall Construction""]

Digga "ADS" Piling Anchor Drive For Excavators

See more by Digga

4 Videos

Limited time deal

$6,900

List Price:

Built To Order

Delivery By Sunday, November 16

SKU: 5ADS

Weight: 288.0 lb

Max Torque Output Shaft Includes Halo

Frequently Bought With

Product Overview

Take your jobs to the next level with Digga's "ADS" series of single-speed anchor drives, perfect for machines rated to 3,500 PSI. Engineered and manufactured in-house, this drive operates in its highest efficiency HP range to maximize consistent performance while minimizing wear and tear. It features Digga's powerful ECV (Energy Control Valve) to protect from rapid oil decompression caused by pile kick-back. Elevate your projects with this industry-leading drive.

Note: Hoses and Mount sold separately.

✔ Perfect for 3500 PSI Machines
✔ Integrated Pressure Relief Valve
✔ ECV to Prevent Rapid Decompression

Specifications

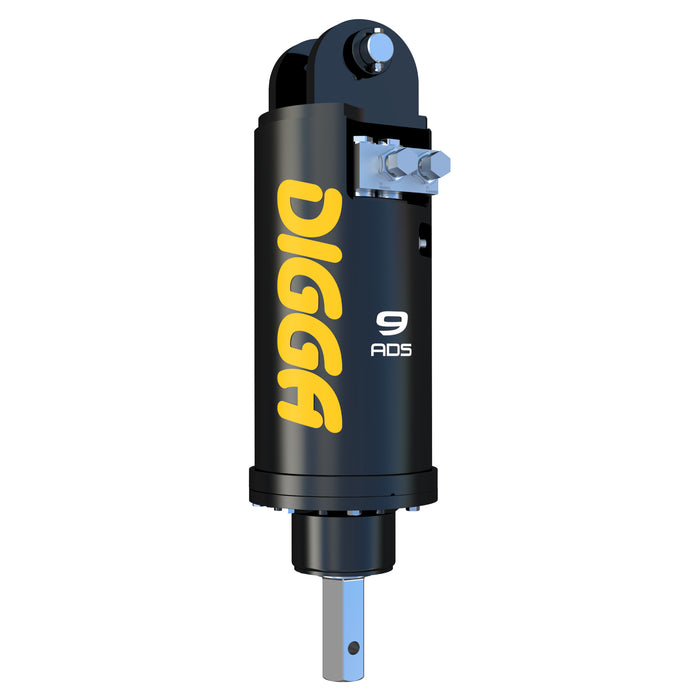

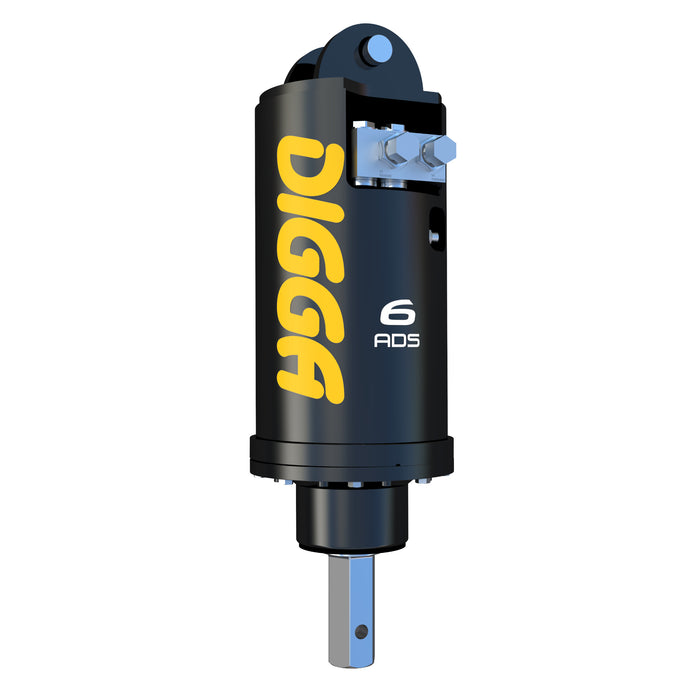

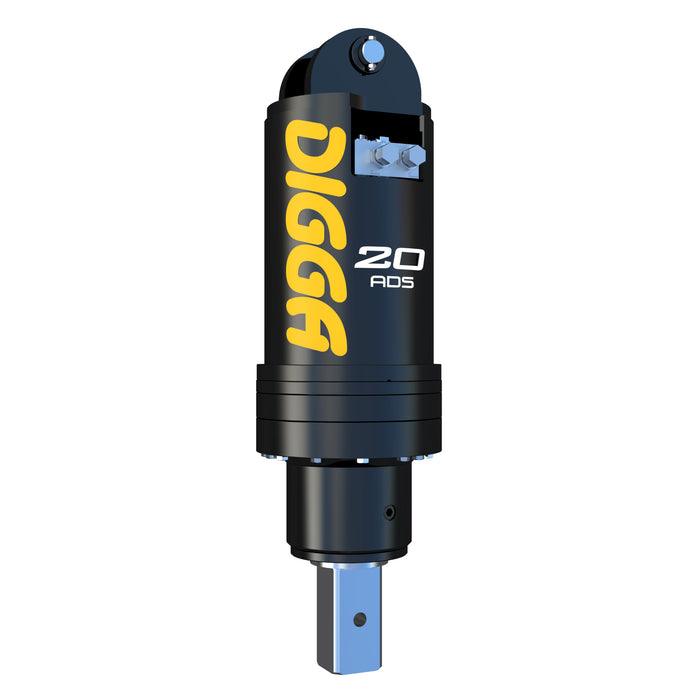

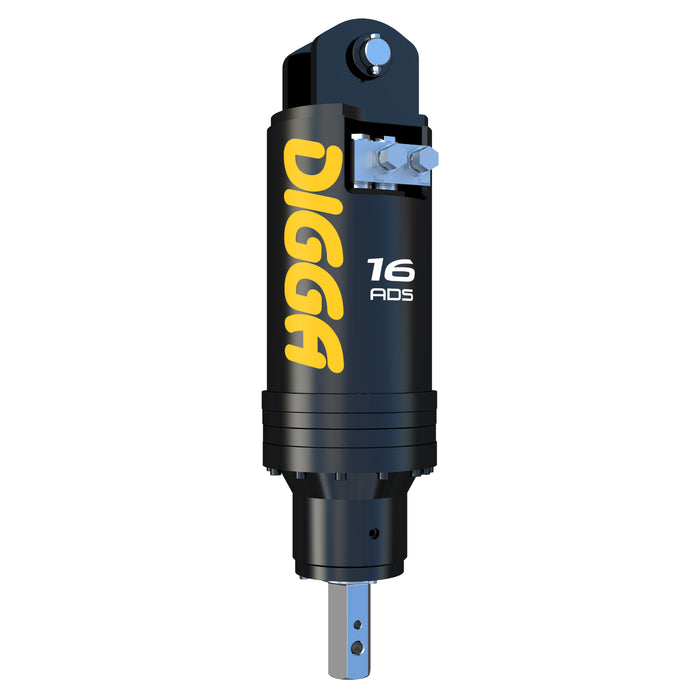

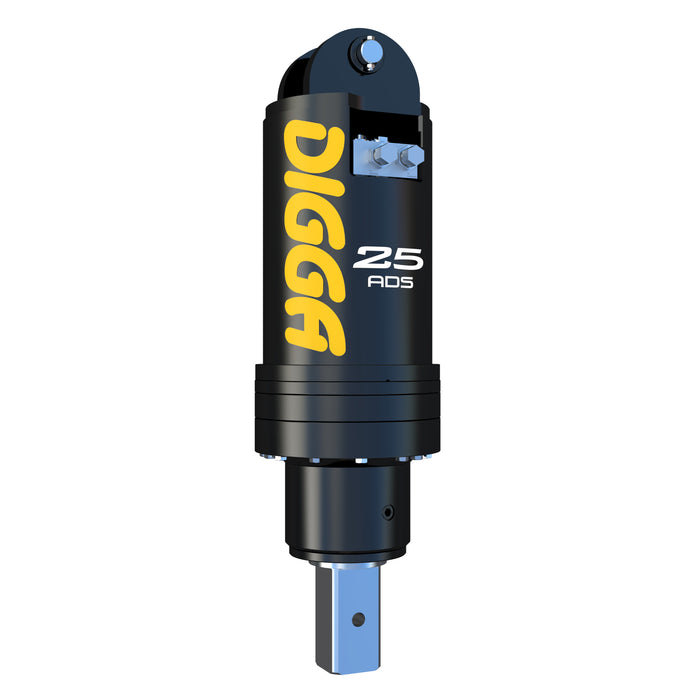

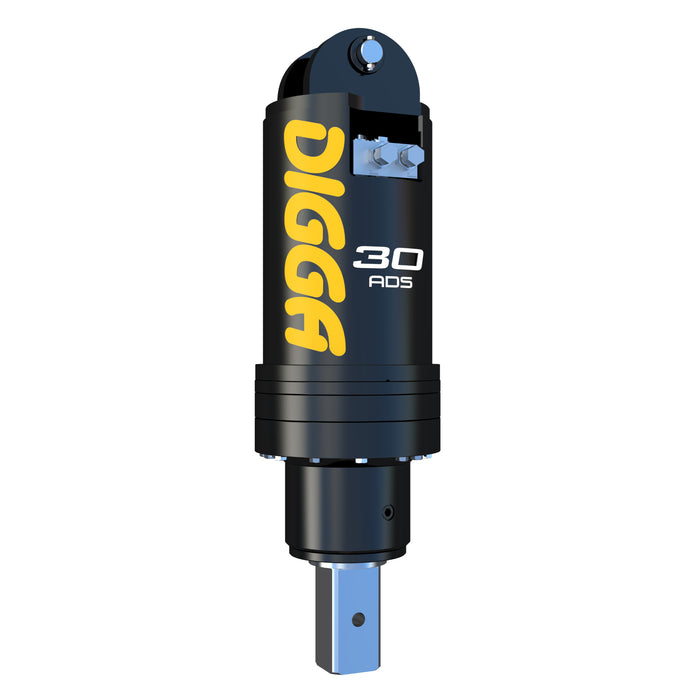

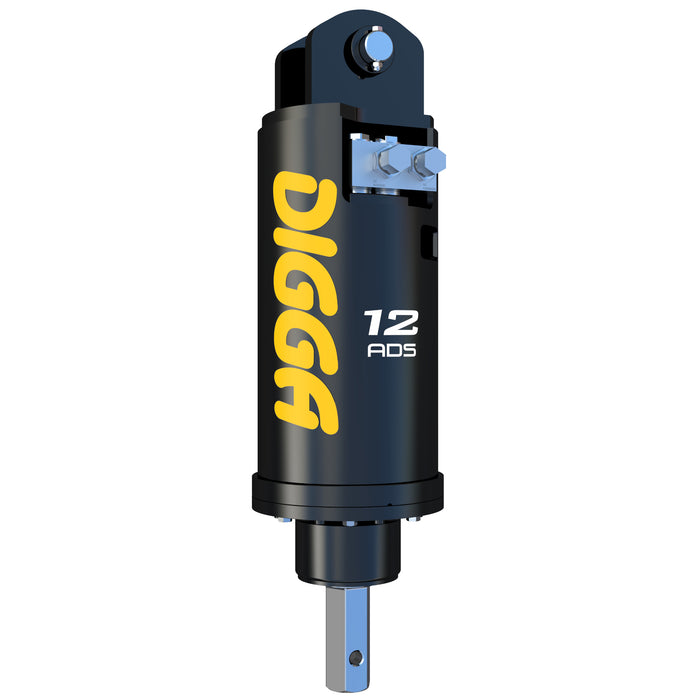

Feature/Specification	5ADS	6ADS	7ADS	9ADS	12ADS	13ADS	16ADS	20ADS	25ADS	30ADS
Nominal Torque (FT LBS)	4,553	5,728	7,189	9,112	11,542	12,808	16,111	19,488	24,514	30,771
Max Pressure	3500psi @ 27gpm	3500psi @ 27gpm	3500psi @ 27gpm	3500psi @ 29gpm	3500psi @ 29gpm	3500psi @ 33gpm	3500psi @ 33gpm	3500psi @ 33gpm	3500psi @ 33gpm	3500psi @ 33gpm
Max Flow	55gpm @1700psi	55gpm @1700psi	55gpm @1700psi	55gpm @ 1800psi	55gpm @ 1800psi	61gpm @ 1800psi	61gpm @ 1800psi	61gpm @1800psi	61gpm @1800psi	61gpm @1800psi
Max Horse Power	55	55	55	60	60	67	67	67	67	67
Pressure Relief Valve	Included	Included	Included	Included	Included	Included	Included	Included	Included	Included
Energy Control Valve	Included	Included	Included	Included	Included	Included	Included	Included	Included	Included
Standard Output Shaft	2.5” Hex	2.5” Hex	2.5” Hex	2.5” Hex	2.5” Hex	3” Hex	3” Hex	100mm Square	100mm Square	100mm Square
Weight (lbs)	288	288	288	351	351	392	392	637	637	637
Overall Length (in)	33.7”	33.7”	33.7”	37.2”	37.2”	39.6”	39.6”	45.3”	45.3”	45.3”
Diameter (in)	11.4”	11.4”	11.4”	11.4”	11.4”	11.4”	11.4”	14”	14”	14”

Technical Documents

Open 5ADS_6ADS_7ADS

Open 9ADS_12ADS

Open 13ADS_16ADS

Open 20ADS_25ADS_30ADS

What's Included

Product Details

Product Features:

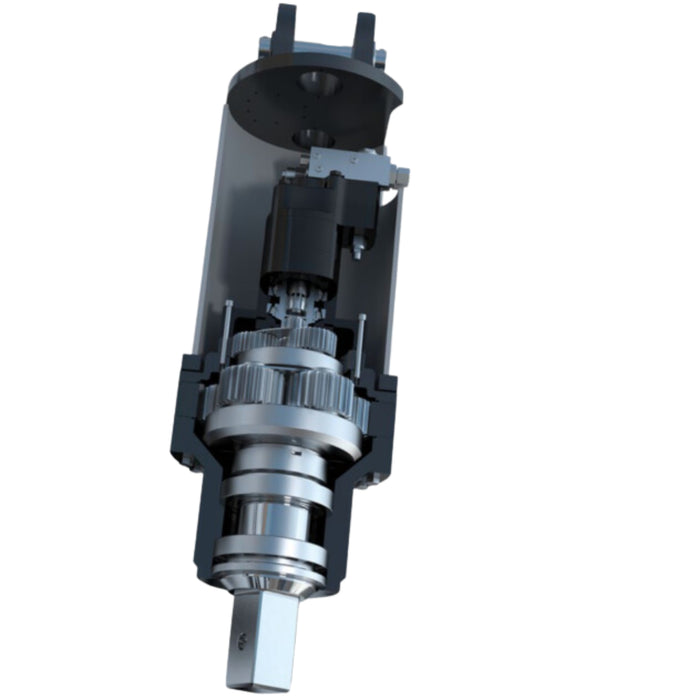

Fitted with Digga-designed Eaton bell motors including an integrated pressure relief valve that prevents damage from pile kick-back.
Engineered hood and ears along with extreme duty shaft retaining system provide maximum strength.
Compatible with machines with 3500 PSI, see low-pressure "ALS" series for machines with 3000 PSI.

Included with This Purchase:

Digga ADS Anchor Drive Unit Operating Manual
Digga 3-Year Gearbox Warranty
Digga 2-Year Motor Warranty
Digga 12-Month Manufacturer Warranty
Attachments King Vehicle Compatibility Guarantee
BONUS! 30-Day Dedicated 1-on-1 Support for Attachment Install & Use from an Attachments King Expert

Hoses & Mount Sold Separately

Shipping & Returns

We offer FREE 2-5 day shipping (LTL Freight and Residential) for all Digga attachments. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com.

More information on refunds and returns can be found here.

Warranty

All Digga attachments carry a 12-month warranty against defects in material or workmanship.

Refer to manufacturer's manual for full warranty details.

Warranty Guidelines:
-Warranties are subject to approval from Digga
-Warranty repairs are not to be carried out without pre-approval from Digga
-Maintenance must be carried out as per the operator's manual to maintain warranty
-Do not disassemble a Digga product before getting approval and instructions from Digga
-Ensure attachments are utilized only for their intended use as outlined by Digga

The following warranty applies to the specific components of the below models:

MDS / DSS / DDS Drives - Drilling
5 year gearbox | 3 year motor | 1 year manufacturer
INCLUSIVITY / USAGE
Used for drilling. If a DSS or DSS drive is used for anchoring, an ECV (Energy Control Valve) must be fitted for the warranty to be valid.

ADS / ALS Drives - Anchor Application (ECV)
3 year gearbox | 2 year motor | 1 year manufacturer
INCLUSIVITY / USAGE
Anchor application - 5ADL-30ADL - ECV fitted (Energy Control Valve).

DSS / DDS / DLS Drives - Anchor Application
2 year gearbox | 1 year motor | 1 year manufacturer
INCLUSIVITY / USAGE
Anchor application up to 12,000lbs - ECV not fitted (Energy Control Valve).

Bigfoot / Hydrive Trenchers
3 year gearbox | 2 year motor | 1 year manufacturer
INCLUSIVITY / USAGE
Trenching applications.
