Elevate your drilling operations with Digga's 5DDT 2-Speed High Flow Auger Drive. Exclusively designed for professionals, this high-end unit is compatible with various heavy-duty machines. Features a compact, high-torque gearbox and Eaton VIS motor for optimized performance. Enjoy greater digging depth and minimal maintenance. Backed by a robust 5-year gearbox and 3-year motor warranty. Note: Auger Bit, Hoses, and Mount sold separately.
| SPECS | 5DDT | 6DDT | 7DDT |
| TORQUE (FT-LBS @ 3000 PSI) | 4,067 | 5,012 | 6,306 |
| MAX TORQUE (FT-LBS @ 3500 PSI) | 4,745 | 5,847 | 7,357 |
| RECOMMENDED FLOW (GPM) | 10-36 | 10-36 | 10-36 |
| MOTOR TYPE | EATON | EATON | EATON |
| MAX PRESSURE (DO NOT EXCEED) | 3500 PSI @ 27 GPM | ||
| MAX FLOW (DO NOT EXCEED) | 53 GPM @ 1800 PSI | ||
| MAX HORSE POWER | 55 | 55 | 55 |
| PRESSURE RELIEF VALVE | INCLUDED | INCLUDED | INCLUDED |
| STANDARD OUTPUT SHAFT | 2.5 HEX | 2.5 HEX | 2.5 HEX |
| RECOMMENDED AUGER | A6 / RC6 | A6 / RC6 | A6 / RC6 |
| MAX DRILLING DIAMETER (CLAY / SHALE)* |
24 | 30 | 30 |
| MAX DRILLING DIAMETER (EARTH)* | 40 | 40 | 48 |
| WEIGHT (LBS) | 350 | 350 | 350 |
| OVERALL LENGTH (IN) | 34.4 | 34.4 | 34.4 |
| DIAMETER (IN) | 14.4 | 14.4 | 14.4 |
(*) Max/min drilling diameter (DIA) dependent on ground conditions. Guide is a recommendation only.
Open Drilling-2-speed-4.5-8t

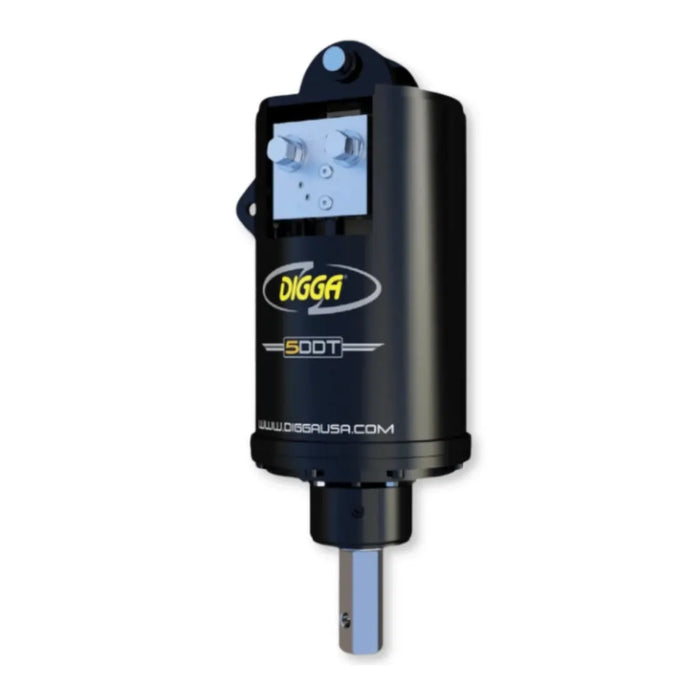

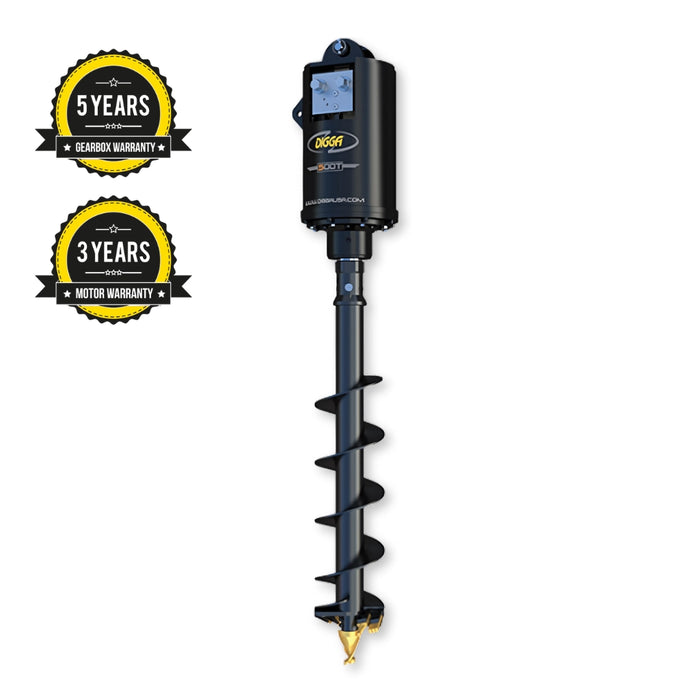

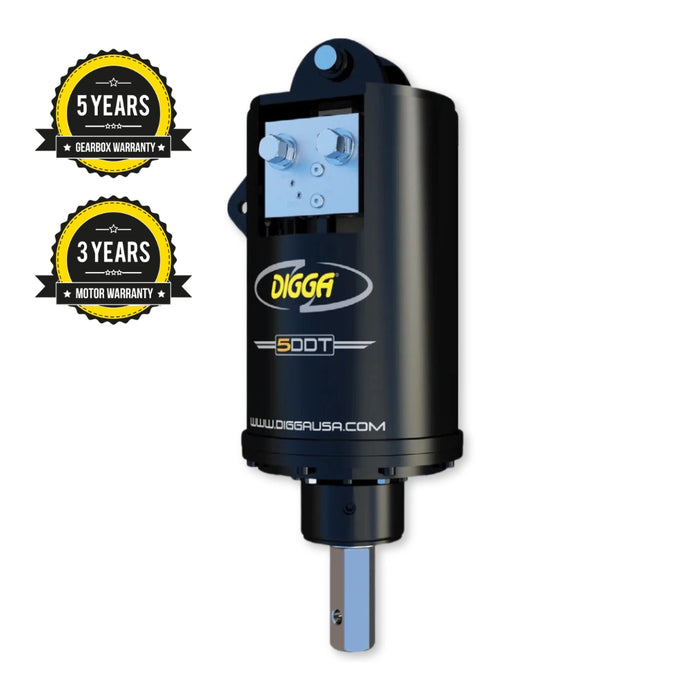

Digga 5DDT 2 Speed High Flow Auger Drive Unit
Fitted with Digga-designed Eaton bell motors with an integrated pressure relief valve and input housing, the innovative design allows the gearbox to go down the hole to maximize drilling depth without extensions.
Over 30 years of design and development have perfected this drive unit, enabling maximum performance in a sleek, ergonomic profile.
- Digga-designed Eaton motor eliminates the need for bulky valve blocks while reducing many potential leak points
- 2-piece shaft design ensures maximum side load ratings without increasing load on bearings
- Integrated PRV (Pressure Relief Valve) to prevent damage to internal motor on kickback
- Compatible with vehicles that put out 10-36 GPM of hydraulic flow at up to 3500 PSI
- 2.5" Hex Output Shaft matches industry-standard Auger Bits
- Compact, high-torque Digga-manufactured gearbox generates a whopping 4,745 ft-lbs of Torque
- Minimize Fuel Consumption. Host machines can be run at a lower RPM on certain drilling jobs to save fuel.
- Drill More Efficiently. 2-Speed Drives allow you to match your torque profile to the perfect profile for your host machine.
Also included with this purchase:
- Digga 5DDT 2 Speed High Flow Auger Drive Unit Operating Manual
- 10' Powerlead with 2-Pin Connector
- Digga 5-Year Gearbox Warranty
- Digga 3-Year Motor Warranty
- Digga 12-Month Manufacturer Warranty
- Attachments King Vehicle Compatibility Guarantee
- BONUS! 30-Day Dedicated 1-on-1 Support for Attachment Install & Use from an Attachments King Expert
Auger Bit Sold Separately
Hoses Sold Separately
Mount & Linkage Sold Separately
2-Speed Controller Kit Sold Separately
If you would like to put together a full Auger Package including a Mount, Hoses, and Auger Bit... give us a call at (302) 732-2804 and we'd be happy to configure one for your machine!
