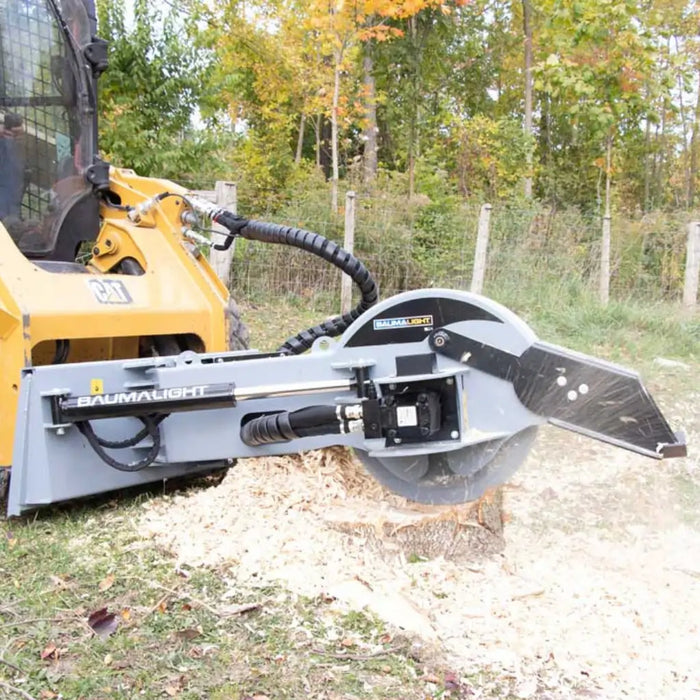

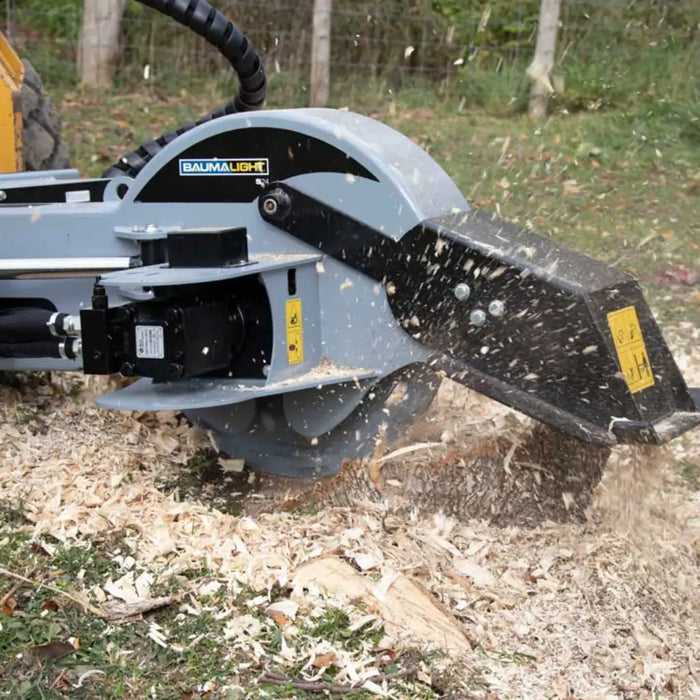

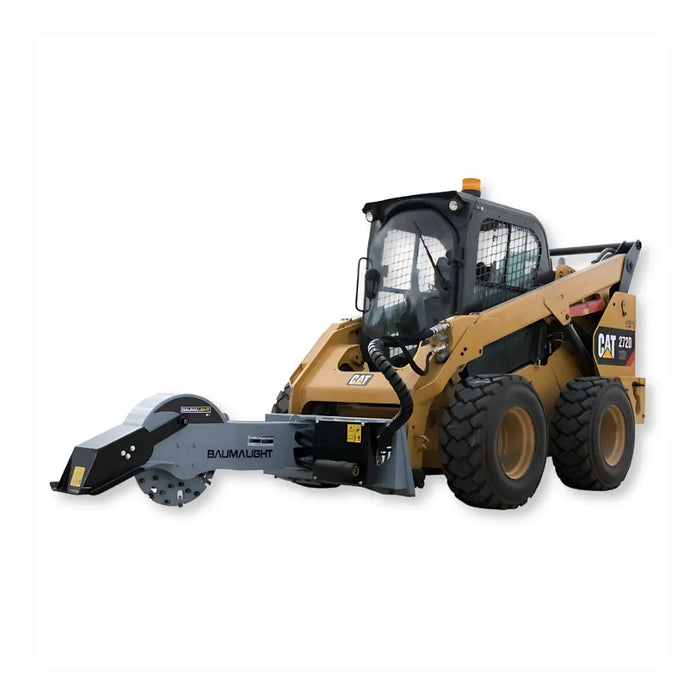

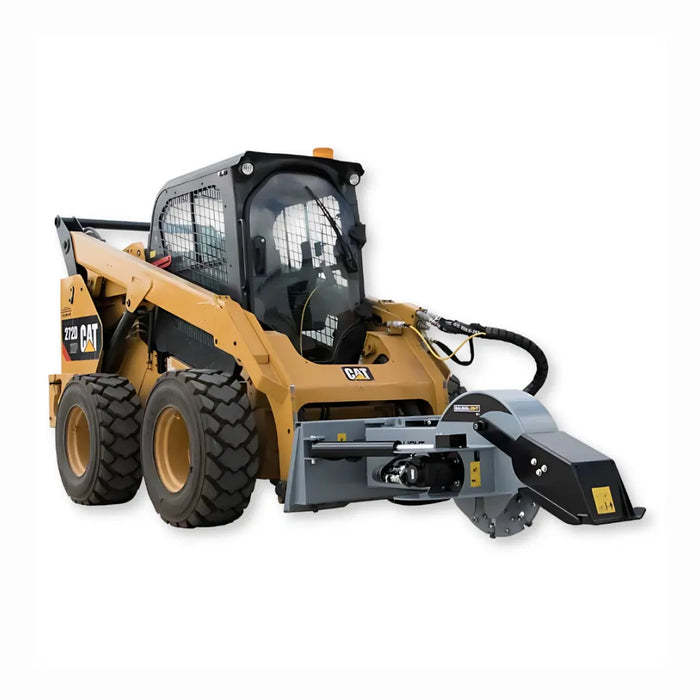

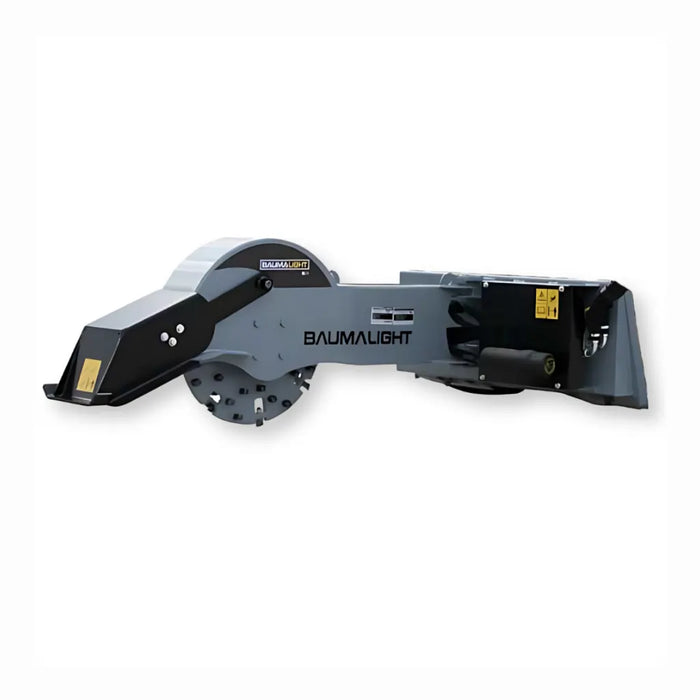

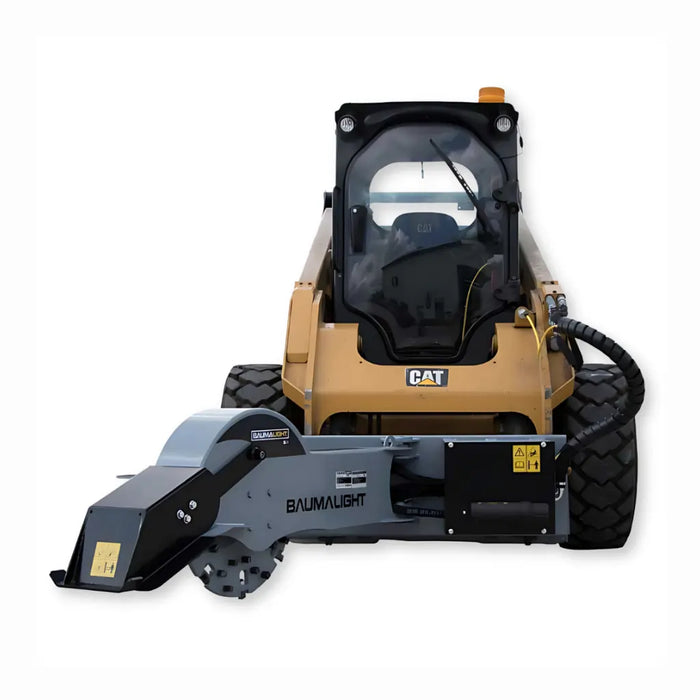

Baumalight S24 Stump Grinder With Swing Cylinder For Skid Steers
Optmal Flow Range
15 - 25 GPM
Case Drain
Recommended Over 3500 PSI
Cutting Time For 24" Stump
30 min @ 3500 PSI
Commonly Used For
Landscaping
Property Maintenance
Clearing Land
Baumalight S24 Stump Grinder With Swing Cylinder For Skid Steers
Limited time deal
$7,000
List Price:
In Stock
Delivery By Wednesday, November 05
SKU: BML-S24-S445-AUX
Weight: 995.0 lb
6 Replacement Teeth
Free
1
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Frequently Bought With
Product Overview

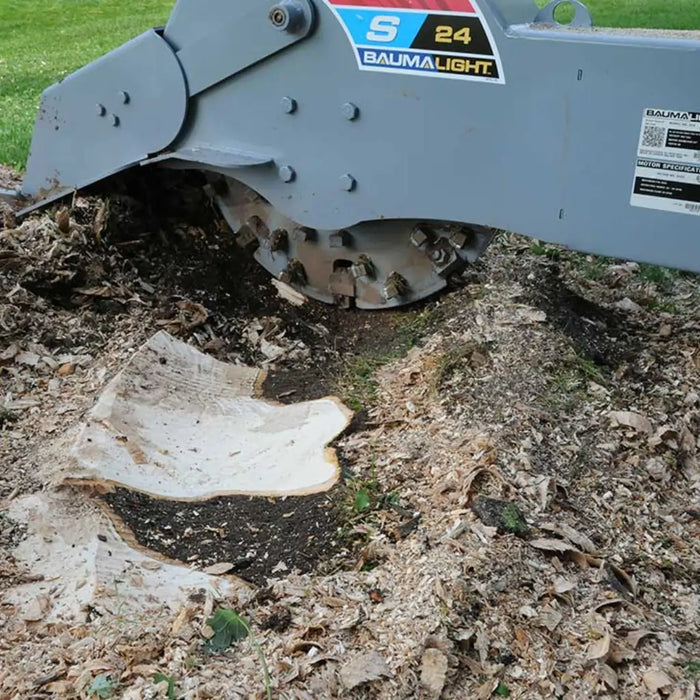

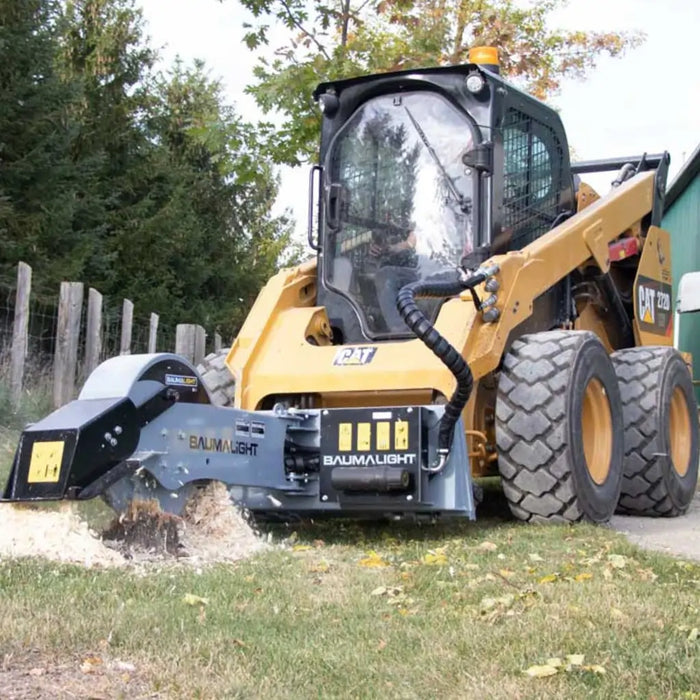

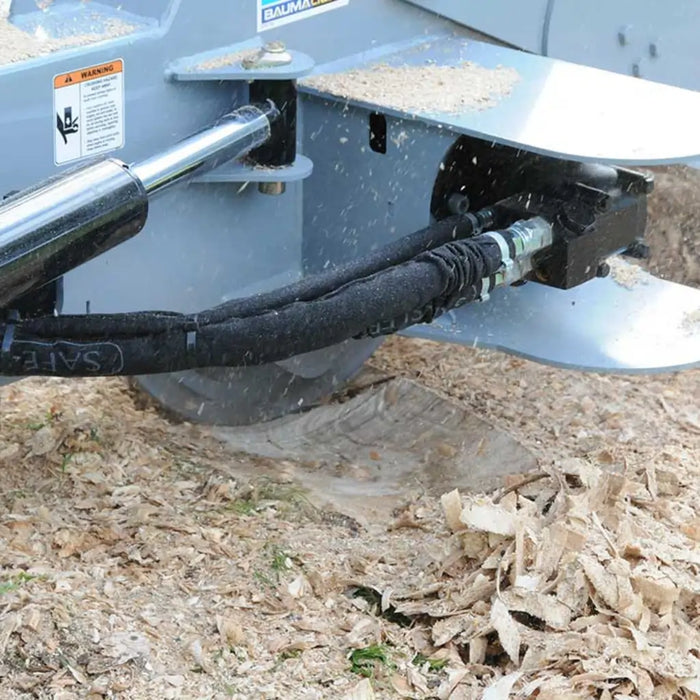

This model features a 12V diverter valve to enhance the control of its hydraulic swing cylinder, allowing precisely-controlled cutting movements. The S24 allows grinding up to 15" below ground without repositioning and boasts a broad 60-degree swing radius.
Specifications
| Model No. | S14 | S16 | S18 | S24 | S28 | S40 |
|---|---|---|---|---|---|---|
| Recommended HP Size | Mini Skidsteer | Mini Skidsteer | 25-80 | 30-80 | 50-120 | 50-120 |
| Maximum Carrier Size | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI |
| Motor Type | Gerotor | Bent Axis Piston | Gerotor | Gerotor | Gerotor | Bent Axis Piston |
| Hydraulic GPM | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart |
| Rotor Size | 18" | 18" | 24" | 24" | 24" | 24" |
| Number of Teeth | 12 | 24 | 34 | 34 | 34 | 20 |
| Tooth Part number | H3000 | H3000 | S1000 | S1000 | S1000 | H3000 |
| Tooth Construction | High speed | High speed | Planer | Planer | Planer | High speed |
| Cutting Wheel Speed | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM |
| Cutting Height - Above Ground | No limit | No limit | No limit | No limit | No limit | No limit |
| Cutting Depth - Below Ground | 6" | 6" | 10" | 10" | 10" | 24" |
| Maximum Cutting Depth - Per Pass | 2" | 2" | 5" | 6" | 6" | 1" |
| Maximum Horizontal Cut | 12" | 12" | 22" | 22" | 22" | 22" |
| Swing Arc | Self-feeding | 56° | Self-feeding | 60° | 63° | 85° |
| Hub Torque | 150 Ft.-Lbs. | - | 250 Ft.-Lbs. | 250 Ft.-Lbs. | 803 Ft.-Lbs. | - |
| Over Torque Protection | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Remote |
| Hitch | 1" pivot pins | 1" pivot pins | Mini Plate | Quick Attach | Quick Attach | Quick Attach |
| No. of Remotes Required - Hydraulic | 1 | 1 | 1 | 1 | 1 | 1 |
| Requires 12 Volt DC | No | Yes | No | Yes | Yes | Yes |
| Unit Weight (Shipping) Lbs. | 394 | 400 | 642 | 995 | 995 | 1,200 |
Motor options - stump cutting time chart
SKIDSTEER STUMP CUTTING TIMES BASED ON 24" STUMP
| Motor | Case Drain | PSI | 12 GPM | 15 GPM | 20 GPM | 25 GPM | 30 GPM | 35 GPM | 40 GPM | 50 GPM | CC | Motor Type |
RPM at MAX GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S508 Motor Available for : S16 |
Critcal | 2500 | 40 min | 30 min | 20 min | -- | -- | -- | -- | -- | 25 | Piston | 2700 |
| 3,000 | 30 min | 25 min | 15 min | -- | -- | -- | -- | -- | |||||
| S445 Motor Available for : S24 |
Recommended | 2500 | -- | 60 min | 40 min | 35 min | -- | -- | -- | -- | 125 | Roller Vane | 520 |
| 3,000 | -- | 50 min | 30 min | 30 min | -- | -- | -- | -- | |||||
| 3,500* | -- | 50 min | 30 min | 30 min | -- | -- | -- | -- | |||||
| S545 Motor Available for : S24 |
Recommended | 2500 | -- | 80 min | 40 min | 35 min | 25 min | 20 min | -- | -- | 130 | Roller Vane | 700 |
| 3,000 | -- | 70 min | 30 min | 30 min | 20 min | 16 min | -- | -- | |||||
| 3,500* | -- | 60 min | 30 min | 30 min | 20 min | 16 min | -- | -- | |||||
| S645 Motor Available for : S28 |
Recommended | 3,000 | -- | 40 min | 40 min | 25 min | 15 min | 12 min | 10 min | 130 | Roller Vane | 540 | |
| 3,500 | -- | -- | 30 min | 20 min | 12 min | 10 min | 8 min | ||||||
| S740 Motor Available for : S40 |
Critcal | 2500 | -- | -- | 30 min | 15 min | 12 min | 10 min | -- | -- | 56 | Piston | 2100 |
| 3,000 | -- | -- | 25 min | 12 min | 10 min | 8 min | -- | -- | |||||
| 3,500* | -- | -- | 23 min | 10 min | 8 min | 6 min | -- | -- | |||||
| S770 Motor Available for : S40 |
Critcal | 2500 | -- | -- | -- | 30 min | 20 min | 9 min | 8 min | 7 min | 84 | Piston | 2000 |
Technical Documents
Open S24_S28
Shipping & Returns
We offer FREE 2-5 day shipping (LTL Freight and Residential) for all Baumalight attachments. Products will ship out in 1-3 business days and tracking information will be provided. 30-DAY NO HASSLE REFUNDS AND RETURNS If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com. More information on refunds and returns can be found here.
Warranty
See it in action!

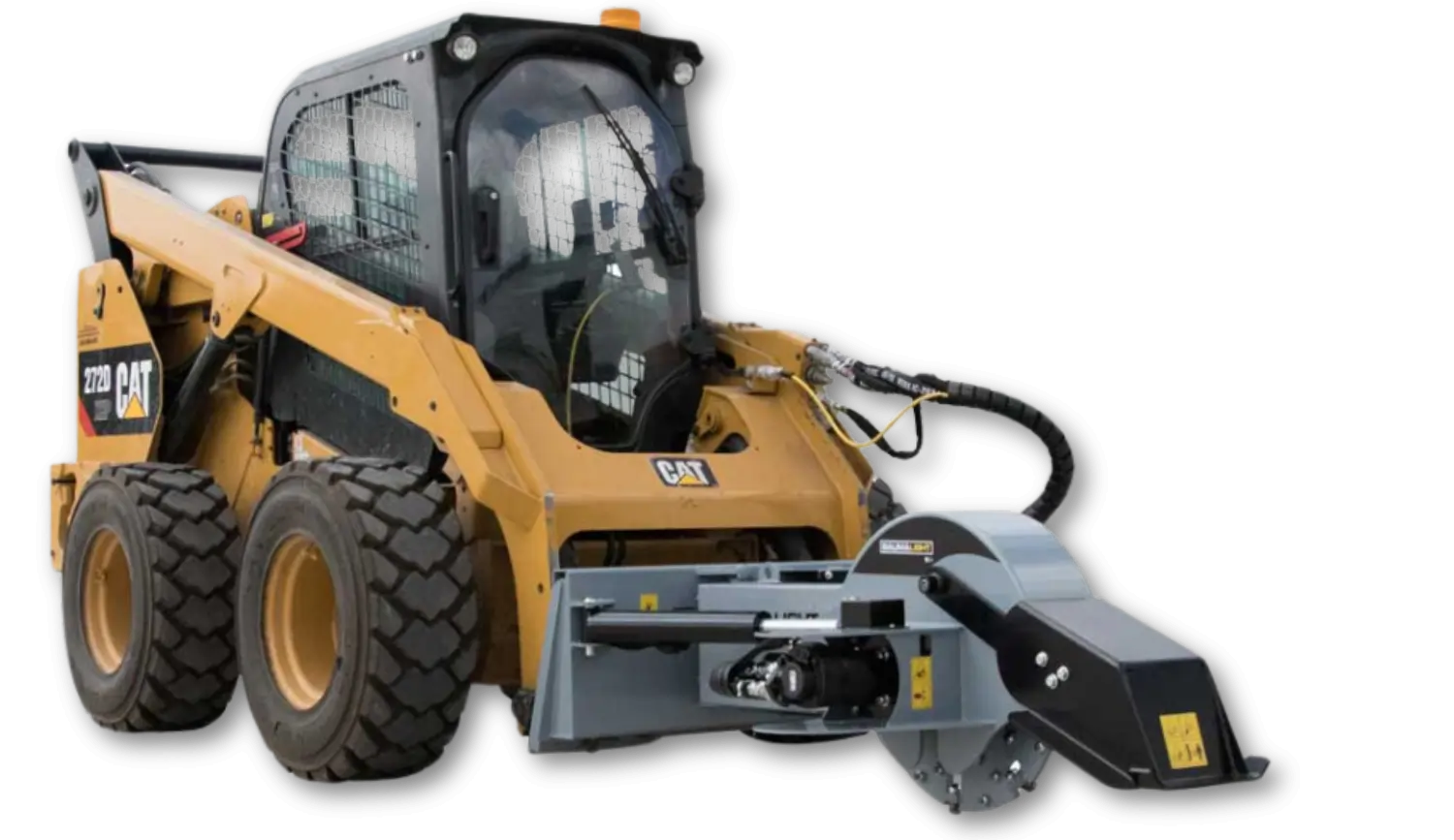

Baumalight S24 Stump Grinder
Optional Hand Control
For older Skid Steers, we have an in-cab adapter for the optional hand control.
Great For All Machines
Hassle-Free Install
Effortless Operation
read more
For older Skid Steers, we have an in-cab adapter for the optional hand control.
Flow Control System
The Flow Control allows you to adjust the cutting pass speed for the smoothest cut.
Fine-Tune Performance
Smoothest Possible Cut
Jobs Are Much Faster
read more
The Flow Control allows you to adjust the cutting pass speed for the smoothest cut.

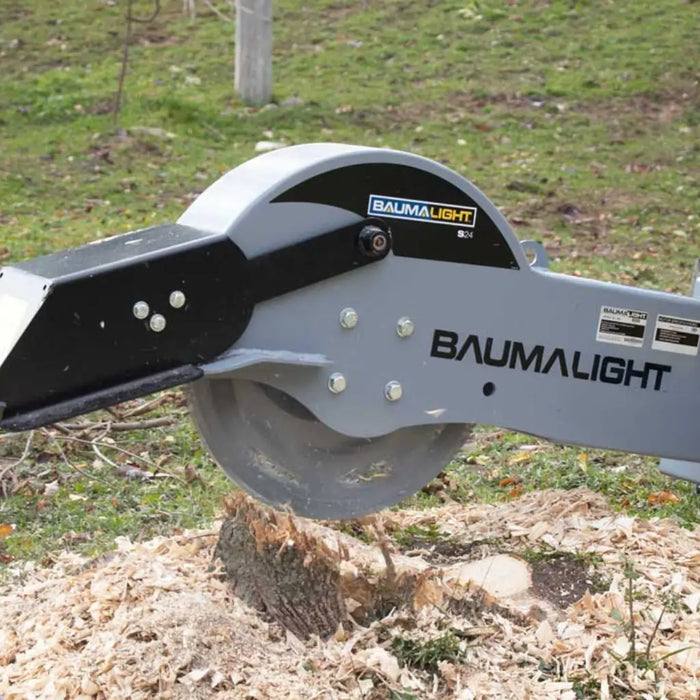

3/4" Thick Steel Rotor
The massive 3/4" thick rotor doesn't flex while cutting for smooth stump grinding.
Won't Bend Or Flex
Lightning Fast Grinds
Field-Tested Design
read more
The massive 3/4" thick rotor doesn't flex while cutting for smooth stump grinding.
Free Replacement Teeth
All S24 Stump Grinders come with a free set of 6 replacement teeth.
No Unexpected Downtime
Easy Bolt-On Swap
Huge Quality Of Life
read more
All S24 Stump Grinders come with a free set of 6 replacement teeth.
