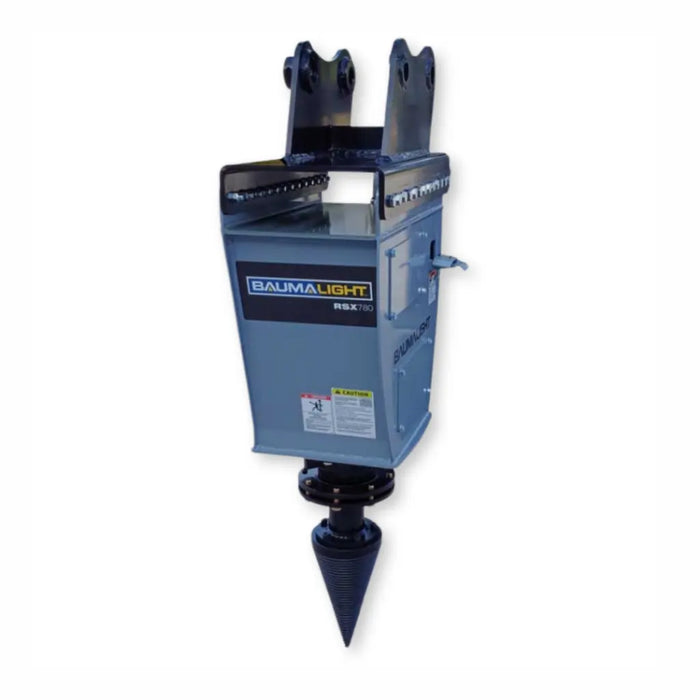

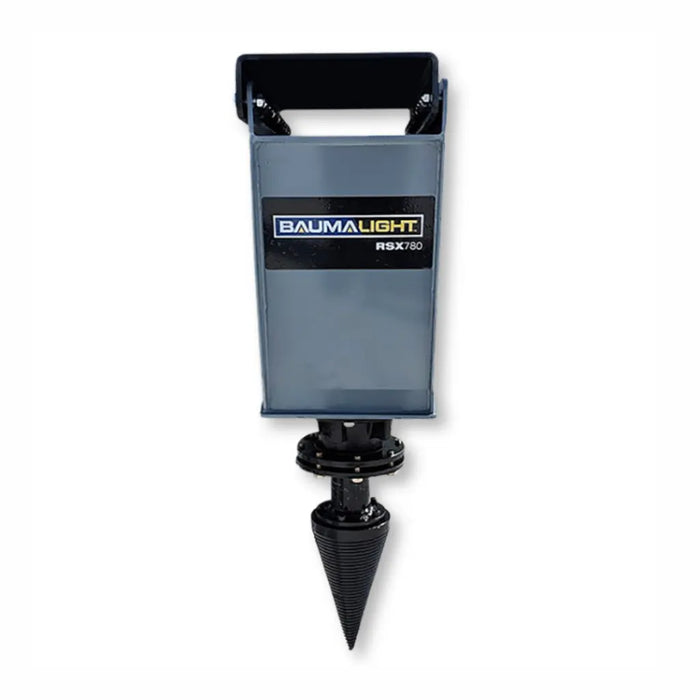

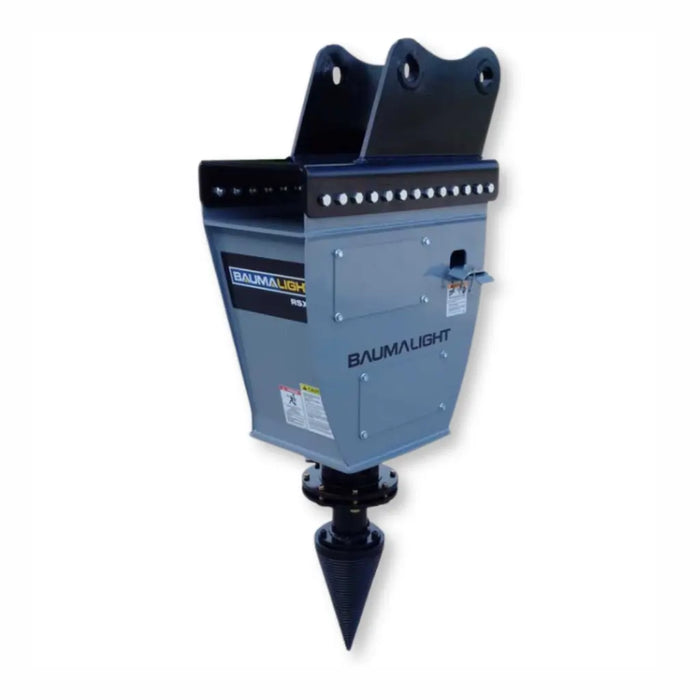

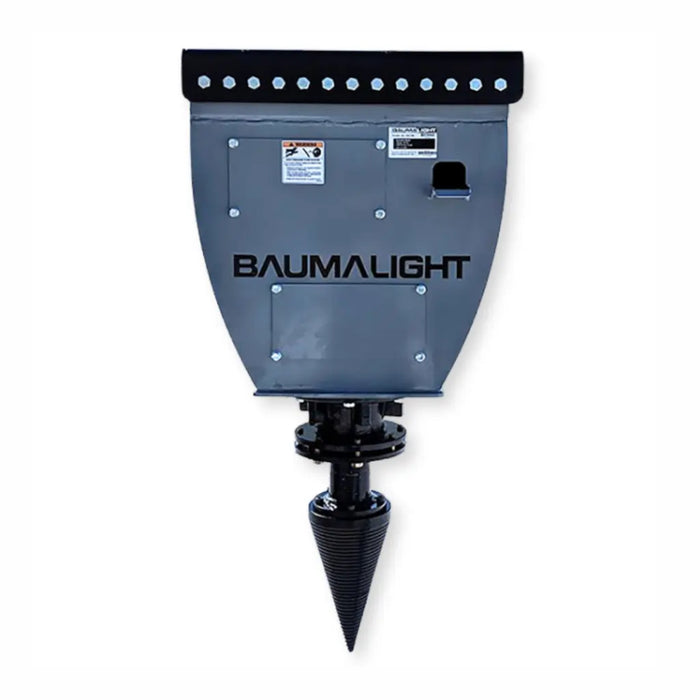

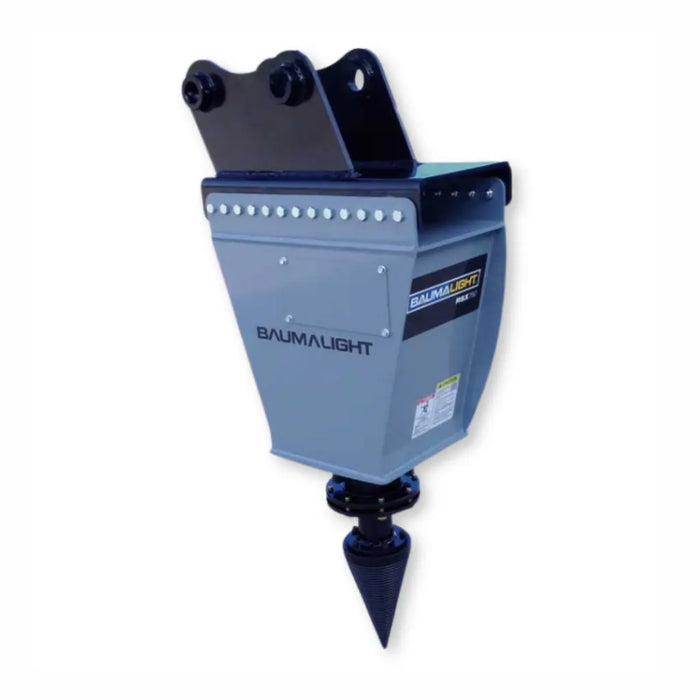

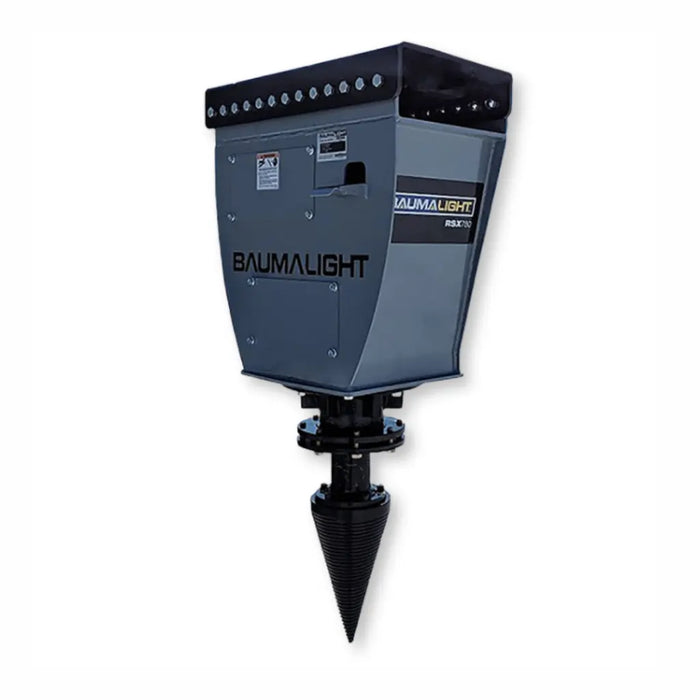

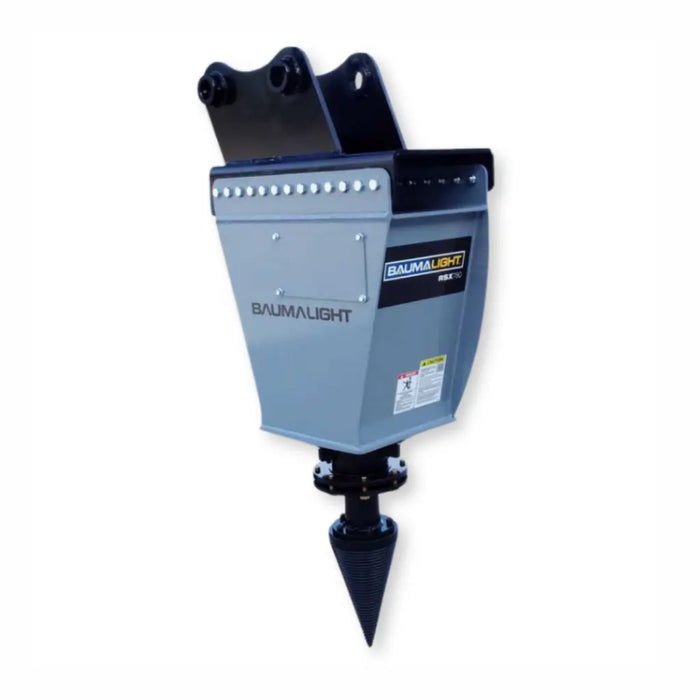

Baumalight RSX780 Log Splitter For Excavators
Baumalight RSX780 Log Splitter For Excavators Baumalight RSX780 Log Splitter For Excavators Baumalight RSX780 Log Splitter For Excavators Baumalight RSX780 Log Splitter For Excavators Baumalight RSX780 Log Splitter For Excavators Baumalight RSX780 Log Splitter For Excavators Baumalight RSX780 Log Splitter For Excavators
Baumalight RSX780 Log Splitter For Excavators Baumalight RSX780 Log Splitter For Excavators Baumalight RSX780 Log Splitter For Excavators Baumalight RSX780 Log Splitter For Excavators Baumalight RSX780 Log Splitter For Excavators Baumalight RSX780 Log Splitter For Excavators Baumalight RSX780 Log Splitter For Excavators
Splitter Tool 8-bolt flange mount 14x8 splitter cone
Maximum Log Length 20 Feet
Splitting Orientation Horizontal or Vertical
Commonly Used For
Forestry
Lumber Yards
Agriculture
Baumalight RSX780 Log Splitter For Excavators
Limited time deal
$7,450
List Price:
Compatible Others compatible Not compatible
Built To Order
Delivery By Saturday, December 06
SKU: BML-RSX780-D001419
Weight: 900.0 lb
1

Frequently Bought With

Frequently Bought With

Frequently Bought With

Frequently Bought With

Product Overview
down arrow

The Baumalight RSX780 Log Splitter is a heavy-duty, excavator-mounted wood splitter built to handle logs up to 12 to 20 feet long with ease. Engineered with a bolt-on excavator mount, this log splitter uses a hydraulically driven planetary drive to generate high torque directly to the splitting bit. Its dual helical spiral blades and hardened tip bore deep into tough wood, delivering maximum splitting force. Mounted on a 2" hex shaft or flange, and protected by an integrated drive shield, the RSX780 operates both horizontally and vertically, making it a powerful and versatile solution for serious log processing in the field.

✔ 20' Log Capacity
✔ Dual Spiral Bit
👇 Specifications Below

Specifications
down arrow
Model RSX380 RSX580 RSX780
A02 A02 A03
Splitter Tools 2" Hex 14x8 splitter cone (D002193) 2" Hex 14x8 splitter cone (D002193) 8-bolt flange mount 14x8 splitter cone (D003935)
Adaptor Bolt on Bolt on Bolt on
Carrier weight for planer 5 ton (Max lbs) 8 ton (Max lbs) 18 ton (Max lbs)
Carrier weight for splitter 10 ton (Max lbs) 10 ton (Max lbs) 20 ton (Max lbs)
Rec. GPM 20-40 20-45 20-55
Max. GPM 45 45 65
Rec. PSI 2500-3000 2500-3000 2500-4500
Max. PSI 3500 3500 5000
Drive Size 2" Hex 2" Hex 8 Bolt Flange
Drive Type Planetary Planetary Planetary
Hoses Included No No No
Technical Documents
down arrow
Open RSX_Splinter
Shipping & Returns
down arrow
We offer FREE 2-5 day shipping (LTL Freight and Residential) for all Baumalight attachments. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com.

More information on refunds and returns can be found here.
Warranty
down arrow

Baumalight Attachments are warranted to be free of defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase. This warranty covers parts and labor, but does not cover misuse, negligence, dealer travel time and shipping costs to and from the dealer.

Refer to manufacturer's manual for full warranty details.

See it in action!

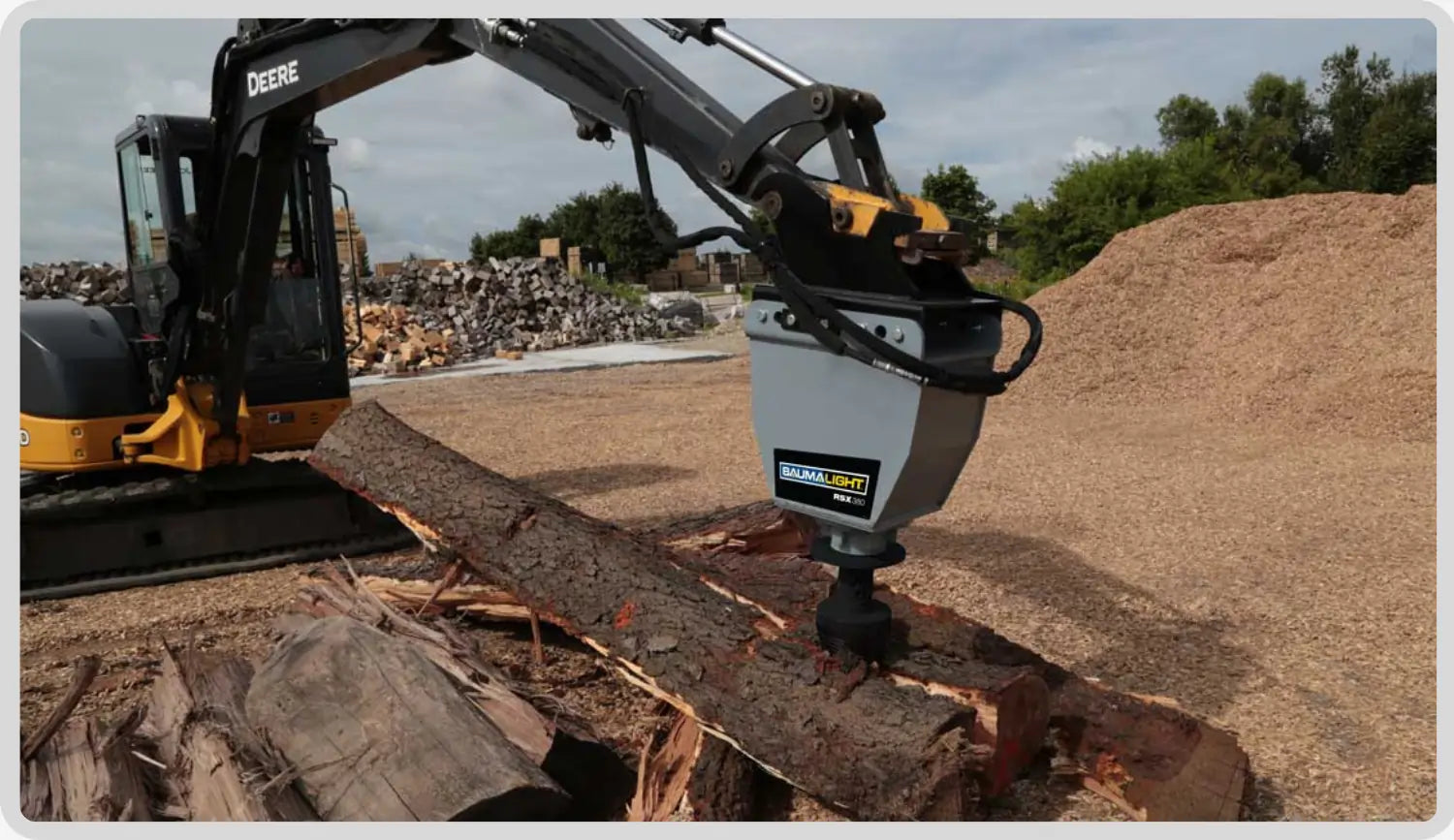

RSX780 Excavator Log Splitter

The RSX780 is Baumalight’s most capable excavator-mounted log splitter, designed for handling oversized logs up to 20 feet. Built with a bolt-on adaptor and powered by a high-torque planetary drive, it delivers unmatched performance in the field. Its unique dual-spiral bit and hardened tip provide reliable boring and splitting power, while the rugged shaft and integrated protection ensure long-term durability. Ideal for forestry operations, land clearing, and high-volume firewood production.

Planetary Drive Power
Planetary Drive Power
Hydraulic planetary drive delivers up to 3,800 ft/lbs of torque for powerful splitting.
3,800 ft/lbs Torque High Torque Output Durable Gearbox
read more down arrow
Hydraulic planetary drive delivers up to 3,800 ft/lbs of torque for powerful splitting.
No 12V Required
No 12V Required
No extra wiring needed—connect quickly and easily without 12V electrical hookups.
No Wiring Needed Simplified Setup Low Maintenance
read more down arrow
No extra wiring needed—connect quickly and easily without 12V electrical hookups.
Seal Protection Flange
Seal Protection Flange
Flange shields main shaft seal to guard bearings from debris and extend service life.
Seal Protection Flange Seals Shaft Area Protects Bearings
read more down arrow
Flange shields main shaft seal to guard bearings from debris and extend service life.
Integrated Gauge
Integrated Gauge
Built-in pressure gauge lets you monitor workload in real-time during operation.
Live Load Reading Easy Monitoring Real-Time Feedback
read more down arrow
Built-in pressure gauge lets you monitor workload in real-time during operation.
