Name: Baumalight RSX580 Log Splitter For Excavators
Brand: Baumalight
SKU: BML-RSX580-D001161
Price: 3780.0 USD
Availability: InStock

Baumalight RSX580 Log Splitter For Excavators

See more by Baumalight

1 Video

Baumalight RSX580 Log Splitter For Excavators

Splitter Tool 2" Hex 14x8 splitter cone

Maximum Log Length 20 Feet

Splitting Orientation Horizontal or Vertical

Commonly Used For

Forestry

Lumber Yards

Agriculture

Baumalight RSX580 Log Splitter For Excavators

See more by Baumalight

1 Video

Limited time deal

$3,780

List Price:

Built To Order

Delivery By Saturday, December 06

SKU: BML-RSX580-D001161

Weight: 650.0 lb

Mount Option

1

Frequently Bought With

Product Overview

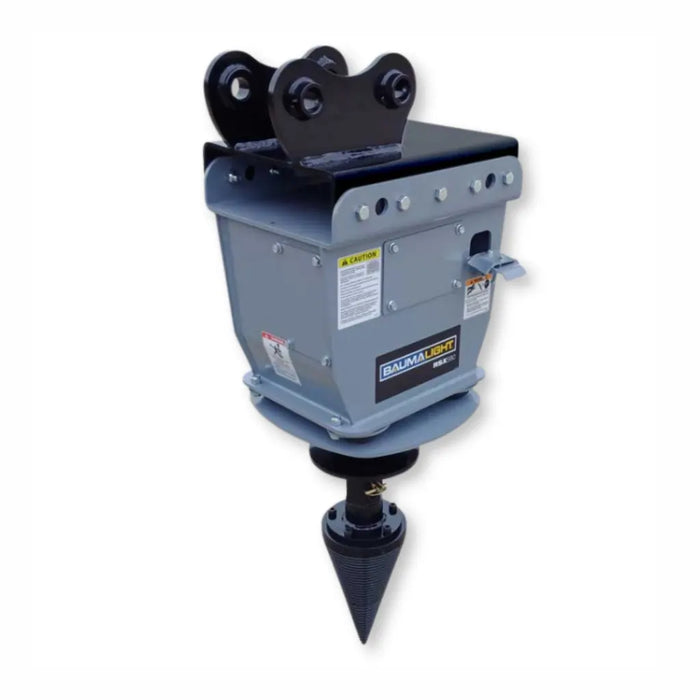

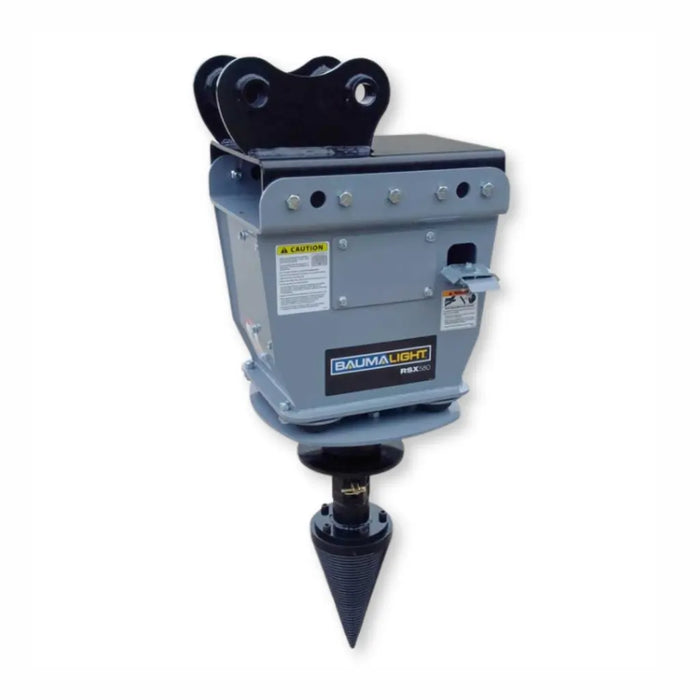

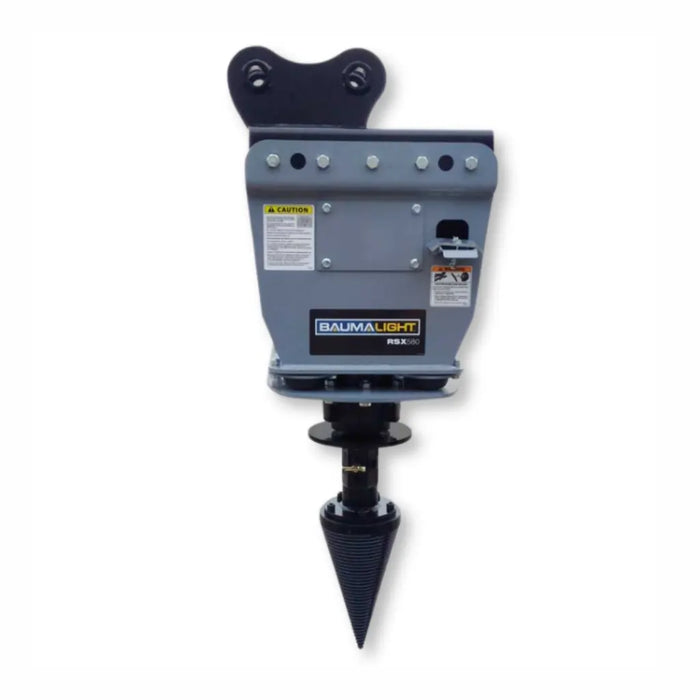

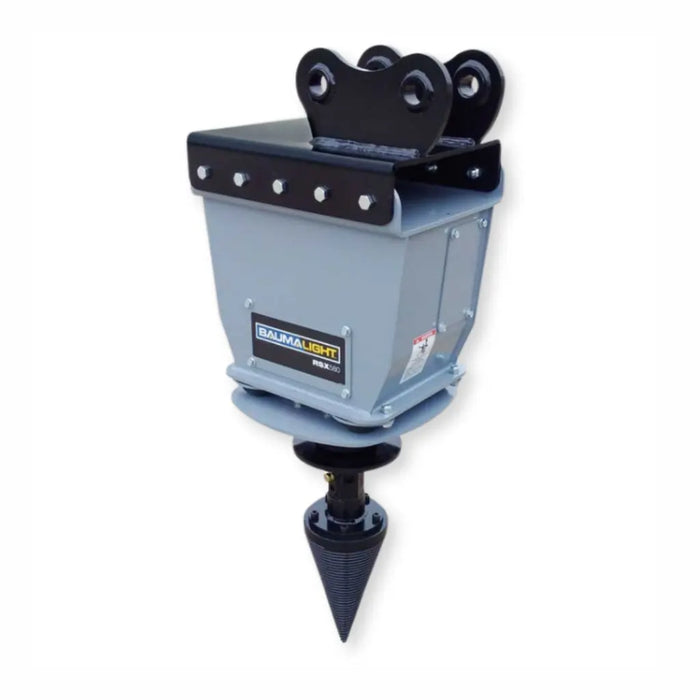

The Baumalight RSX580 Log Splitter is a powerful excavator-mounted solution for splitting logs up to 12 to 20 feet in length. Designed with a bolt-on excavator adaptor, the RSX580 delivers high torque through a hydraulic planetary drive system, making it ideal for heavy-duty applications. The helical split bit, machined from two spiral-formed steel pieces, converges at a hardened, replaceable tip to bore smoothly into dense wood. Built on a 2” hex shaft or flange mount, with an integrated shield for protection, the RSX580 can operate in both horizontal and vertical positions, making it the go-to tool for demanding log-splitting operations in the field.

✔ 20' Log Capacity
✔ Helical Split Bit
👇 Specifications Below

Specifications

Model	RSX380	RSX580	RSX780
	A02	A02	A03

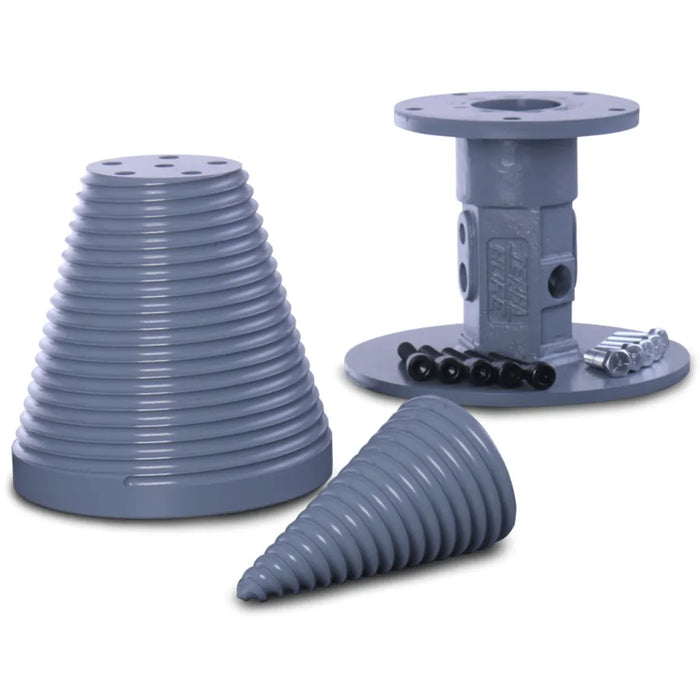

Splitter Tools	2" Hex 14x8 splitter cone (D002193)	2" Hex 14x8 splitter cone (D002193)	8-bolt flange mount 14x8 splitter cone (D003935)
Adaptor	Bolt on	Bolt on	Bolt on
Carrier weight for planer	5 ton (Max lbs)	8 ton (Max lbs)	18 ton (Max lbs)
Carrier weight for splitter	10 ton (Max lbs)	10 ton (Max lbs)	20 ton (Max lbs)
Rec. GPM	20-40	20-45	20-55
Max. GPM	45	45	65
Rec. PSI	2500-3000	2500-3000	2500-4500
Max. PSI	3500	3500	5000
Drive Size	2" Hex	2" Hex	8 Bolt Flange
Drive Type	Planetary	Planetary	Planetary
Hoses Included	No	No	No

Technical Documents

Open RSX_Splinter

Shipping & Returns

We offer FREE 2-5 day shipping (LTL Freight and Residential) for all Baumalight attachments. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com.

More information on refunds and returns can be found here.

Warranty

Baumalight Attachments are warranted to be free of defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase. This warranty covers parts and labor, but does not cover misuse, negligence, dealer travel time and shipping costs to and from the dealer.

Refer to manufacturer's manual for full warranty details.

See it in action!

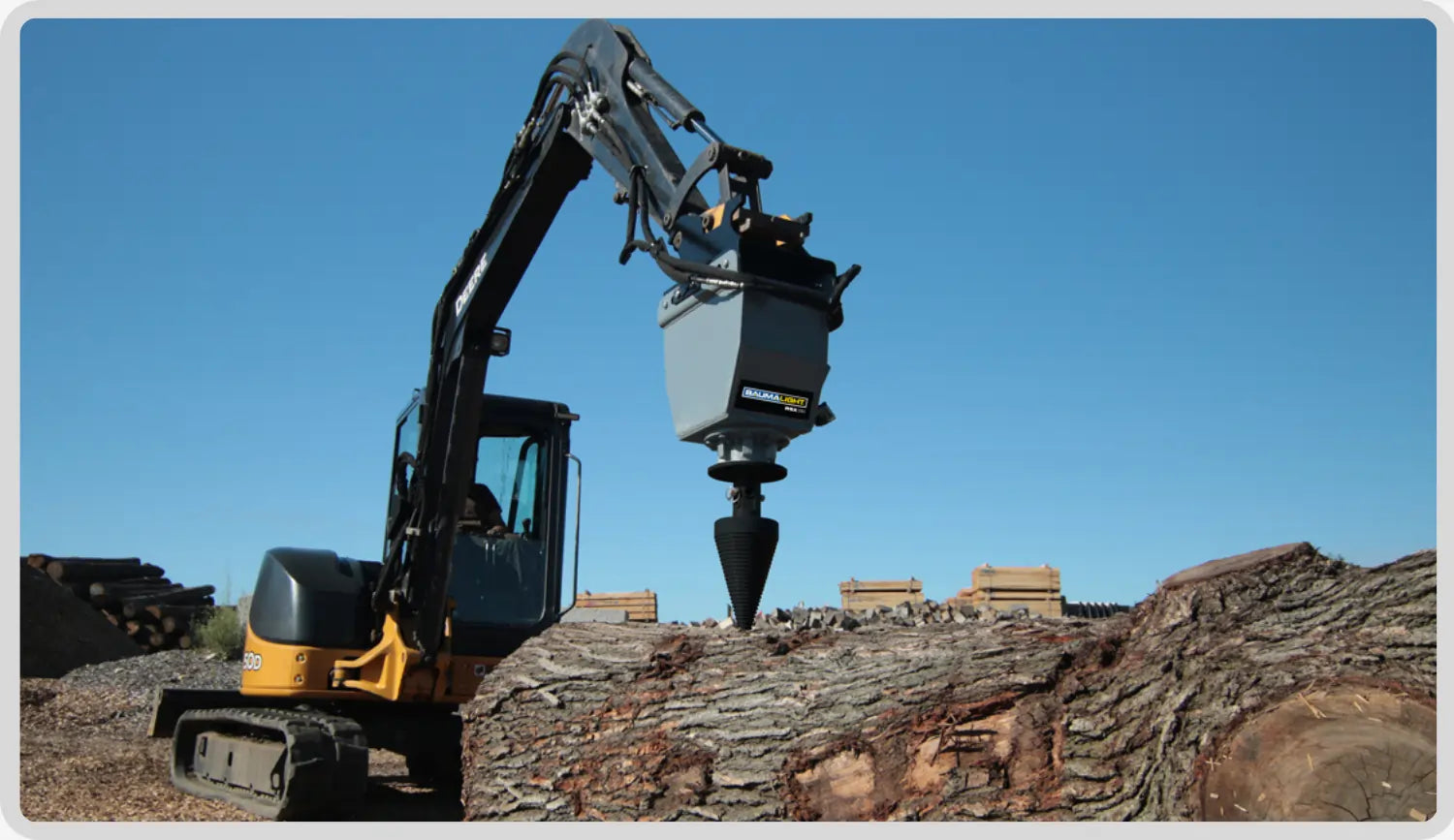

RSX580 Excavator Log Splitter

The RSX580 Splinter Log Splitter is built for excavator operators who need serious splitting power in the woods or on the jobsite. With a 20-foot log capacity, spiral-shaped cutting bit, and bolt-on excavator mount, this tool brings high torque to any task. The planetary drive system delivers strong, consistent force, while the hardened tip and durable hex shaft are built to perform under pressure. Whether you're splitting vertically or horizontally, the RSX580 is designed for maximum efficiency and versatility.
