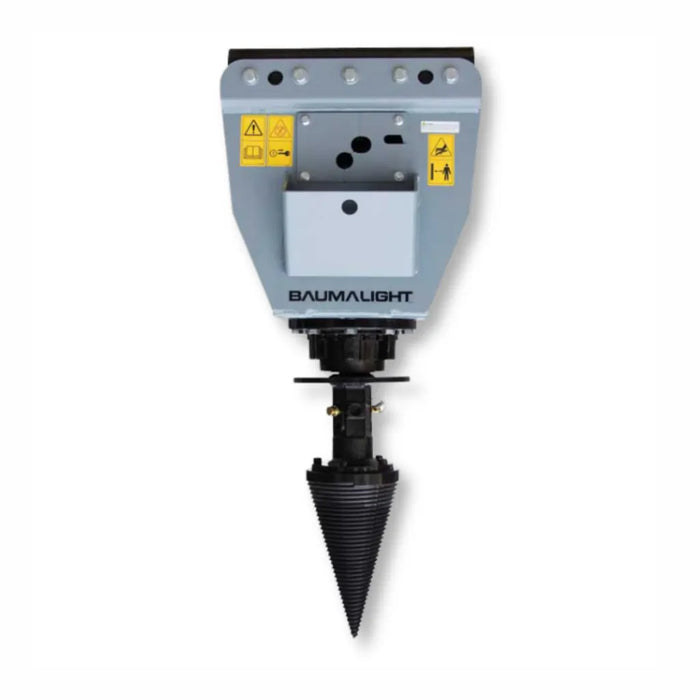

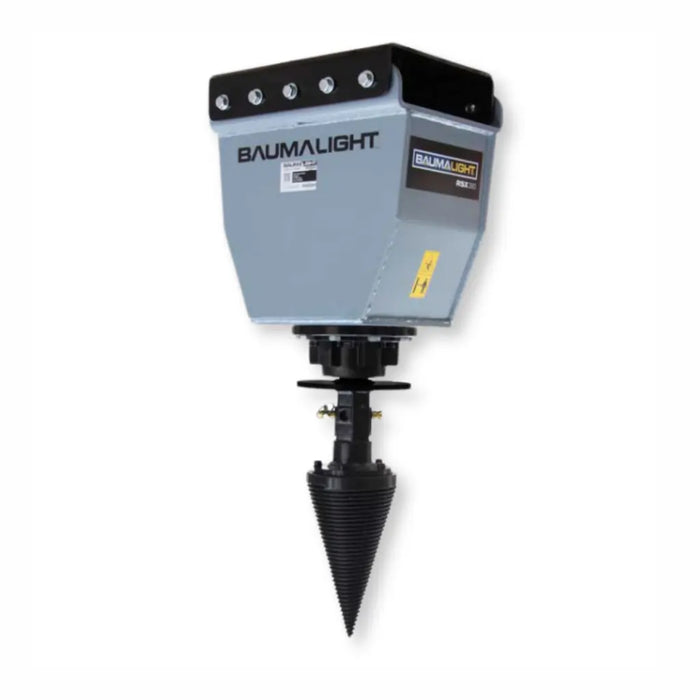

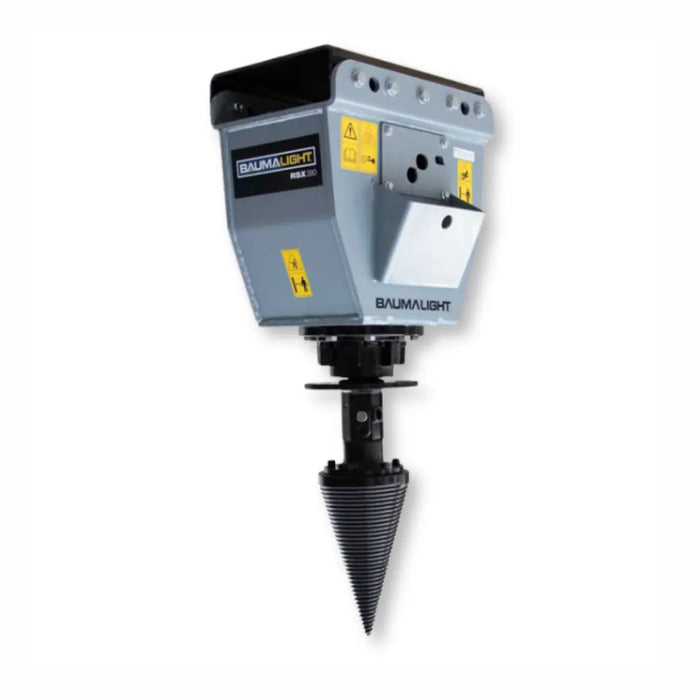

Name: Baumalight RSX380 Log Splitter For Excavators
Brand: Baumalight
SKU: BML-RSX380-D001161
Price: 3380.0 USD
Availability: InStock

Baumalight RSX380 Log Splitter For Excavators

See more by Baumalight

1 Video

Baumalight RSX380 Log Splitter For Excavators

Splitter Tool 2" Hex 14x8 splitter cone

Maximum Log Length 20 Feet

Splitting Orientation Horizontal or Vertical

Commonly Used For

Forestry

Lumber Yards

Agriculture

Baumalight RSX380 Log Splitter For Excavators

See more by Baumalight

1 Video

Limited time deal

$3,380

List Price:

Built To Order

Delivery By Saturday, December 06

SKU: BML-RSX380-D001161

Weight: 500.0 lb

Mount Option

1

Frequently Bought With

Product Overview

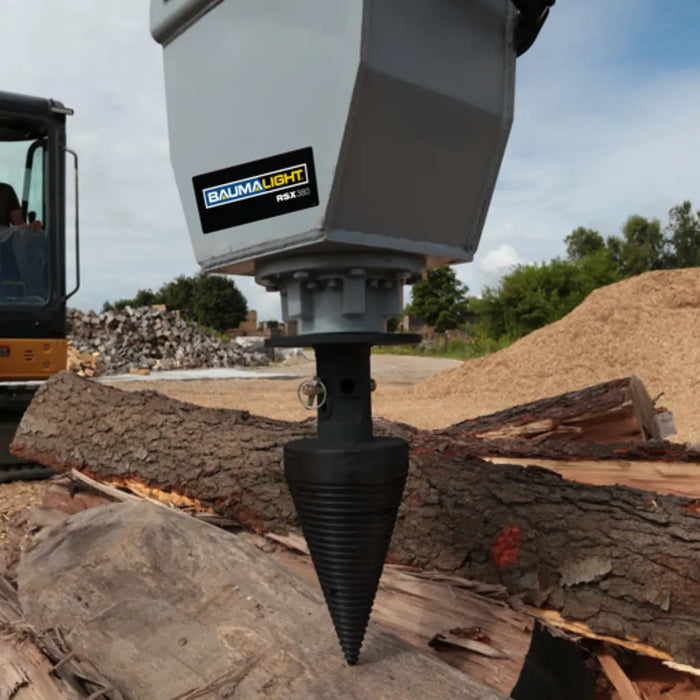

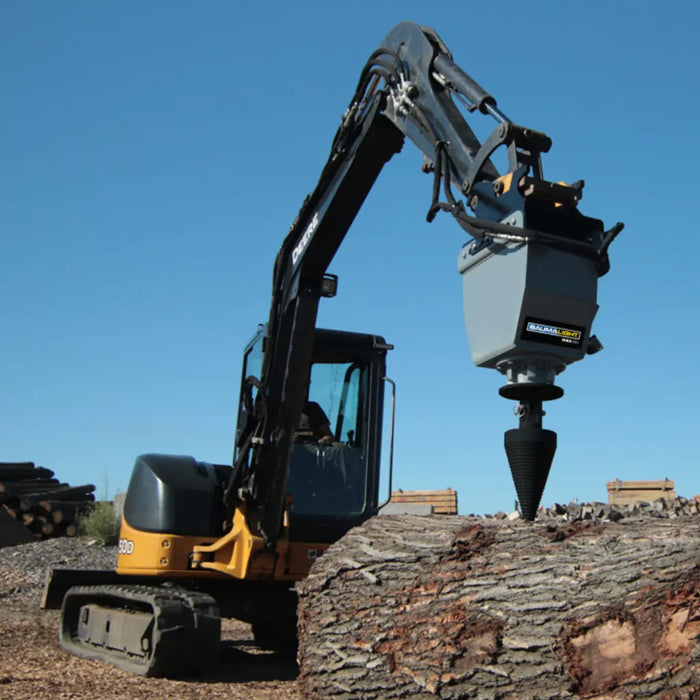

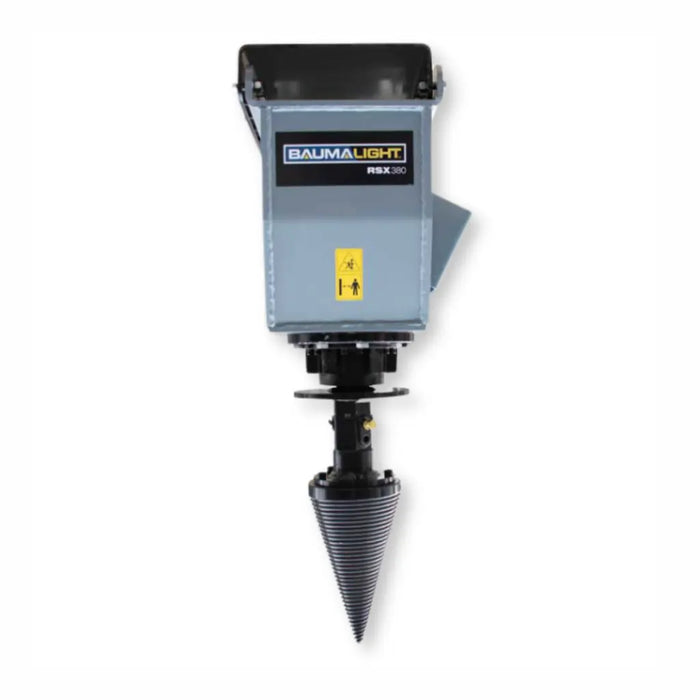

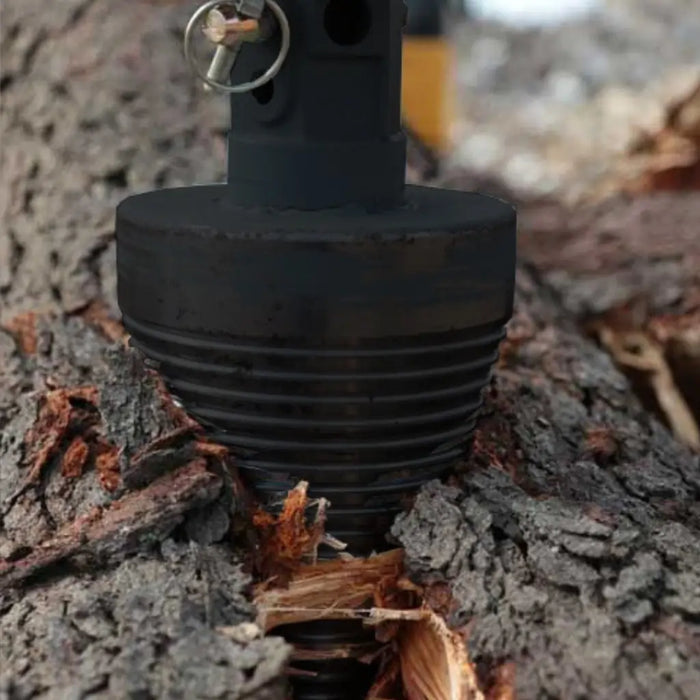

The Baumalight RSX380 Log Splitter is a rugged, excavator-mounted log splitting solution built to tackle oversized timber with ease. Designed to split logs up to 12 to 20 feet long, the RSX380 uses a bolt-on excavator mount and is powered by a hydraulic motor with a planetary drive, delivering high torque to the spiral split bit. The dual-helical steel spirals converge at a hardened tip, allowing the splitter to bore deep into logs with maximum force. A 2” hex shaft or flange mount with an integrated shield provides durability and protection, and the unit works in both horizontal and vertical positions—perfect for remote or tight access wood processing.

✔ 20' Log Capacity
✔ Bolt-On Mount
👇 Specifications Below

Specifications

Model	RSX380	RSX580	RSX780
	A02	A02	A03

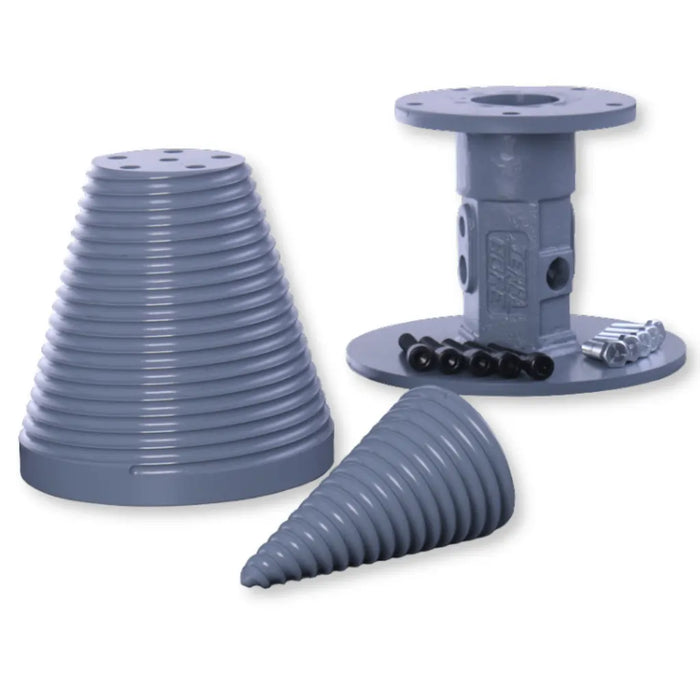

Splitter Tools	2" Hex 14x8 splitter cone (D002193)	2" Hex 14x8 splitter cone (D002193)	8-bolt flange mount 14x8 splitter cone (D003935)
Adaptor	Bolt on	Bolt on	Bolt on
Carrier weight for planer	5 ton (Max lbs)	8 ton (Max lbs)	18 ton (Max lbs)
Carrier weight for splitter	10 ton (Max lbs)	10 ton (Max lbs)	20 ton (Max lbs)
Rec. GPM	20-40	20-45	20-55
Max. GPM	45	45	65
Rec. PSI	2500-3000	2500-3000	2500-4500
Max. PSI	3500	3500	5000
Drive Size	2" Hex	2" Hex	8 Bolt Flange
Drive Type	Planetary	Planetary	Planetary
Hoses Included	No	No	No

Technical Documents

Open RSX_Splinter

Shipping & Returns

We offer FREE 2-5 day shipping (LTL Freight and Residential) for all Baumalight attachments. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com.

More information on refunds and returns can be found here.

Warranty

Baumalight Attachments are warranted to be free of defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase. This warranty covers parts and labor, but does not cover misuse, negligence, dealer travel time and shipping costs to and from the dealer.

Refer to manufacturer's manual for full warranty details.

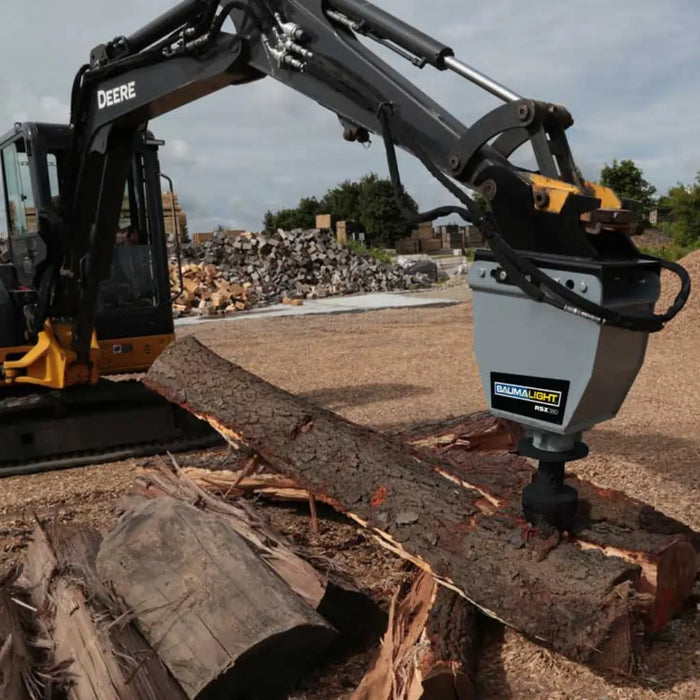

See it in action!

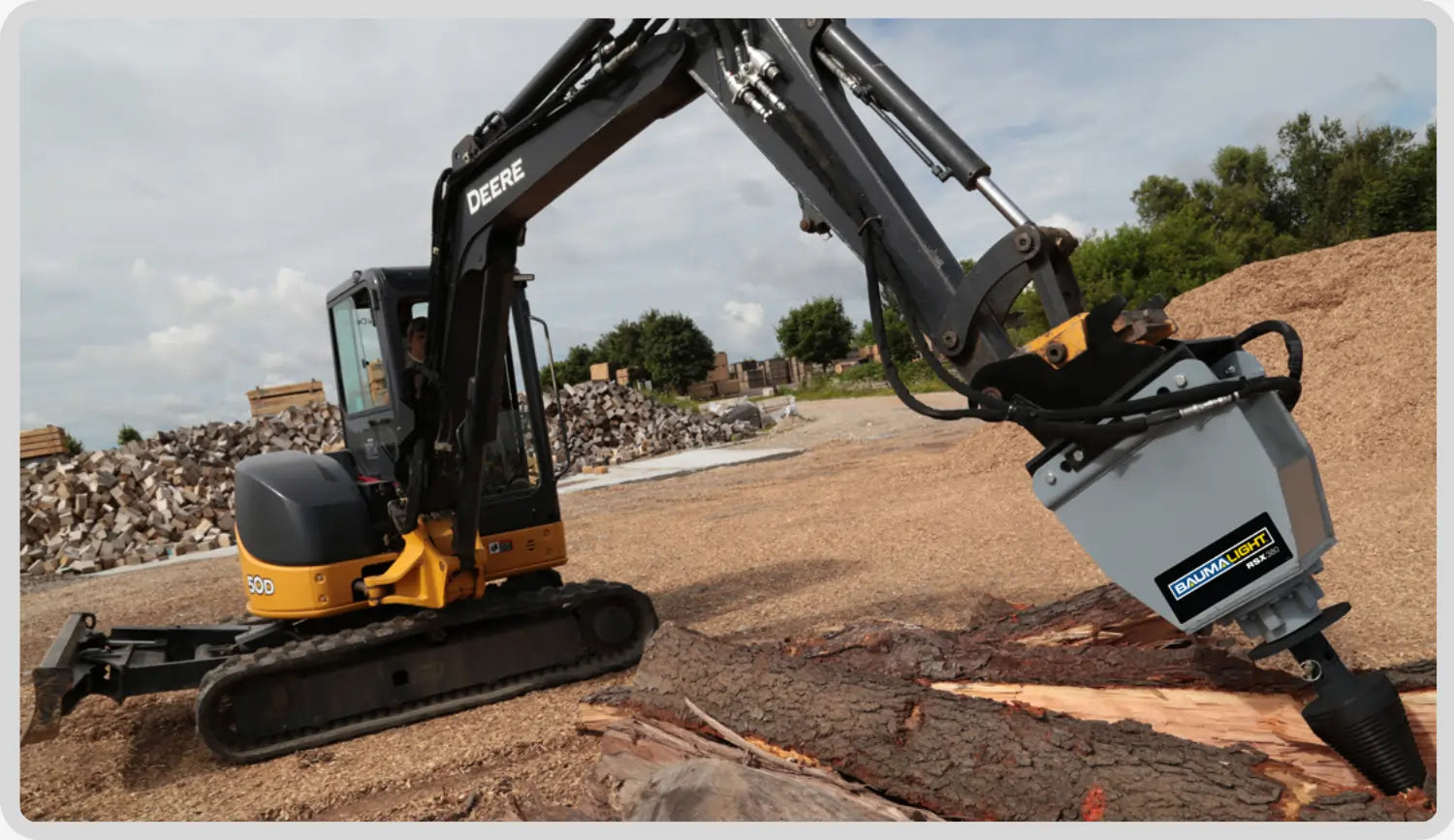

RSX380 Excavator Log Splitter

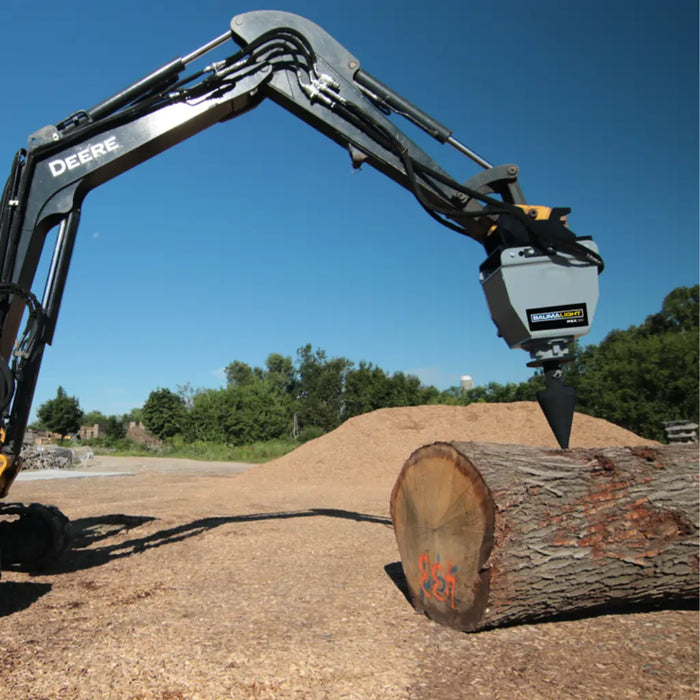

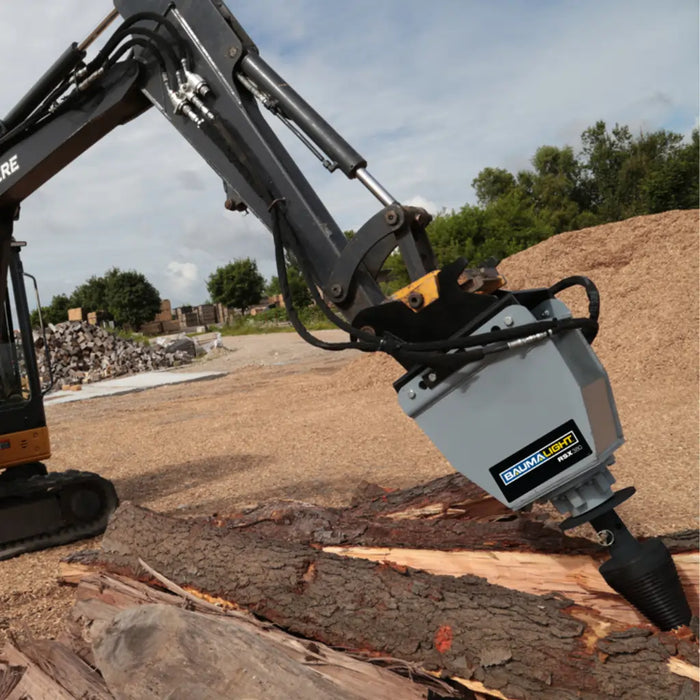

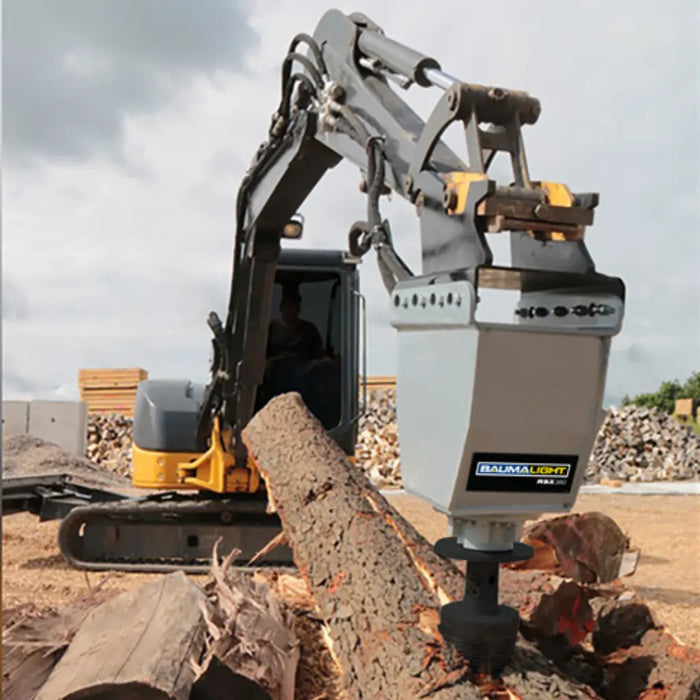

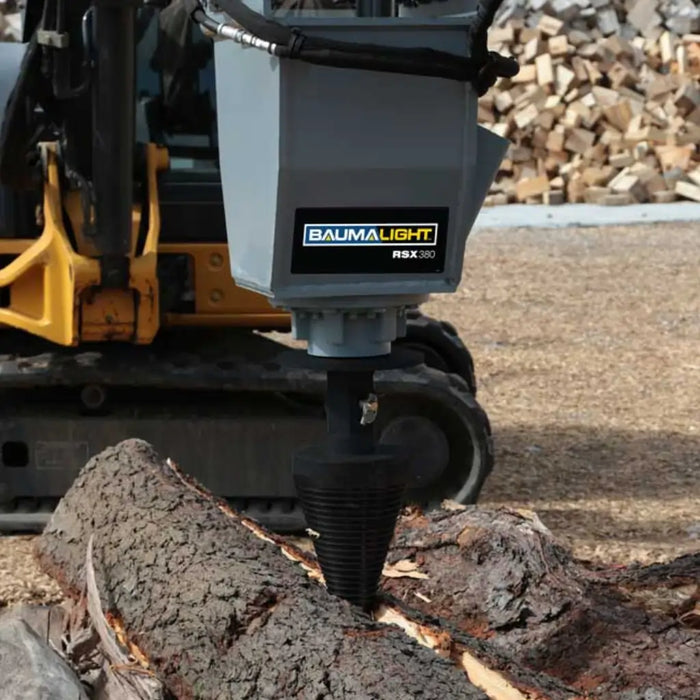

The RSX380 Splinter Log Splitter from Baumalight is built for excavator operators who need a high-torque, high-capacity splitter for processing long or oversized logs. The bolt-on mount fits a wide range of machines, and the powerful hydraulic drive with a planetary gearbox delivers serious torque to the hardened spiral bit. Capable of splitting up to 20-foot logs, the RSX380 is equally effective in vertical or horizontal operation, offering flexible performance in any terrain or jobsite.
