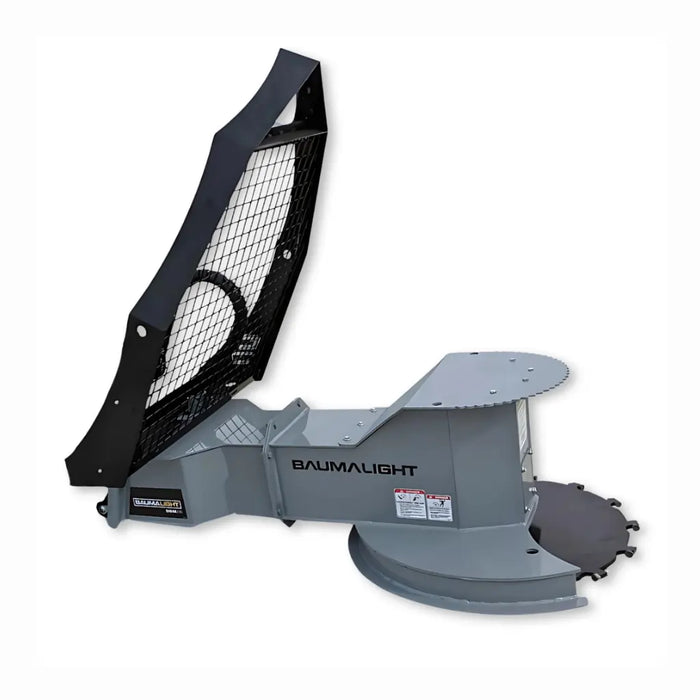

Name: Baumalight DSM230 Rotating Tree Saw for Mini Skid Steers
Brand: Baumalight
SKU: BML-DSM230-T508-1
Price: 6010.0 USD
Availability: InStock

Baumalight DSM230 Rotating Tree Saw for Mini Skid Steers

See more by Baumalight

2 Videos

Baumalight DSM230 Rotating Tree Saw for Mini Skid Steers

Optimal Flow Range 6 - 20 GPM

Cutting Time For 10" Limb 10 Seconds @ 3000 PSI

Case Drain Required

Commonly Used For

Landscaping

Trail Maintenance

Brush Management

Baumalight DSM230 Rotating Tree Saw for Mini Skid Steers

See more by Baumalight

2 Videos

Limited time deal

$6,010

List Price:

Built To Order

Delivery By Saturday, December 06

SKU: BML-DSM230-T508-1

Weight: 650.0 lb

Mount Option Color

6 Replacement Teeth

Free

Frequently Bought With

Product Overview

Take control of your land-clearing tasks with the DSM230 Tree Saw, designed for mini skid steers. Featuring a 90-degree manually rotating cutting head for horizontal or vertical use, it boasts a heavy-duty AR400 steel blade with replaceable carbide teeth. Equipped with robust motors, protective shielding, and built-in safety features, this saw will make your next landscaping job a breeze.

✔ Cuts Up To 10" Diameter
✔ For Mini Skid Steers 6 - 20 GPM Flow👇 Specifications Below

Specifications

Model #	DSM230	DSM530	DSA530
ADAPTOR	MINI SKIDSTEER	UNIVERSAL SKIDSTEER	UNIVERSAL SKIDSTEER
Blade Angle	180°	180°	180°
Rotation	Bolt-on	Bolt-on	Actuator
Actuator	Manual	Manual	Helical
GPM	6-20	10-40	10-45
PSI	4,000	4,000	4,000
Electrical AUX	Not required	Not required	2 ON/OFF pins & G
Requires Case Drain	Yes	Yes	Yes
Hydraulic Hose	Supplied	Supplied	Supplied
Hydraulic Couplers	Supplied	Not Supplied	Not Supplied
Motor Type	Bend Axis Piston	Bend Axis Piston	Bend Axis Piston
Motor Cc	25	47	47
Motor Option	T508	T530	T530
Blade Diameter	30"	30"	30"
Max Cut	10"	10"	10"
Blade Material	AR400	AR400	AR400
Cut Thickness	3/4"	3/4"	3/4"
Tooth part number	H3000	H3000	H3000
Type of Teeth	High Speed Teeth	High Speed Teeth	High Speed Teeth
No. of Edges per Tooth	3	3	3
Number of Teeth	12	12	12
Weight	650 lbs	800 lbs	900 lbs

Motor Options - Cutting Time Chart

Cutting Time for 10" Limb

MOTOR	MOTOR TYPE	CC	CASE DRAIN	RPM AT MAX GPM	PSI	9 GPM	12 GPM	15 GPM	20 GPM	25 GPM	30 GPM	40 GPM
T508	Piston	25	Critical	2500	3,000	30sec	20sec	15sec	10sec	-	-	-

Technical Documents

Open Owner_Manual_DSM230_DSM530_Tree_Saw

What's Included

AR400 Steel Blade

This heavy-duty circular blade is engineered to withstand the toughest cutting conditions, ensuring it will stand up to the toughest jobs. Designed for rugged performance, the AR400 blade is ideal for trimming, pruning, and clearing, providing reliable precision with every cut.

Clean cuts

Rotatable Teeth

The concave shaped carbide tip of Baumalight's rotatable teeth provide aggressive cutting action by chipping the brush bit by bit. This round tooth is 3 teeth in 1. Simply loosen the lock nut and rotate the tooth to a fresh, sharp cutting edge. This can be done three times, extending the life of each tooth.

All DSM230 Tree Saws come with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in a robust enclosed compartment on top of the frame.

High speed teeth

Angled Push Bar

The large push bar with integrated safety mesh is angled to help guide any falling debris away from the operator.

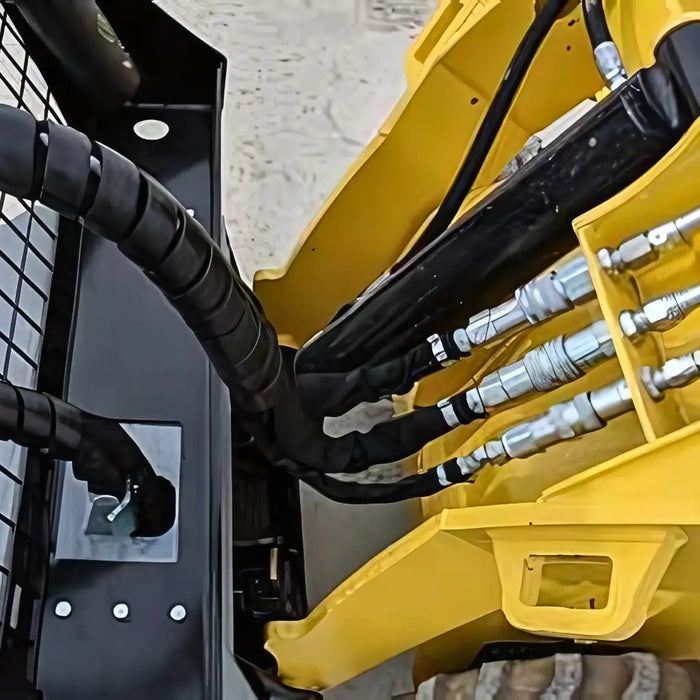

Double Shielded Hoses

Skid steer tree saw models ship with the necessary hydraulic hoses, so you can connect and go to work. All of the hydraulic hoses are routed internally where possible and sleeved for operator and hose protection, while the connecting hoses are sleeved and wrapped in hose armor for double protection.

Features

Available in 6 Custom Colors
Hose Supports

Also included with this purchase:

6 FREE Replacement Teeth
Baumalight DSM230 Operating Manual
1-Year Manufacturer Warranty
Attachments King Equipment Compatibility Guarantee
BONUS! 30-Day Dedicated 1-on-1 Support for Attachment Install & Use from an Attachments King Expert

Shipping & Returns

We offer FREE 2-5 day shipping (LTL Freight and Residential) for all Baumalight attachments. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com.

More information on refunds and returns can be found here.

Warranty

Baumalight Attachments are warranted to be free of defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase. This warranty covers parts and labor, but does not cover misuse, negligence, dealer travel time and shipping costs to and from the dealer.

Refer to manufacturer's manual for full warranty details.

See it in action!

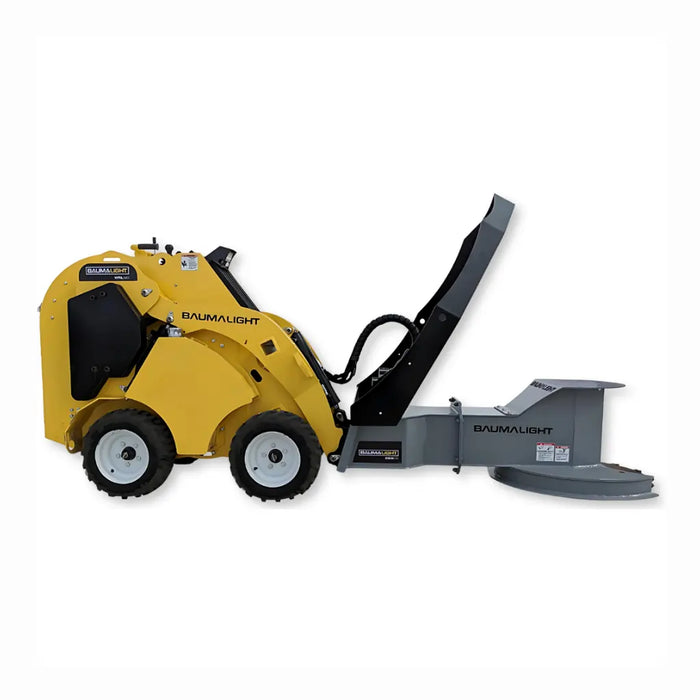

Baumalight DSM230 Mini Skid Steer Tree Saw

The Baumalight DSM230 Manual Rotation Tree Saw is the ultimate tool for landscapers and landowners, designed specifically for mini skid steers. Its hydraulically-driven blade cuts through limbs and shrubs with ease, and the 90-degree manual rotating cutting head offers both horizontal and vertical cutting versatility. Engineered with an AR400 steel blade, this saw provides unmatched durability for demanding tasks. Replaceable carbide-tipped teeth rotate up to three times for extended performance, ensuring clean and efficient cuts every time.

Built with a heavy-duty frame and protective powder coat finish, the DSM230 is made to endure tough work environments. The integrated angled push bar with safety mesh keeps operators safe by deflecting falling debris. Internal hydraulic hose routing and double-shielded hoses add protection and reliability, while the easy-access panels simplify maintenance.
