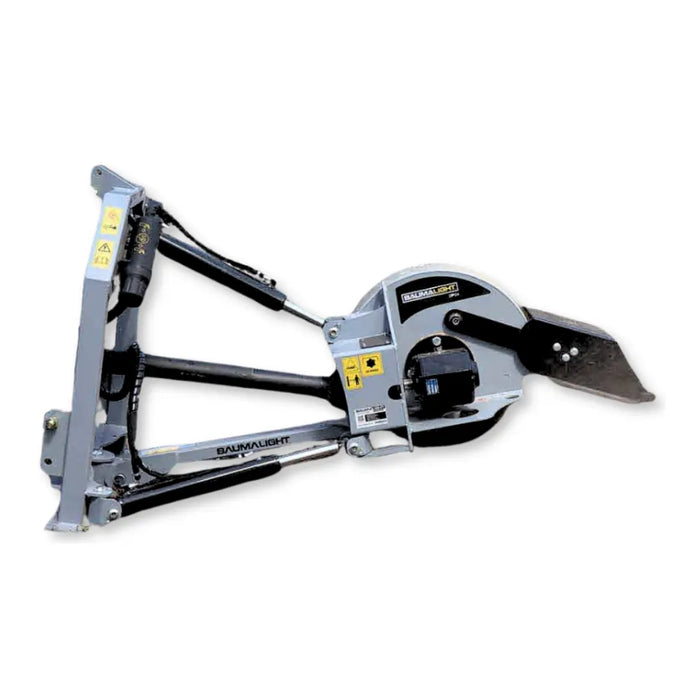

Name: Baumalight 3P24 Stump Grinder For Tractors
Brand: Baumalight
SKU: BML-3P24-S1050-C1-NT
Price: 6260.0 USD
Availability: InStock

Baumalight 3P24 Stump Grinder For Tractors

See more by Baumalight

5 Videos

Baumalight 3P24 Stump Grinder For Tractors

Optmal Flow Range 5 - 20 GPM

Max Tractor (Engine) Horsepower 58

Cutting Time For 30" Stump 12 min @ 40 HP

Commonly Used For

Agriculture

Trail Maintenance

Clearing Land

Baumalight 3P24 Stump Grinder For Tractors

See more by Baumalight

5 Videos

Limited time deal

$5,370

List Price:

In Stock

Delivery By Thursday, November 06

SKU: BML-3P24-S1050-C1-NT

Weight: 920.0 lb

Tractor Hitch Category Tractor Hydraulic Function Configuration Spare Teeth Set

6 Replacement Teeth

Free

Frequently Bought With

Product Overview

Enjoy relentless power and lightning-fast efficiency with the Baumalight 3P24 PTO Stump Grinder. Engineered for tractors with 30-60 HP, this robust grinder features a 24" rotor with 34 carbide teeth for optimal grinding prowess. With a substantial 803 Ft.-Lbs of torque at 810 RPM, and dual hydraulic remote compatibility, it ensures deep, precise cuts—18" above and 8" below ground.

✔ For Tractors 30-60 HP
✔ 24" Rotor and 18" Cutting Depth 👇 Specifications Below
👇 Specifications Below

Specifications

Model No.	1P14	1P24	3P24	3P34	3P38	3P40
Recommended HP Size	20-45	20-45	25-55	45-80	60-110	60-120
Maximum Engine HP	45	50	58	85	110	125
Maximum PTO HP	35	40	50	75	100	115
Transmission	Hydrostatic only	Hydrostatic only	Any	Any	Any	Any
Hydraulic GPM	--	--	5–20	5–20	5–20	5–20
Rotor Size	16"	24"	24"	34"	34"	34"
Number of Teeth	12	34	34	52	52	52
Tooth Part number	H3000	S1000	S1000	S1000	S1000	S1000
Tooth Construction	High speed round tooth	Carbide steel bolt-in	Carbide steel bolt-in	Carbide steel bolt-in	Carbide steel bolt-in	Carbide steel bolt-in
Cutting Wheel Speed	540 RPM	540 RPM	810 RPM	810 RPM	810 RPM	1000 RPM
Cutting Height - Above Ground	10"	10"	18"	25"	25"	25"
Cutting Depth - Below Ground	5"	6"	8"	14"	14"	14"
Maximum Cutting Depth - Per Pass	2"	5"	6"	9"	9"	9"
Maximum Horizontal Cut	18"	22"	22"	32"	32"	32"
Swing Arc	0°	0°	65°	65°	65°	65°
Hub Torque	664 Ft.-Lbs.	885 Ft.-Lbs.	885 Ft.-Lbs.	1475 Ft.-Lbs.	1475 Ft.-Lbs.	1327 Ft.-Lbs.
Over Torque Protection	Slip clutch	Slip clutch	Slip clutch	Slip clutch	Slip clutch	Slip clutch
Hitch	Cat I	Cat I	Cat I or II	Cat II	Cat II	Cat II
Quick hitch compatibility	Yes	Yes	No	No	No	No
No. of Remotes Required - Hydraulic	0	0	1 or 2	1 or 2	1 or 2	1 or 2
Requires 12 Volt DC	No	No	No	No	No	No
Input Speed	540	540	540	540	540	1000
Unit Weight (Shipping) Lbs.	360	450	920	1231	1113.80	1280
Width (Shipping)	36"	36"	42"	48"	48"	48"
Length (Shipping)	30"	30"	49"	54"	54"	54"

Stump cutting time chart

Tractor HP	20Hp	30Hp	40Hp	60Hp	70Hp	80Hp	90Hp	120Hp

--	30 min	20 min	15 min	--	--	--	--	--

Tractor HP	20Hp	30Hp	40Hp	60Hp	70Hp	80Hp	90Hp	120Hp

--	--	15 min	12 min	10 min	--	--	--	--

Tractor HP	20Hp	30Hp	40Hp	60Hp	70Hp	80Hp	90Hp	120Hp

--	--	--	--	6 min	5 min	4 min	--	--

Tractor HP	20Hp	30Hp	40Hp	60Hp	70Hp	80Hp	90Hp	120Hp

--	--	--	--	6 min	5 min	4 min	3 min	2 min

Technical Documents

Open 3P_Series_Stump_Grinder_OM

Shipping & Returns

We offer FREE 2-5 day shipping (LTL Freight and Residential) for all Baumalight attachments. Products will ship out in 1-3 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there's an issue with your product, we make refunds and returns quick and easy. To contact us, email sales@attachmentsking.com.

More information on refunds and returns can be found here.

Warranty

Baumalight Attachments are warranted to be free of defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase. This warranty covers parts and labor, but does not cover misuse, negligence, dealer travel time and shipping costs to and from the dealer.

Refer to manufacturer's manual for full warranty details.

See it in action!

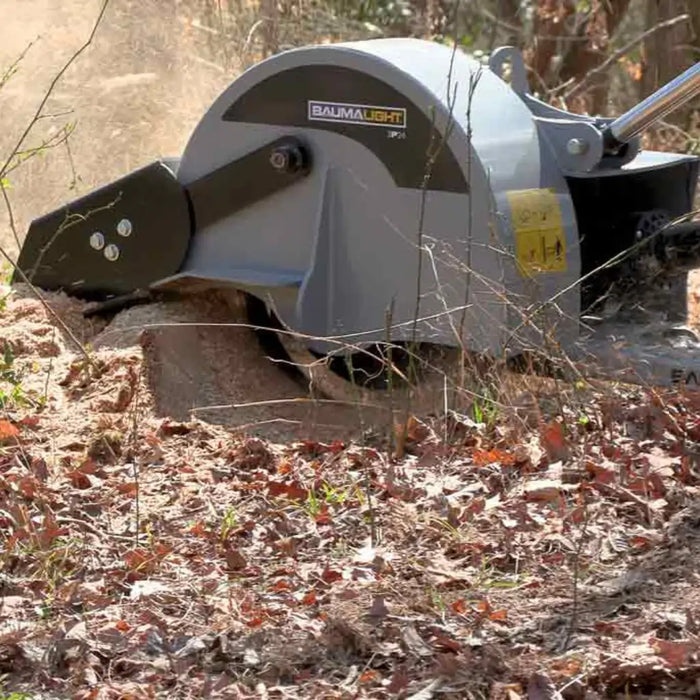

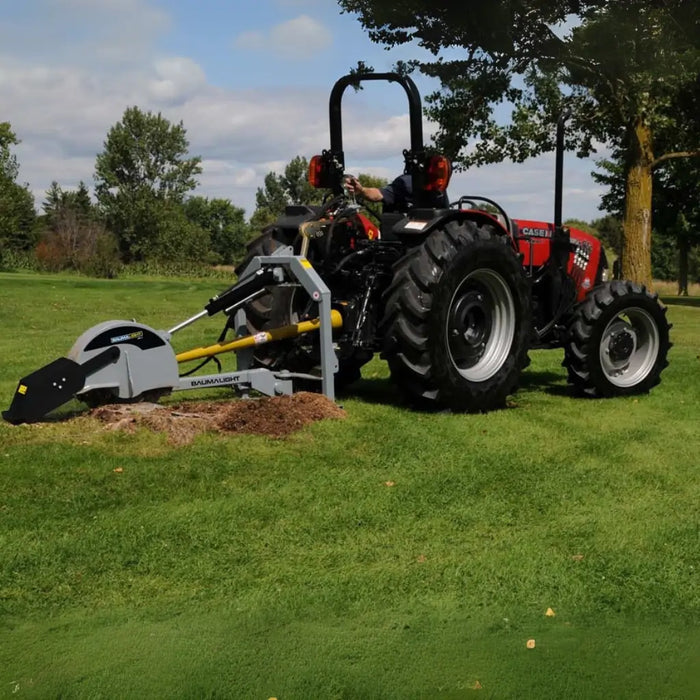

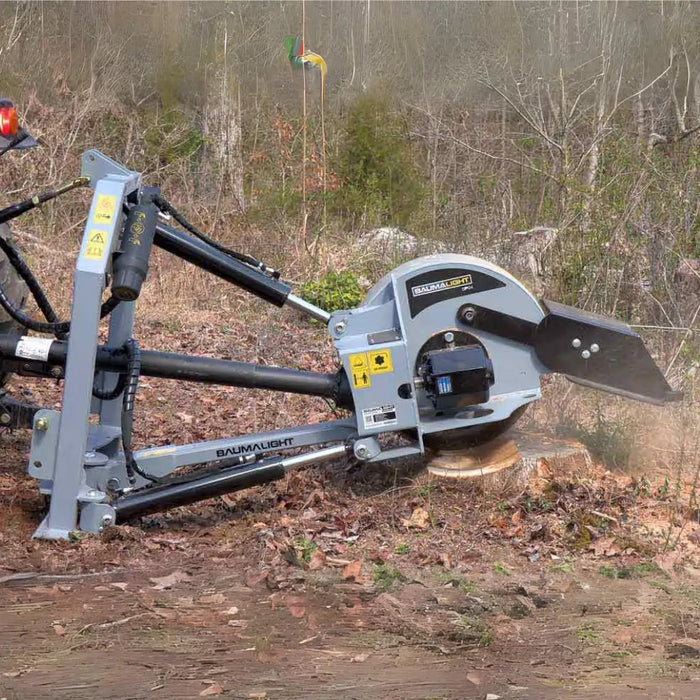

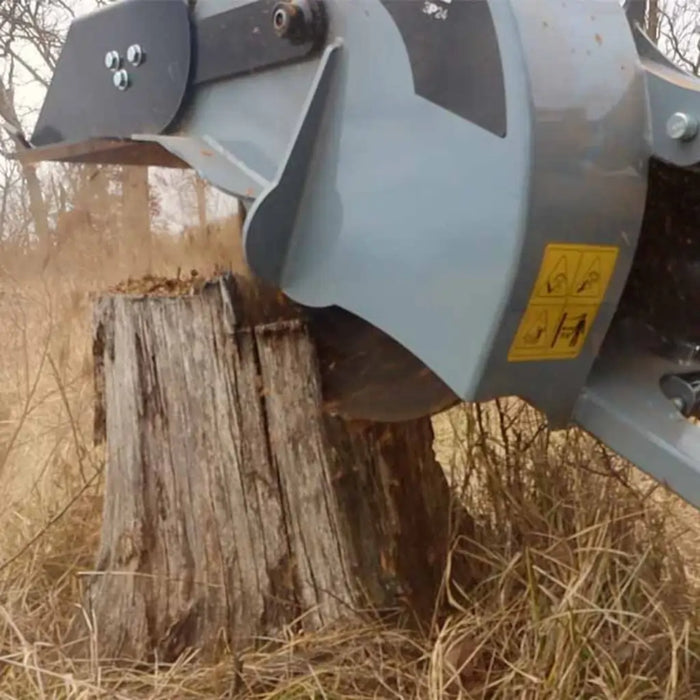

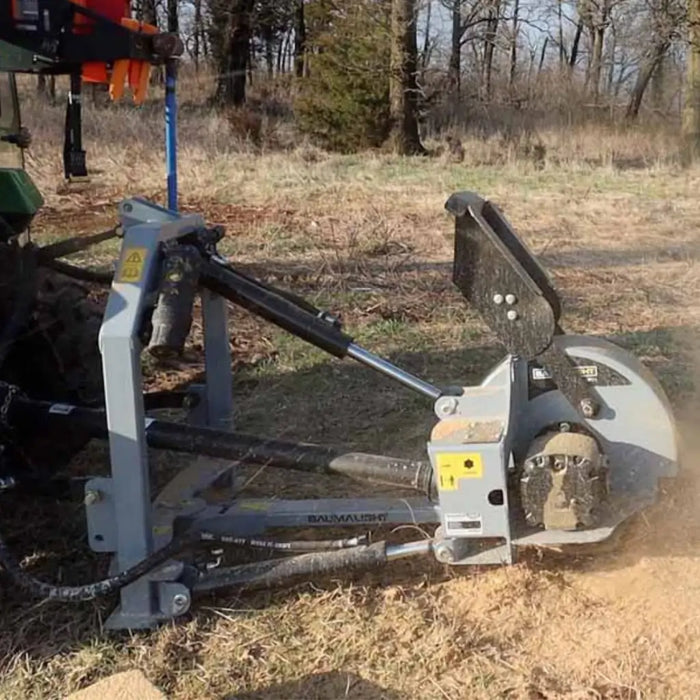

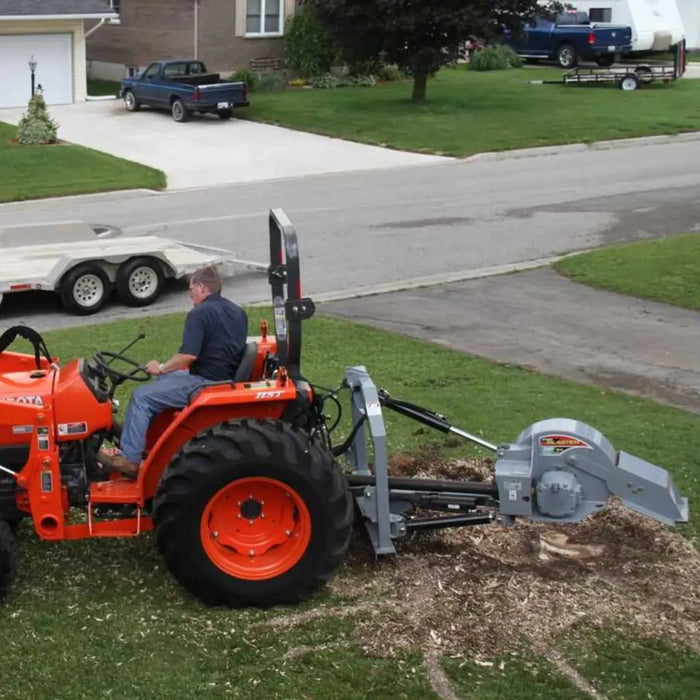

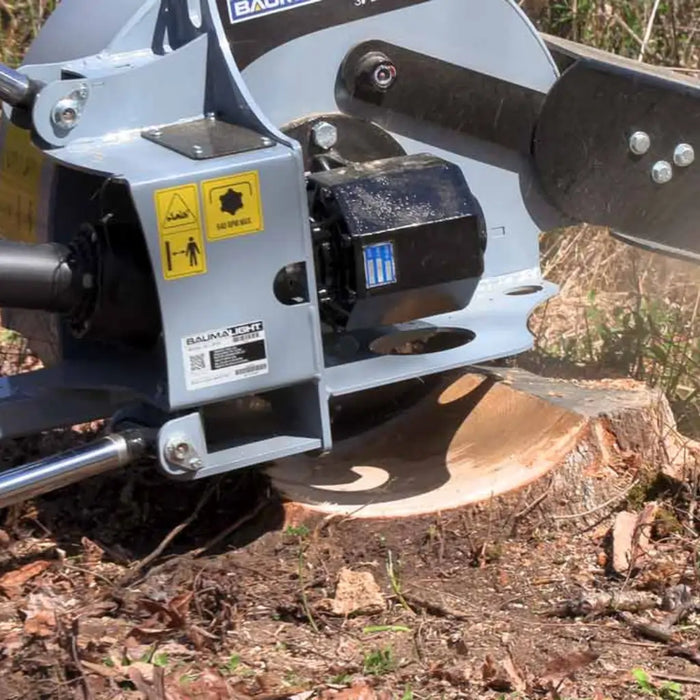

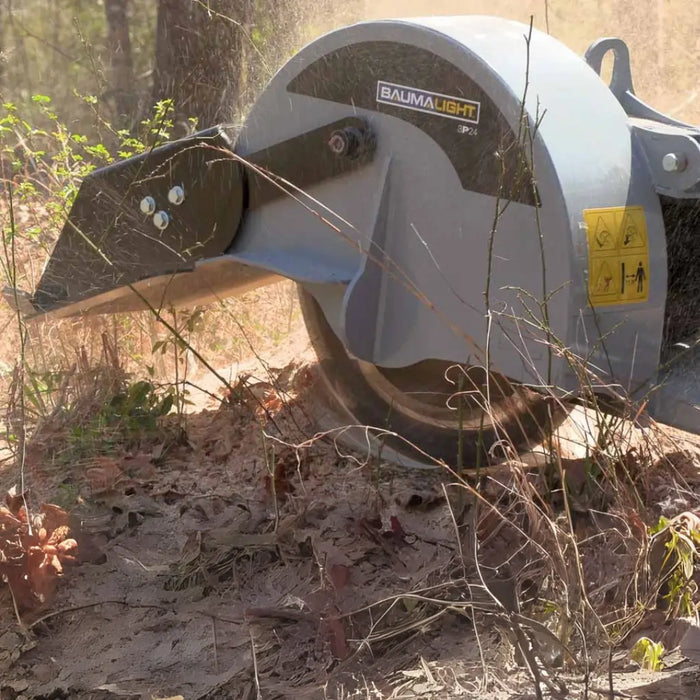

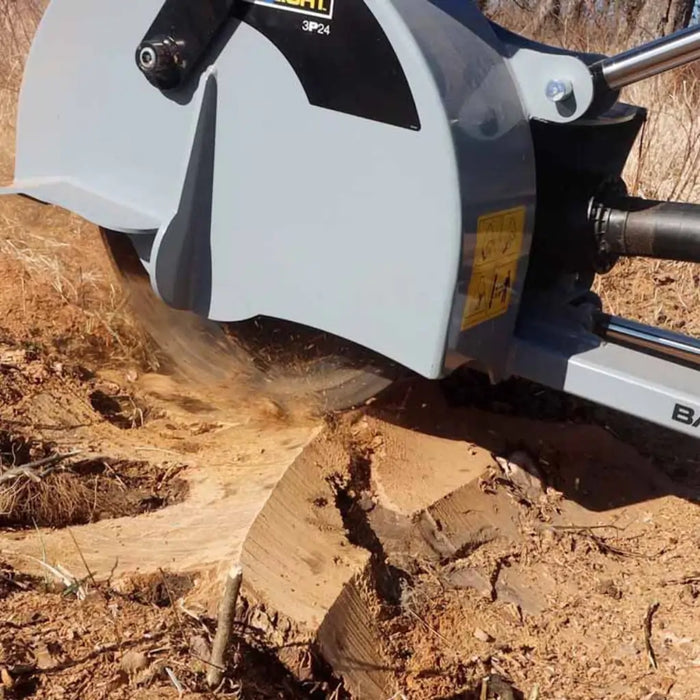

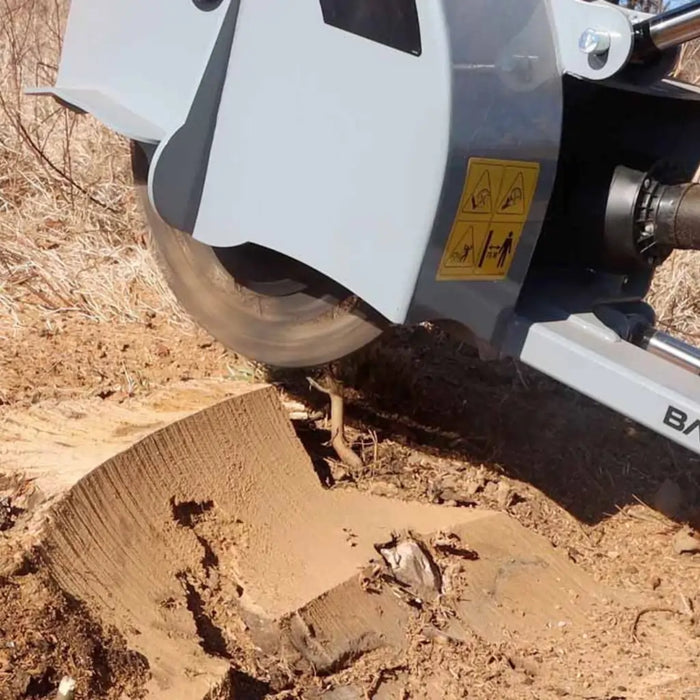

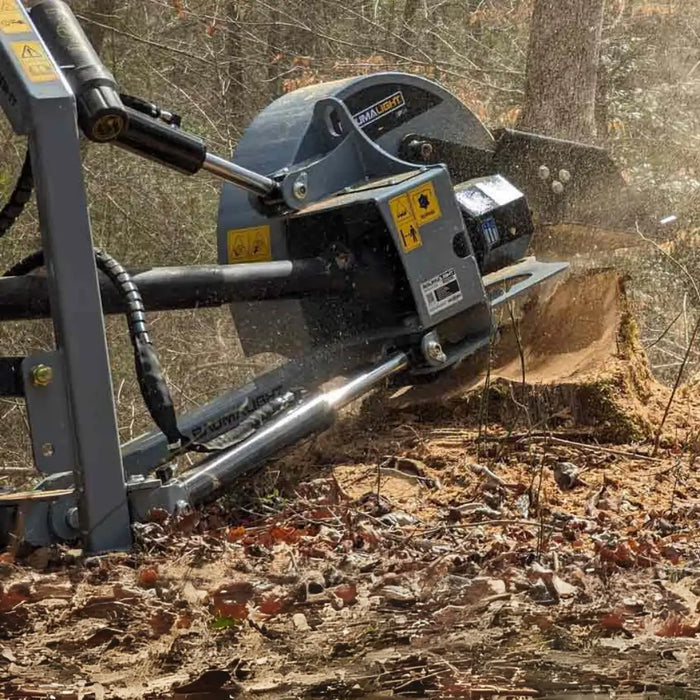

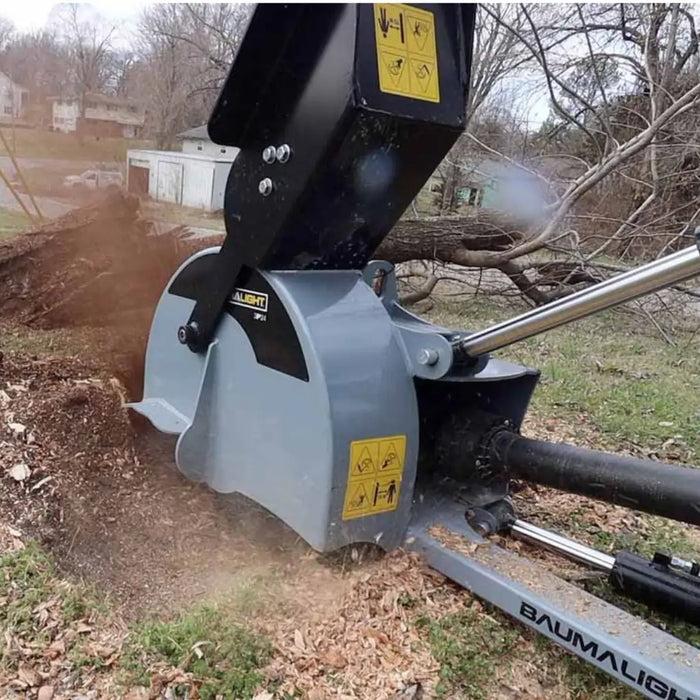

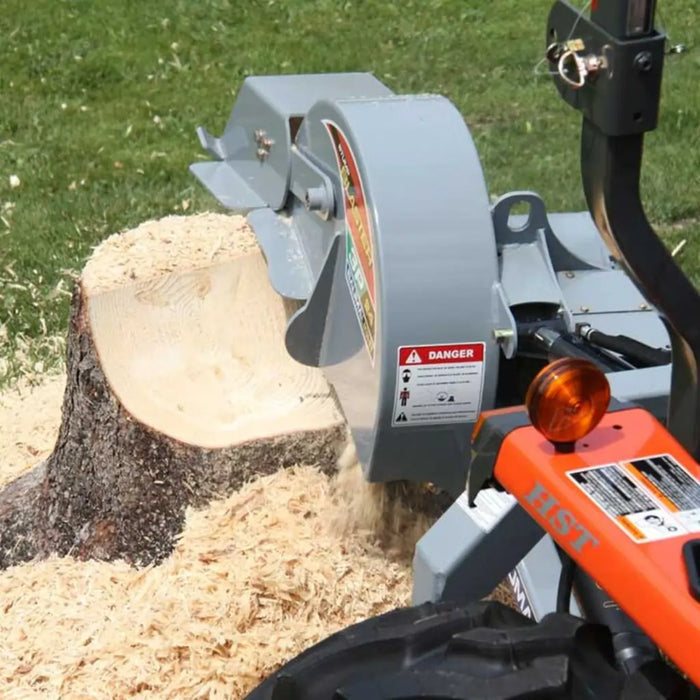

Baumalight 3P24 Stump Grinder

The Baumalight 3P24 PTO stump grinder stands as a pinnacle of efficiency and rugged strength, tailor-made for tractors equipped with a 30-50 HP motor. Designed to conquer even the most challenging stumps, this unit boasts a formidable 24-inch rotor with 34 replaceable carbide teeth, ensuring a cutting depth of 18 inches above ground and 8 inches below. Its powerful direct drive system, complemented by a heavy-duty gearbox, delivers a whopping 803 Ft-Lbs of torque, turning the rotor at 810 RPM to pulverize stumps into dust efficiently.

Crafted for adaptability, the 3P24 requires two hydraulic remotes from your tractor to operate the cutting and lifting cylinders effectively. For those with limited hydraulic options, Baumalight offers a convenient S1050 valve kit, enhancing compatibility and control, especially on smaller tractors. The unit’s flow control feature allows operators to fine-tune the grinding speed, maximizing productivity and minimizing wear on the equipment.

The robust design extends to every aspect of the 3P24, from its heavy-duty base that stabilizes operations and reduces tractor stress, to the high-grade chrome-vanadium AISI 6150 steel spring bushings at all main pivot points. An optional external control mounted on an adjustable arm provides enhanced cutting control, crucial for optimal performance in diverse working conditions. With Baumalight’s commitment to durability and performance, this stump grinder is not just a purchase; it’s a long-term investment in your land management arsenal.
